Kemper MaxiFil Extraction Unit - Active Carbon - 2,3,4m Arm, Flexible Exhaust Arm
The KEMPER MaxiFil Extraction Unit is a high-performance filter device that boasts large filter capacities and ensures contamination-free filter changes. It comes equipped with an extra activated charcoal filter that effectively absorbs gases and odours.
Designed for continuous use, its high mobility and a 36-degree operating radius make it a preferred choice for applications with medium amounts of smoke and dust. The unit also features a self-supporting exhaust arm that can be adjusted effortlessly into any desired position with just one hand.
Additionally, the MaxiFil offers a safe and easy filter change system, ensuring no contact with hazardous fine dust.
Features & Benefits
- Rotation Field Control: Ensures safe operation of the unit.
- Optimised Exhaust Hood Design: The flow-optimised design minimises the need for frequent adjustments of the exhaust arm.
- Filter Monitoring: Enhances safety by keeping track of the filter’s condition.
- Safe Filter Change: The Safe Change Filter system ensures a dust-free filter change, enhancing safety.
- Economic Operation: The unit’s XXL Filter with 42 m² surface area ensures long-lasting high capacity filtration, making it very economical.
- 360° Radius: The exhaust arm offers maximum flexibility, allowing for unrestricted use.

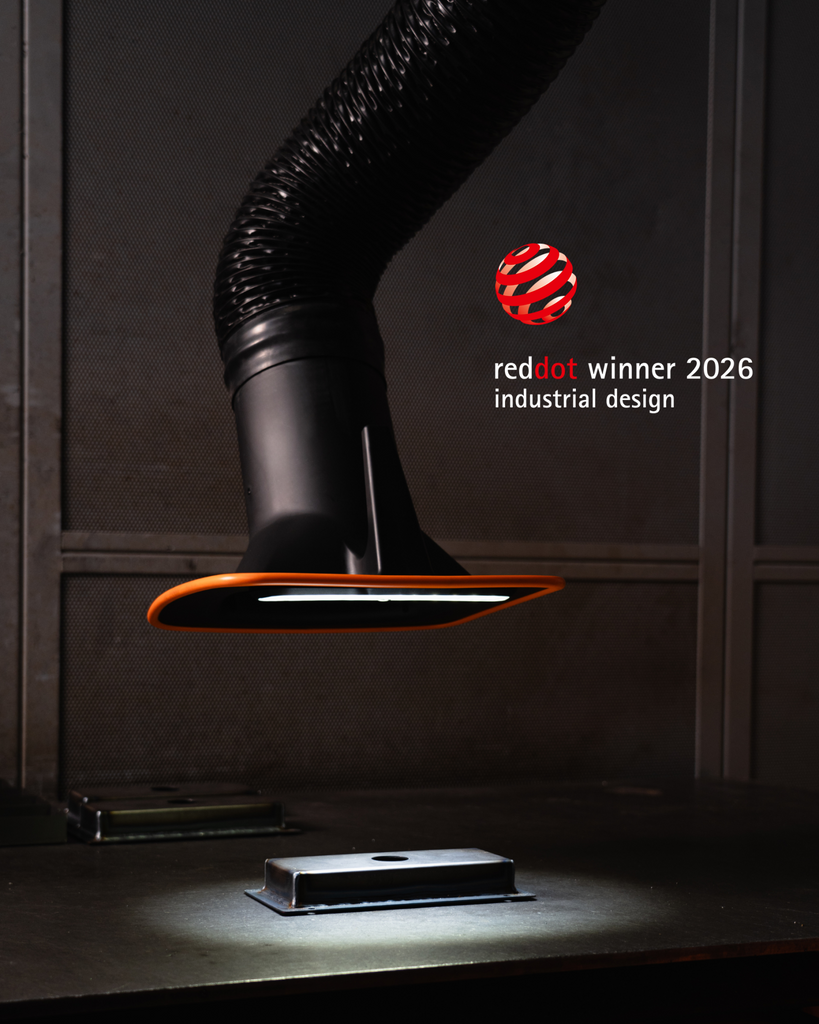

- Enhanced Capture Rate: The flanged hood design results in a 40% better capture rate, reducing the need for frequent re-positioning of the exhaust arm.
- Activated Carbon Filter: Comes with a 7.8 kg filling volume, effectively absorbing gases and odours.
Typical Applications
- Absorption of gases and odours
- Medium levels of smoke and dust
- Regular use
Available Variants
- Various arm lengths and versions
- Other voltages
Technical Data
Filter Specifications
| Filter stages | 3 |
| Filter method | Storage Filter |
| Filter surface | 34 m² |
| Type of filter | Safe Change Filter |
| Filter material | Non-woven polyester |
| Filter efficiency | > 99.5 % |
| Filter class | E12 |
| Additional filters | Pre-filter (aluminium) and activated charcoal filter |
Power & Electrical
| Motor power | 1.5 kW |
| Power supply | 3 x 400 V / 50 Hz |
| Rated current | 3.1 A |
| Control voltage | 24 V, DC |
Physical Specifications
| Dimensions (w x t x h) | 803 x 892 x 1109 mm |
| Weight | 135 kg |
| Noise level | 70 dB(A) |
Extraction Performance
| Extraction capacity | 950 m³/h |
| Fan type | Radial fan |
| Quantity of extraction arms | 1 |
| Exhaust arm type | Rigid and flexible options |
| Diameter extraction arm | 150 mm |
| Length of exhaust arm | 2 to 4 m |
Optional Features

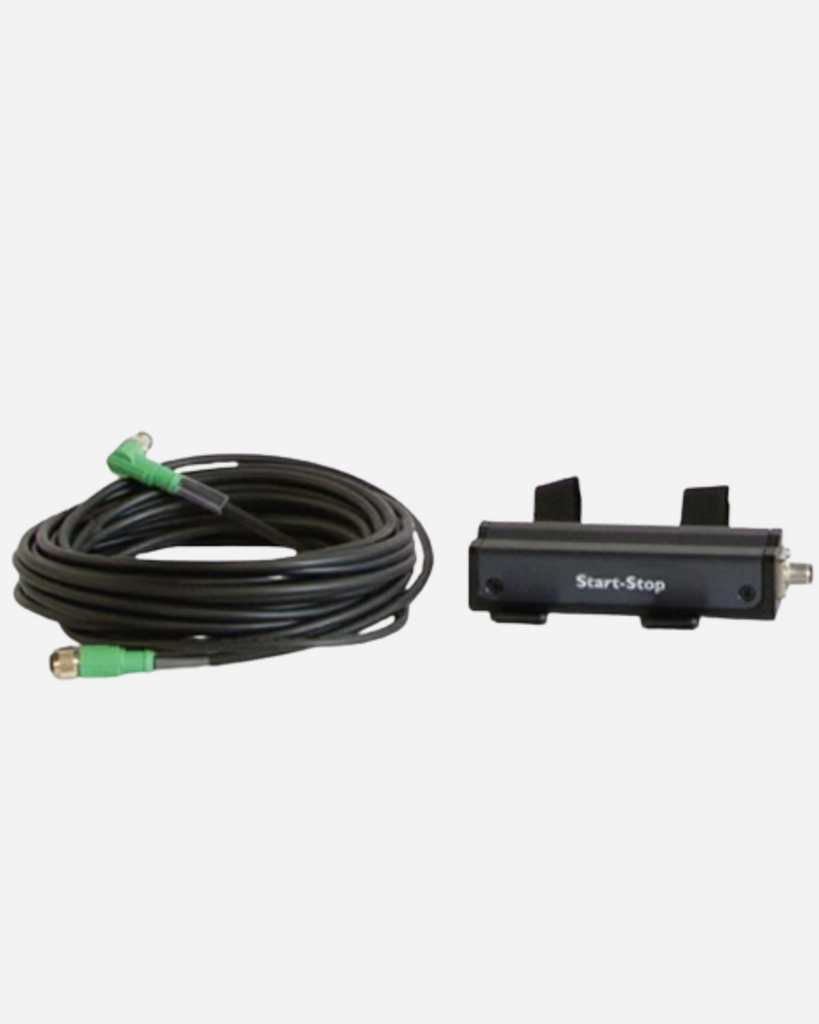

| Automatic Start-Stop | Yes (optional) |
| Lighting in the hood | Yes (optional) |
| Rotating exhaust hood | Yes |
| Activated carbon filter filling volume | 7.8 kg |
Included Accessories
| Automatic start-stop | Optional |
| Workplace lighting incl. on/off switch at the hood |
Optional |
