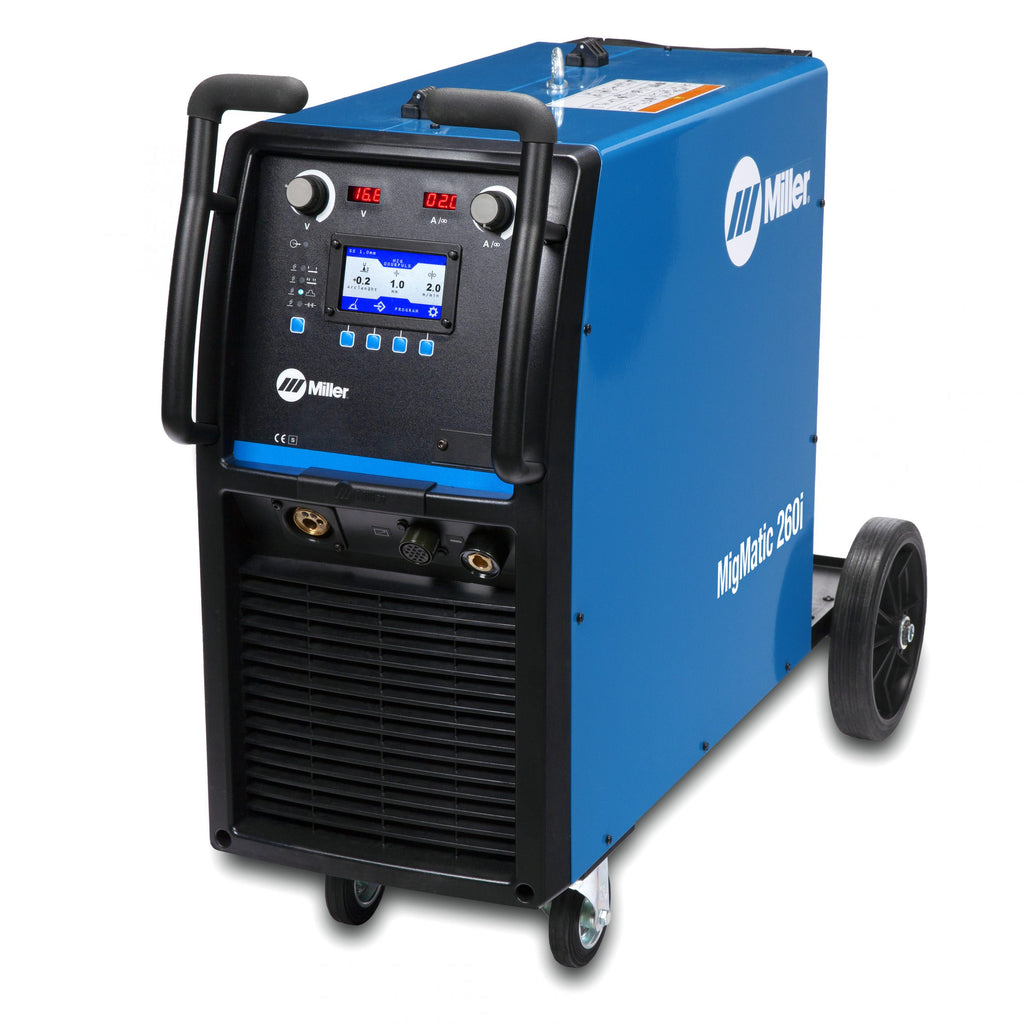

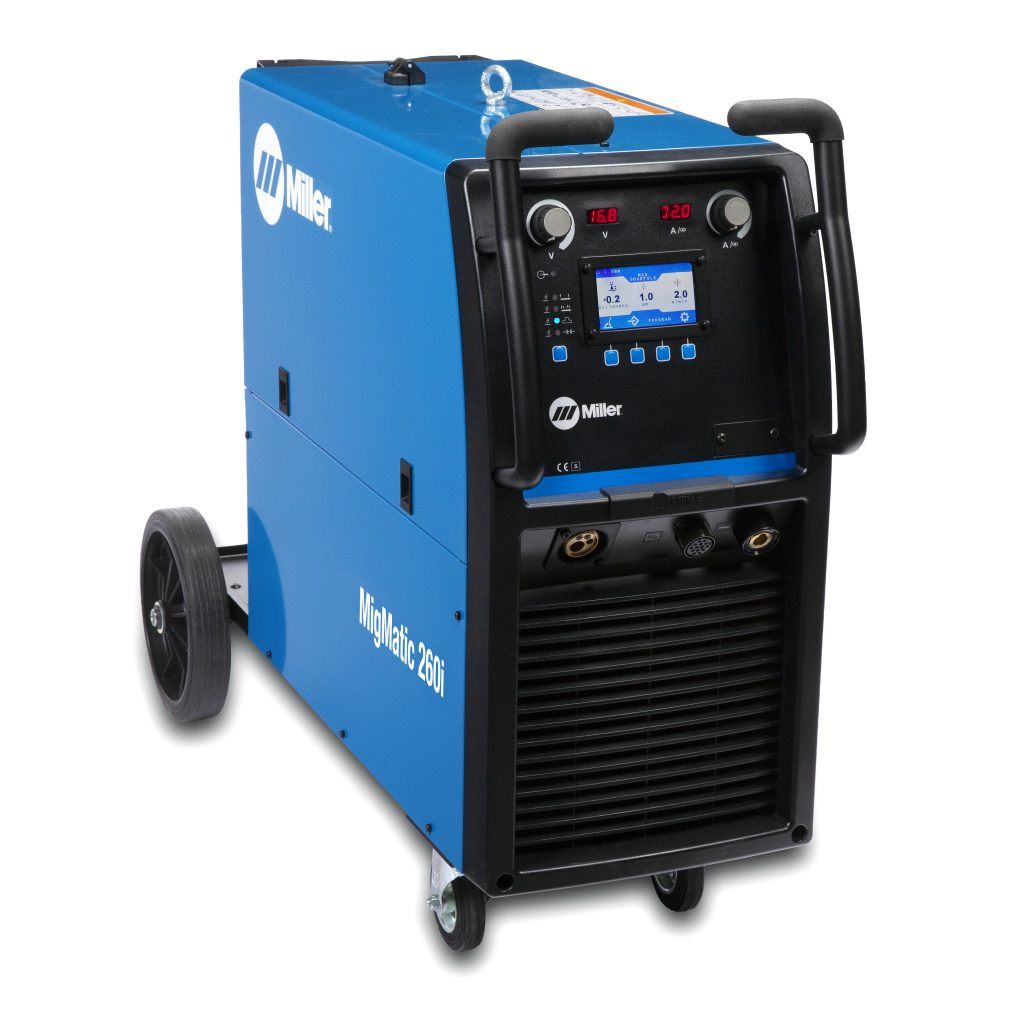

Miller 059015051 MigMatic 260i MIG/MAG Welder Power Source - 400V
Miller® MigMatic® 260i synergic MIG/MAG system featuring a heavy duty drive mechanism capable of consistent and precise wire feeding regardless of your choice of wire. The machine is quick to set up and the graphical user interface makes it easy to achieve those perfect weld parameters with very limited training required. The MigMatic® 260i is the perfect work shop tool and ideal for both solid and flux core wires.
Machine supplied with 3m mains cable, and 1.0 - 1.2mm V Groove Drive Rolls
Industrial constant voltage three phase compact MIG
- Supplied with work return lead. Primary cable. 0.8/1.0mm drive rollers
- Dual polarity for use with gasless flux cored wires.
- Trigger latching. Jog feature-non live feeding
- Spot weld timer. 4 drive roll system
- 260 amps @ 35% d/cycle
- Weight 57 kg.
- Miller 3-year warranty
The torch and regulator are not supplied with this machine.
Features
- Trigger program switch; re-call up to 4 pre-set programs from the torch trigger (any standard MIG torch) for increased productivity on more complex objects.
- Miller robustness; tested and approved for heavy-duty welding under the harshest conditions.
- Heavy duty wire drive mechanism; 4-roll drive system ensures trouble-free wire feeding.
- Energy efficient; energy saving Fan-On-Demand power source cooling system operates only when needed, reducing noise and the number of contaminations pulled from the machine.
- Full synergic MIG/MAG with pre-sets; synergic lines for all common wire/gas combinations with pre-sets of starts/stop parameters for optimal welds.
- Ease of use and versatility; Large intuitive LCD panel for quick and precise setting of advanced weld parameters.
Specification
| Title | MigMatic 260i |
| Industries Interests | General fabrication Car repair Training schools Agricultural equipment Repair and maintenance |
| Material Thickness | |
| Weldable Metals | Thin to thick, All materials, 0,8-1.2 mm solid, Cored wires |
| Input Voltage | 400 V |
| Input Phase | 3 phases |
| Input Hz | 50/60 Hz |
| Amperage Range | 15 A – 260 A |
| Max. Output Amperage | 285 A |
| Current Type | |
| Rated Output | 260 A, 27 V at 35% duty cycle |
| Max Open Circuit Voltage | 70 VDC |
| Portability | |
| Weld Output | |
| Net Width | 470 mm |
| Net Height | 830 mm |
| Net Length | 1070 mm |
| Net Weight | 57 kg |
| Warranty | 3 Years Miller’s True Blue Warranty |
