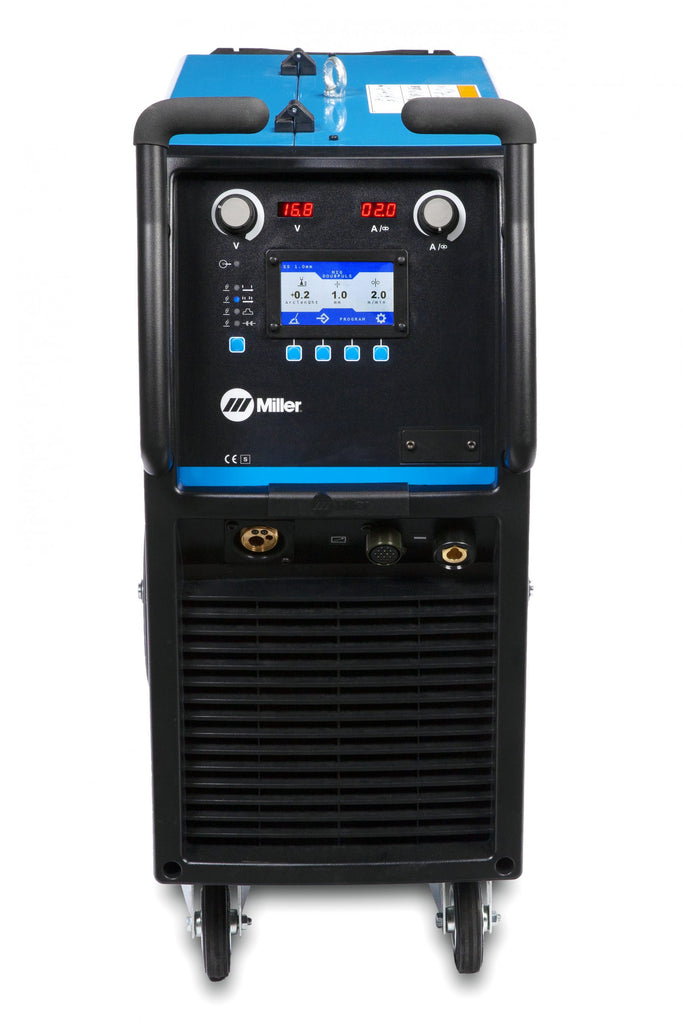

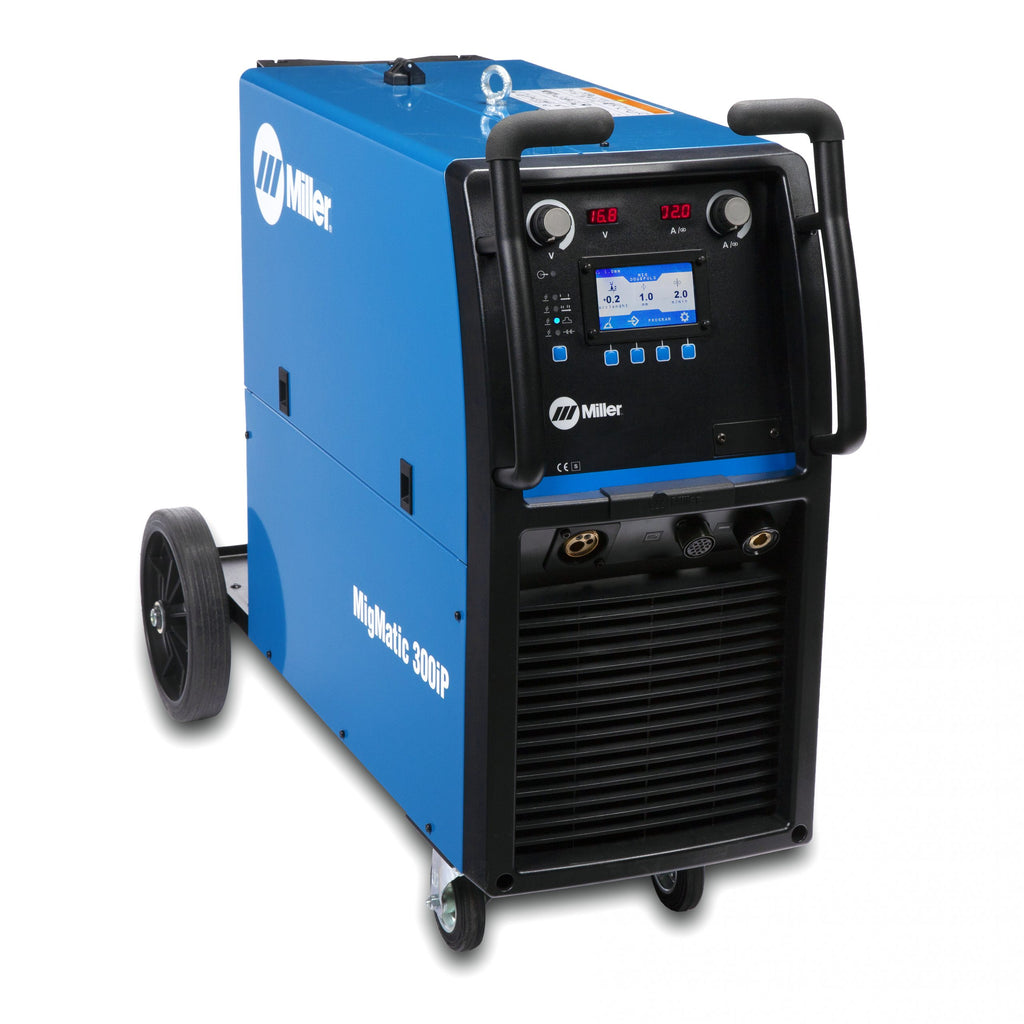

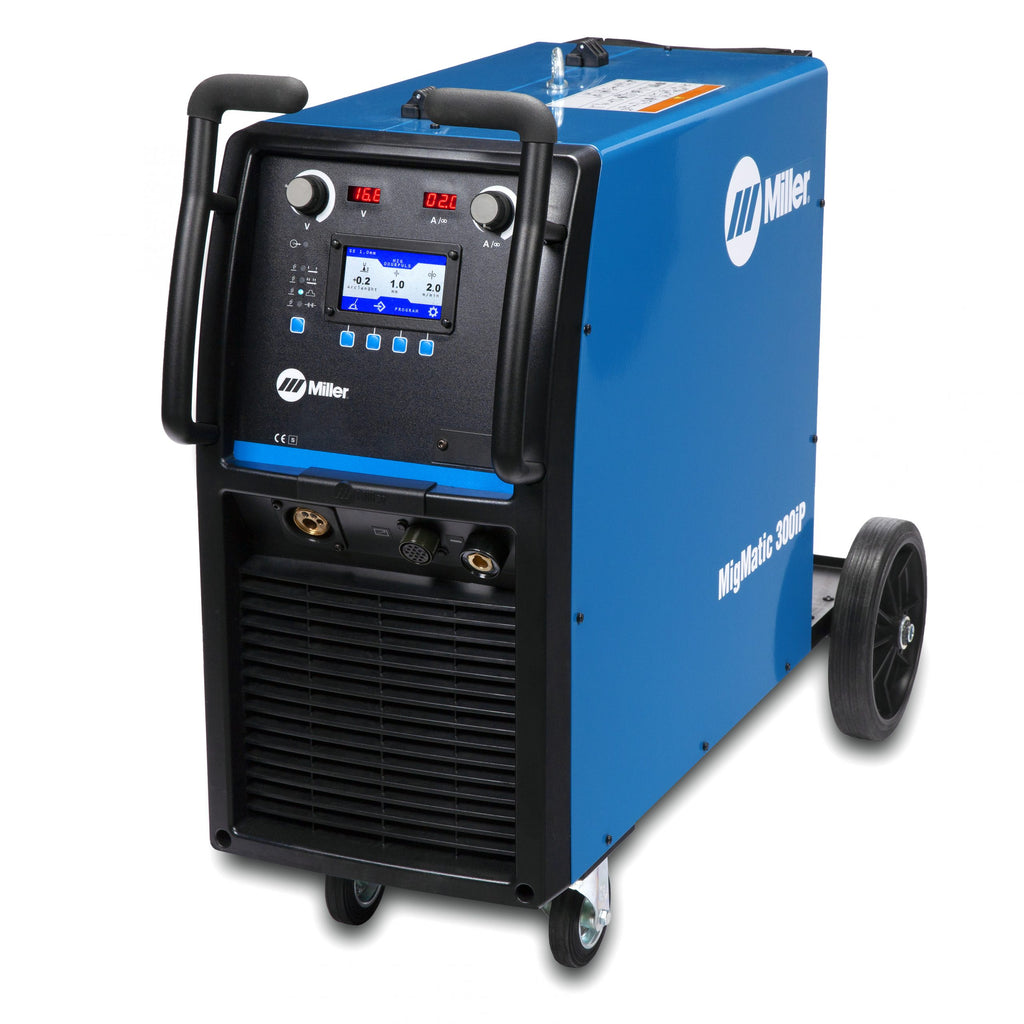

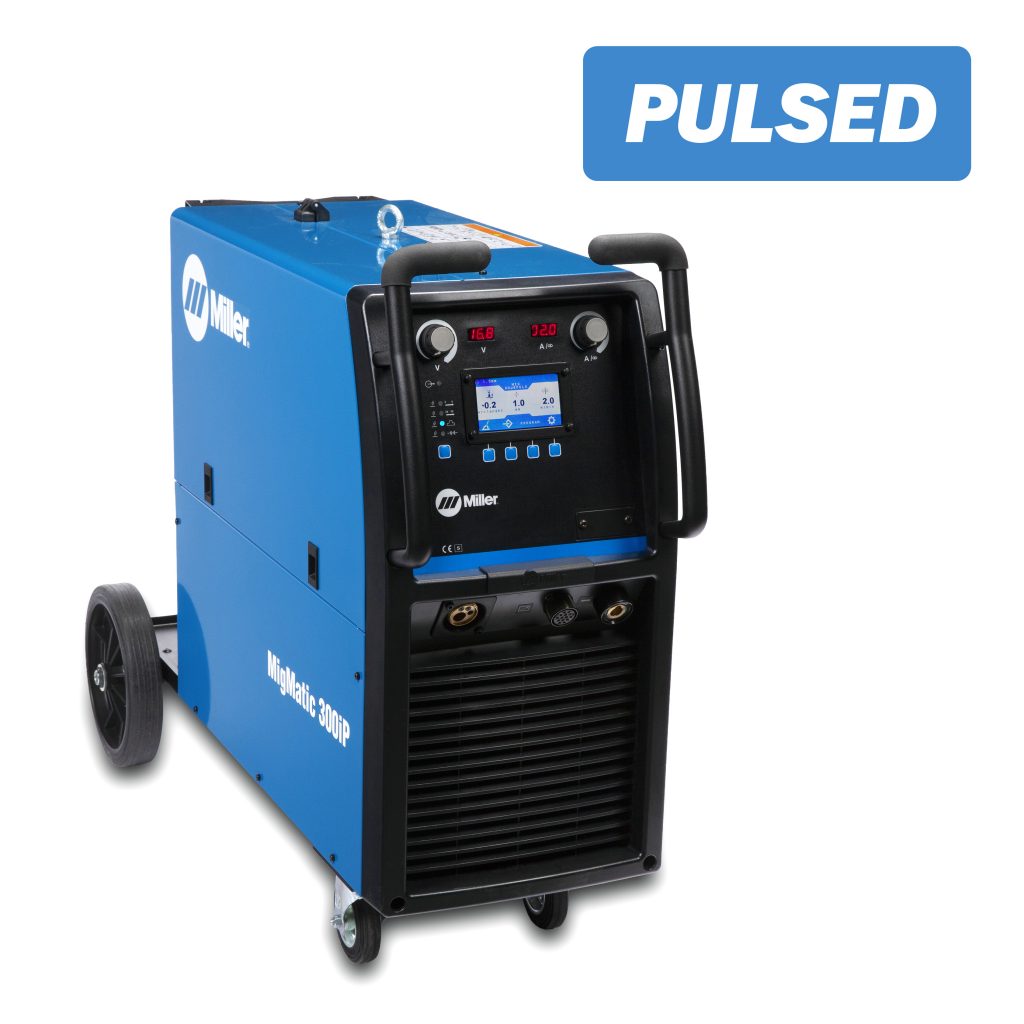

Miller 059015052 MigMatic® 300iP Pulsed MIG/MAG Welding Machine 400V
Miller® MigMatic® 300iP Synergic Pulsed MIG/MAG System featuring a heavy duty drive mechanism capable of consistent and precise wire feeding regardless of your choice of wire. The Pulse MIG/MAG welding capability makes the system ideal for aluminium applications and for thin plate mild and stainless steel welding. The user interface is extremely easy to use and never before has it been so quick and straight forward to achieve excellent welding performance.
Features
- Trigger program switch: re-call up to 4 pre-set programs from the torch trigger (any standard MIG torch) for increased productivity on more complex objects.
- Miller robustness: tested and approved for heavy-duty welding under the harshest conditions.
- Heavy duty wire drive mechanism: 4-roll drive system ensures trouble-free wire feeding.
- Energy efficient: energy saving Fan-On-Demand power source cooling system operates only when needed, reducing noise and the number of contaminations pulled from the machine.
- Full synergic Pulse with pre-sets: synergic lines for all common wire /gas combinations with pre-sets of starts /stop parameters for optimal welds.
- Ease of use and versatility: large intuitive LCD panel for quick and precise setting of advanced weld parameters.
Specification
| Title | MigMatic 300iP |
| Industries Interests | General fabrication Car repair Training schools Agricultural equipment Repair and maintenance |
| Material Thickness | |
| Weldable Metals | Thin to thick, All materials, 0,8-1.2 mm solid, Cored wires |
| Input Voltage | 400 V |
| Input Phase | 3 phases |
| Input Hz | 50/60 Hz |
| Amperage Range | 15 A – 300 A |
| Max. Output Amperage | 330 A |
| Current Type | |
| Rated Output | 300 A, 29 V at 40% duty cycle |
| Max Open Circuit Voltage | 70 VDC |
| Portability | |
| Weld Output | |
| Net Width | 470 mm |
| Net Height | 830 mm |
| Net Length | 1070 mm |
| Net Weight | 57 kg |
| Warranty | 3 Years Miller’s True Blue Warranty |
