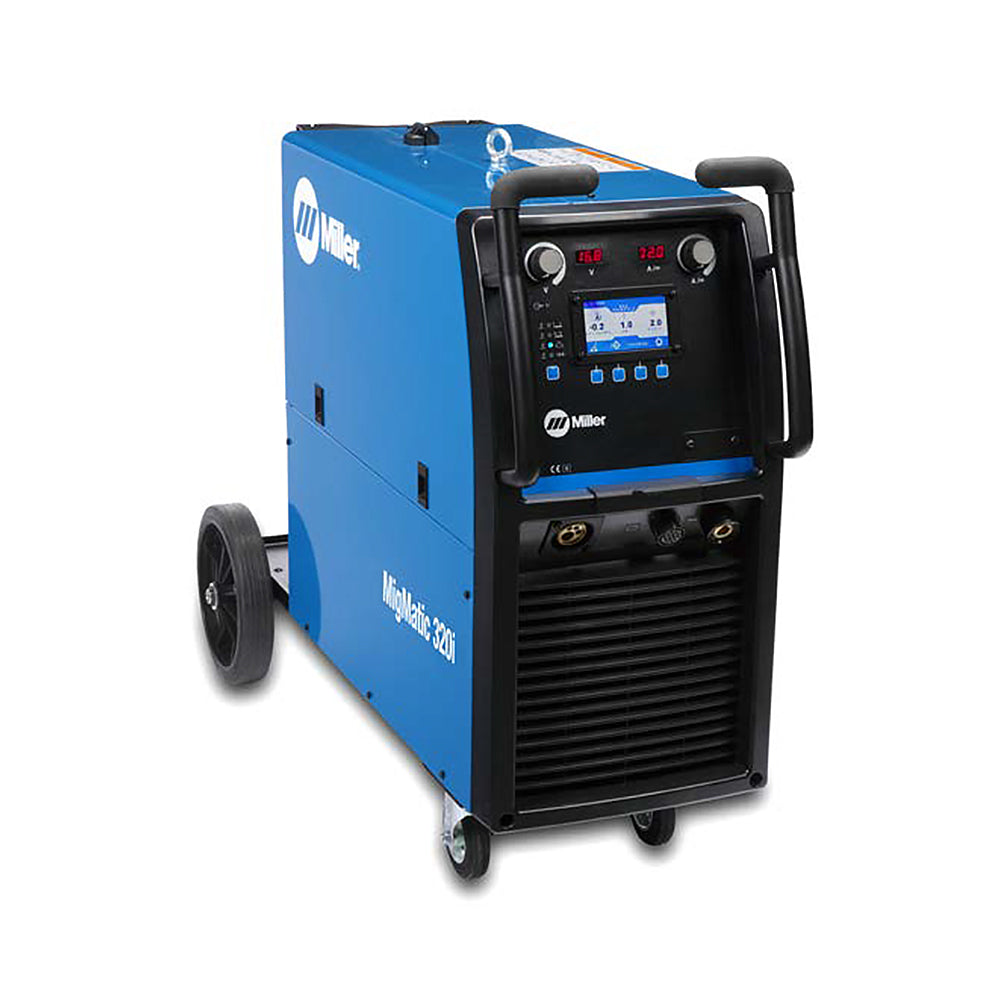

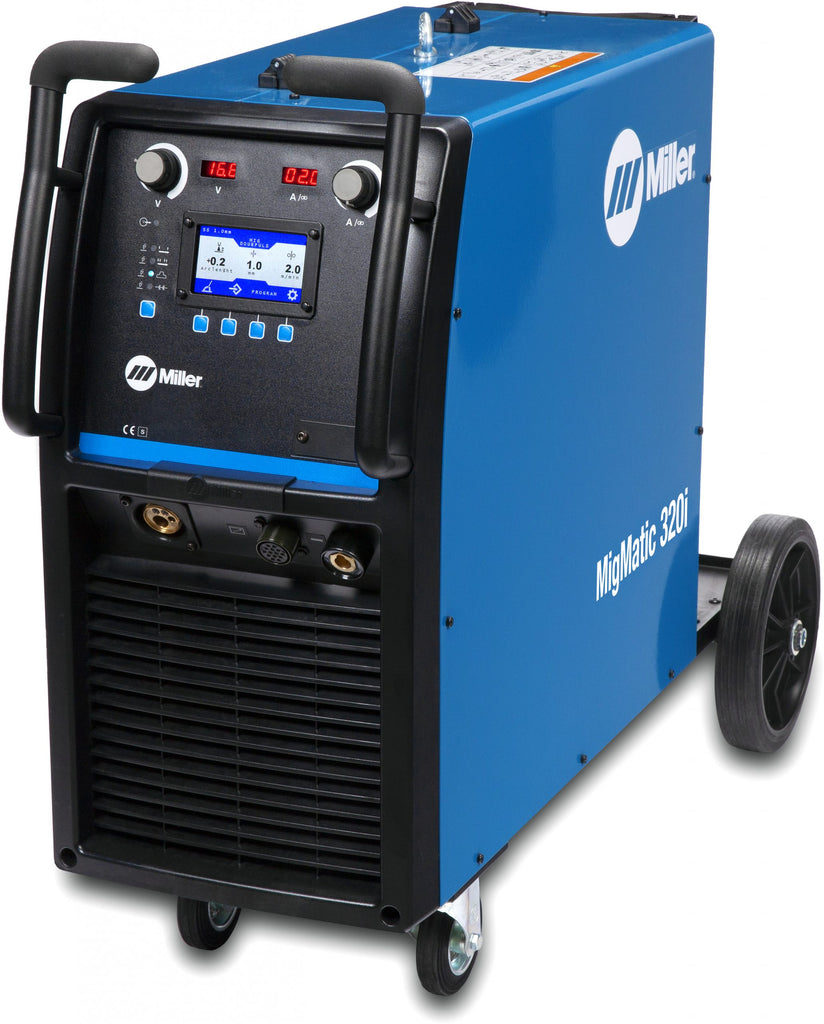

Miller 059015053 MigMatic® 320i MIG/MAG Welding Machine 400V
Miller® MigMatic® 320i synergic MIG/MAG system featuring a heavy duty drive mechanism capable of consistent and precise wire feeding regardless of your choice of wire. The machine is quick to set up and the graphical user interface makes it easy to achieve those perfect weld parameters with very limited training required. The MigMatic® 320i is the perfect work shop tool and ideal for both solid and flux core wires.
Machine Supplied with 3m mains cable and 1.0 - 1.2mm V groove drive rolls.
Miller MigMatic 320i Synergic Compact Mig System is ideal for aluminium applications and for mild and stainless steel welding.
- Featuring a heavy duty drive mechanism capable of consistent and precise wire feeding of solid & cored wires.
- Energy Efficient-energy saving Fan-On-Demand power source cooling system operates only when needed, reducing noise and the number of contaminations pulled from the machine.
- Package includes MB36 torch 4 metre & regulator.
- Input Power: 400V, 3 Phase 50/60Hz
- Welding output; 320 amps at 35% Duty Cycle
- Max Output Amperage: 320
- Output Range: 15 to 320 amps
- Net Weight: 57KG
- Trigger program switch re-call up to 4 pre-set programs from the torch trigger (any standard MIG torch) for increased productivity on more complex objects.
- Miller robustness tested and approved for heavy-duty welding under the harshest conditions.
- Heavy duty wire drive mechanism 4-roll drive system ensures trouble-free wire feeding.
- Full synergic MIG/MAG with pre-sets synergic lines for all common wire/gas combinations with pre-sets of starts/stop parameters for optimal welds.
- Ease of use and versatility large intuitive LCD panel for quick and precise setting of advanced weld parameters.
Specification
| Title | MigMatic 320i |
| Industries Interests | General fabrication Car repair Training schools Agricultural equipment Repair and maintenance |
| Material Thickness | |
| Weldable Metals | Thin to thick, All materials, 0,8-1.2 mm solid, Cored wires |
| Input Voltage | 400 V |
| Input Phase | 3 phases |
| Input Hz | 50/60 Hz |
| Amperage Range | 15 A – 320 A |
| Max. Output Amperage | 350 A |
| Current Type | |
| Rated Output | 320 A, 30 V at 35% duty cycle |
| Max Open Circuit Voltage | 70 VDC |
| Portability | |
| Weld Output | |
| Net Width | 470 mm |
| Net Height | 830 mm |
| Net Length | 1070 mm |
| Net Weight | 57 kg |
| Warranty | 3 Years Miller’s True Blue Warranty |
