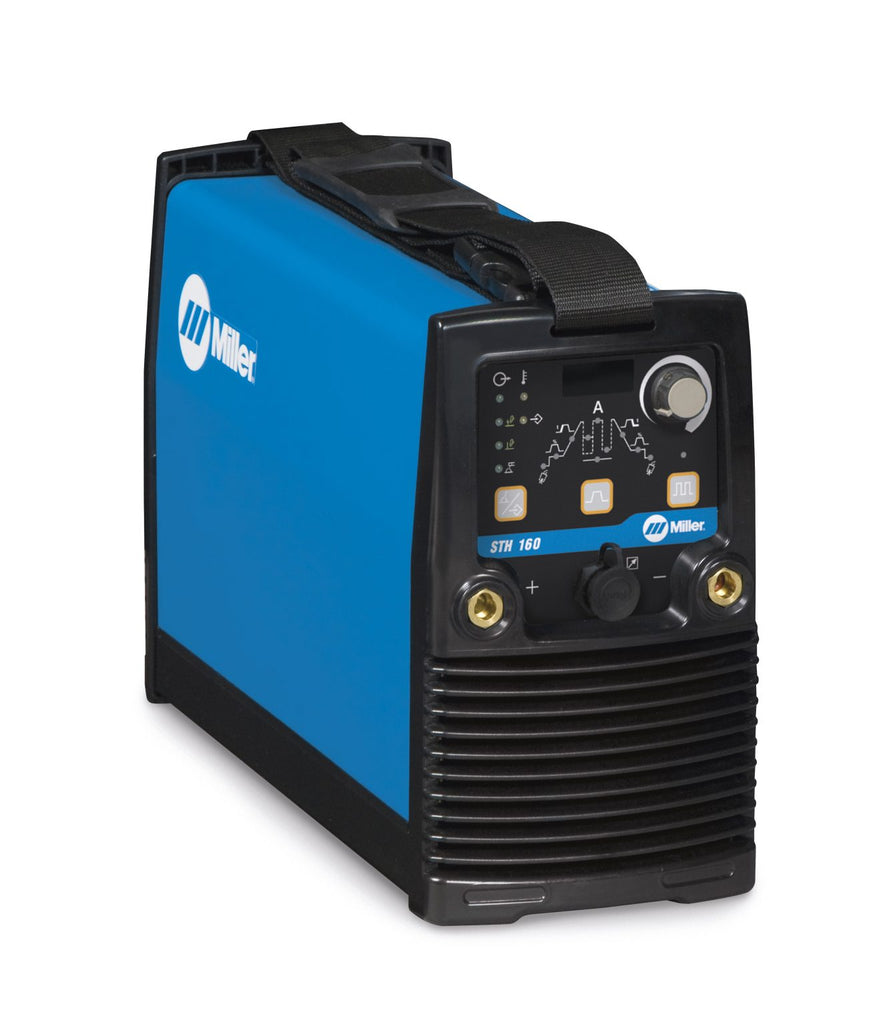

Miller 059016013 STH 160 DC TIG Welding Machine 230V

Miller 059016013 STH 160 DC TIG Welding Machine 230V

Inverter-based, DC power source has a simple-to-use operator interface providing only the necessary controls in a compact machine.

Inverter-based, DC power source has a simple-to-use operator interface providing only the necessary controls in a compact machine. Portable in the shop or at the job site at 6Kg (13.2lb), the shoulder strap allows the end user to easily move from location to location. Built-in pulsing capabilities allow the operator to select from four fixed pulse frequencies to satisfy the application.

Portable - in the shop or at the job site at 6Kg (13.2lb), the shoulder strap allows the end user to easily move from location to location.
Digital meter - with presetting. Shows preset current before welding and actual value during welding.
Lift-Arc™ - start provides TIG arc starting without the use of high frequency or the risk of tungsten contamination.
HF start - for non-contact arc starting that eliminates tungsten or material contamination.
Adjustable Hot Start™ - for Stick arc starts. Adjust the optimal start current for the application. The current automatically increases the output amperage at the start of a weld.
Adjustable Arc force™- prevents sticking. Adjust the optimal arc force value. Adjustable arc force supports positional welding by increasing the output amperage.
Built-in pulsing capabilities - allow the operator to select from four fixed pulse frequencies to satisfy the application.
VRD function - a simple design that reduces the open-circuit voltage to 20 volts when the welding power source is not in use.

Specification

Processes

Stick (SMAW)
TIG (GTAW)
Pulsed TIG (GTAW-P)
