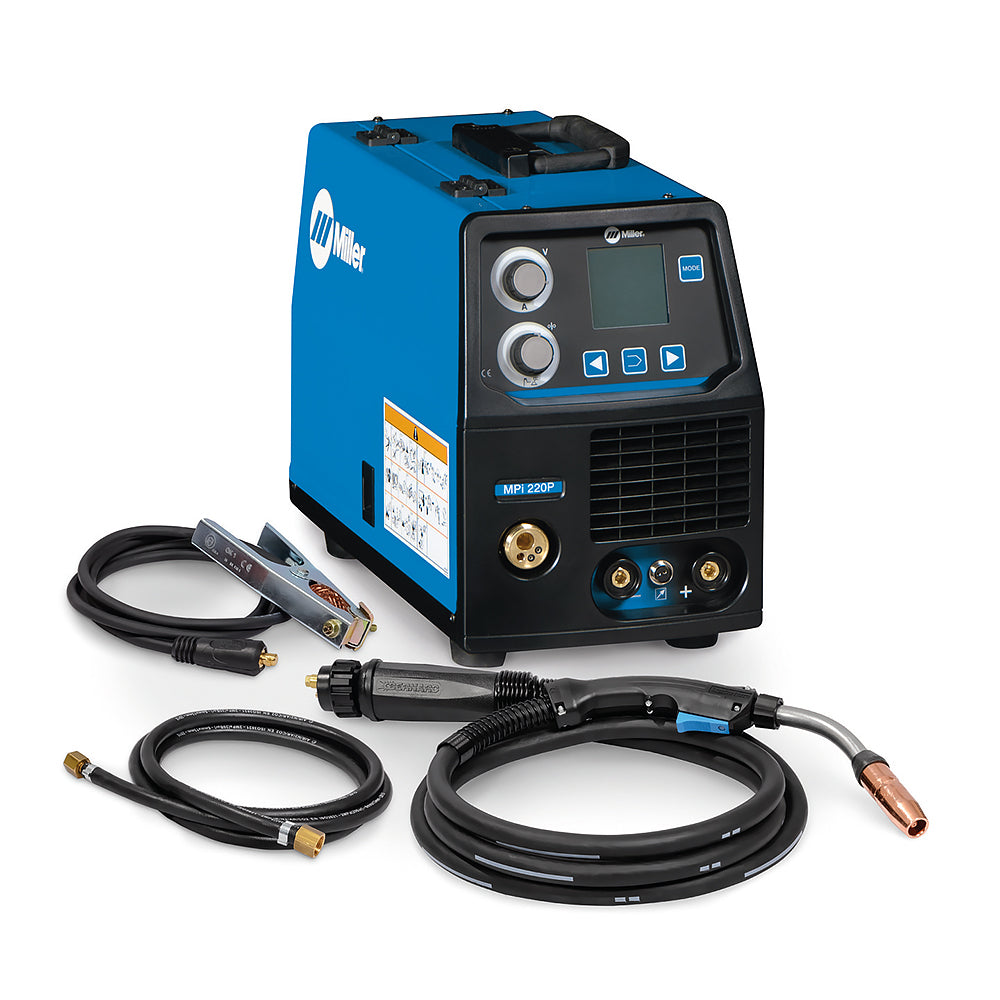

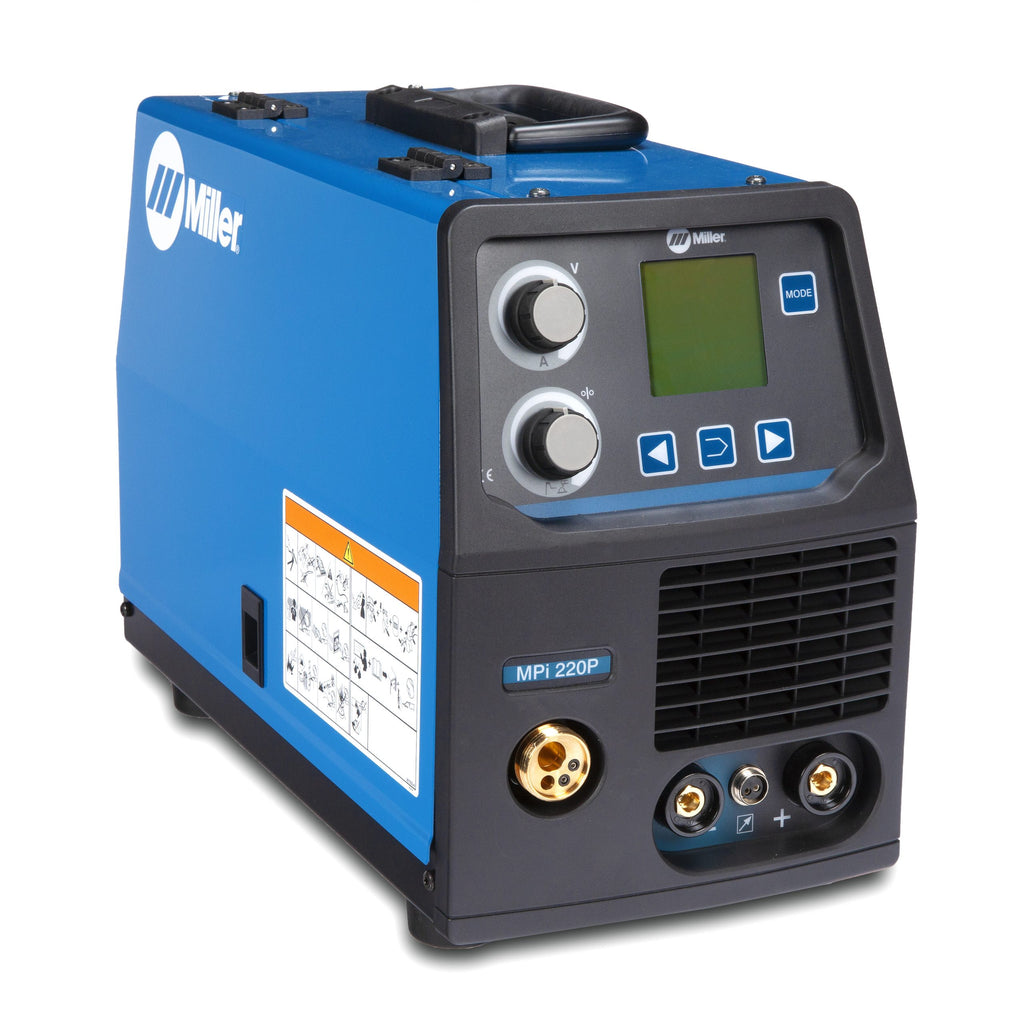

Miller 059016014 MPi 220P Multiprocess Welding Machine 230V

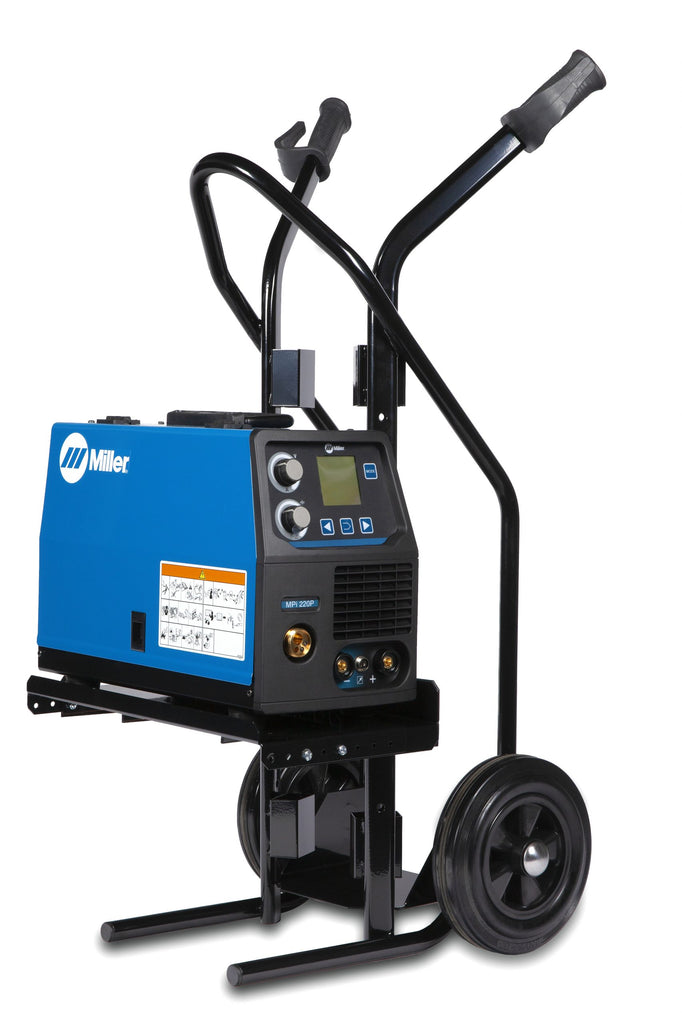

Portability is number one when you have to go to the job - because it can’t come to you. The MPi 220P contains all you need to MIG weld in one small lightweight package. With the flip of a switch, all processes are available to meet the application at hand.
Features
Portability is number one- when you have to go to the job—because it can’t come to you. The MPi 220P contains all you need to MIG weld in one small lightweight package. With the flip of a switch, all processes are available to meet the application at hand.
Full weld process capability- MIG/MAG, pulse, stick and TIG are available to meet the demand of current applications.
Synergic welding library- offers the simplicity of single knob control. The machine will select the correct voltage and amperage based on the wire feed speed (WFS) set by the operator.

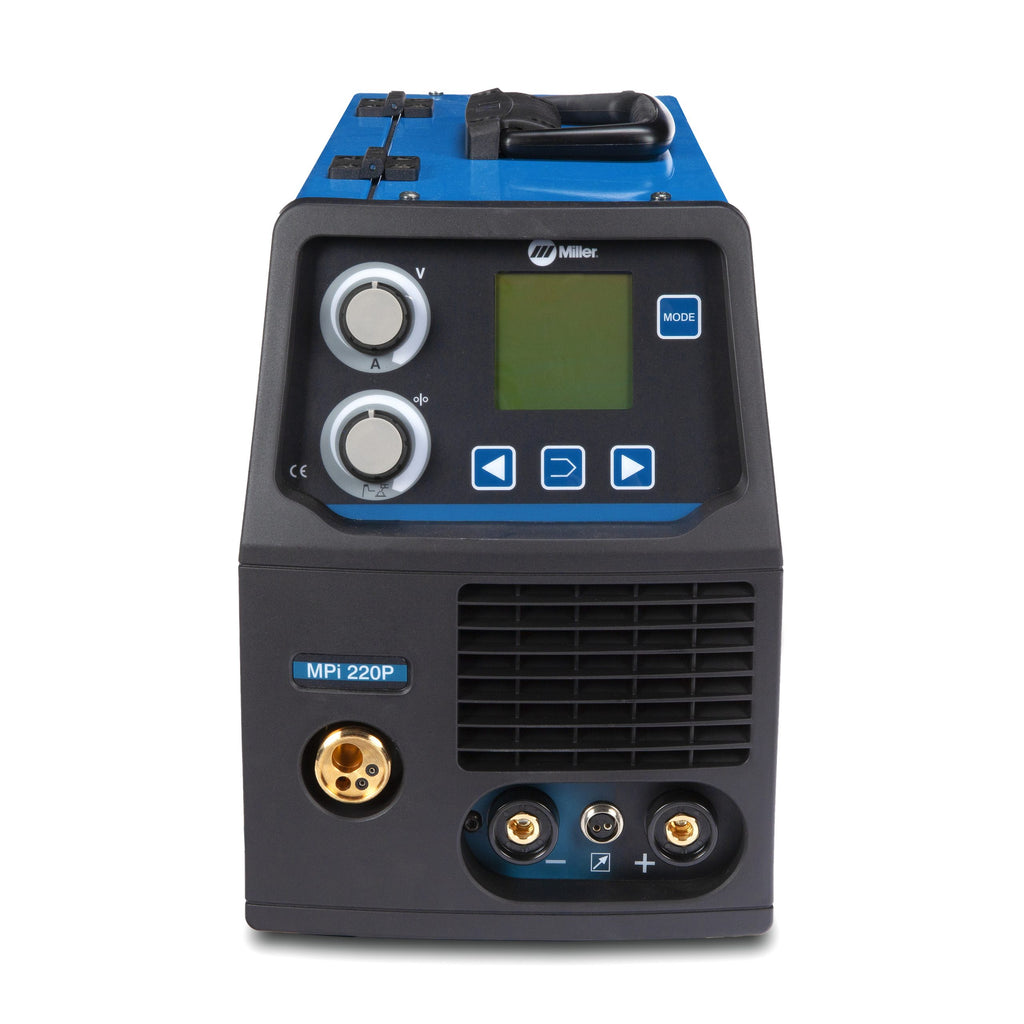

Large graphical display- guides user through process and parameter setup with ease and high visibility.
Cast aluminum drive system- incorporates a dual-groove quick-change drive roll and spring-loaded tension arm with calibrated tension knob, all designed to make setup easier and faster.
Adjustable Hot Start™ for stick arc starts- Adjust the optimal start current for the application. The current automatically increases the output amperage at the start of a weld.
Built-in upslope/downslope function for TIG- helps provide better arc starts and reduces craters.
Built-in run-in/crater/burnback function for MIG- helps provide better arc starts and reduces craters.
Convenient polarity changeover- Easy access to output studs provides convenient polarity changeover when changing from solid or flux cored wires.
Excellent arc characteristics- The MPi 220P offers positive arc starts and an extremely stable arc with minimal spatter on both mixed gases and straight CO2.
Adjustable preflow and postflow- gives operator better control of the gas parameters affecting weld zone.
Specifications| Title | MPi 220P |
| Industries Interests | Light fabrication Maintenance and repair Auto body Farm/home |
| Material Thickness | |
| Weldable Metals | Thin to medium material. Steel, Stainless, Aluminium |
| Input Voltage | 230 V |
| Input Phase | single-phase |
| Input Hz | 50/60 Hz |
| Amperage Range | MIG: 20–200 A, 15–24 V Stick: 5–200 A, 20.2–28 V TIG: 5–200 A, 10–18 V |
| Current Type | |
| Rated Output | MIG: 110 A at 17.5 VDC, 100% duty cycle Stick: 100 A at 24 VDC, 100% duty cycle TIG: 100 A at 14 VDC, 100% duty cycle |
| Max Open Circuit Voltage | MIG: 35 V Stick: 65 V TIG: 65 V |
| Portability | |
| Weld Output | |
| Net Width | 237 mm (9.3 in.) |
| Net Height | 365 mm (14.4 in.) |
| Net Length | 548 mm (21.6 in.) |
| Net Weight | 16 kg (35 lb.) |
| Warranty | 3 Years Miller’s True Blue Warranty |
