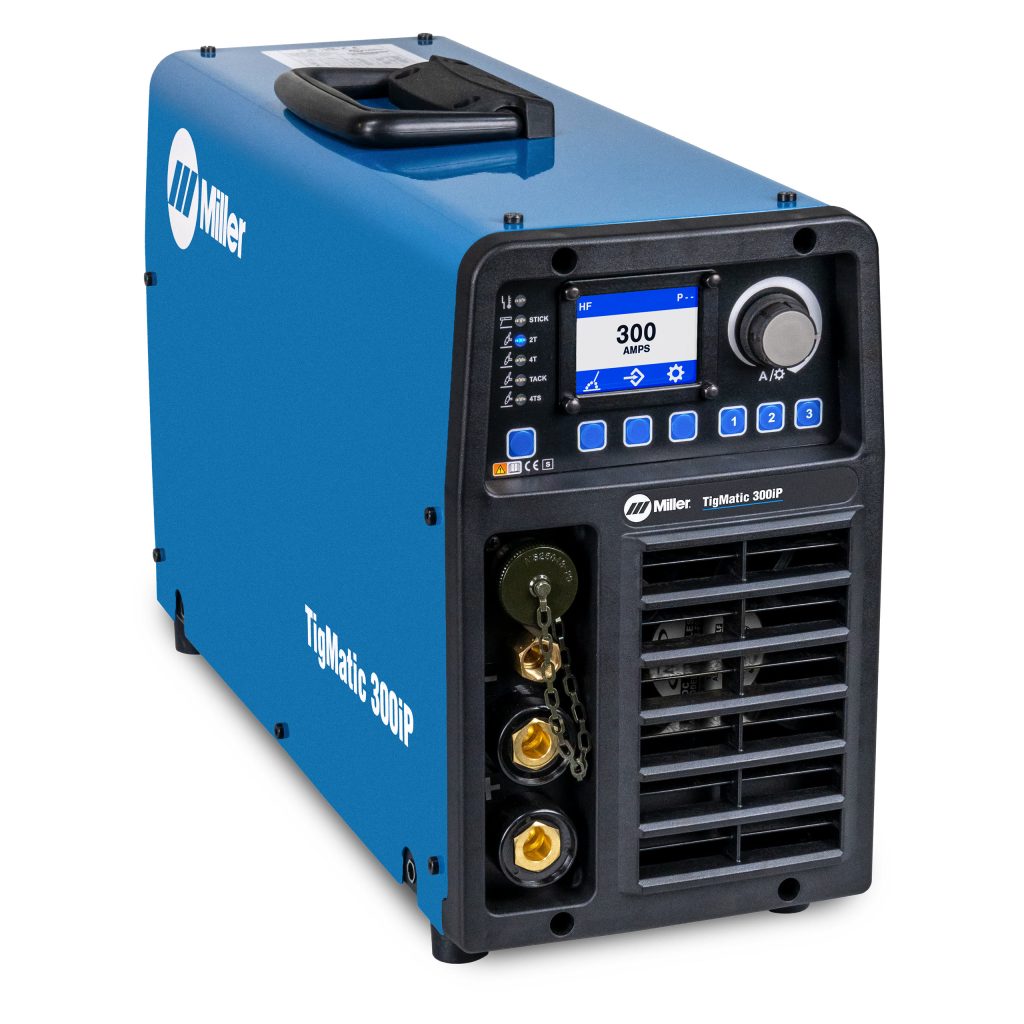

Miller 059016034 TigMatic® 300iP DC TIG/Stick Welding Machine 400V
Experience reliable and precise arc performance paired with a user friendly interface that puts advanced capabilities at your fingertips. With a step-by-step guided setting process, the TigMatic® 300iP power source is ready to weld within seconds. The extremely rugged and robust TigMatic® 300iP can run DC TIG, DC TIG Pulse and MMA, including cellulosic electrodes, in even the toughest environments.
Features

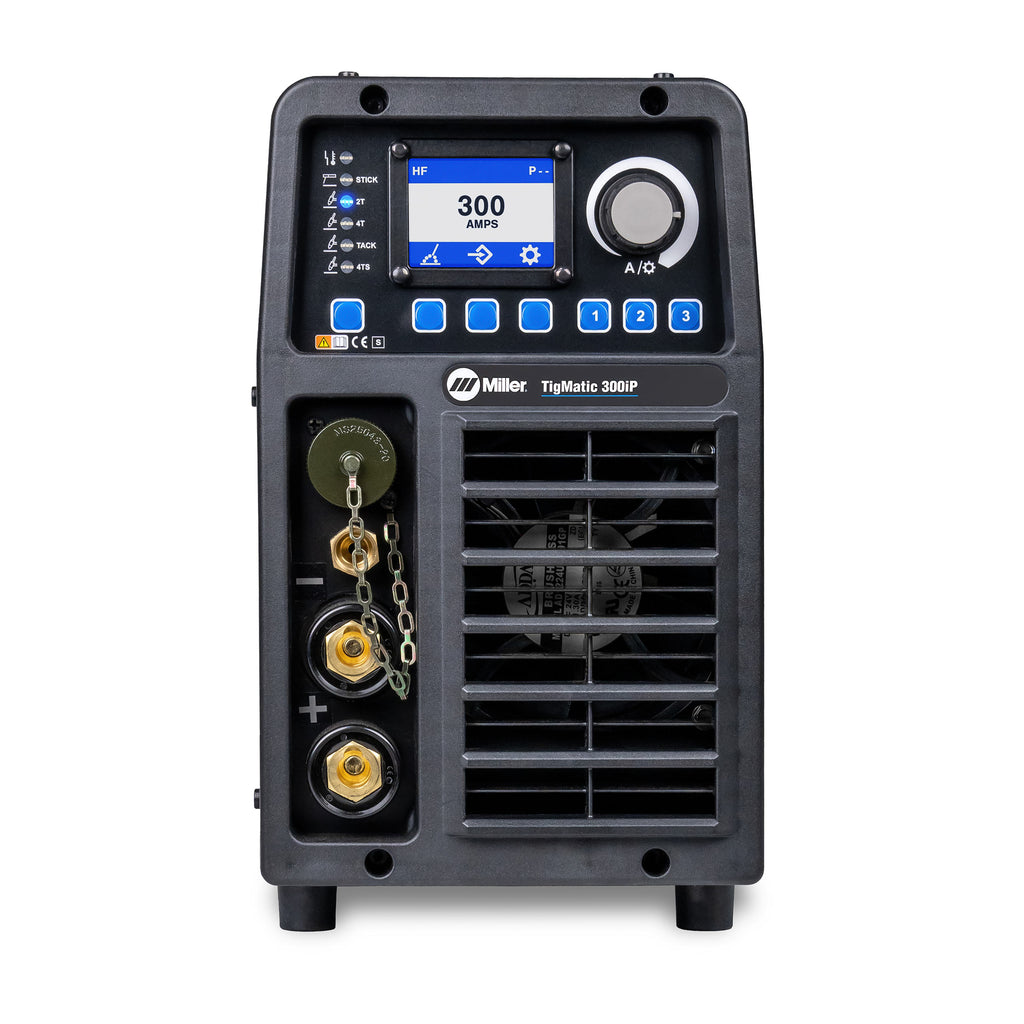

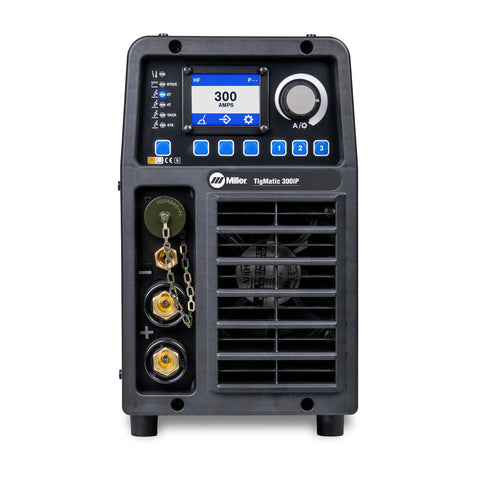

- A guided four-step approach to achieve optimal weld parameters. The extremely intuitive LCD panel provides an overview of the settings and makes adjustments quickly and efficiently.
- Optimised start sequence for each Tungsten diameter. The start values are automatically set, ensuring smooth and accurate TIG starts every time.
- Program memories store and recall three weld programs with direct access from the front panel or through trigger select. Deliver more productivity by eliminating the need to manually set the parameters. Deliver consistent quality by welders of all skills.
- Trigger select allows the operator to recall stored program by tapping the torch trigger, eliminating the need to walk back to the machine to change parameters.
- The weld current can be adjusted between or during welds. Compatible with Miller hand and foot controls (foot pedal). Select a wireless foot pedal for unrestricted flexibility. Select a Miller EuroTorch with a built-in remote option in the handle.
- Tack welding mode provides precise and repeatable tacks, ideal for when preparing the welding object. Store and recall directly from the front panel to save time between weld cycles and maintain control of the heat input.
- 4TS trigger mode for manual adjustment of the heat input from the torch trigger. Toggle between two different current levels without extinguishing the arc.
- Optimised MMA performance for Basic, Rutile and cellulosic electrodes. Select the electrode type in the set-up menu to get suitable arc force and hot start parameters, ensuring good starts and good arc control.
- TIG settings: Adjustable Pre/Post gas, Adjustable slope up/down, Adjustable start/end current, Dual weld current levels, Pulse mode, Tack mode, and Min/Max values for remotes.
- MMA/Stick settings: Electrode selection, Hot Start, Arc force (DIG), Cellulosic mode, Adjustable OCV (VRD), Min/Max values for remotes.
TIG Settings
- Adjustable Pre/Post gas
- Adjustable slope up/down
- Adjustable start/end current
- Dual weld current levels
- Pulse mode
- Tack mode
- Min/Max values for remotes
MMA/Stick settings
- Electrode selection
- Hot Start ™
- Arc force (DIG)
- Cellulosic mode
- Adjustable OCV (VRD)
- Min/Max values for remotes
Specification
| Title | TigMatic® 300iP |
| Industries Interests | Food and Beverage Petro chemical Pipe spool fabrication Ship building General fabrication |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Input Voltage | 380/400 V |
| Input Phase | 3-Phase |
| Input Hz | 50/60 Hz |
| Current Type | DC |
| Max Open Circuit Voltage | 60 VDC |
| Amperage Min | 5 A |
| Amperage Max | 300 A |

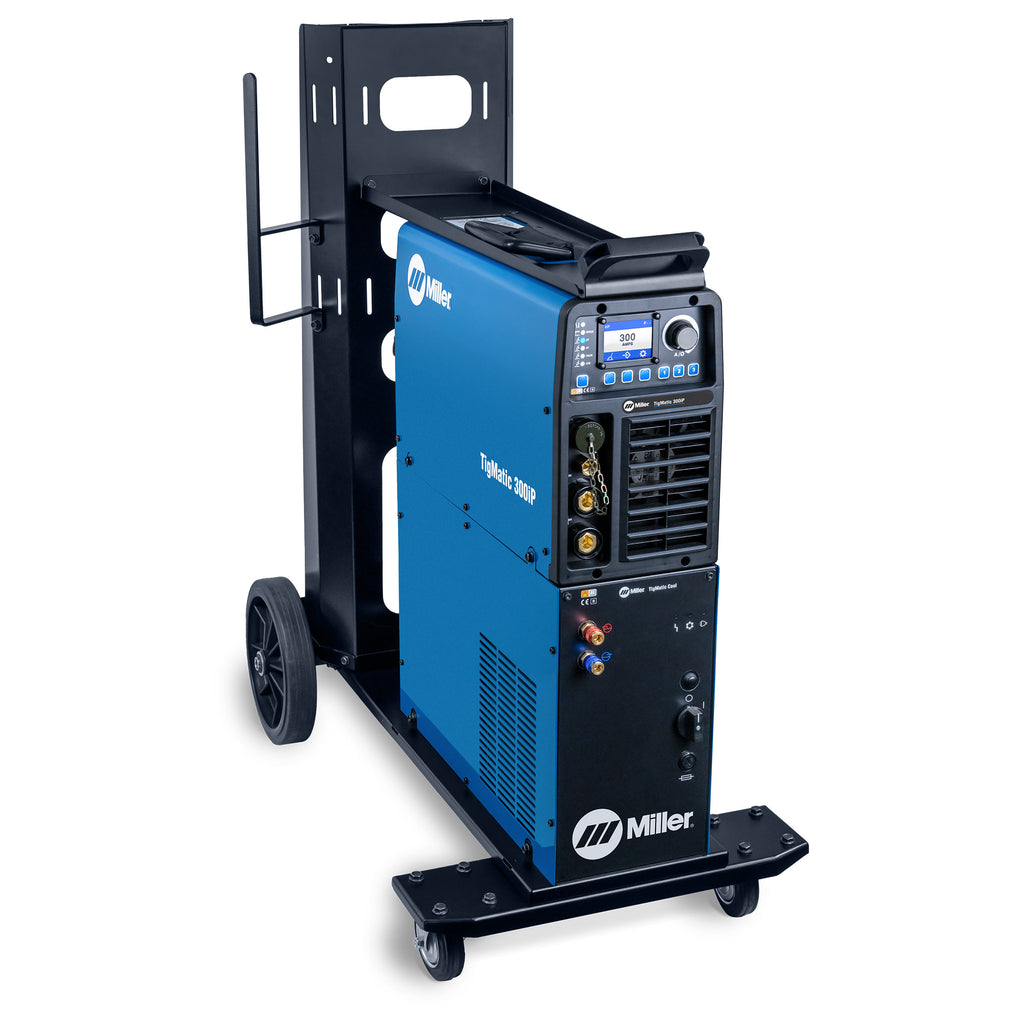

| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CC |
| Net Width | 205 mm |
| Net Height | 360 mm |
| Net Length | 570 mm |
| Net Weight | 24 kg |
| Warranty | 3 Years Miller’s True Blue Warranty |
Processes
DC TIG (GTAW)
DC TIG pulsed (GTAW-P)
MMA/Stick (SMAW)
