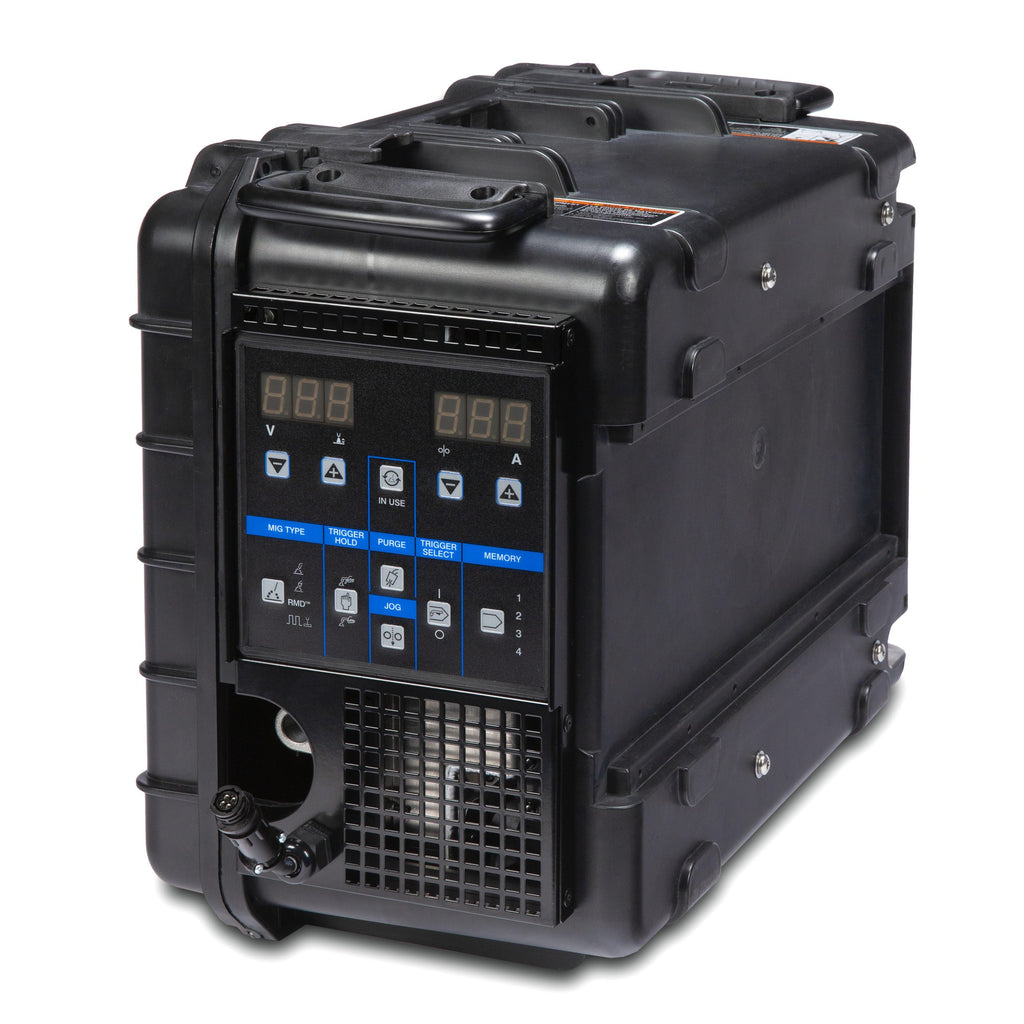

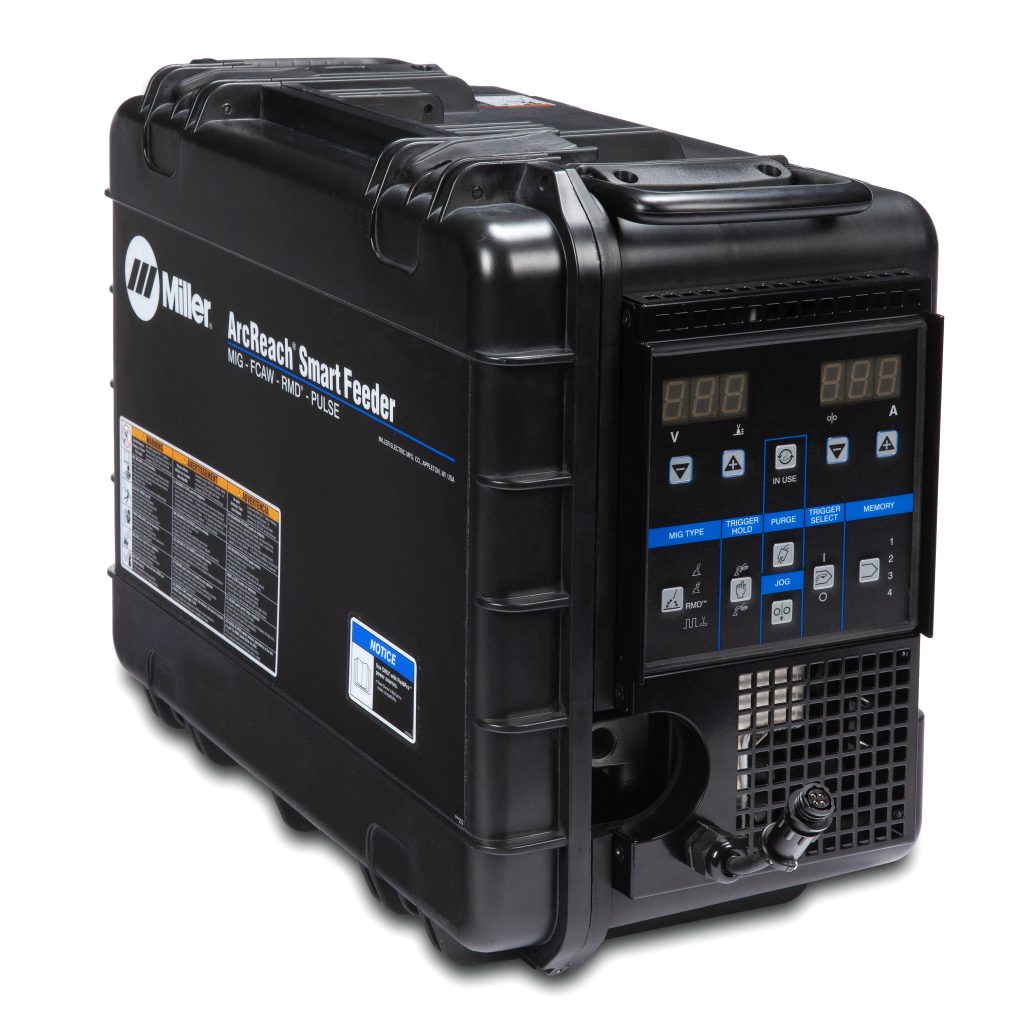

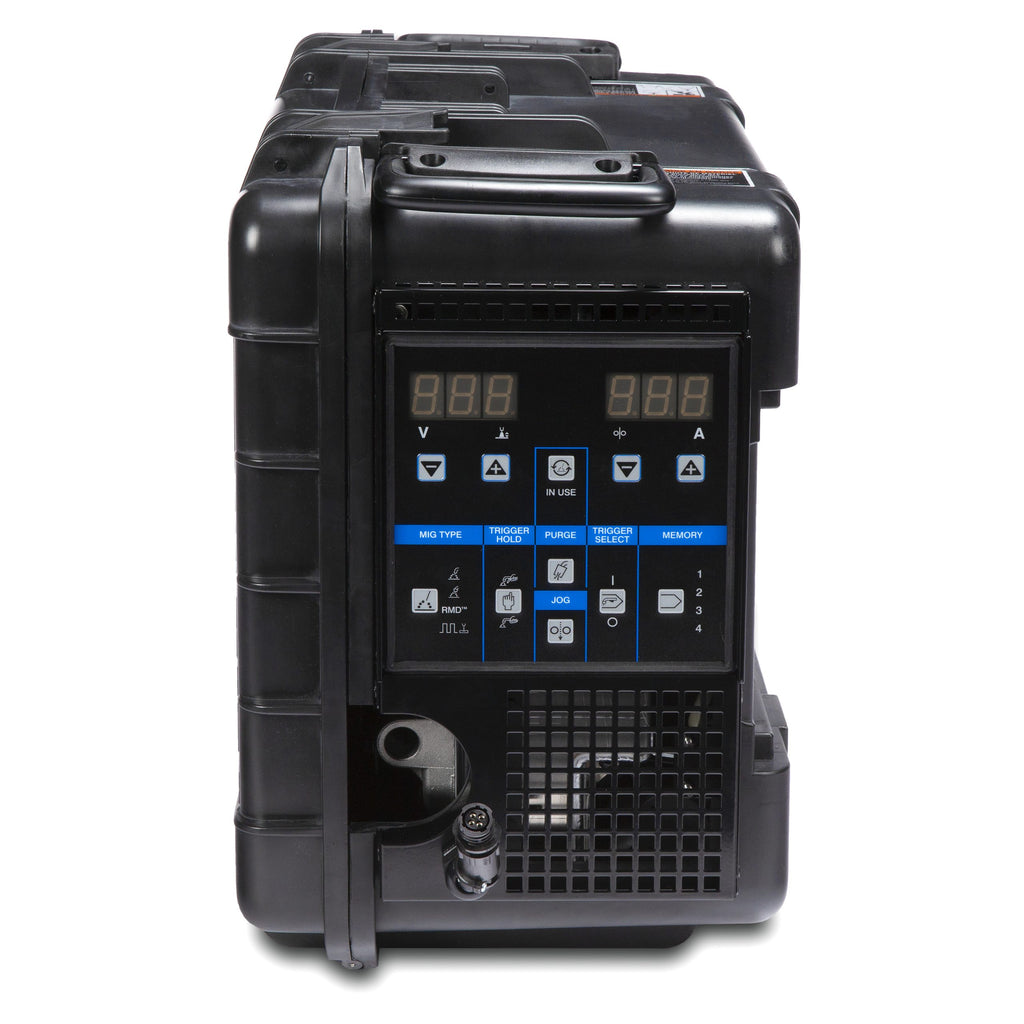

Miller 301177 ArcReach® Smart Feeder for Welding Machine
ArcReach® Smart Feeder system delivers excellent RMD® and Pulse MIG, MIG and Flux-Cored welding up to 60 meters away from the power source with no control cables. This system automatically shifts all controls to the Smart Feeder including weld process selection, material type and wire diameter, gas type, wire feed speed and voltage.
Features
ArcReach Smart Feeder delivers excellent RMD® and pulsed MIG welding
Up to 200 feet away from the power source with no control cords — twice the distance previously possible. RMD and pulsed MIG processes also help reduce weld failures and eliminate backing gas on some stainless and chrome-moly applications.Easy process changeover-Simply connect the ArcReach Smart Feeder to your leads and you are ready to go. All controls automatically shift to the ArcReach Smart Feeder.
Synergic processes-RMD and pulsed MIG welding permits procedures with one wire and one gas to eliminate process switch-over time.
Durable design reduces downtime-Impact resistant case and the elimination of feeder control cords provide a solid solution to last in harsh environments.
Specification
| Title | ArcReach® Smart Feeder |
| Applications | Shipbuilding
Construction Heavy manufacturing Rental |
| Input Power | 14–48 VDC/ 110 max. OCV |
| Input Welding Circuit Rating | 275 A at 60% duty cycle |
| Wire Feed Speed | 50–500 ipm (1.3–12.7 m/min.) dependent on arc voltage |
| Wire Type and Diameter Capacity | 035–.045 in. (0.9–1.1 mm) |
| Max. Spool Size Capacity | 12 in. (305 mm)
33 lb. (15 kg) |
| Dimensions | H: 18 in. (457 mm)
W: 13 in. (330 mm) D: 21.5 in. (546 mm) |
| Weight | 23 kg |
