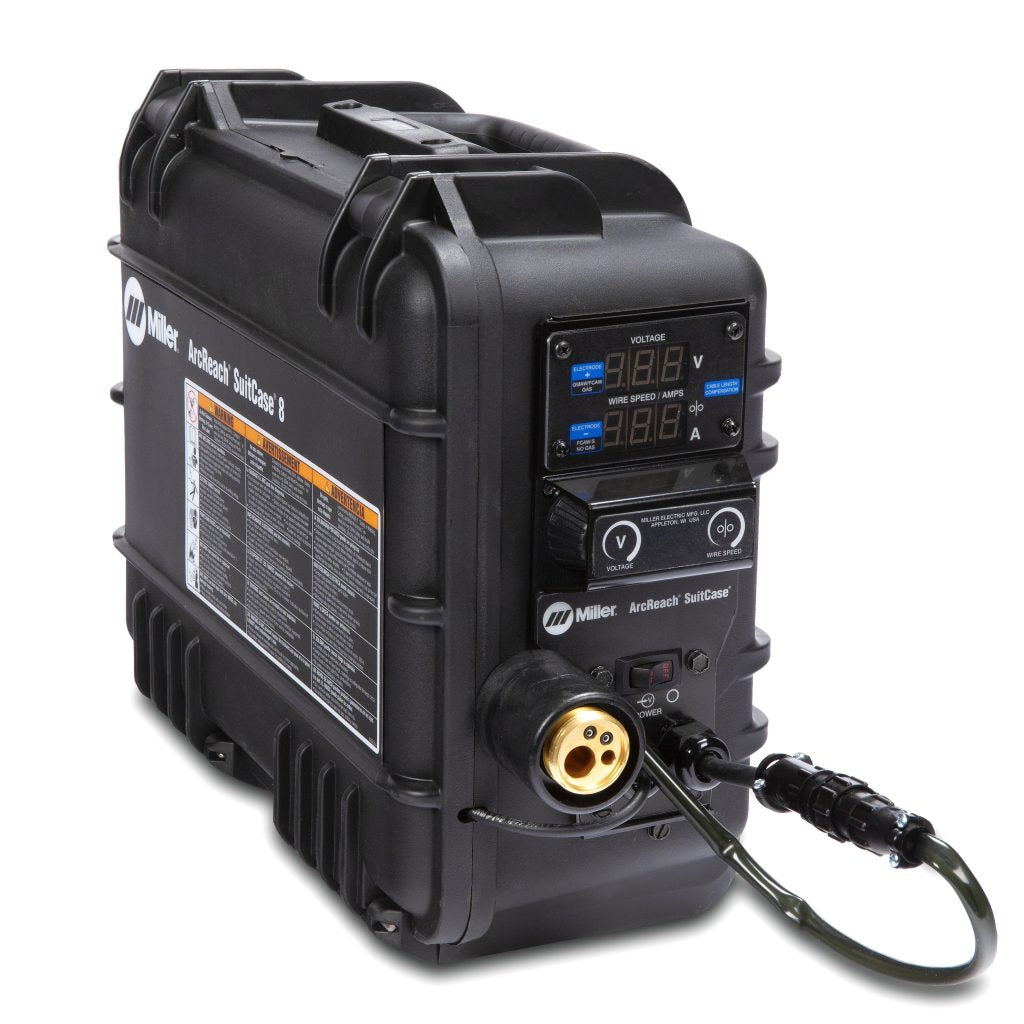

Miller 301457 ArcReach® SuitCase® 8 Wire Feeder for Welding Machine
Remote voltage control at the wire feeder. Electronic wire feed speed control with integrated tachometer ensures wire feed speed accuracy and consistency that rivals the best bench feeders — making it easier to produce quality welds.
Features
Setting the standard for performance-Heavy-duty drive motor with tachometer control provides wire feed speed that is accurate and consistent from the start of the weld to the finish and from one weld to the next, which provides consistent arc quality. Wide voltage range for small and large wires with no contactor chatter or arc outages.
Set volts and wire feed speed remotely-The simple interface on the feeder allows operators to adjust parameters at the point of use with no control cords.
Durable design reduces downtime-Impact resistant case and the elimination of feeder control cords provides a solid solution to last in harsh environments.
Easy process changeover-Simply connect the ArcReach SuitCase feeder to your weld lead and you are ready to go. The power source automatically switches settings to run conventional wire processes.
Easy solution for traditional wire process-Add the flux-cored capability of the XMT 350 FieldPro™ for fill and cap passes for increased productivity.
Weld with large diameter (3/32 in.) wire-The ArcReach SuitCase 12 Heavy Duty model is specifically designed to applications using 3/32-inch wire.
Specification
| Title | SuitCase 8 |
| Applications | Shipbuilding Construction
Heavy manufacturing Rental |
| Input Power | Operates on open-circuit voltage and arc voltage: 14–48 VDC/ 110 max. OCV |
| Input Welding Circuit Rating | 330 A at 60% duty cycle |
| Wire Feed Speed | 50–780 ipm (1.3–19.8 m/min.) dependent on arc voltage |
| Wire Type and Diameter Capacity | Solid wire: .023– .052 in. (0.6–1.4 mm)
Flux-cored: .030– 5/64 in. (0.8–2.0 mm) |
| Max. Spool Size Capacity | 8 in. (203 mm) 14 lb. (6.4 kg) |
| Dimensions | H: 12.75 in. (324 mm)
W: 7.25 in. (184 mm) D: 18 in. (457 mm) |
| Net Weight | 28 lb. (13 kg) |
