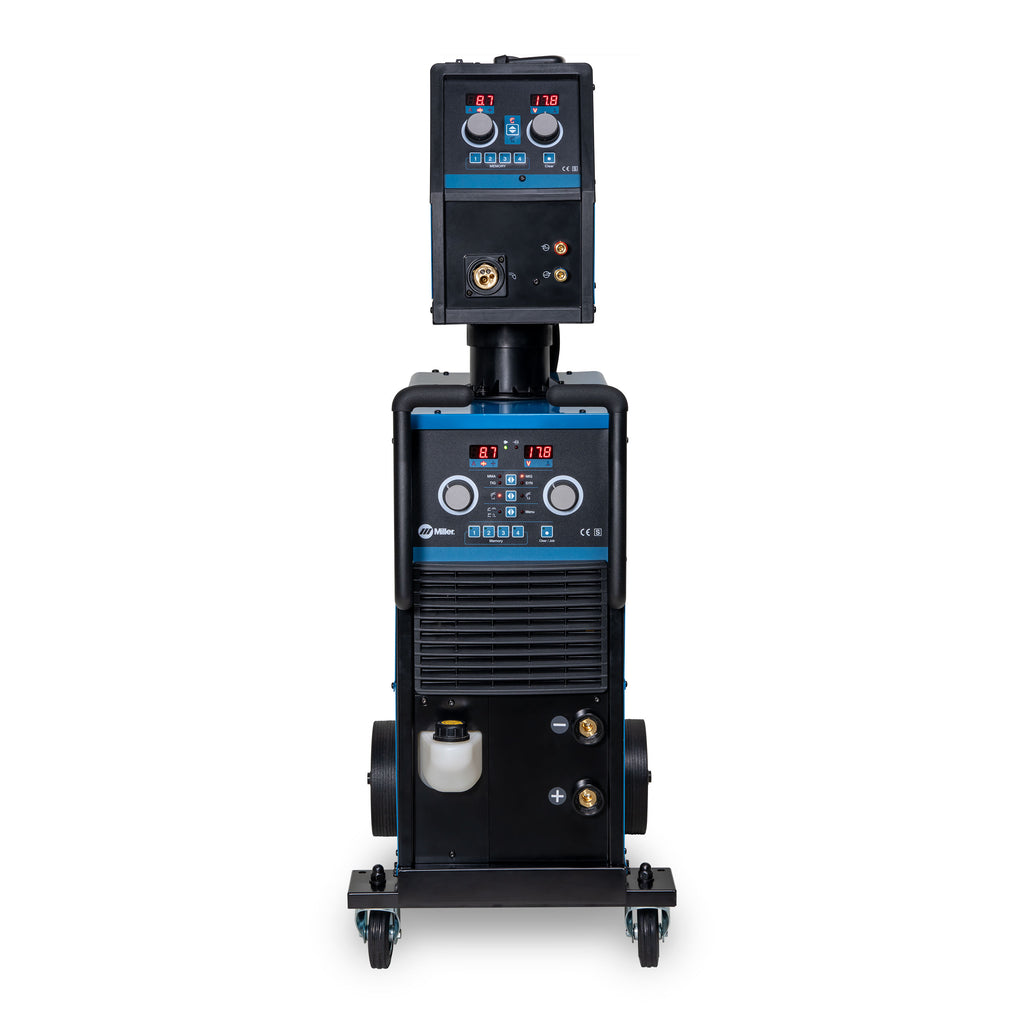

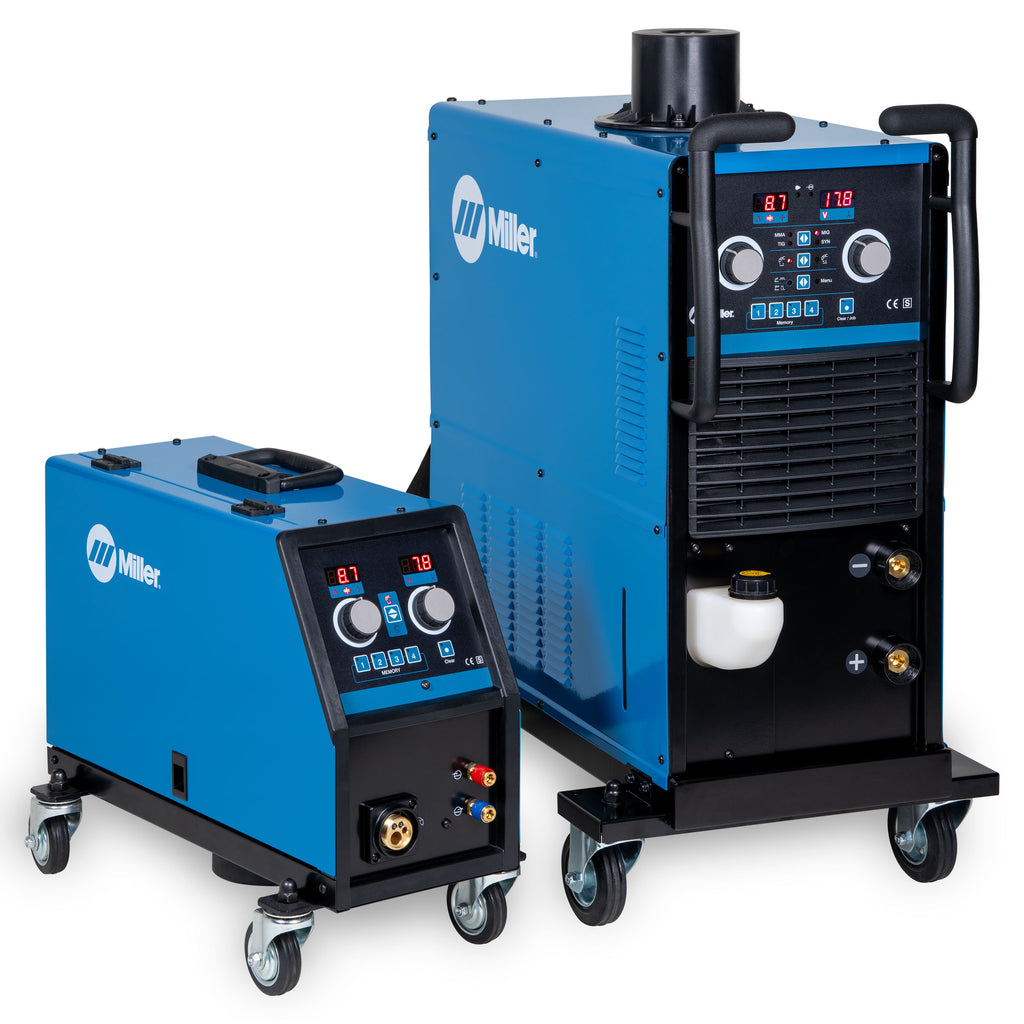

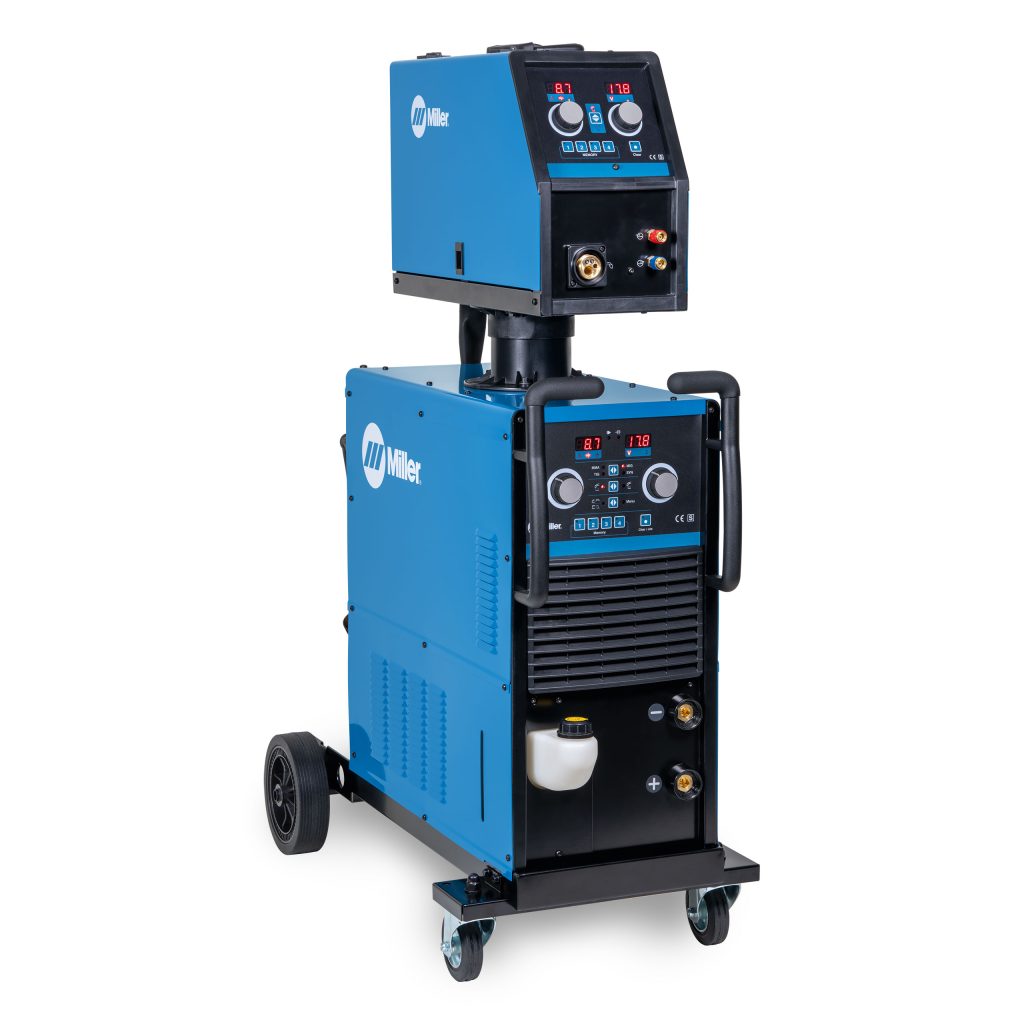

Miller 3400000002 BlueFab® S400i Multiprocess Welding Machine 400V
The robust and reliable BlueFab® series of products is the perfect combination of industrial performance and simplicity. With the energy efficiency achieved through the latest inverter technology, the system offers considerable cost savings compared to traditional welding equipment.
Easy to operate- Why compromise? – Welders appreciate simplicity and easy access to the parameters that matter. At the same time, finer adjustments may be needed to achieve the highest-quality welds. The BlueFab offers the perfect combination of pre-set values and synergic programs with a clean and crisp user interface.
Mobility and portability- The BlueFab wire feeder, equipped with an industrial-grade 4-wheel drive mechanism, is both compact and lightweight. The connections are protected and covered to ensure reliability and reduce downtime. The metal casing can take a beating and survive the toughest work environment.
Direct access to stored programs- The operator has access to four pre-programmed or customised programs from the front panel of the wire feeder. The trigger-select functionality improves productivity by allowing different programs to be selected from the torch trigger – no need to go back to the wire feeder.
Prepared with synergic programs- Miller has prepared and equipped the BlueFab with multiple synergic lines for the most common material, wire, and gas combinations. The Wire feed speed can be presented as metres per minute or as a predicted amperage value.
Multi-Process capabilities- Full MMA and LiftTIG capability can be accessed from the front panel of the power source.
Flexibility- The running gear with the integrated gas bottle shelf comes with the power source. The optional water cooler can be easily installed; no service technician is required. The wire feeder can be easily removed from the power source, and the optional wheel kit can be attached at any time.
Specifications
| Title | BlueFab® S400i |
| Industries Interests | Maintenance repair Manufacturing General ship building Mild steel applications General Construction |
| Material Thickness | |
| Weldable Metals | Thin to thick, All materials, 0,6-1,6 mm solid, Cored wires |
| Input Voltage | 400 V |
| Input Phase | 3 phases |
| Input Hz | 50/60 Hz |
| Amperage Range | 30 A – 400 A |
| Max. Output Amperage | 400 A @ 60% |
| Current Type | |
| Rated Output | 400 A / 34 V @ 60% duty cycle |
| Max Open Circuit Voltage | 45 VDC |
| Net Width | 487 mm |
| Net Height | 1300 mm (with Feeder) |
| Net Depth | 990 mm |
| Net Weight | 58 kg |
| Warranty | 3 Years Miller’s True Blue Warranty |
