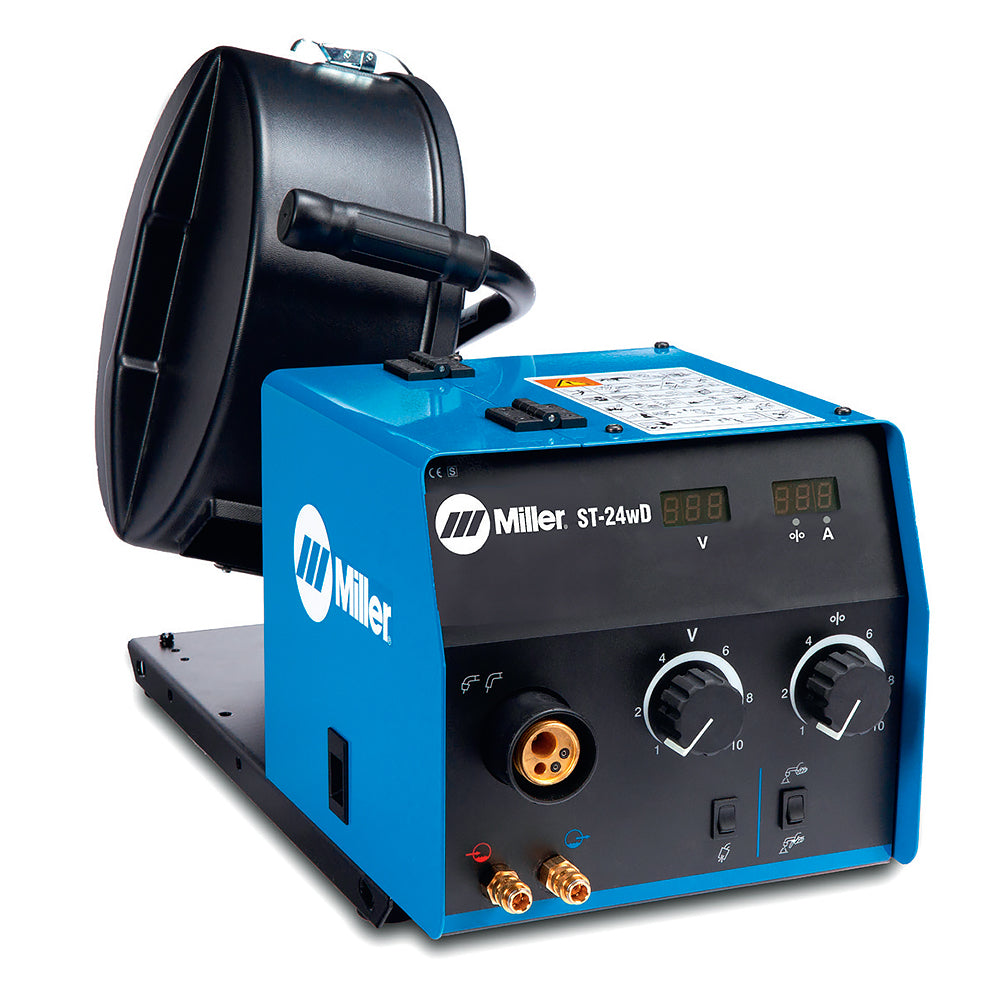

Miller 3800000004 ST-24wD Wire Feeder for Welding Machine
Simple and cost-effective four drive roll wire feeder with voltage regulator for industrial manufacturing and fabricating. (Please note the spool cover featured in the image is optional only and ordered separately.)
Features
Industrial, four-roll gear-driven, cast aluminum drive system with heavy-duty motor-Provides exceptional feed performance, reliability and wire speeds ranging from 1.3-20 meters per minute.
No tools required-quick-change, dual-groove, reversible drive rolls. Large diameter design (43 mm) provides smooth, positive and accurate wire feeding with long uninterrupted service life.
Adjustable run-in and burn-back controls-allow the operator to set the optimum arc starts and stops, reducing wire stubbing, arc flaring or wire burning back.
Wire jog feature-enables the operator to thread the wire through the torch, without the wire being live.
Voltage and wire feed speed settings-for easy and accurate control of welding parameters.
Dual digital meters-display clear, precise readings of arc voltage, wire feed speed and/or amperage. Can be set to hold last reading.
2T/4T latching torch trigger-Allows the operator to weld for extended periods without having to maintain pressure on the torch trigger.
Gas purge-feature.
Quick-connect coolant fittings-provide easy hook up for water cooled torches, no tools required.
Processes
MIG (GMAW)
Flux-cored (FCAW)
Metal-cored (MCAW)
Specification
| Title | ST-24wD |
| Industries Interests | General fabrication Trailer manufacturers Shipyards Manufacturing |
| Material Thickness | |
| Weldable Metals | |
| Input Voltage | 24 VAC |
| Input Phase | |
| Input Hz | 50/60 Hz |
| Amperage Range | 4A |
| Wire Feed Speed | 1.3 – 20 m/min |
| Wire Diameter Capacity | 0.6 – 1.6 mm |
| Current Type | |
| Rated Output | |
| Max Open Circuit Voltage | |
| Portability | |
| Weld Output | |
| Net Width | 273 mm |
| Net Height | 279 mm |
| Net Length | 597 mm |
| Net Weight | 16.6 kg |
| Warranty | 3 Years Miller’s True Blue Warranty |
