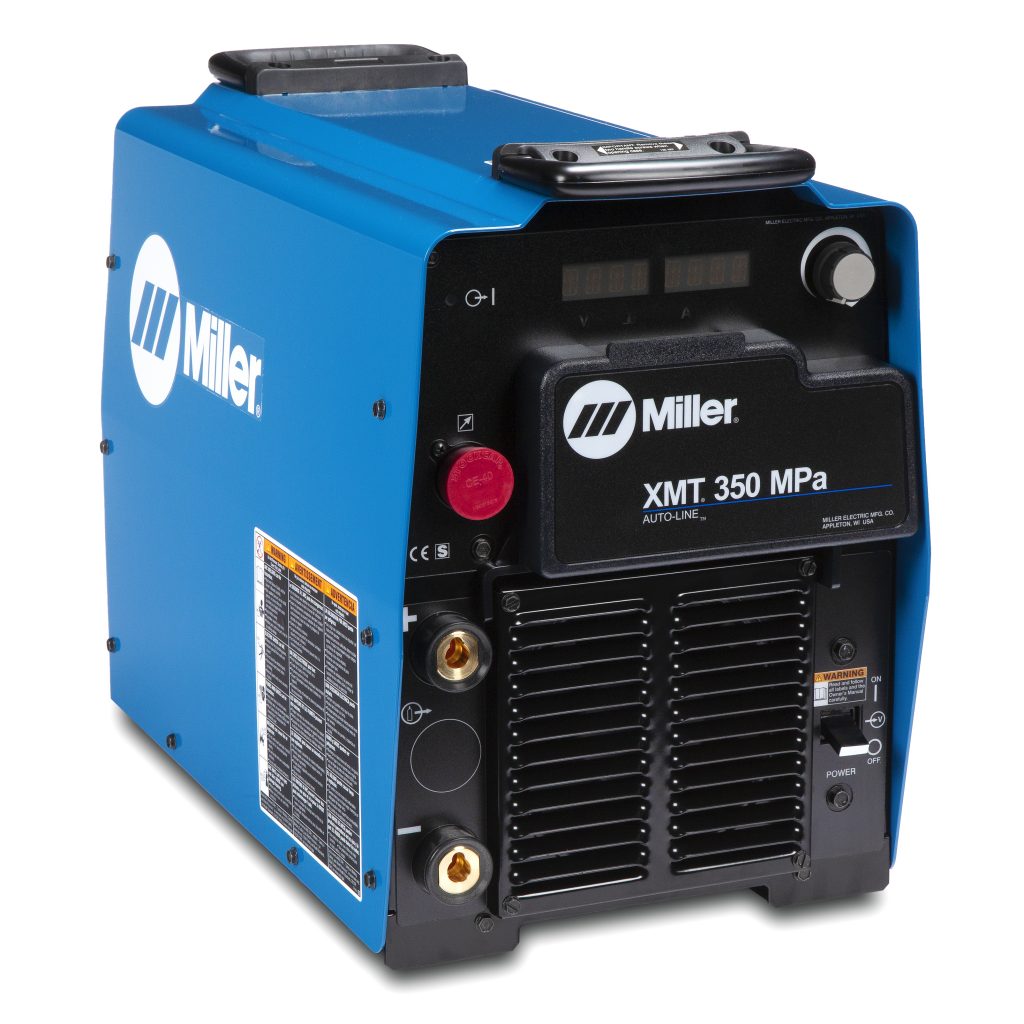

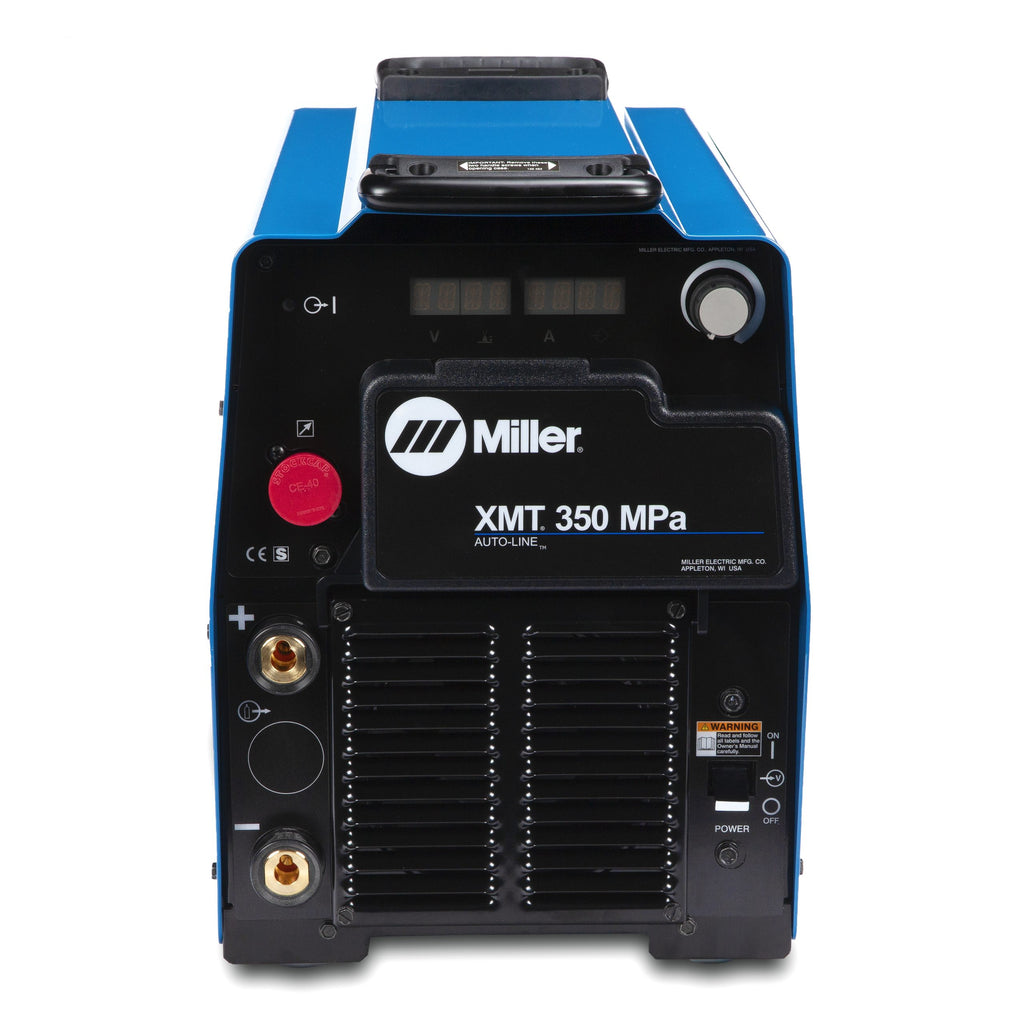

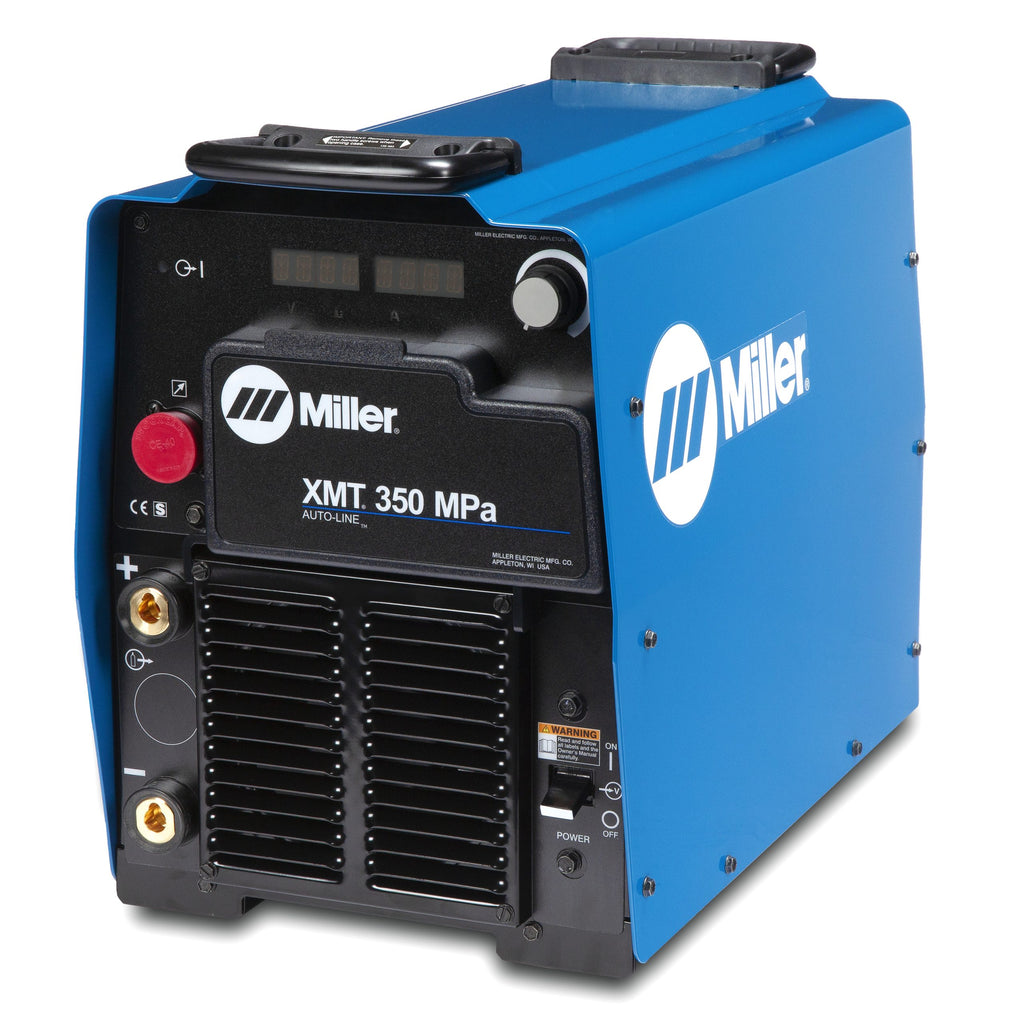

Miller 907366002 XMT® 350 MPa Multiprocess Welding Machine 400V
Portability and excellent arc performance make the XMT® family the most popular in the industry. The XMT® 350 MPa offers built-in pulse programs for standard steels, high-strength steels and aluminum.
Features:
- Wind Tunnel Technology™ protects electrical components and PC boards from contamination.
- Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
- Lift-Arc™ allows TIG starting without the use of high frequency. Starts the arc without contaminating the weld with tungsten.
- Adaptive Hot Start™ increases the output amperage at the start of the weld if necessary, reducing electrode sticking.
- Process selector switch reduces the number of control setup combi nations without reducing any features.
- Auto Remote Sense™ enables unit to automatically use remote control if connected to remote control receptacle.
- Large, dual digital meters are easy to view and are pre-settable to ease setting weld output.
- Auto-Line™ power management technology allows for any input voltage hookup (230–575 V) with no manual linking required, providing convenience in any job setting. Ideal solution for dirty or unreliable input power.
- Built-in pulsed MIG capabilities
- Advanced arc control enables an improved pulse welding arc. The operator has more control over puddle and bead characteristics using SharpArc. In addition, the unit provides a more robust and stable arc at very low arc length, reducing heat input, and providing the ability to weld on a wider range of material thickness.
- SharpArc® controls the arc in pulsed MIG mode and gives total control over the arc cone shape, puddle fluidity and bead profile.
Processes
MIG (GMAW)
Pulsed MIG (GMAW-P)*
Flux-cored (FCAW)
Stick (SMAW)
TIG (GTAW)
Air carbon arc (CAC-A) cutting and gouging
Rated: 6 mm carbons
*MPa model only
Specifications
| Title | XMT® 350 CC/CV |
| Industries Interests | Construction Shipbuilding Railroad Truck/trailer manufacturing Fabrication Repair shops Rental fleets Power generation plants |
| Material Thickness | |
| Weldable Metals | Thin to thick, All materials, 0,8-1.6 mm solid, Cored wires |
| Input Voltage | 230 – 575 V |
| Input Phase | 3-phase power |
| Input Hz | 50/60 Hz |
| Amperage Range | 5–425 A |
| Current Type | |
| Rated Output | 275 A at 100% duty cycle, 350 A at 60% duty cycle |
| Max Open Circuit Voltage | 75 VDC |
| Portability | |
| Weld Output | CC/CV |
| Net Width | 318 mm (12.5 in.) |
| Net Height | 432 mm (17 in.) |
| Net Length | 610 mm (24 in.) |
| Net Weight | 36.3 kg (80 lb.) without aux. pwr. 43 kg (94.8 lb.) with aux. pwr. |
| Warranty | 3 Years Miller’s True Blue Warranty |
