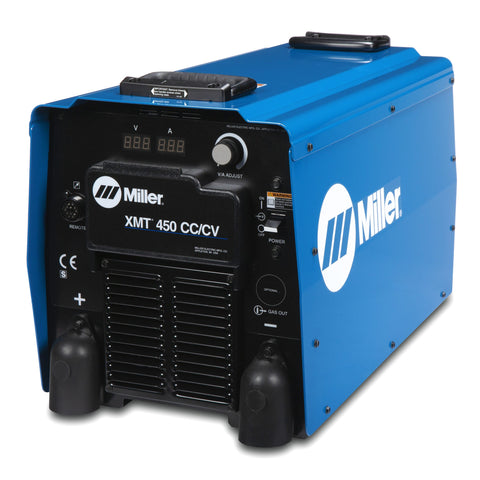

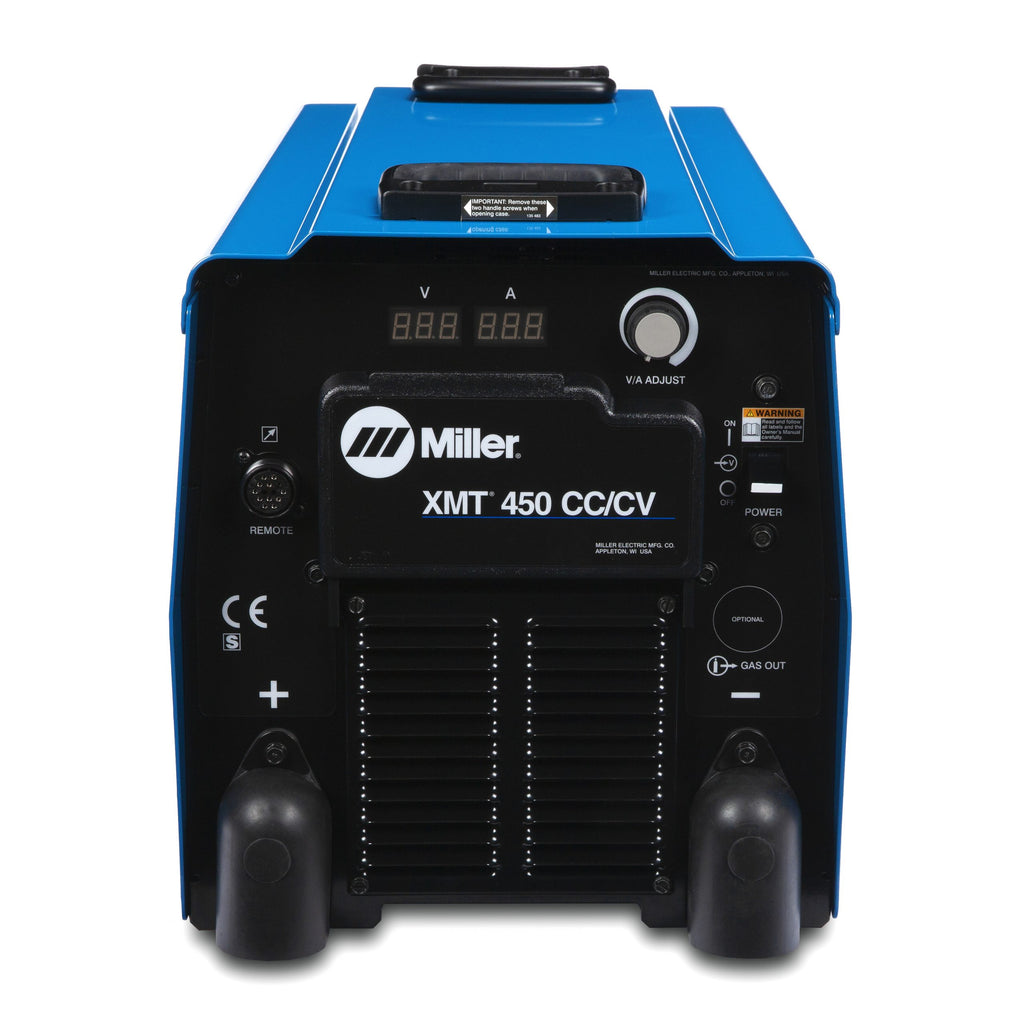

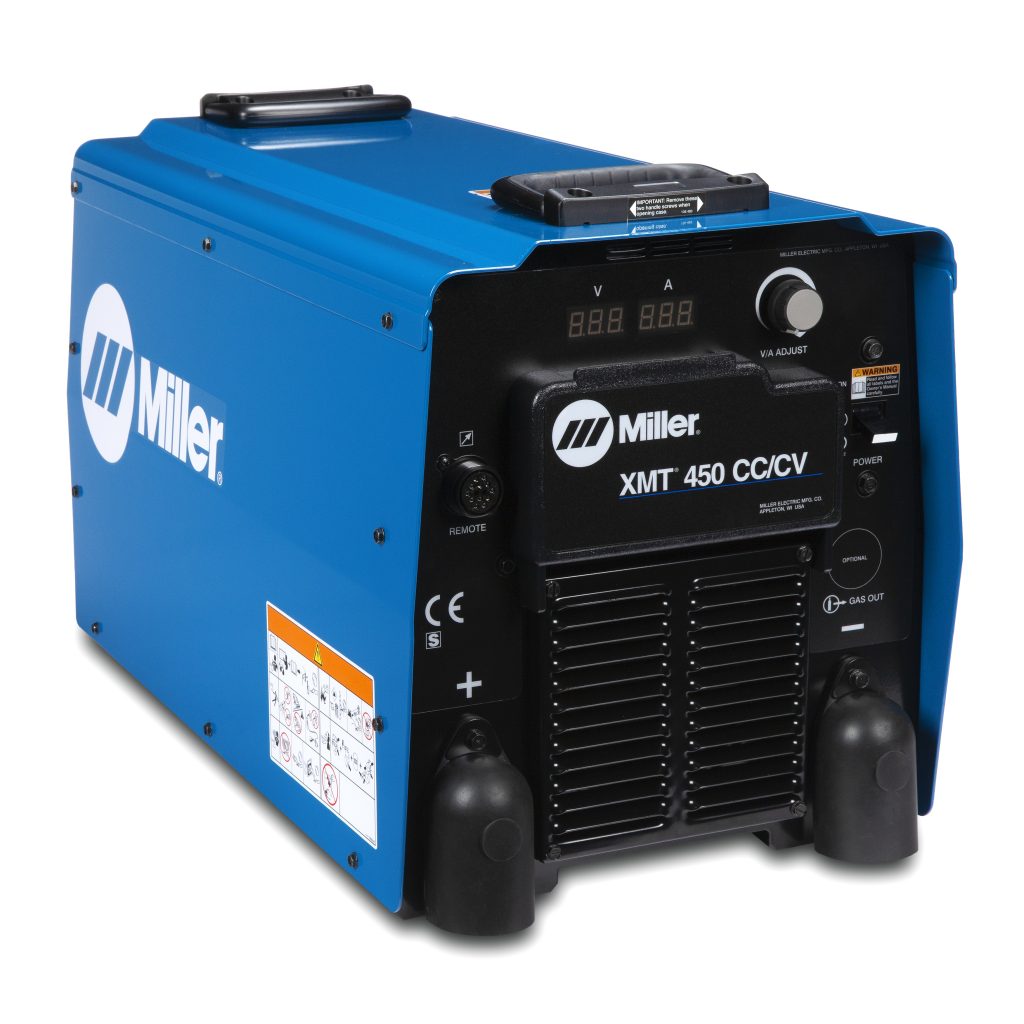

Miller 907525 XMT® 450 CC/CV Multiprocess Welding Machine 400V
Portability and excellent arc performance make the XMT family the most popular in the industry. The XMT® 450 CC/CV is the most popular model for its flexibility and simplicity. Outstanding multi-process inverter with built-in features providing the ultimate in productivity. Inverter arc control technology provides greater puddle control for superior 6010 Stick electrode performance, and outstanding MIG weld performance. Lightweight, aerospace-grade aluminum case offers protection with the benefit of reduced weight. Large, dual digital meters are easy to view and are pre-settable to ease setting weld output.
Features:
- 14-pin receptacle has the flexibility to be used with spool guns, feeders, and remote controls.
- Optional 115-volt auxiliary power provides 10 amps of circuit-breaker protected power for coolant systems, etc.
- Optional Welding Intelligence™ system XMT CC/CV and MPa models are Insight-capable to monitor weld voltage, amperage, and arc-time and percentage.
- High-quality performance in all welding processes.
- Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion.
- Infinite arc control available in the stick and wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications.
- Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high-frequency.
- Wind Tunnel Technology.™ Internal air flow that protects electrical components and PC boards from dirt, dust and debris… greatly improving reliability.
- Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
- Unique case design helps protect internal components from dirt and dust. To connect input power cord and/or set unit up for correct input power, remove the easy-to-handle panel (1/3 case). The remaining two-thirds of the case never needs to be removed!
- Process selector switch reduces the number of control setup combi nations without reducing any features.
- Large, dual digital meters are easy to view and are pre settable to ease setting weld output.
- Ultra-tough, polycarbonate-blended cover protects front controls from damage.
- Primary voltage display shows what primary voltage the power source is linked for without removing the side panels. Saves time and assures you that the power source has been correctly linked for available input voltage.
- Auto Remote Sense™ enables unit to automatically use remote control if connected to remote control receptacle.
Processes
MIG (GMAW)/Pulsed MIG (GMAW-P)*
Stick (SMAW)
TIG (GTAW)
Flux-cored (FCAW)
Air carbon arc cutting and gouging (CAC-A)
Rated: 5/16-inch carbons
Capable: 3/8-inch carbons
*Available on select models.
Speecifications
| Title | XMT® 450 CC/CV |
| Industries Interests | Construction Shipbuilding Railroad Truck/trailer manufacturing Fabrication Repair shops Rental fleets Power generation plants |
| Material Thickness | |
| Weldable Metals | Thin to thick, all materials, 0,8-1.6 mm solid, cored wires |
| Input Voltage | 230/460 V, 400 V (CE) or 575 V |
| Input Phase | Requires 3-phase power |
| Input Hz | 50 Hz |
| Amperage Range | 15 – 600 A |
| Output Range | 10–38 V, 15–425 A |
| Current Type | |
| Rated Output | 450 A at 38 VDC, 100% duty cycle |
| Max Open Circuit Voltage | 90 VDC |
| Portability | |
| Weld Output | CC/CV |
| Net Width | 368 mm (14.5 in.) |
| Net Height | 438 mm (17.25 in.) |
| Net Length | 689 mm (27.125 in.) |
| Net Weight | 55.3 kg (122 lb.) |
| Warranty | 3 Years Miller’s True Blue Warranty |
