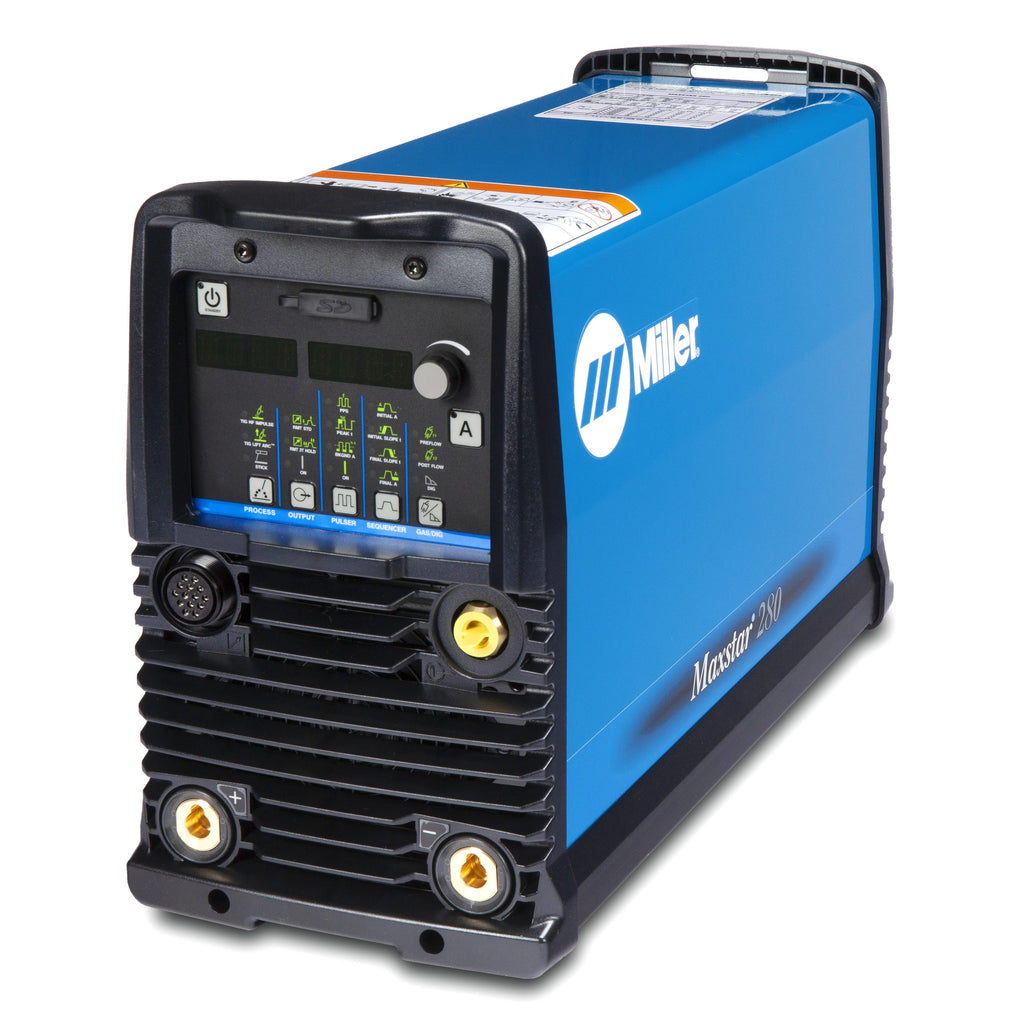

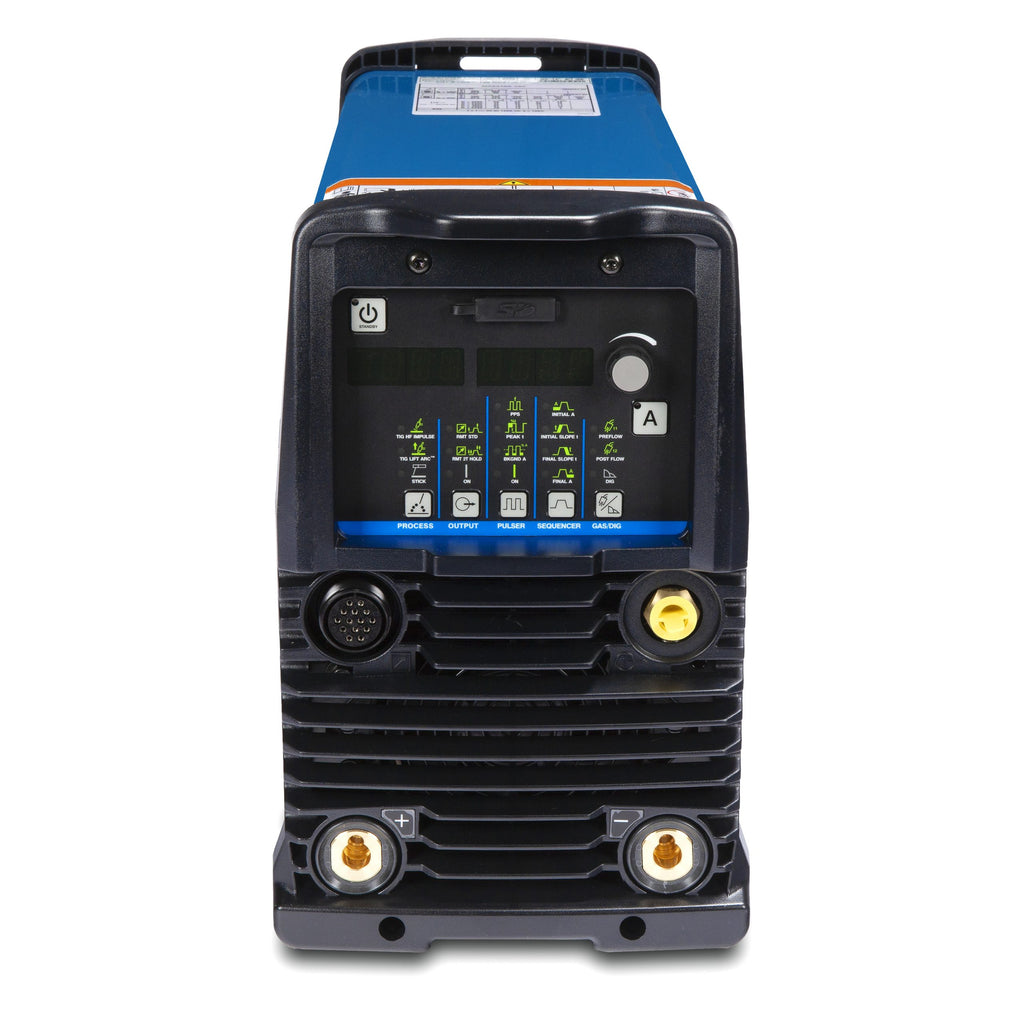

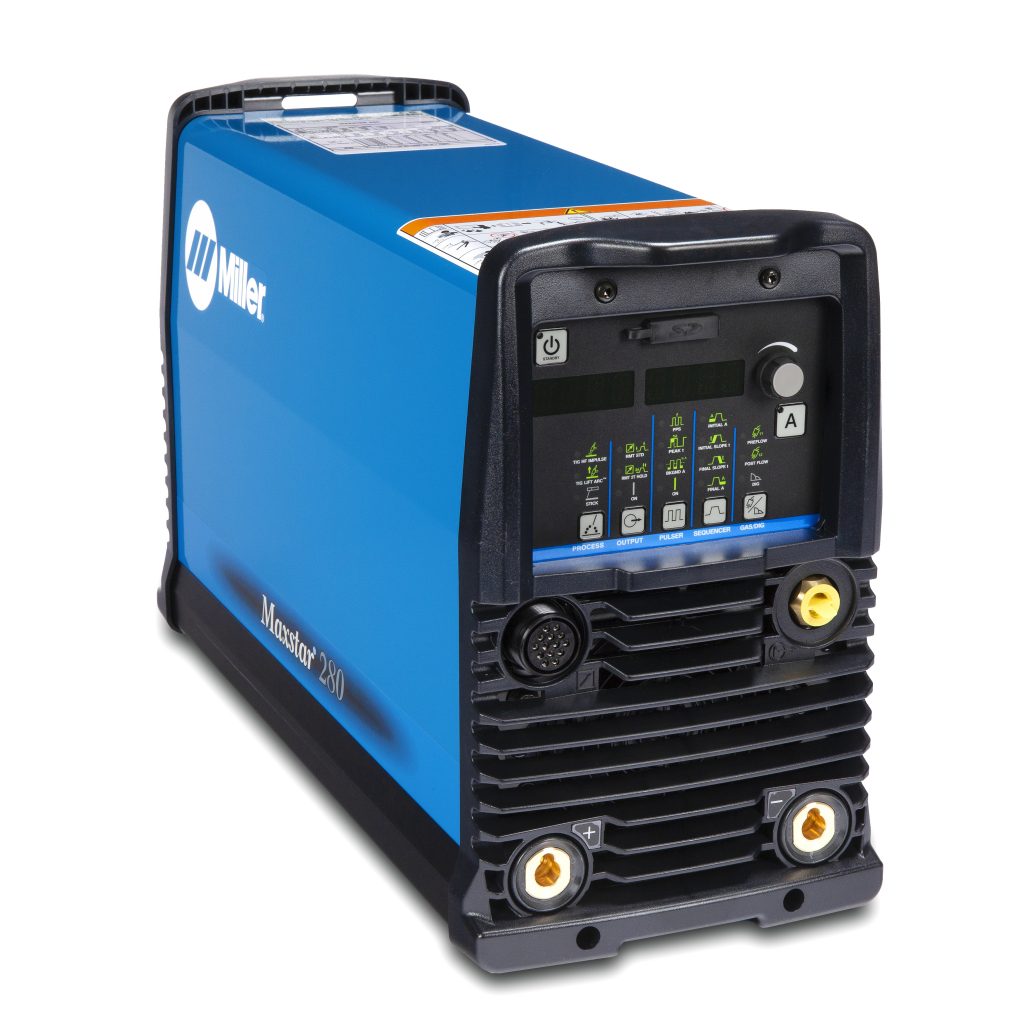

Miller 907539002 Maxstar 280 DX DC TIG Welder, 208-575V

Miller Maxstar 280 DX DC TIG Welder, 208-575V

The Maxstar 280 DX is a powerful combination of capability and portability. The DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.

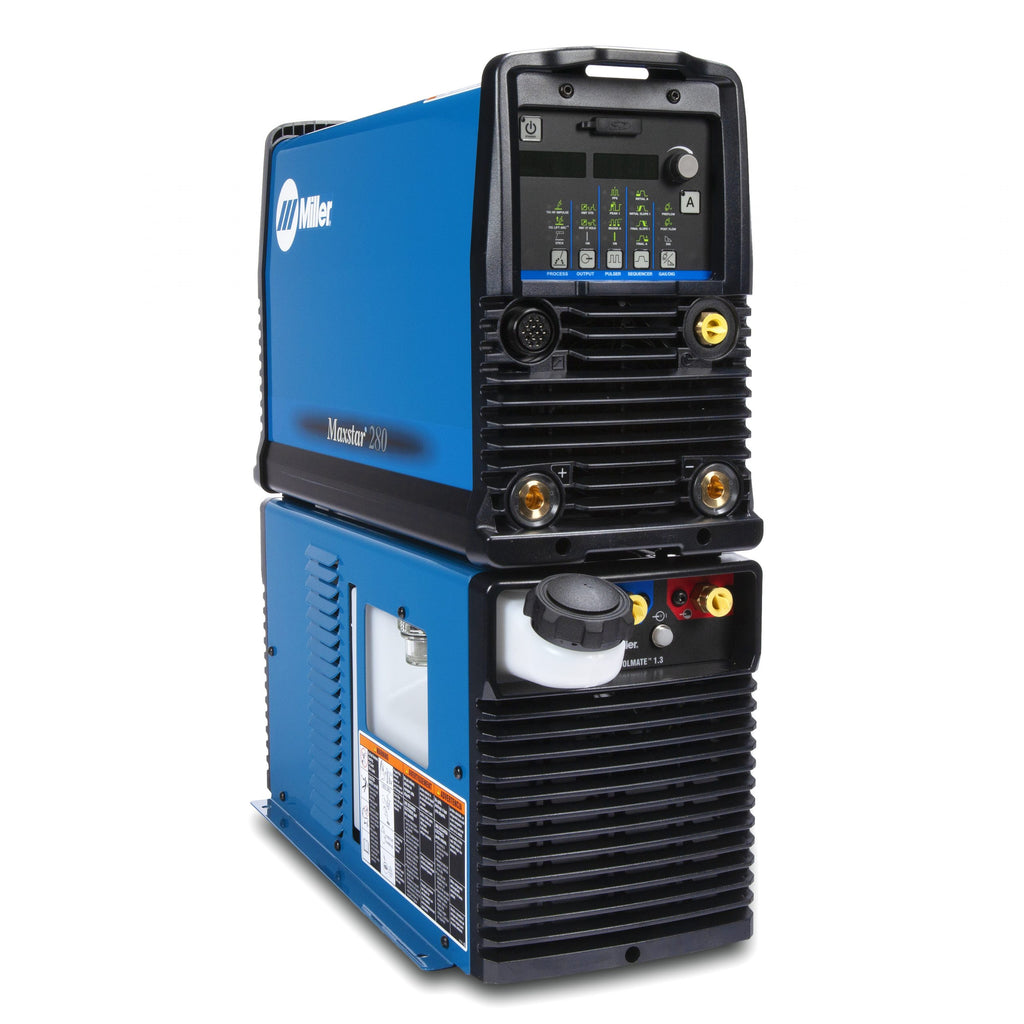

This water-cooled package includes the Maxstar 280 DX TIG welder power source, 4m EuroTorch W-270 torch, a small running trolley, the Coolmate 1.3 water cooler, 2 x 3.78L low conductivity coolant, a 5m 300A ground cable and a 2m gas hose.

The Miller Maxstar 280 DX provides up to 280 amps of DC TIG and MMA welding output along with a smooth, stable arc. Advanced technologies, such as Pulse, reduce heat input, increase travel speeds and improve arc directional control. Auto-Line™ technology allows the machine to be connected to any mains voltage within the specified range. The Maxstar 280 DX addresses demands for precision fabrication, adding extended Pulse ranges for maximum DC capability. Exclusive Pro-Set™ technology eliminates guesswork by providing pre-set welding parameters.

Designed for upgrade flexibility, a memory card port allows owners to download additional software when released, purchase product features from MillerWelds.com/tig software and maximise their budgets by buying only the features they need. The Maxstar 280DX can offer air-cooled capabilities or can be used as a water-cooled system via the Cooler Power Supply (CPS), a dedicated receptacle that powers the Coolmate 1.3.

Features:

• 280A
• Upgradeable and expandable – Front panel memory card data port provides the ability to easily upgrade software and expand product features.
• Pro-Set™ – Eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display.
• Sleep timer – Conserves electricity by powering down the machine if it sits idle for a specific time.
• Auto-Line™ power management technology – Allows for any input voltage hook-up (208–575 V) with no manual linking.
• Cooler Power Supply (CPS) – An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 1.3. The power switch on the Maxstar also activates the receptacle to help prevent torch failure.
• Cooler-On-Demand™ – Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
• Blue Lightning™ – High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• Wind Tunnel Technology™ – Protects internal electrical components from airborne contaminates, extending the product life.
• Meter calibration – Allows digital meters to be calibrated for certification.
• Fan-On-Demand™ – Power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.
• DC TIG Features:
• Exceptionally smooth and precise arc for welding exotic materials.
• Pulse. Pulsing can increase puddle agitation, arc stability and travel speeds while reducing heat input and distortion.
• DC Stick Features:
• DIG control allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like E7018 and increase the DIG setting for stiffer, more penetrating electrodes like E6010.
• Hot Start™ adaptive control provides positive arc starts without sticking.
• Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode. Menu selectable.
