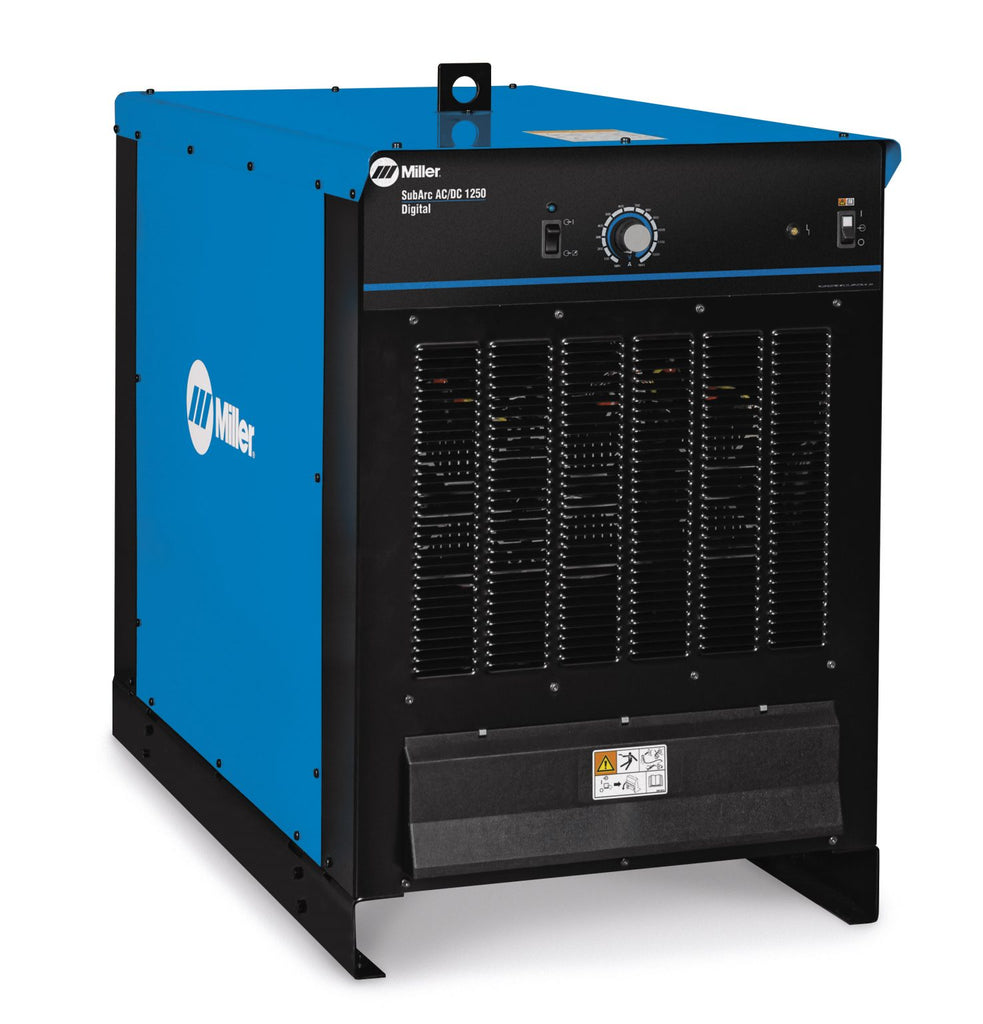

Miller 907621 SubArc AC/DC 1250 Digital Submerged Arc Welding Machine
AC welding output enables the SubArc AC/DC to be used in tandem arc welding systems with a DC lead arc and AC trailing arc, or with AC/AC arc combinations.
Features
Easy to integrate-The SubArc power sources are easy to integrate by using a standard Modbus® connection. Different levels of integration are possible, from simple remote operation to more complex automated systems.
Easier setup and operation-The SubArc Digital Series interface controls recognize the power source and wire drive connected, and automatically configure the system for proper operation. The easy to understand interface provides the operator with the necessary controls to set process parameters and control output. The power sources feature simplified parallel and tandem setups—just plug the cable into the appropriate connectors.
Improved flux delivery system-The SubArc flux hopper utilizes a flux valve mechanism that assures continuous delivery of flux to the arc. The unique valve design provides a barrier between the flux and actuation device to help prevent jamming of the solenoid actuator due to dust and debris. A sight glass is provided on the front of the flux hopper allowing the weld operator to visually monitor the remaining flux in the hopper.
Processes
Submerged arc (SAW)
Electroslag (ESW)
Air carbon arc cutting
and gouging (CAC-A)
Specifications
| Title | SubArc DC 1250 Digital |
| Applications | Railcar
Shipbuilding Heavy fabrication Pipe manufacturing Pressure vesse |
| Amperage/ Voltage Ranges | 300–1250 A in CC mode
20–44 V in sub arc mode |
| Rated Output | 1000 A at 44 V, 100% duty cycle
1250 A at 44 V, 60% duty cycle |
| IP Rating | IP23 |
| Max. Open-Circuit Voltage | 93 Vpk |
| Dimensions | H: 43 in. (1092 mm) (including lift eye)
W: 28 in. (711 mm) D: 48 in. (1219 mm) (not including strain relief) |
| Input Phase | 3-phase |
| Weight | 572 kg |
| Title | SubArc DC 1250 Digital |
| Applications | Railcar
Shipbuilding Heavy fabrication Pipe manufacturing Pressure vessel |
| Amperage/ Voltage Ranges | 300–1250 A in CC mode
20–44 V in sub arc mode |
| Rated Output | 1000 A at 44 V, 100% duty cycle
1250 A at 44 V, 60% duty cycle |
| IP Rating | IP23 |
| Max. Open-Circuit Voltage | 93 Vpk |
| Dimensions | H: 43 in. (1092 mm) (including lift eye)
W: 28 in. (711 mm) D: 48 in. (1219 mm) (not including strain relief) |
| Input Phase | 3-phase |
| Weight | 572 kg |
