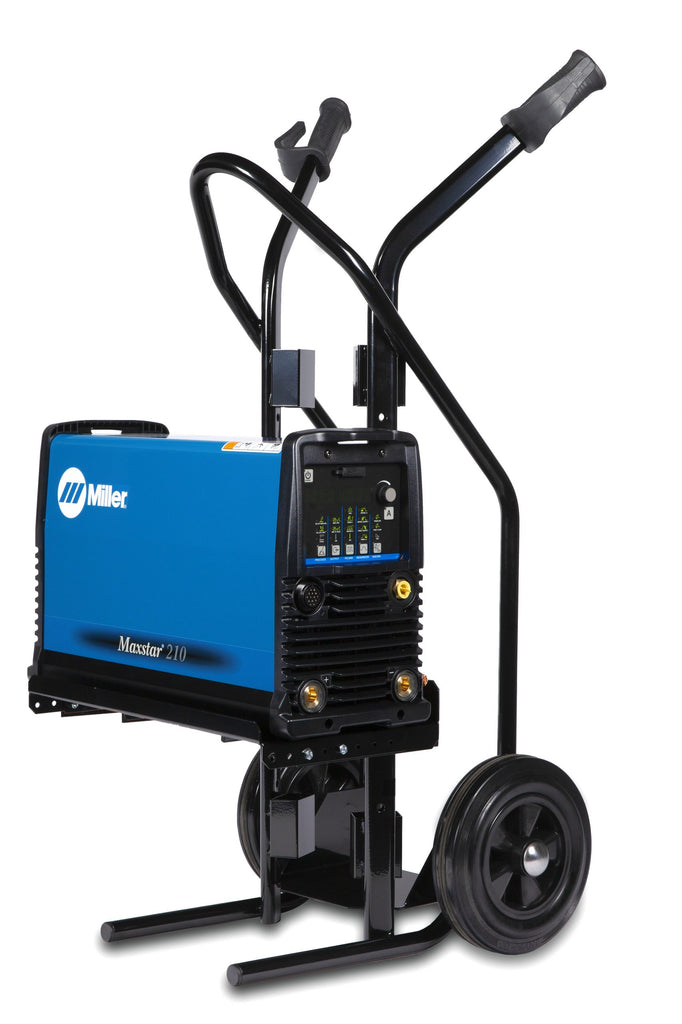

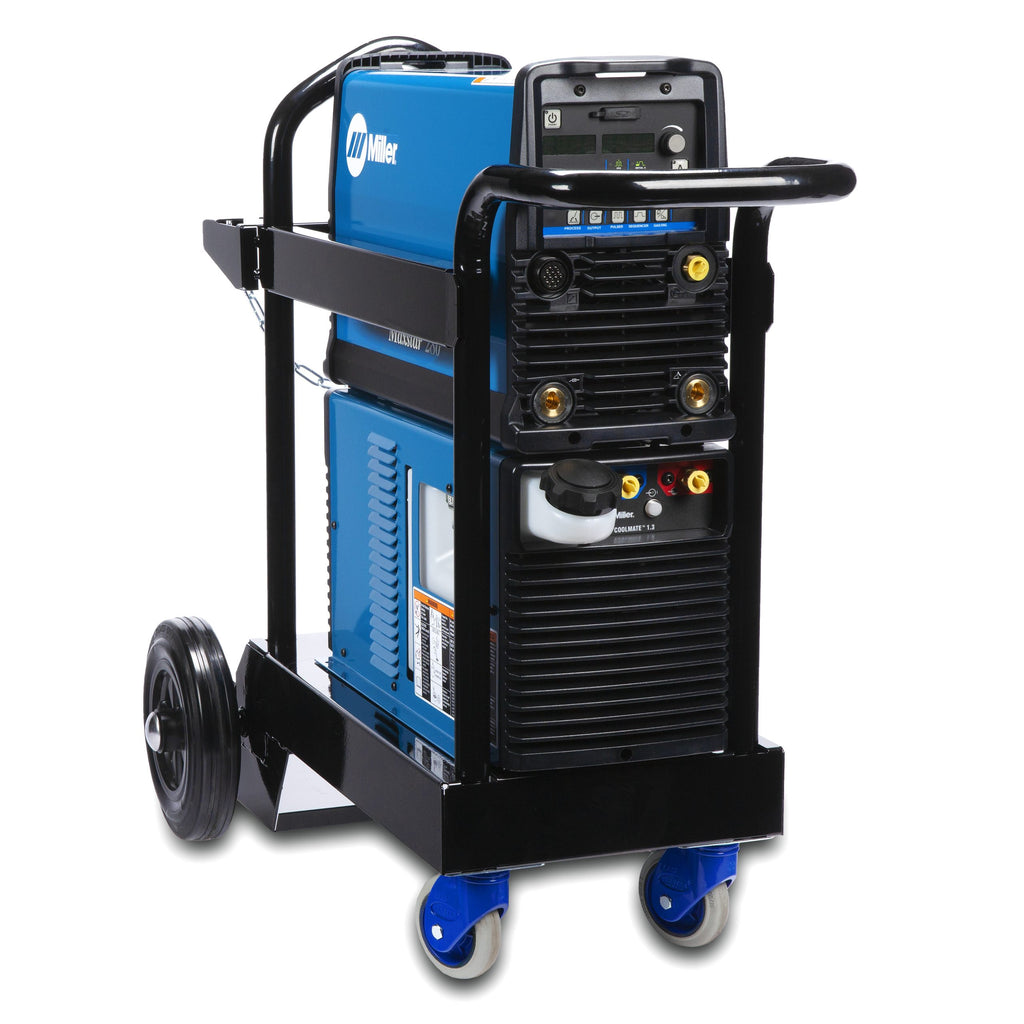

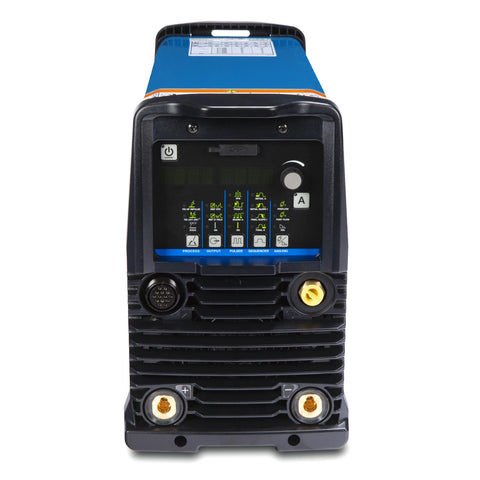

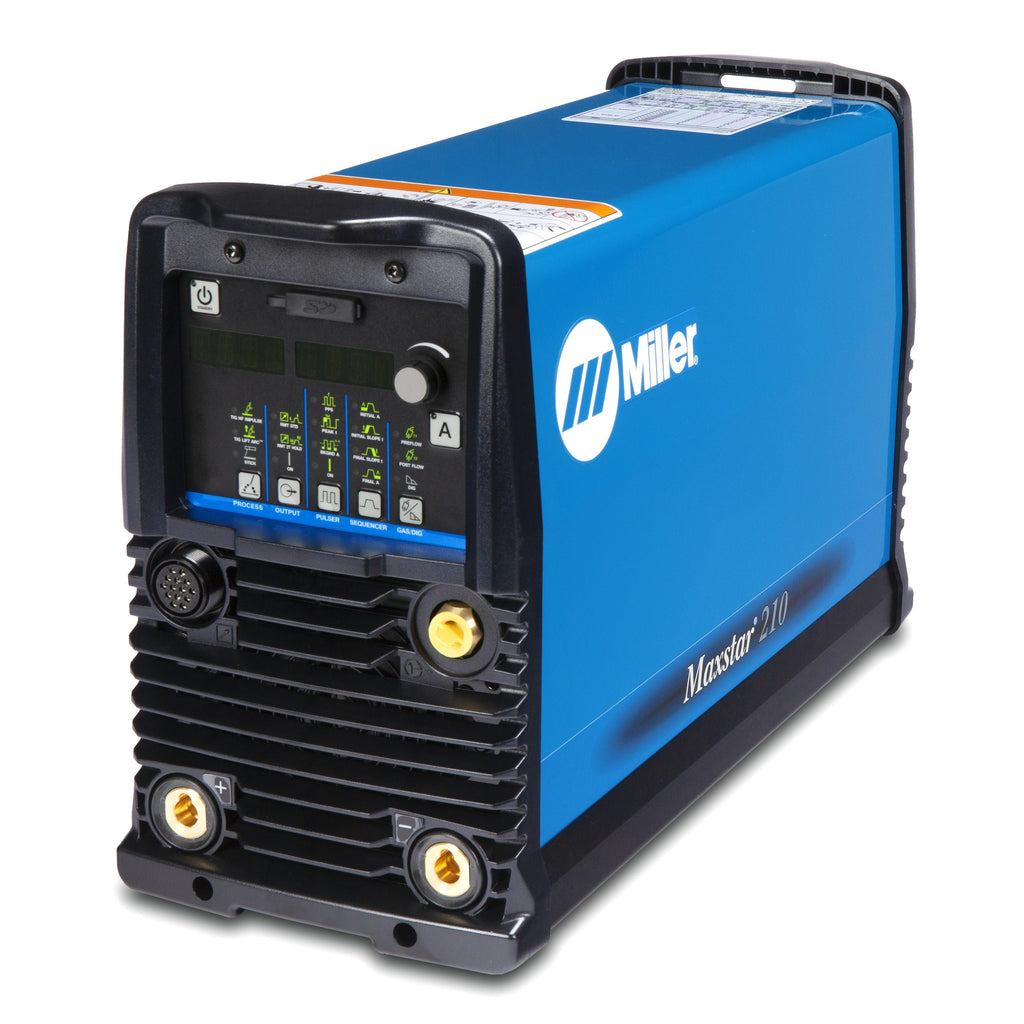

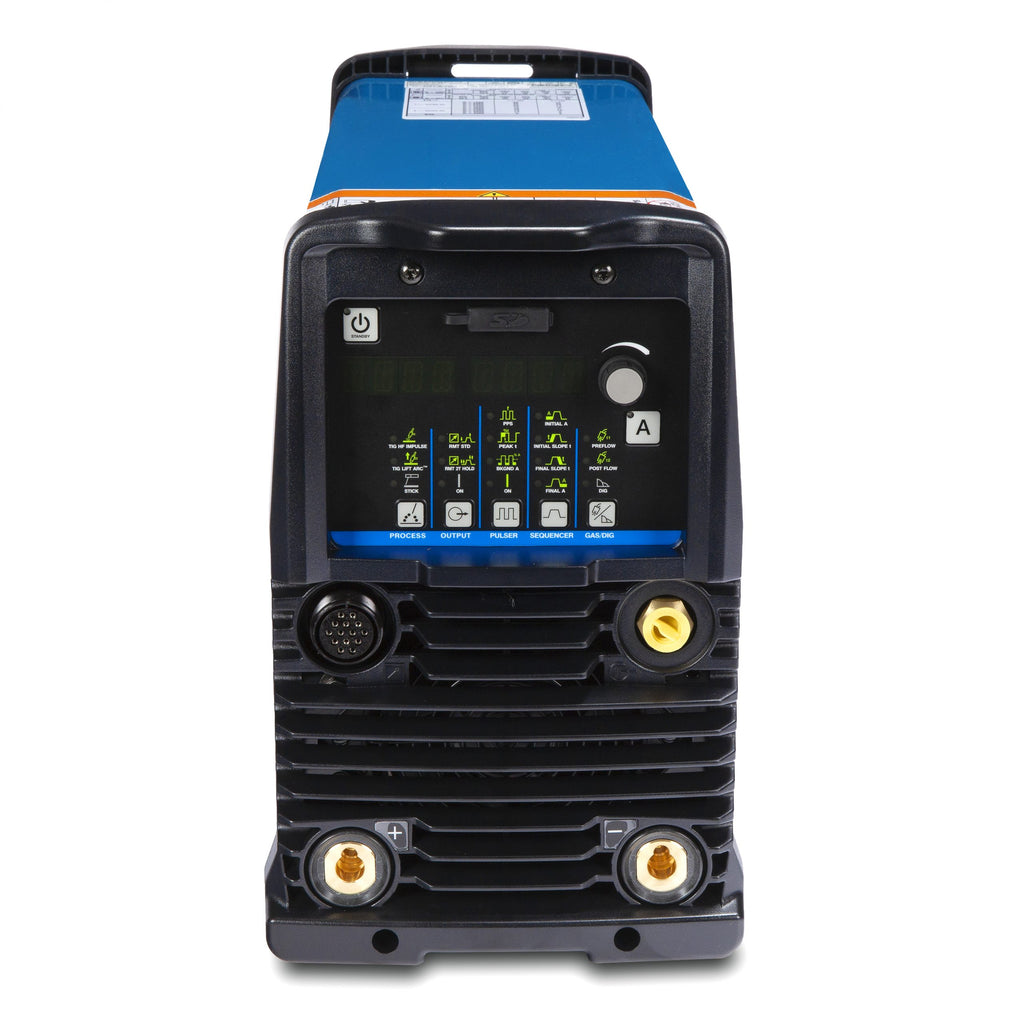

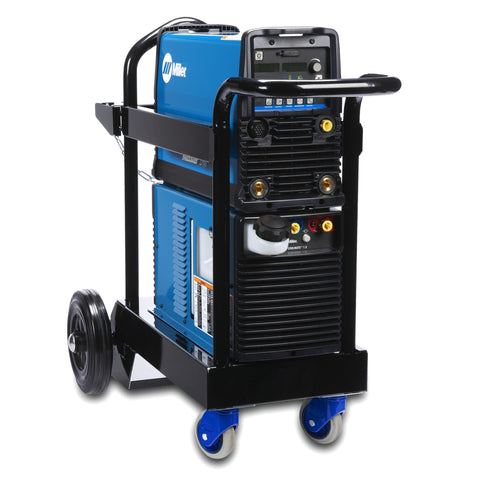

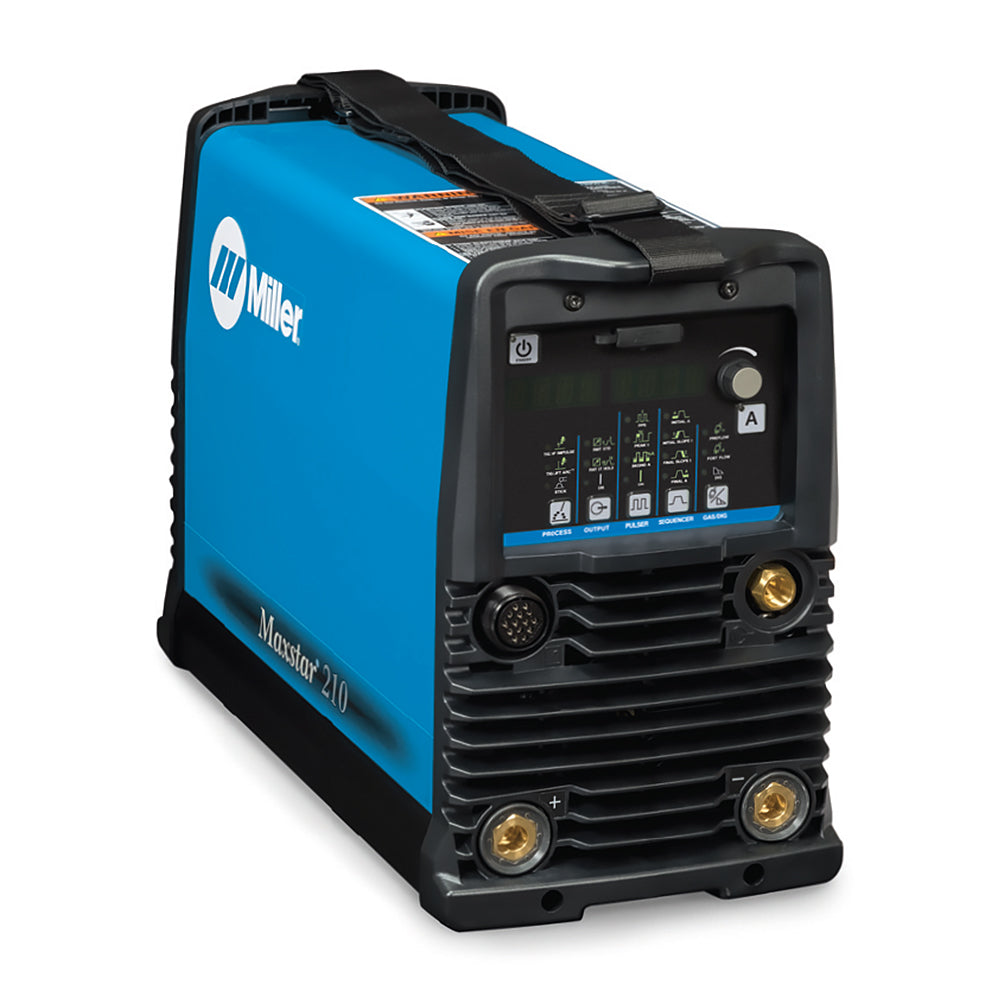

Miller 907684001 Maxstar® 210 DX TIG Welding Machine
Industry standard - Miller Electric pioneered the Maxstar-type market, now we've perfected it. Maxstar 210 DX provides a solution for a variety of needs; from simple to fully automated.The Maxstar 210 DX is a DC TIG Pulse and Stick Welder with a smooth and precise arc. Its Auto-Line technology allows for any input voltage hookup (120 - 480V) with no manual linking, providing convenience in any job setting, it is an ideal solution for dirty or unreliable power.
Auto-Line™ Technology, which allows it to connect to any input voltage from 120V to 480V, single- or three-phase power, without manual linking.
Features
- Welding Processes: DC TIG (GTAW-DC), Pulsed TIG (GTAW-P), and Stick (SMAW).
- Weldable Metals: Steel, stainless steel, and specialty alloys. It is a DC-only machine and cannot AC weld aluminum or magnesium.
- Amperage Range: 1 to 210 Amps (DC).
- Rated Output: 210 A at 18.4 V, 60% duty cycle.
- Input Power: 120–480 V, 1- or 3-phase, 50/60 Hz.
- Portability: Compact design with a weight of approximately 38 lb (17.2 kg).
- Pro-Set™: Eliminates guesswork by providing preset welding parameters for common applications.
- Blue Lightning™ HF Arc Starter: Provides consistent, non-contact arc initiation.
- Fan-On-Demand™: Cooling system operates only when needed, reducing noise and energy use.
- Program Memory: Ability to save and recall favorite welding settings.
- USB Port: For software updates and expanding product features.
-
Warranty: Backed by Miller's 3-year True Blue Warranty
Specifications
| Title | Maxstar® 210 DX |
| Industries Interests | Precision fabrication Petro chemical Aerospace Food/beverage industry Dairy Shipboard |
| Material Thickness | |
| Weldable Metals | Thin to medium material. Steel, Stainless, Special alloys |
| Input Voltage | 120 – 480 V |
| Input Phase | 1- or 3-phase power |
| Input Hz | 50 Hz |
| Amperage Range | 1 – 210 A (DC) |
| Current Type | DC |
| Rated Output | 210 A at 18 V, 60% duty cycle |
| Max Open Circuit Voltage | 80 VDC |
| Portability | |
| Weld Output | CC |
| Net Width | 219 mm (8.6 in.) |
| Net Height | 346 mm (13.6 in.) |
| Net Length | 495 mm (19.5 in.) |
| Net Weight | 17.2 kg (38 lb.) |
| Warranty | 3 Years Miller’s True Blue Warranty |
