Miller 907690 ProHeat™ 35 Air-Cooled Blankets for Induction Heating Welding

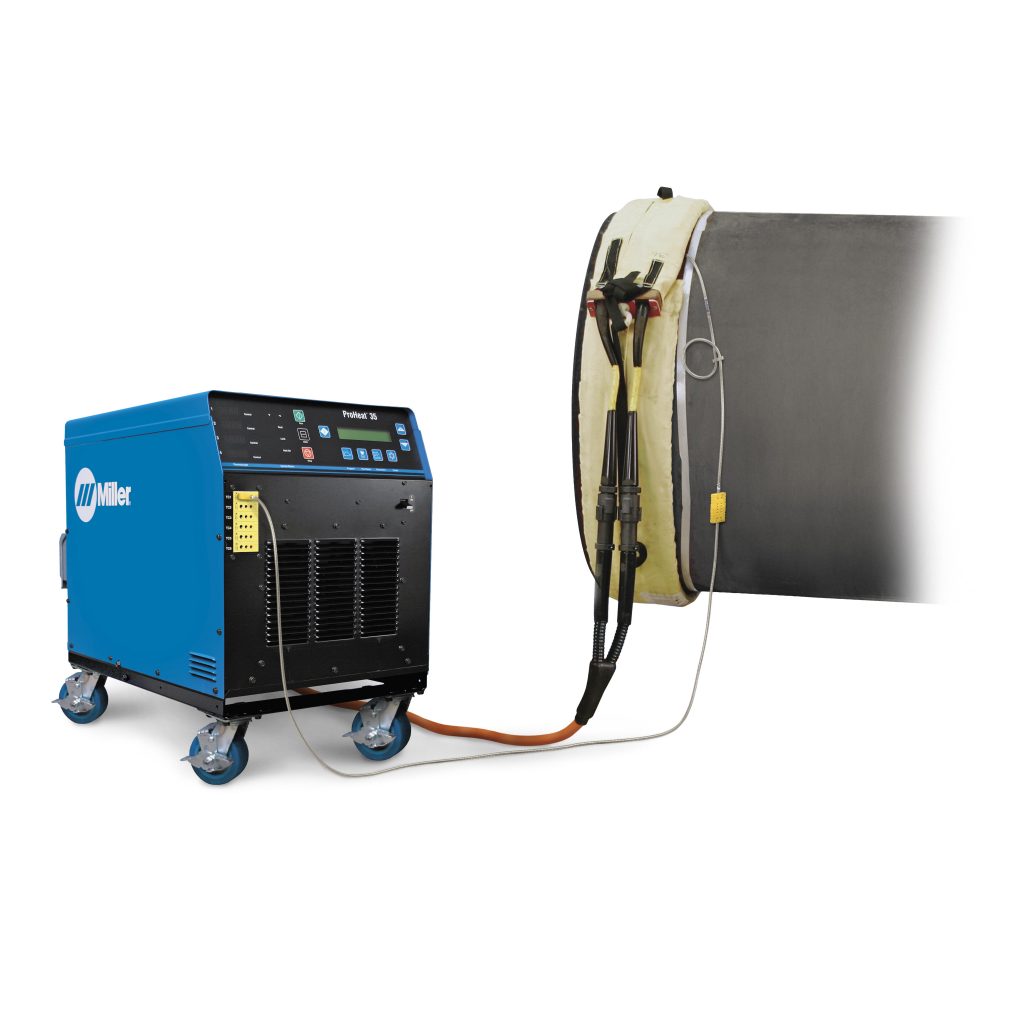

Powering a heating revolution—for preheat applications up to 204°C (400°F). The blankets easily conform to circular and flat parts and install in a matter of seconds.
Features
Improved working environment-is created during welding. Welders are not exposed to open flame, explosive gases and hot elements associated with fuel gas heating and resistance heating.
Easy setup-with flexibility to fit a variety of pipe diameters and plate lengths.
Uniform heating-is maintained along and through the heat zone by using induction heat within the material. The surface of the part is not marred by localized conducted heat at higher than specified temperatures.
Time-to-temperature-is faster than conventional processes due to the method of applying heat, reducing cycle time.
Specification

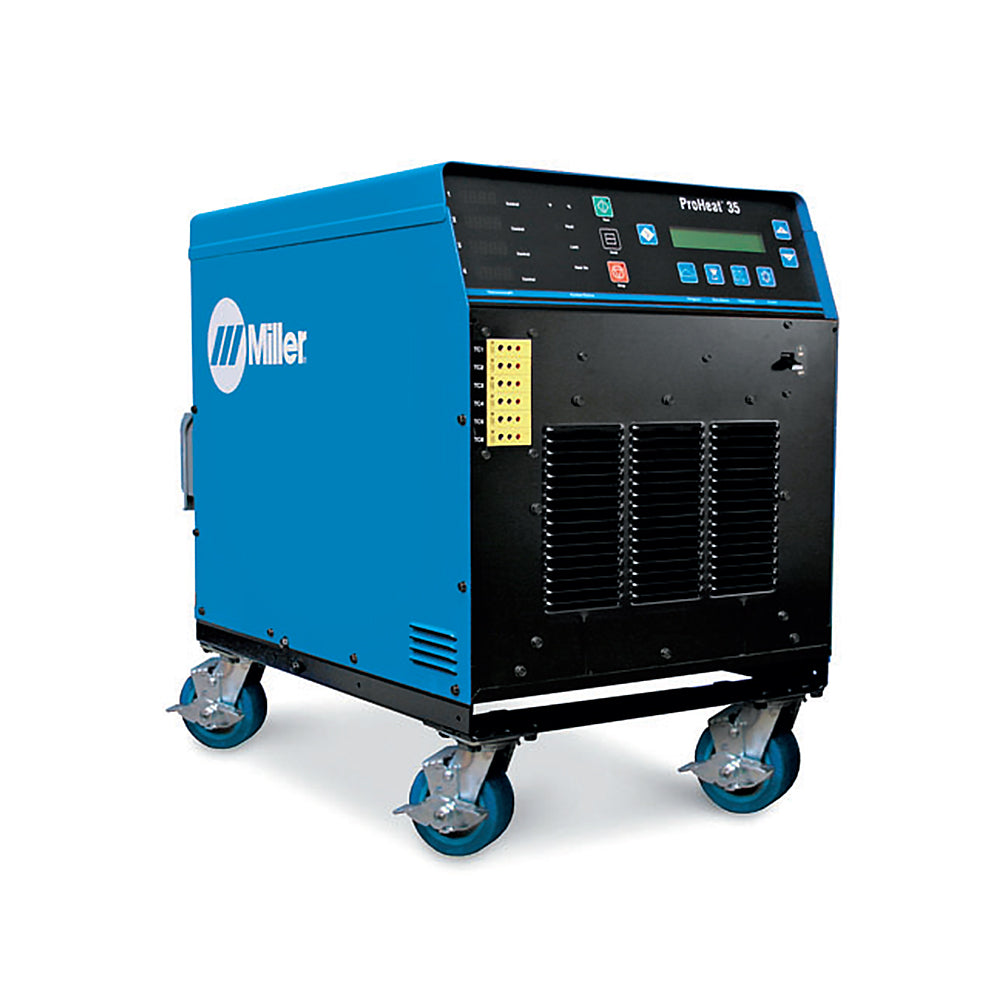

| Title | ProHeat™ 35 Air-Cooled Induction System |
| Industries Interests | |
| Material Thickness | |
| Weldable Metals | Controlled pre/post heat on pipes and flat objects. Process piping, Refineries, Pressure vessels, Petrochemical, Power piping, Structural |
| Input Voltage | 400–460 V / 460–575 V |
| Input Phase | 3-phase |
| Input Hz | 50/60 Hz / 60 Hz |
| Amperage Range | 400 V: 60 amps 460 V: 50 amps 575 V: 40 amps |
| Current Type | |
| Rated Output | 35 kW at 100% duty cycle |
| Maximum Preheat Temperature | 204°C (400°F) |
| Max Open Circuit Voltage | |
| Portability | |
| Weld Output | |
| Net Width | 552 mm (21.75 in.) |
| Net Height | 699 mm (27.5 in.) |
| Net Length | 933 mm (36.75 in.) |
| Net Weight | Net: 103 kg (227 lb.) Ship: 120 kg (265 lb.) |
| Warranty | 1 Year Miller’s True Blue Warranty |
