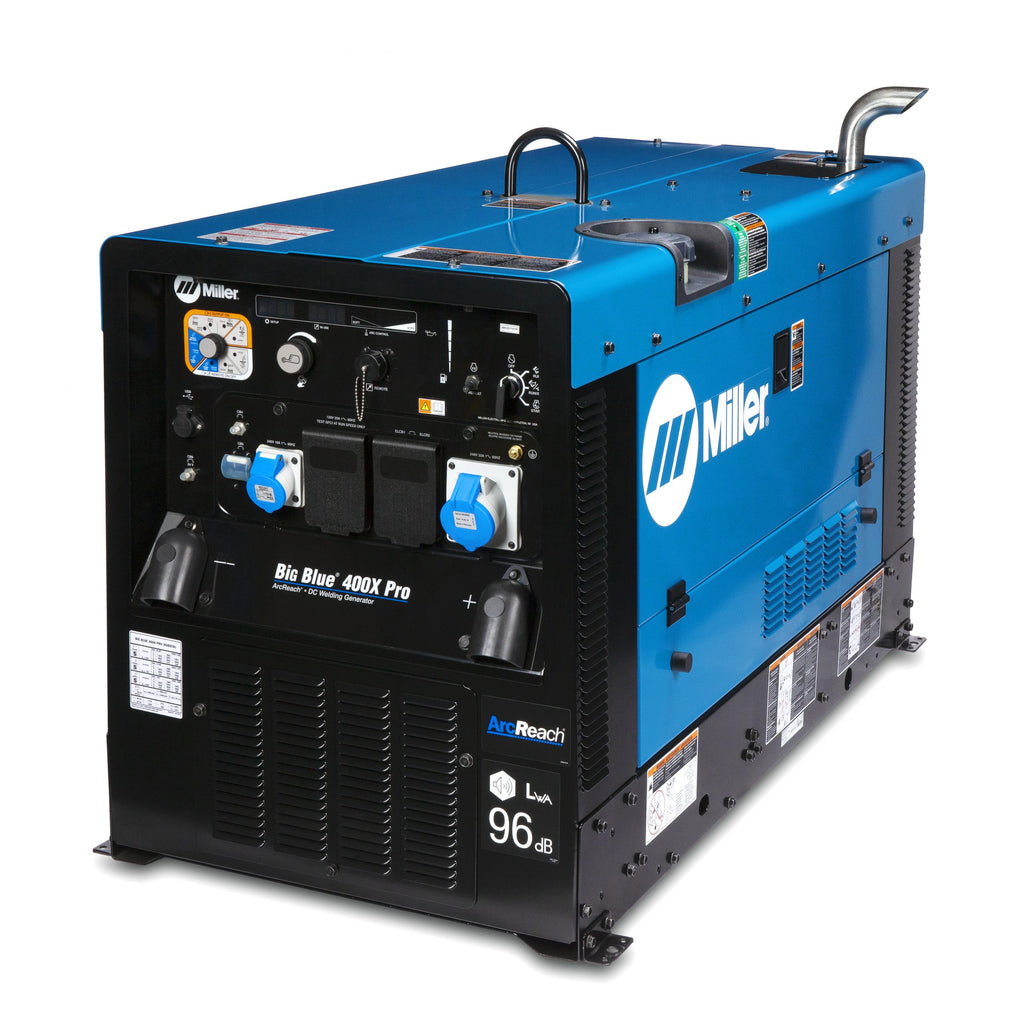

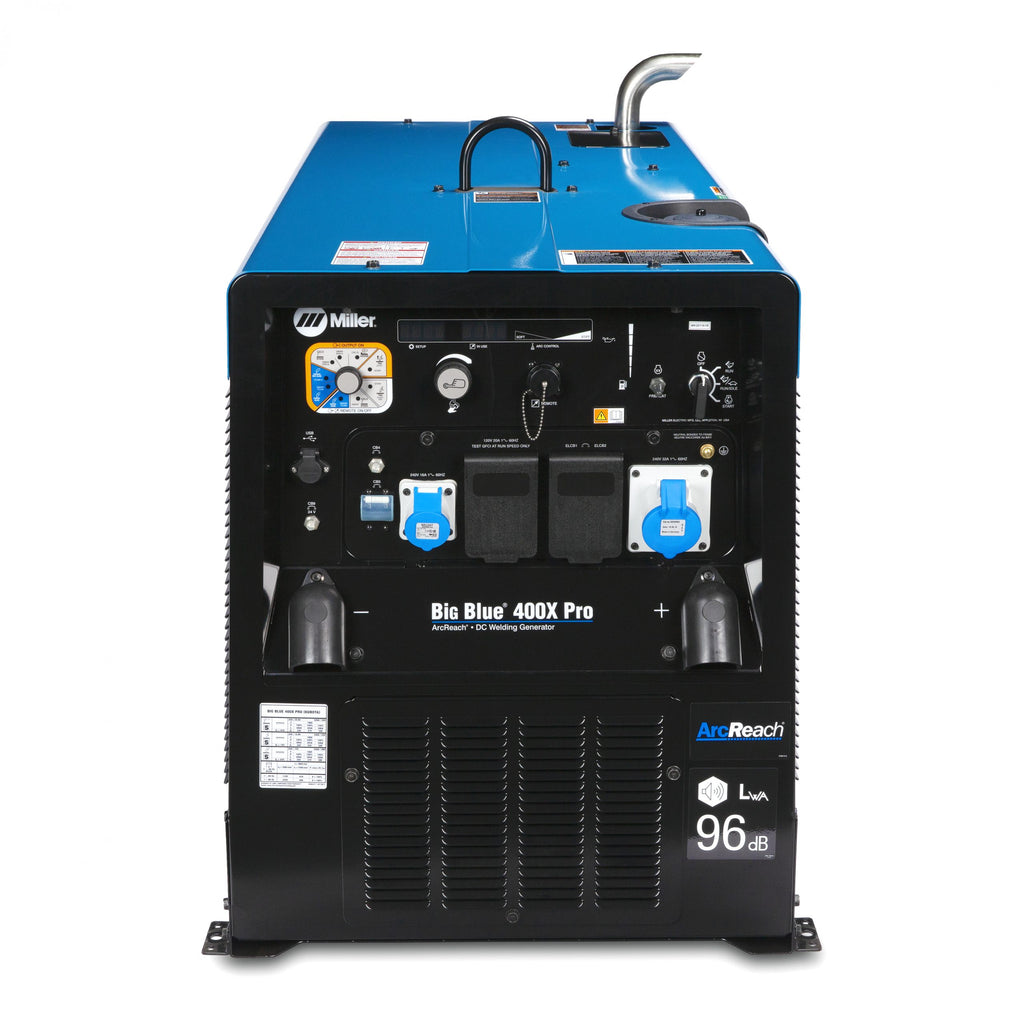

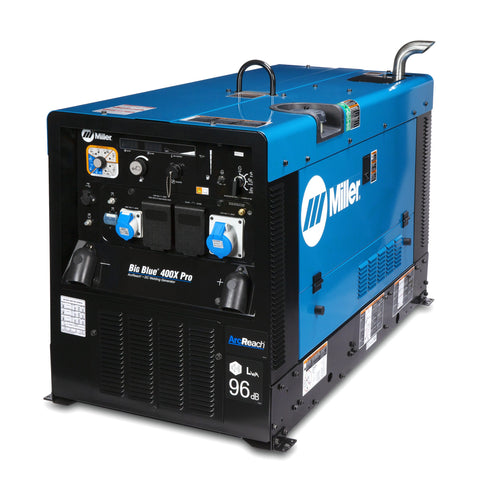

Miller 907732011 Big Blue® 400X Pro Engine Driven Generator for Welding
Designed with the professional in mind, the Big Blue® 400X Pro is the best for ease of use, reliability and fuel economy, the Big Blue 400X Pro has been designed with the professional welder in mind. This machine has been constructed to last in the harshest industrial environments and workshops and provides a new standard in productivity and weld quality in arc performances.
SunVision™ technology enables welding parameters to be seen with superior clarity than analogue meters from virtually any angle. This feature can also be viewed in direct sunlight. The Big Blue 400X Pro possesses 'easy to set up' controls that do not require long-winded instructions and explanations.
Includes an industrial USB port, which can upload the latest Miller-branded software and download machine log files that contain detailed information such as diagnostics and machine statistics.
ArcReach Technology
The ArcReach system allows the welder to change weld settings from an ArcReach feeder or remote without travelling to the power supply. This revolutionary technology uses the existing welding cable to communicate welding control information between the feeder or remote and the power source. Therefore, the need for controls and their associated problems and costs is eliminated.
MIG (GMAW)*
Flux-cored (FCAW)*
RMD®**
Pulsed MIG (GMAW-P)**
DC TIG (GTAW)
Air carbon arc (CAC-A)
Rated: 4.8 mm (3/16 in.) carbons
Capable: 6.4 mm (1/4 in.) carbon
| Title | Big Blue® 400X Pro |
| Industries Interests | Mechanical contractors Structural steelwork Fabrication Maintenance Repair Rental Construction Pipe welding |
| Material Thickness | |
| Weldable Metals | Thin to thick, All materials, 0,8-1.6 mm solid, Cored wires |
| Input Voltage | |
| Input Phase | |
| Input Hz | 50 Hz |
| Amperage Range | |
| Current Type | |
| Rated Output | DC stick 20–400 A MIG/flux-cored 14–40 V DC TIG 20–400 A |
| Max Open Circuit Voltage | 85 VDC 30 VDC Sense voltage for Lift-Arc™ TIG and stick with VRD on. |
| Portability | |
| Weld Output | CC/DC (TIG) CC/DC (Stick) CV/DC (FCAW/MIG) |
| Net Width | 667 mm (26.25 in.) |
| Net Height | 813 mm (32 in.) |
| Net Length | 1.422 mm (56 in.) |
| Net Weight | 431 kg (950 lb.) |
| Warranty | 3 Years Miller’s True Blue Warranty |
