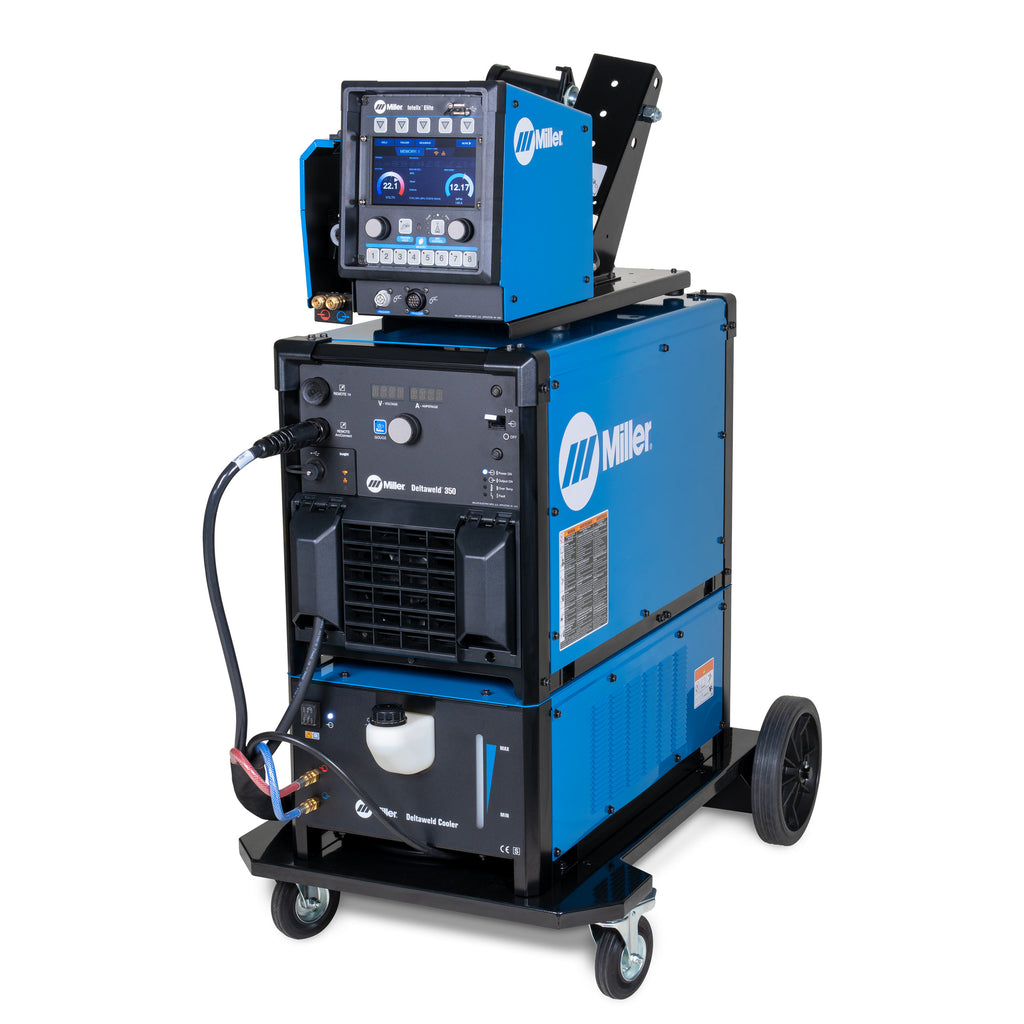

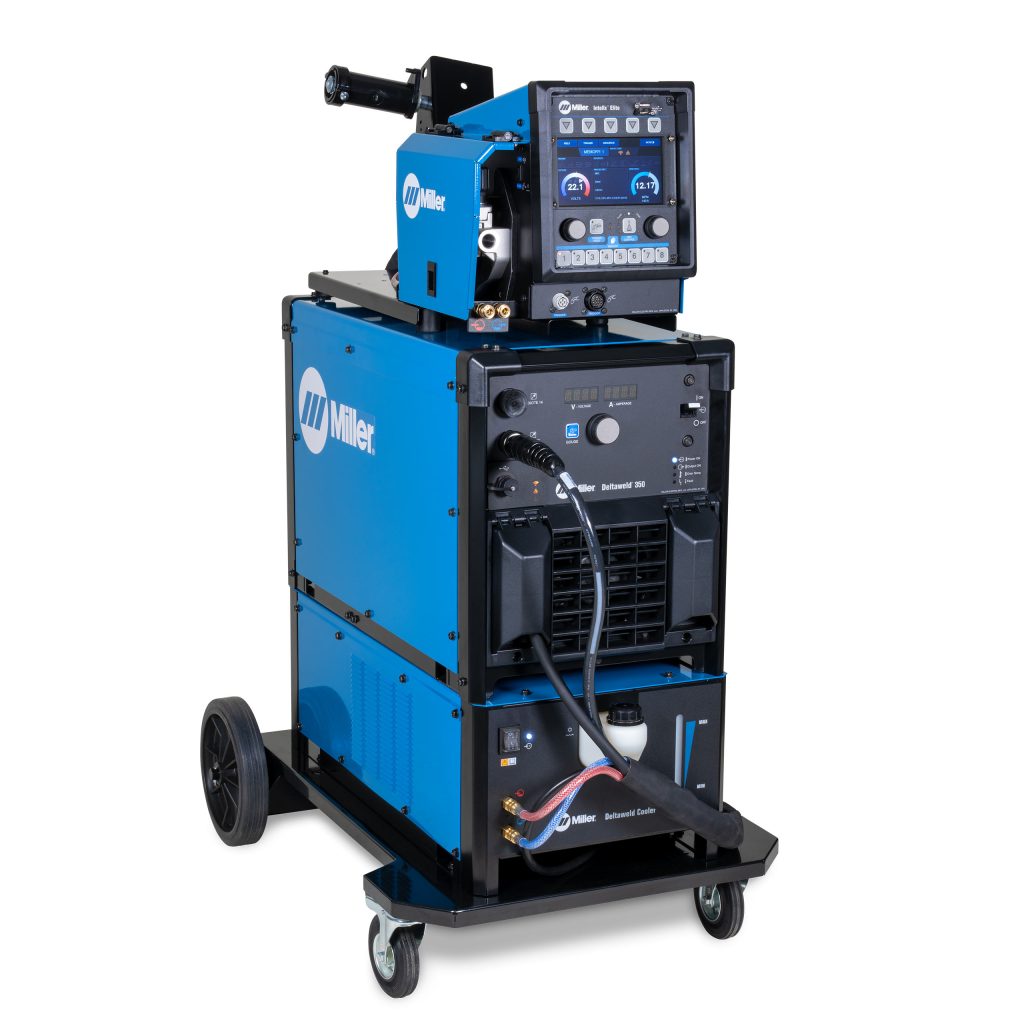

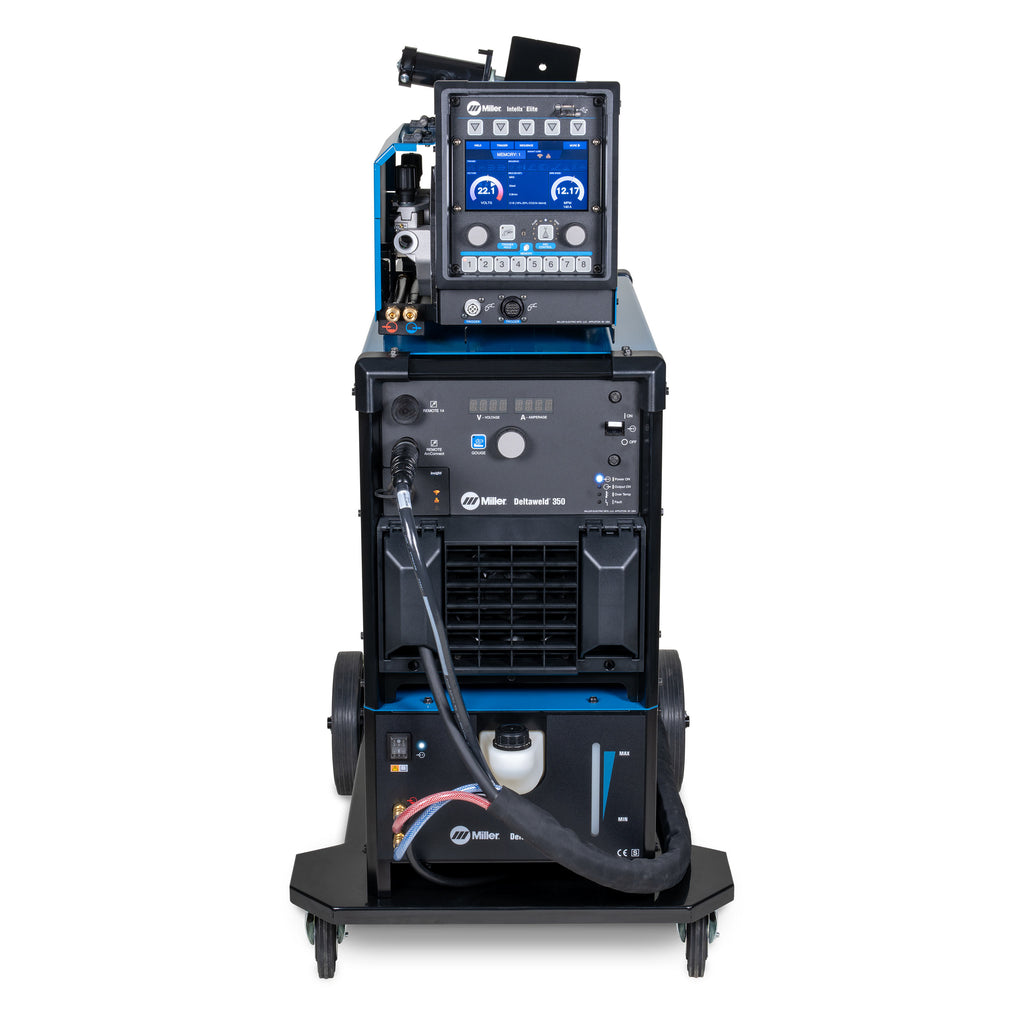

Miller Deltaweld® 350 Elite MIG/MAG Welding Machine & Intellx Elite Wire Feeder
The new standard in advanced manufacturing, fully featured straight out-of-the-box. ONE system to tackle ANY job. Miller Deltaweld 350 Mig Welder is the new standard in advanced manufacturing, fully featured straight out-of-the-box. ONE system to tackle ANY job. MIG (GMAW), Flux-cored (FCAW), Accu-Pulse® MIG (GMAW-P), High-deposition MIG (HD-MIG), RMD – all in one simple to use industrial mig welding machine.
FEATURES
- Easy to operate
- The Deltaweld system is designed for advanced manufacturing and is equipped with weld processes developed by Miller to increase productivity and/or increase the quality of the weld.
- Intellx Elite feeder – Designed for durability – The strongest and most durable drive system on the market, ensuring consistent and reliable wire feeding regardless of the environment.
- Designed for durability – The strongest and most durable drive system on the market, ensuring consistent and reliable wire feeding regardless of the environment.
- Designed for productivity – Loaded with weld processes to increase the deposition rate on thicker material and eliminates the need for a TIG root run on pipe applications.
- Designed for quality endurance – Equipped with tools to ensure that correct weld parameters are used.
- Easy to use
- EZ-Set simplifies parameter setup based on material thickness, removing complexity. EZ-Set can be applied to all the advanced weld processes featured in the Deltaweld system.
- Pulse capable
- Accu-Pulse offers a more forgiving arc and compensates for variations in operator technique, providing a wider operating window.
- Accu-Pulse®
- A Miller unique Pulse process suitable for majority of industrial welding applications. Most adaptive arc, compensating for less perfect fit-up and “tip-to-work piece” variations on any plate thickness. Designed for all weld positions.
- High-deposition MIG (HD MIG)
- Higher deposition rate and higher travel speed on thicker materials.
- Better bead appearance and less material distortion.
- RMD® Regulated Metal Deposition
- Extremely low heat input.
- Can replace TIG welding on pipe root applications.
- Ideal for bridging gaps on thin materials.
- 400 V, 3-phase, 50/60 Hz
-
Miller 3 Year Warranty
Air Cooled Package includes:
- Miller Deltaweld 350 Power Source
- Deltaweld Elite Feeder
- Interconnection Cable 3m Air Cooled
- Feeder Swivel
- Running Gear
- Bernard Q300 x 4.5 meter Air Cooled Mig Torch
- Return Cable Kit 70mm2 5 metre
Water Cooled Package includes:
- Miller Deltaweld 350 Mig Power Source
- Deltaweld Elite Feeder
- Deltaweld Cooler
- Coolant x 4
- Interconnection Cable 2,5m Water Cooled
- Deltaweld Running Gear
- Miller EuroGun W-500 x 4.5meter Water Cooled Mig Torch
- Return Cable Kit 70mm2 5 metre
Specifications
| Title | Deltaweld® 350 |
| Industries Interests | Heavy Industrial Manufacturing Advanced manufacturing Transportation and earth moving vehicles Pressure vessels and pipes Structural steel fabrication Sheet metal fabrication Light-gauge tube and sheet |
| Material Thickness | |
| Weldable Metals | Thin to thick, All materials, 0,6-2 mm solid, Cored wires |
| Input Voltage | 400 V |
| Input Phase | 3 phases |
| Input Hz | 50/60 Hz |
| Amperage Range | 20 A – 425 A |
| Max. Output Amperage | 350 A @ 60% |
| Current Type | |
| Rated Output | 350 A / 31.5 V @ 60% duty cycle |
| Max Open Circuit Voltage | 31,5 VDC |
| Net Width | 390 mm |
| Net Height | 568 mm (without Feeder) |
| Net Depth | 740 mm |
| Net Weight | 52 kg |
| Warranty | 3 Years Miller’s True Blue Warranty |
