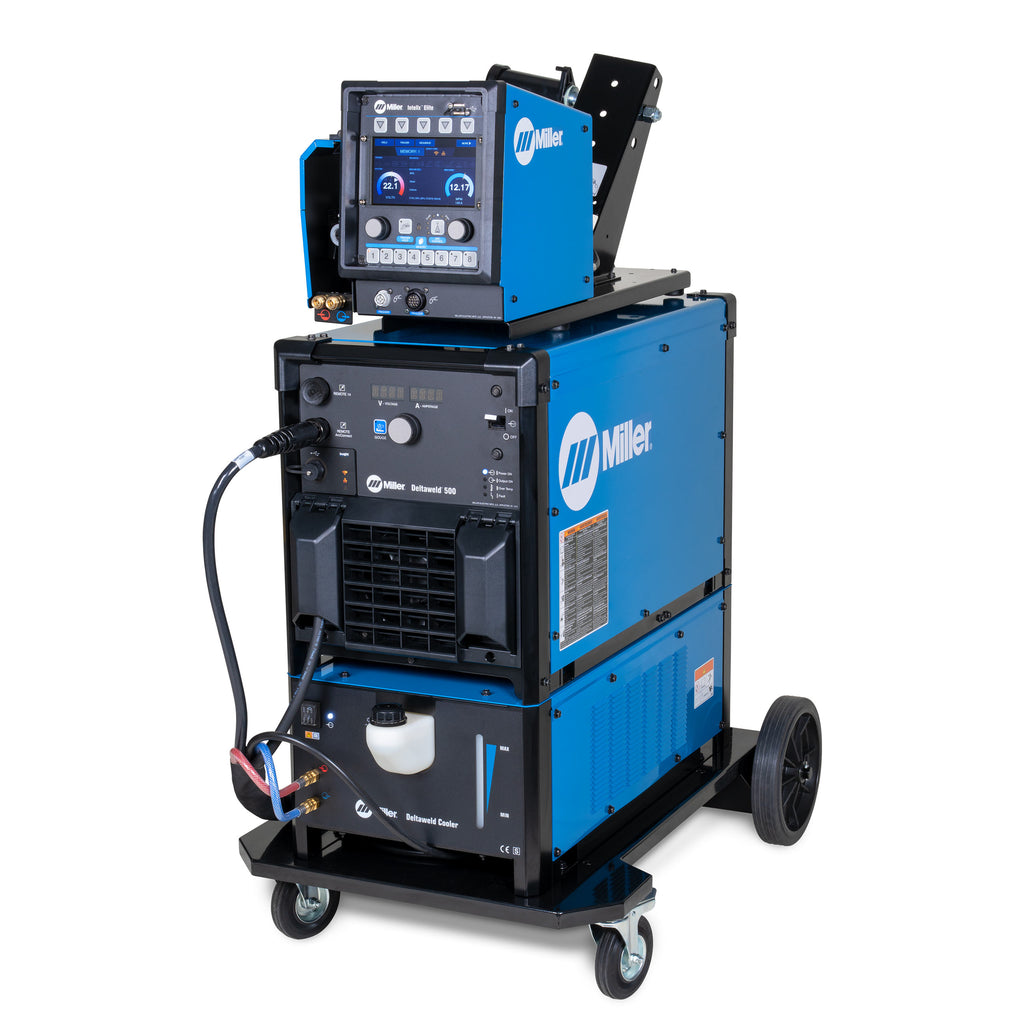

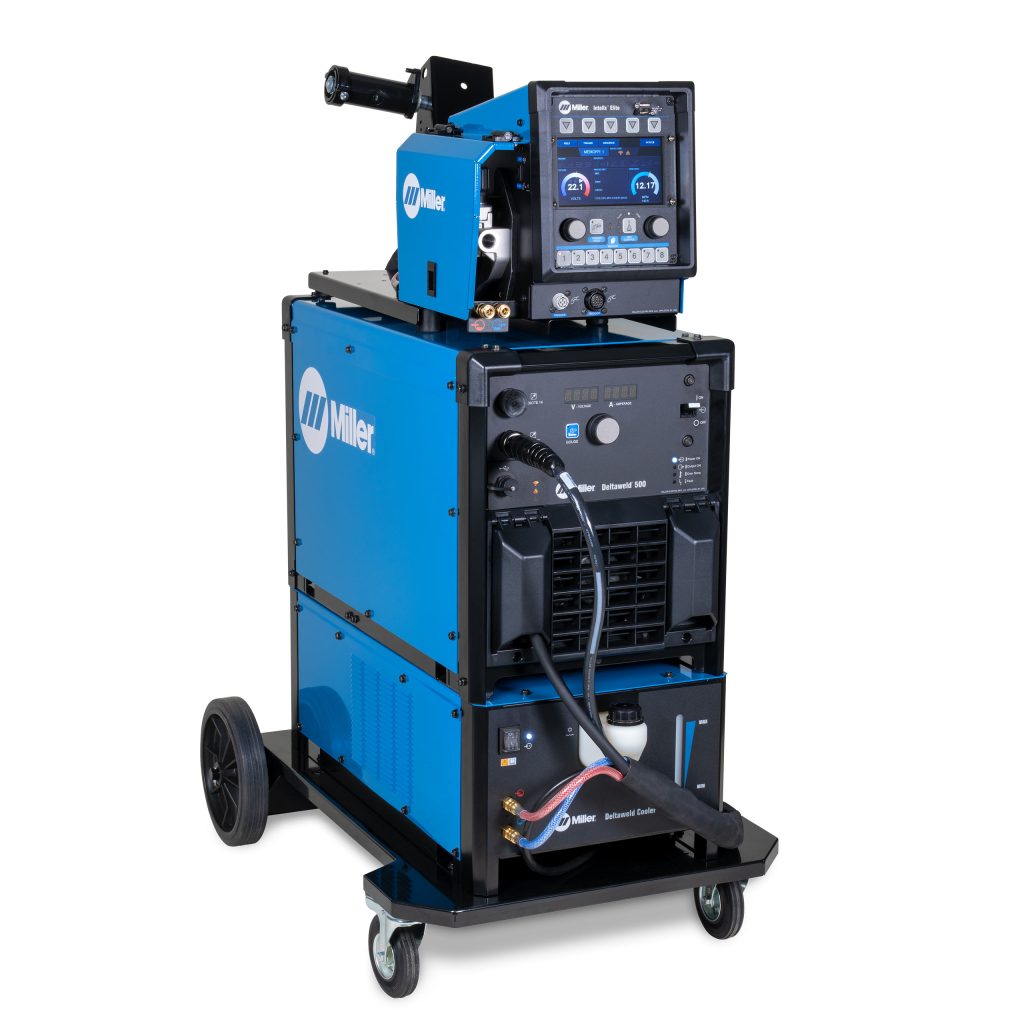

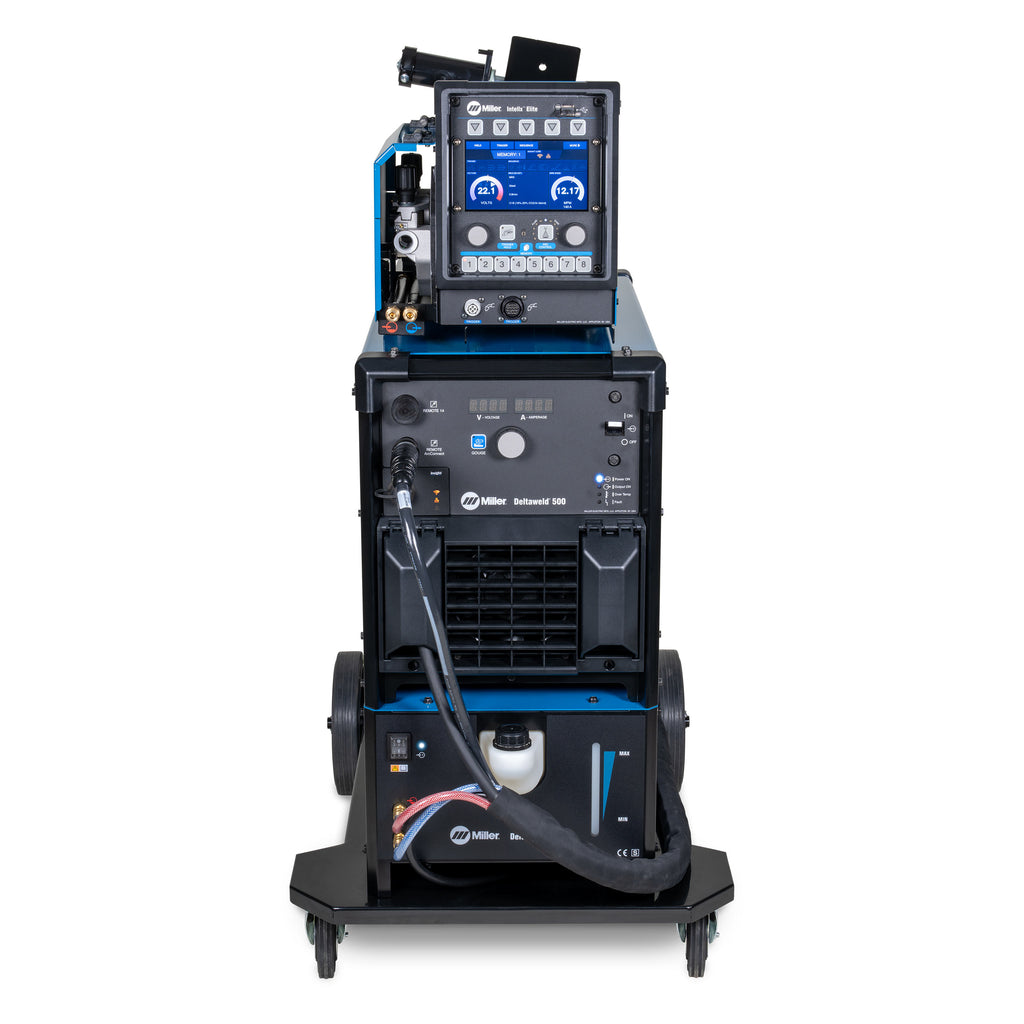

Miller 907854001 Deltaweld® 500 Elite MIG/MAG Welding Machine 400V
The new standard in advanced manufacturing, fully featured straight out-of-the-box. ONE system to tackle ANY job.
Features
Easy to operate - The Deltaweld system is designed for advanced manufacturing and is equipped with weld processes developed by Miller to increase productivity and/or increase the quality of the weld.
Intellx Elite feeder -
Designed for durability – The strongest and most durable drive system on the market, ensuring consistent and reliable wire feeding regardless of the environment.
Designed for productivity – Loaded with weld processes to increase the deposition rate on thicker material and eliminates the need for a TIG root run on pipe applications.
Designed for quality endurance – Equipped with tools to ensure that correct weld parameters are used.
Easy to use - EZ-Set simplifies parameter setup based on material thickness, removing complexity. EZ-Set can be applied to all the advanced weld processes featured in the Deltaweld system.
Pulse capable - Accu-Pulse offers a more forgiving arc and compensates for variations in operator technique, providing a wider operating window.
Accu-Pulse - A Miller unique Pulse process suitable for majority of industrial welding applications. Most adaptive arc, compensating for less perfect fit-up and “tip-to-work piece” variations on any plate thickness. Designed for all weld positions.
High-deposition MIG (HD MIG) -
Higher deposition rate and higher travel speed on thicker materials.
Better bead appearance and less material distortion.
RMD -
- Extremely low heat input.
- Can replace TIG welding on pipe root applications.
- Ideal for bridging gaps on thin materials.
Specification
| Title | Deltaweld® 500 |
| Industries Interests | Heavy Industrial Manufacturing Advanced manufacturing Transportation and earth moving vehicles Pressure vessels and pipes Structural steel fabrication Sheet metal fabrication Light-gauge tube and sheet |
| Material Thickness | |
| Weldable Metals | Thin to thick, All materials, 0,6-2 mm solid, Cored wires |
| Input Voltage | 400 V |
| Input Phase | 3 phases |
| Input Hz | 50/60 Hz |
| Amperage Range | 30 A – 650 A |
| Max. Output Amperage | 575 A @ 60% |
| Current Type | |
| Rated Output | 575 A / 43 V @ 60% duty cycle |
| Max Open Circuit Voltage | 41.5 VDC |
| Net Width | 390 mm |
| Net Height | 567 mm (without Feeder) |
| Net Depth | 804 mm |
| Net Weight | 66 kg |
| Warranty | 3 Years Miller’s True Blue Warranty |
