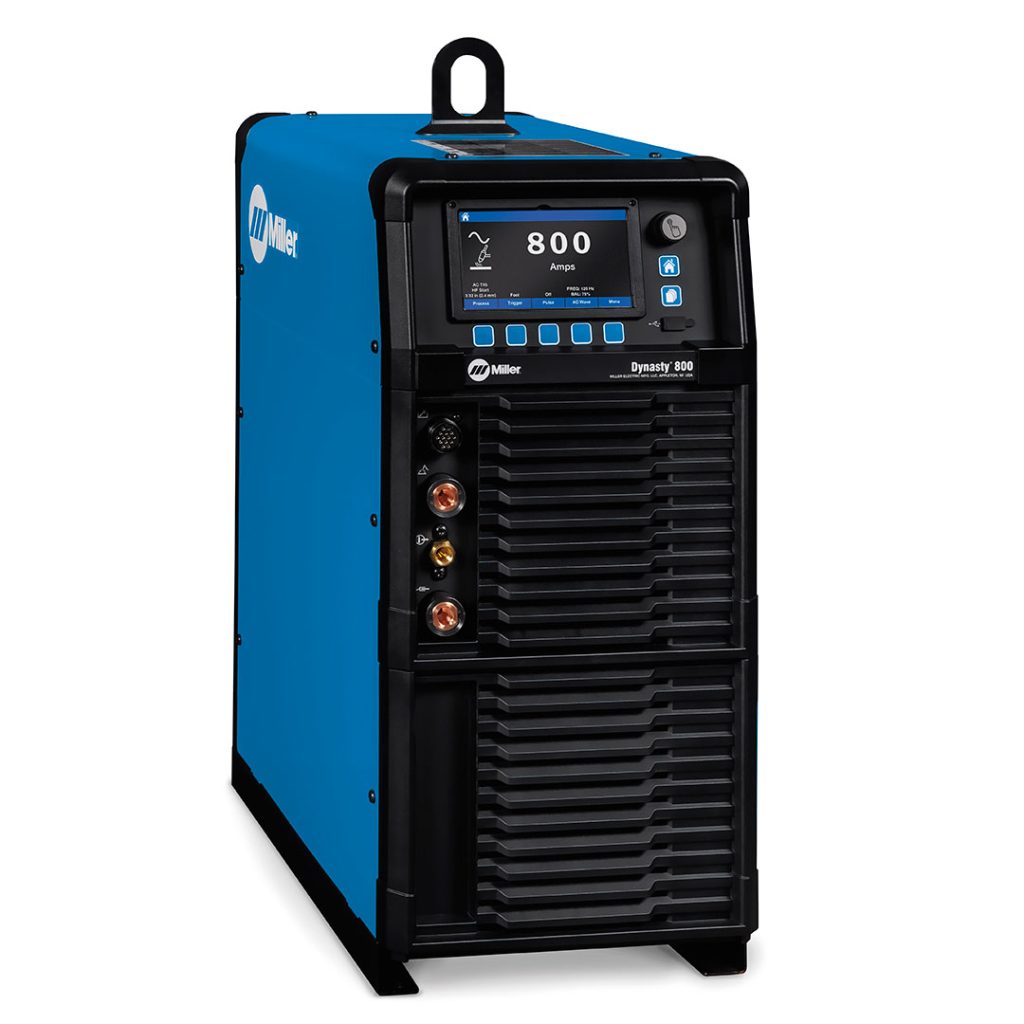

Miller 907859002 Dynasty 800 AC/DC TIG Welder 208V-600V
The Dynasty 800 is a powerful power source capable of welding up to 25.4 mm (1") aluminum. Experience unfailing precision arc performance paired with a state-of-the-art, user-friendly interface that puts advanced capabilities at your fingertips.
Features

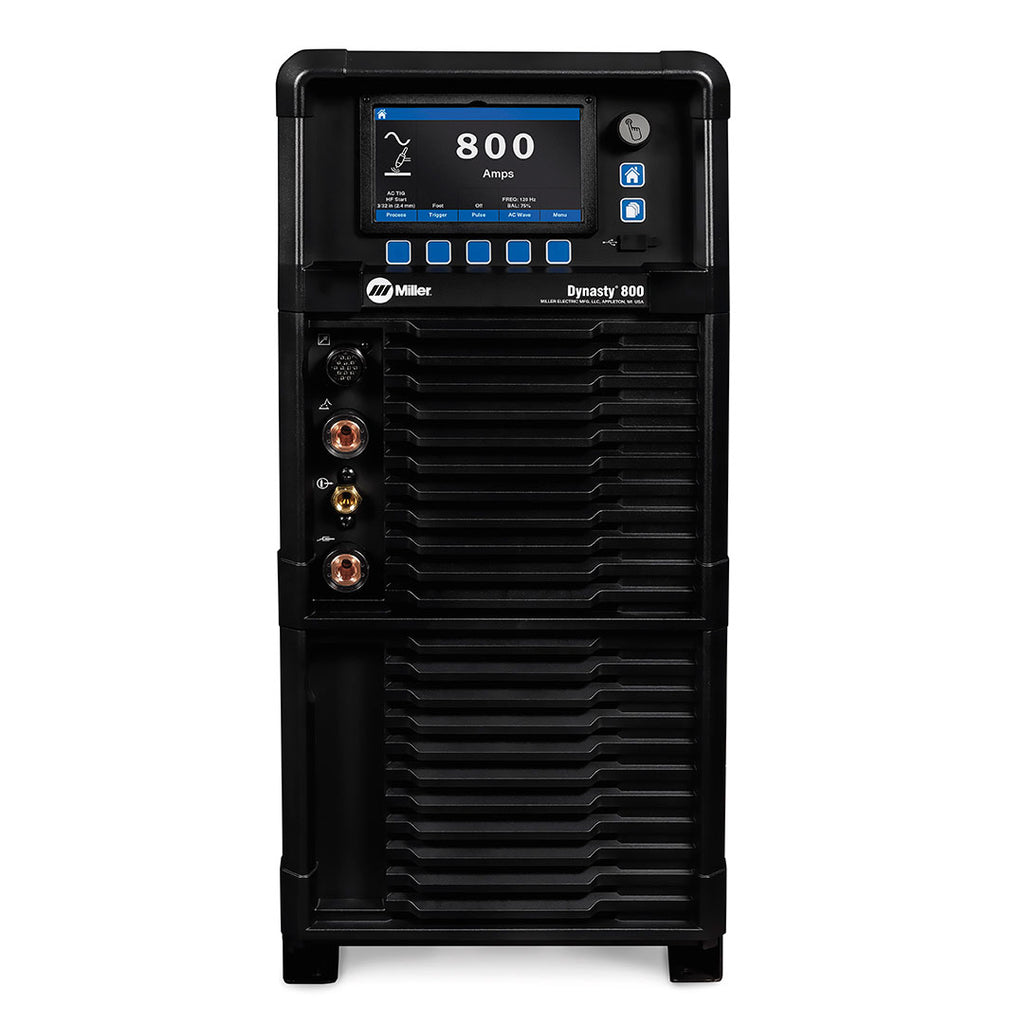

Easy-to-understand interface with 7-inch LCD display-Ensures proper machine setup and parameter selection. Informative on-screen explanations and dynamic images enhance the parameter selection process.
QuietPulse™- Activate QuietPulse™ by selecting sine or triangular waveshape to reduce audible noise.
Blue Lightning™-Provides more consistent high-frequency (HF) arc starts and greater reliability compared to traditional arc starters.
Lift-Arc™-Provides AC or DC arc initiation without the use of high frequency.
Auto-Line™ power management technology- Allows for any input voltage hookup (208–600 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
Program memory-Allows easy naming, saving and recalling of favorite weld settings.
- Deliver more productivity by eliminating the need to manually set the parameters
- Deliver consistent quality by welders of all skills
Pro-Set™- Eliminates the guesswork when setting weld parameters.
Locks and limits-Provides control of weld parameter ranges minimizing deviation from the welding procedure specification (WPS).
USB-Front panel port provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.

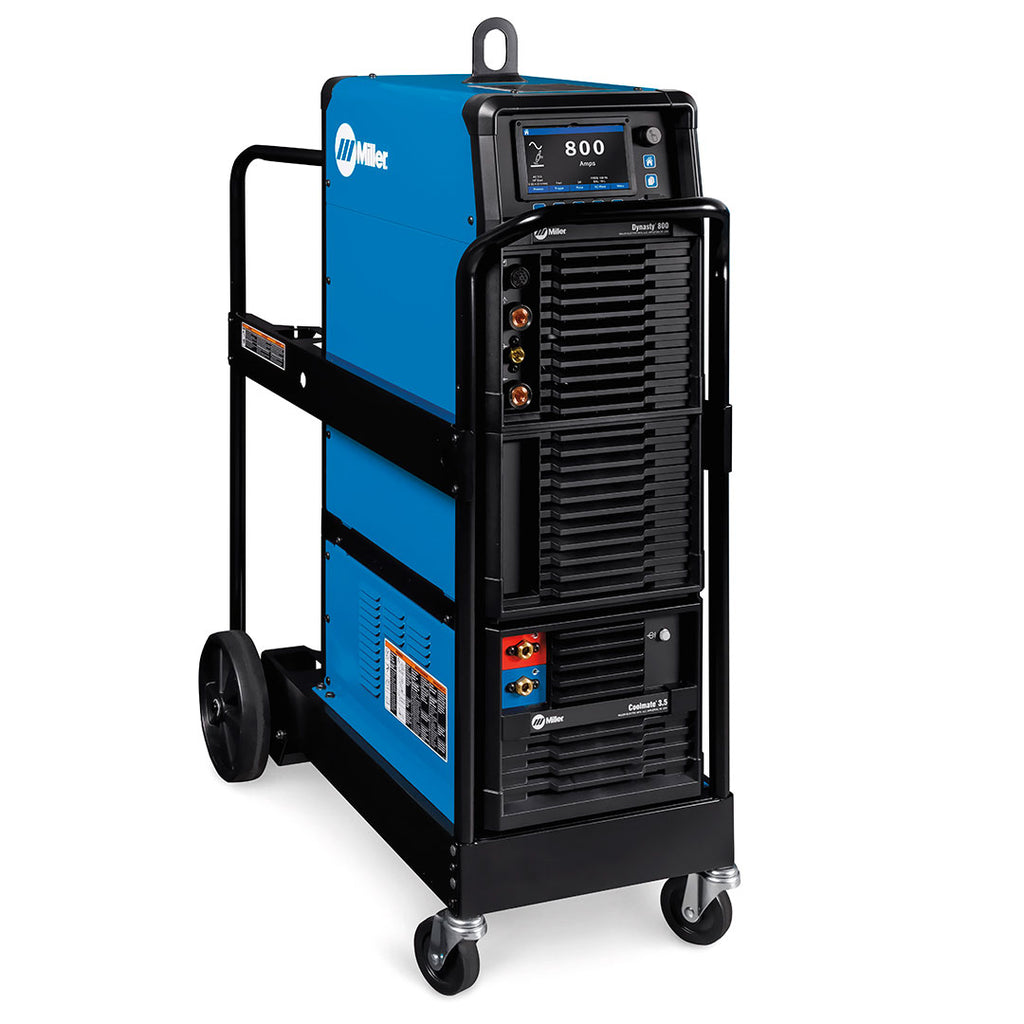

Cooler Power Supply (CPS)- is an integrated 120-volt dedicated-use receptacle for the Coolmate™ 3.5.
Cooler-On-Demand™-Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
Specification
| Title | Dynasty® 800 |
| Industries Interests | Precision fabrication Heavy fabrication Pipe and tube fabrication Aerospace Aluminum ship repair Anodized aluminum fabrication |
| Material Thickness | |
| Weldable Metals | Thin to thick material. Steel, Stainless, Aluminium Special Alloys |
| Input Voltage | 208–600 V |
| Input Phase | 3-phase power |
| Input Hz | 50/60 Hz |
| Amperage Range | 5–800 A |
| Current Type | AC/DC |
| Rated Output | 600 A at 44 V, 60% duty cycle |
| Max Open Circuit Voltage | 75 VDC |
| Portability | |
| Weld Output | CC |
| Net Width | 352 mm |
| Net Height | 870 mm |
| Net Length | 618 mm |
| Net Weight | 91 kg |
| Warranty | 3 Years Miller’s True Blue Warranty |
