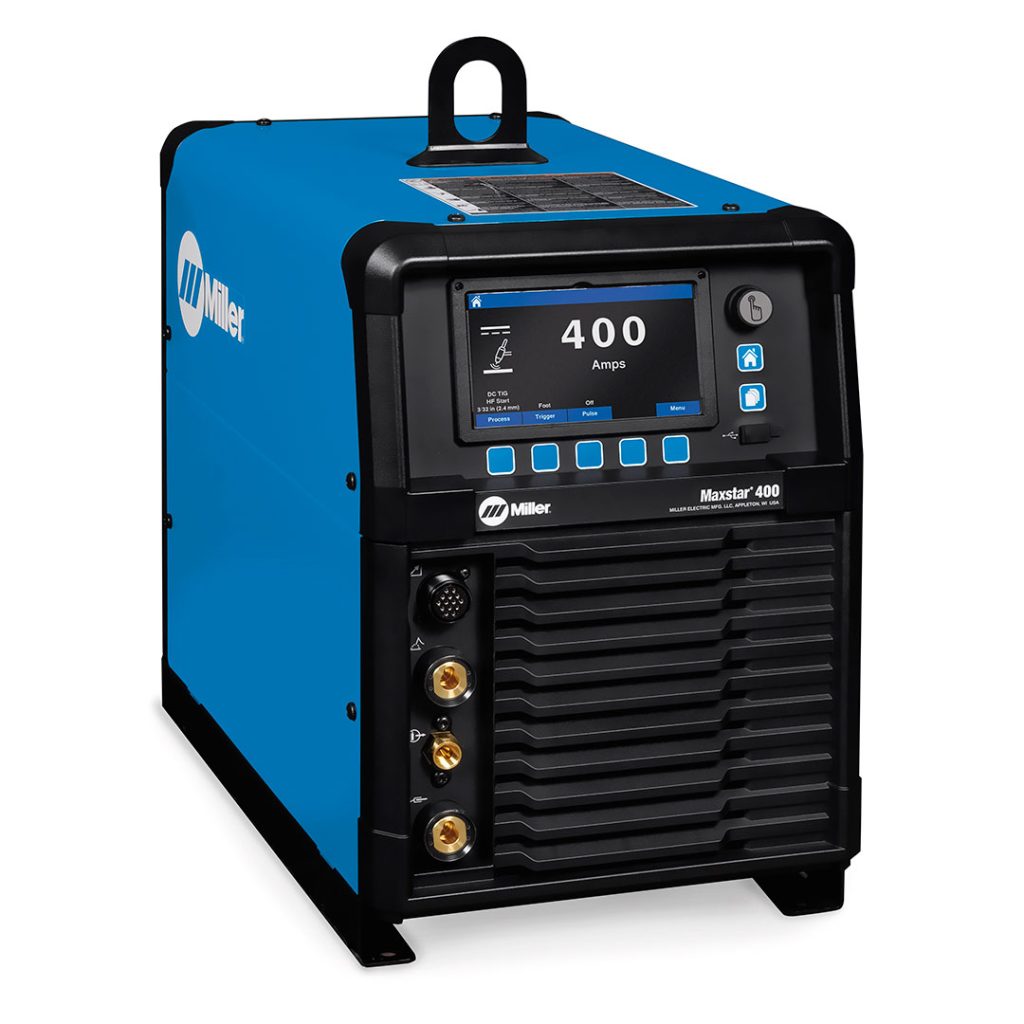

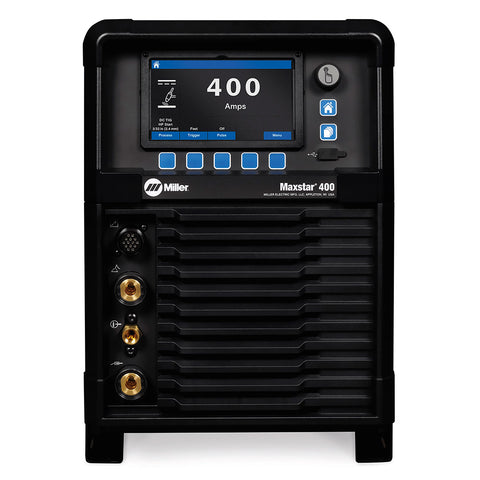

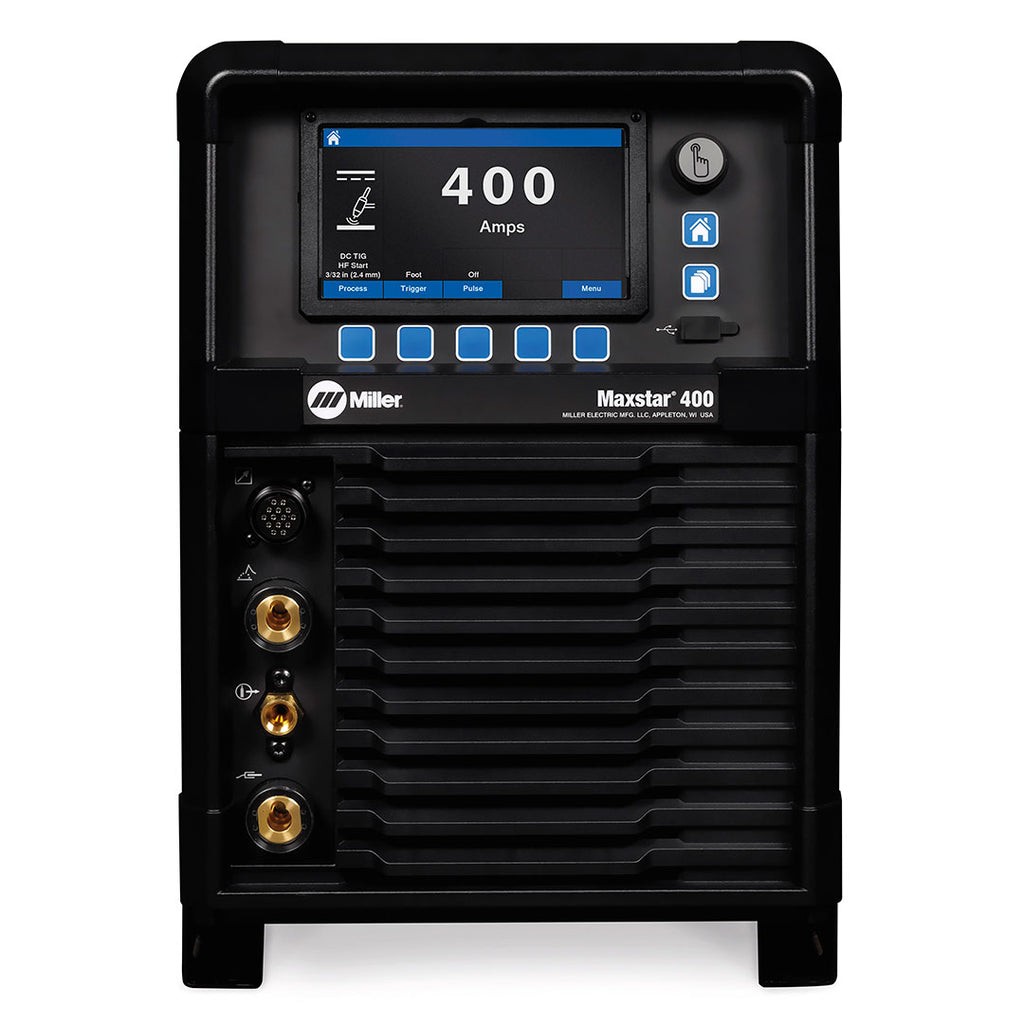

Miller Maxstar 400 DC Tig Welding Machine 208V-600V
Unlock your full potential with the new Maxstar® 400 advanced DC TIG welder. Now equipped with an intuitive LCD interface that puts precision welding capabilities at your fingertips.
Features
- QuietPulse - Activate QuietPulse™ by selecting sine or triangular waveshape to reduce audible noise.
- Blue Lightning - Provides more consistent high-frequency (HF) arc starts and greater reliability compared to traditional arc starters.
- Lift-Arc -Provides AC or DC arc initiation without the use of high frequency.
- Auto-Line - Allows for any input voltage hookup (208–600 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
-
Program memory - Allows easy naming, saving and recalling of favourite weld settings.
- Deliver more productivity by eliminating the need to manually set the parameters
- Deliver consistent quality by welders of all skills
- Pro-Set - Eliminates the guesswork when setting weld parameters.
- Locks and limits - Provides control of weld parameter ranges minimizing deviation from the welding procedure specification (WPS).
- USB - Front panel port provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next

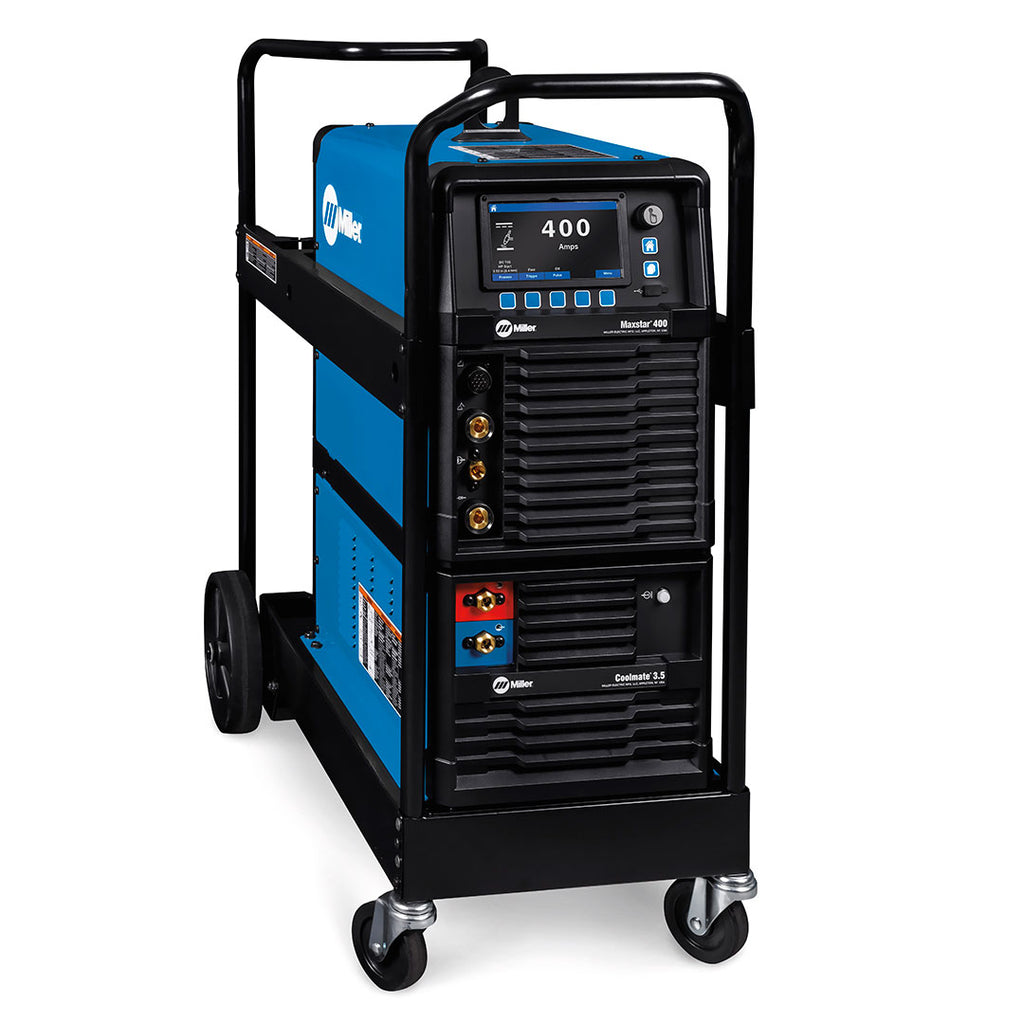

- Cooler Power Supply (CPS) - Is an integrated 120-volt dedicated-use receptacle for the Coolmate™ 3.5.
- Cooler-On-Demand - Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
Specification
| Title | Maxstar® 400 |
| Industries Interests | Precision metal fabrication Tube mills Pipe and tube fabrication Tool and die Exotic material fabrication Pressure vessel fabrication |
| Material Thickness | |
| Weldable Metals | Thin to thick material. Steel, Stainless, Special alloys |
| Input Voltage | 208–600 V |
| Input Phase | 3-phase or 1-phase power |
| Input Hz | 50/60 Hz |
| Amperage Range | 3–400 A |
| Current Type | DC |
| Rated Output | 300 A at 32 V, 60% duty cycle |
| Max Open Circuit Voltage | 75 VDC |
| Portability | |
| Weld Output | CC |
| Net Width | 352 mm |
| Net Height | 613 mm |
| Net Length | 618 mm |
| Net Weight | 57 kg |
| Warranty | 3 Years Miller’s True Blue Warranty |
