The Small but Mighty TIG

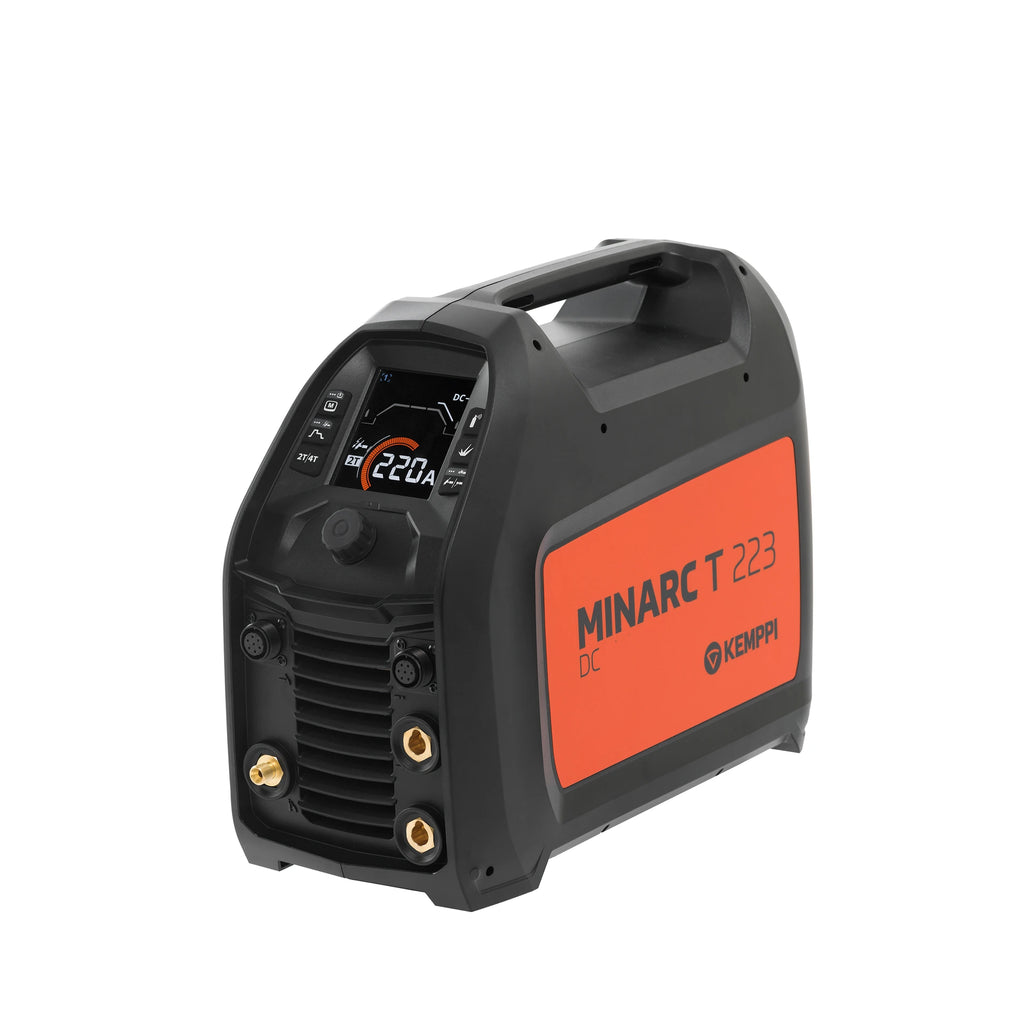

The Minarc T 223 DC, 1ph 110V / 230V, is a portable, small, but mighty TIG welding machine designed for welders on the go.
With a powerful output of 220 amps, this portable welding machine delivers precise DC TIG and MMA performance and is protected with a durable and stylish moulded casing. Kemppi's professionals design, engineer, build, and test every Minarc T DC TIG welding power source in Finland, ensuring reliable Finnish welding quality for every weld.
This multi-voltage TIG welder is perfect for industrial workshops and site welding applications. It uses PFC technology for energy-efficient operation. Standard features include pre- and post-flow gas control, slope time regulation, memory channels, and power adjustments that can be made using optional remote controls.
Delivery packages come with the DC TIG power source, a carrying strap, an earth return cable, a gas hose, and a Flex-lite TX welding TIG torch (available in 4m or 8m lengths).
Minarc T 223 DC includes TIG and MMA/stick welding processes. T 223 DC models provide four memory channels for saving favourite or frequently used set-ups for future reference. The FR41 foot remote control offers bench welders the ignition and precise current control needed for challenging welding applications. You can also select a hand remote control for MMA welding and TIG torch welding remote controls for Kemppi Flexlite TX TIG torches.
Main Features
- DC TIG and MMA processes available
- 220 A DC @ 20% duty cycle, 1-phase, 220V-240V
- Power-efficient PFC technology
- HF and Lift ignition
- Pulse option and Minilog (MLP models)
- Lightweight and portable with 9.6kg
- Refined ignition
- Stable welding arc
- Reliable Finnish quality
- Four memory channels
- Hand and foot-operated remote-control options

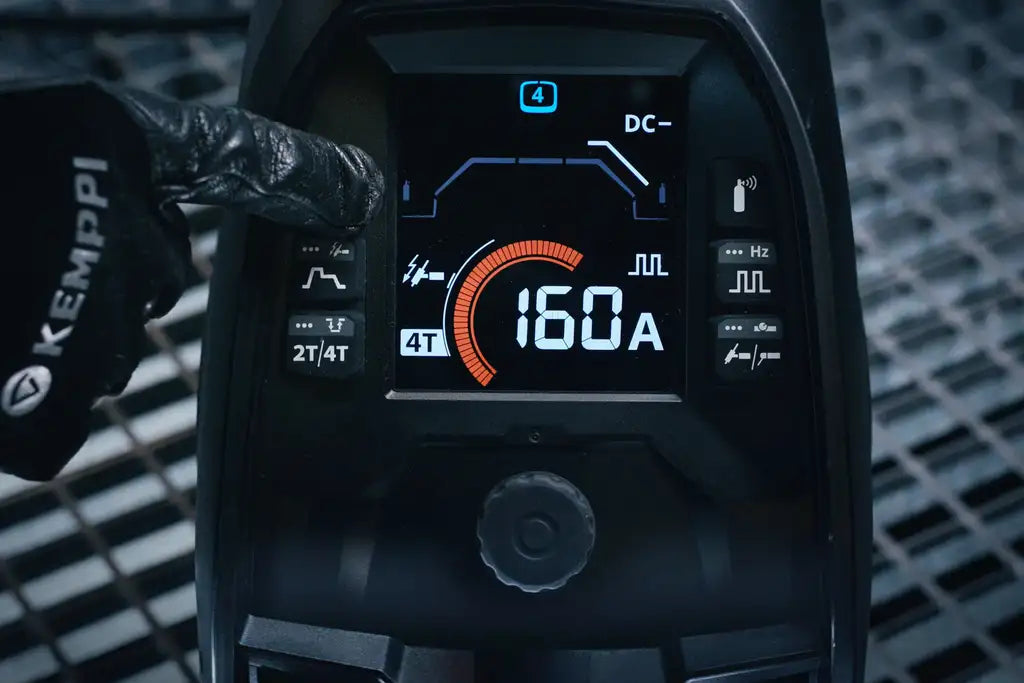

- Colour LCD for easy-to-use user interface
- Pre and post-gas timer
- Slope in/out timer
| Description | Value |
|---|---|
| Mains connection voltage | 220...240 V ±10 % |
| Mains connection voltage (MV low range) | 110...120 V ±10 % |
| Mains connection phases | 1~50/60 Hz |
| Mains connection cable type | 3G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Rated maximum input power [S1max] | 5.5 kVA |
| Mains fuse | 16 A |
| Mains fuse (@MV low range) | 16 A |
| Idle power | 10 W |
| Output, duty cycle % at rated max. current, TIG | 20 % |
| Output at +40 °C, rated max current, TIG | 220 A |
| Output at +40 °C, 60% TIG | 170 A |
| Output at +40 °C, 100% TIG | 140 A |
| Output, duty cycle % at rated max. current, MMA | 25 % |
| Output at +40 °C, rated max current, MMA | 170 A |
| Output at +40 °C, 60% MMA | 140 A |
| Output at +40 °C, 100% MMA | 120 A |
| Output, duty cycle % at rated max. current, TIG (@MV low range) | 20 % |
| Output at +40 °C, rated max current, TIG (@MV low range) | 130 A |
| Output at +40 °C, 60% TIG (@MV low range) | 110 A |
| Output at +40 °C, 100% TIG (@MV low range) | 90 A |
| Output, duty cycle % at rated max. current, MMA (@MV low range) | 20 % |
| Output at +40 °C, rated max current, MMA (@MV low range) | 75 A |
| Output at +40 °C, 60% MMA (@MV low range) | 70 A |
| Output at +40 °C, 100% MMA (@MV low range) | 60 A |
| Output range, TIG | 5 A / 8 V ... 220 A / 20 V |
| Output range, MMA | 15 A / 15 V ... 170 A / 34 V |
| Output range, TIG (@MV low range) | 5 A / 8 V ... 130 A / 16 V |
| Output range, MMA (@MV low range) | 15 A / 15 V ... 75 A / 31 V |
| Power factor at rated maximum current [λ] | 1 |
| Efficiency at rated maximum current [η] | 85 % |
| EMC class | A |
| Stick electrode diameter | 1.6 ... 4 mm |
| Welding connection type | R1/4 |
| Wired communication type | Analog |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 8 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 461 mm |
| External dimensions, width | 202 mm |
| External dimensions, height | 367 mm |
| Weight without accessories | 9.6 kg |
| Standards | EN IEC 60974-1, -3, -10, IEC 61000-3-12 |
