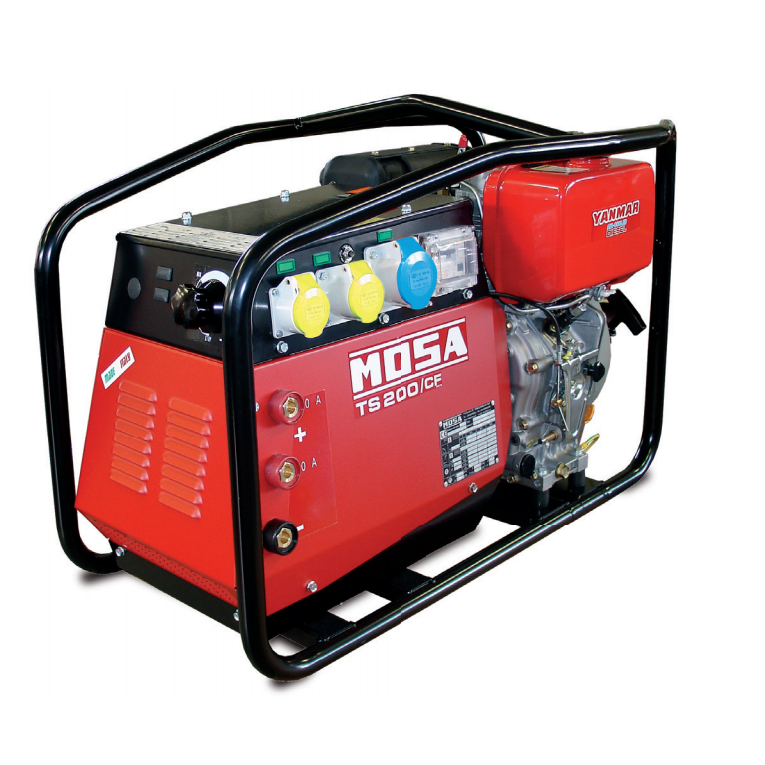

Mosa TS200 DES/CF 190 Amp Diesel Engine Driven Welder Generator 190A (4kVA-230/110V) E/S – Stage 5.
- D.C. welding source for all types of electrodes, including cellulosic
- Double welding output with two ranges for optimal welding control
- A.C. generator available in single and three-phase for complete versatility
- Ground fault interrupter for maximum safety while welding
- Electric starter option for effortless starts (DES), and manual recoil (DS)
- Compliant with EC regulatory standards for complete safety and quality
Features
- Arc welding source in D.C. welding
- Welds any type of electrode, including cellulosic
- Double welding output with two ranges: 20-100A and 90-190A
- A.C. generator, available in both single-phase and three-phase
- Ground fault interrupter for enhanced safety
- Starting options: manual recoil (DS) or electric starter (DES)
- Protective frame for added safety and durability
- Meets EC directives for compliance with regulatory standards
| Technical Data | TS 200 DS/CF | TS 200 DES/CF |
|---|---|---|
| D.C. WELDING (Constant Current) | ||
| Current range, continuous | 20-100 A / 90-190A | 20-100 A / 90-190A |
| Duty cycle | 190 A 35% 160 A 60% 120 A 100% | 190 A 35% 160 A 60% 120 A 100% |
| Open circuit voltage | 98 V | 98 V |
| A.C. GENERATION – 50Hz – Three-phase asynchronous alternator, self-regulated, self-excited, brushless | ||
| Three-phase power | 6 kVA / 400 V / 8.7 A | 6 kVA / 400 V / 8.7 A |
| Single-phase power | 5 kVA / 230 V / 21.7 A | 2 kVA / 48 V / 41.6 A |
| Insulation class | H | H |
| ENGINE – Diesel, 4-stroke, OHV, air cooled | ||
| Model | Yanmar L 100 N | Yanmar L 100 N |
| Output* | 6.5 kW (8.8 HP) | 6.5 kW (8.8 HP) |
| Cylinders / Displacement | 1/ 435 cm³ | 1/ 435 cm³ |
| Speed | 3000 rpm | 3000 rpm |
| Fuel consumption (welding 60%) | 1 l/h | 1 l/h |
| GENERAL SPECIFICATIONS | ||
| Tank capacity | 5.5 l | 5.5 l |
| Running time (welding 60%) | 5.5 h | 5.5 h |
| IP protection degree | IP 23 | IP 23 |
| Dimensions Lxlxh (mm) | 900x550x620 | 900x550x620 |
| Dry weight | 130 kg | 150 Kg |
| Acoustic power LwA (pressure LpA) | 99 dB(A) (74 dB(A) @ 7 m) | 99 dB(A) (74 dB(A) @ 7 m) |
