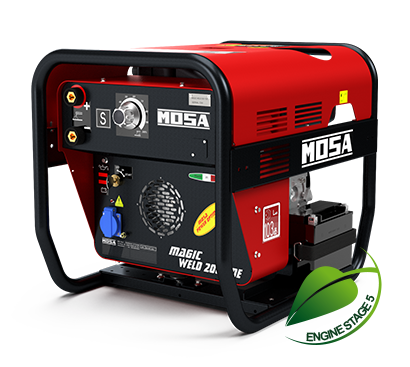

MOSA Magicweld 200YDE-E/Start 230V Diesel 200Amps

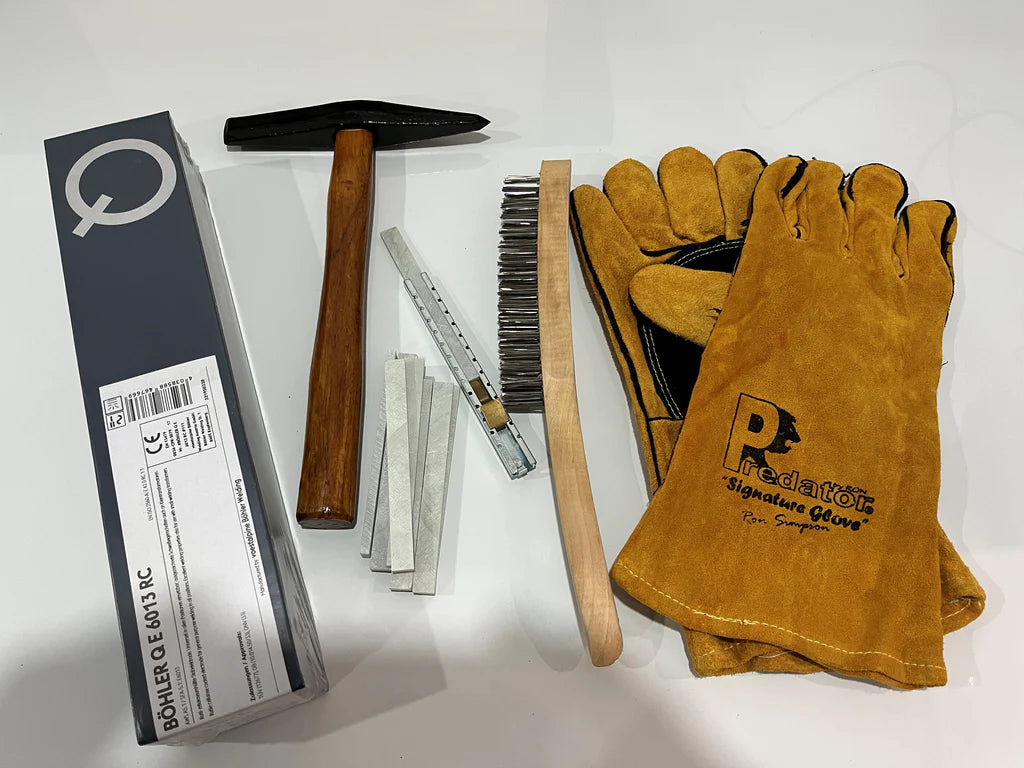

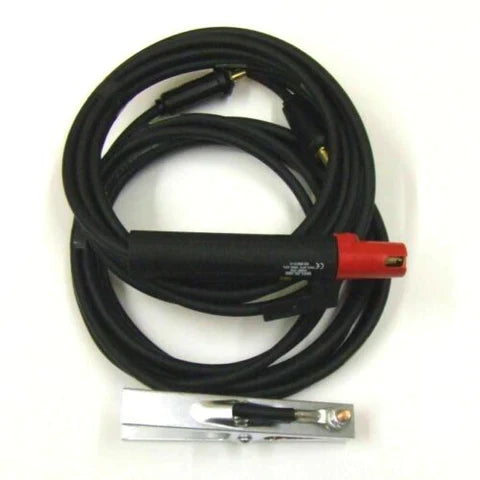

All Packages include MMA Lead 5metre, Earth Lead 5 metre, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.
FEATURES • Arc welding source in D.C. welding • High frequency control of welding current and voltage • Power optimiser (patent pending) • Auto Idle • Single-Phase, 50Hz aux current, inverter generated • Protective frame • Meets EC directives
Model YANMAR L70V * Stand-By net power 4.8 kW (6.6 HP) * PRP net power 4.3 kW (5.8 HP) * COP net power / Cylinders / Displacement 1 / 320 cm³ Bore / Stroke 78mm / 67mm Compression ratio / BMEP (Brake Mean Effective Pressure : LTP - PRP) / Speed governor type Centrifugal speed governor FUEL CONSUMPTION 110 % (Stand-by power) 1.5 lit./h 100 % to PRP 1.4 lit./h 75 % to PRP 1 lit./h 50 % to PRP 0.7 lit./h COOLING SYSTEM / Total system cap. - only engine / Fan air flow / LUBRICATION SYSTEM / Total oil system capacity / Oil capacity in sump 1.1 l
D.C. Welding General Specifications Fuel tank capacity 3.3 l Fuel consumption (welding 60%) 1.1 l/h Running time (welding 60%) 3.3 h Starter battery 12 Vdc -18Ah / 310A CCA(EN) CONSTANT CURRENT Current range 20 ÷ 200A Type of regulation continue Duty cycle 170 A - 60% Open circuit voltage 72 V Arc force control No IP protection degree IP 23 * Acoustic power LwA (pressure LpA) 103 dB(A) (78 dB(A) @ 7 m) Performance class (ISO 8528) /
