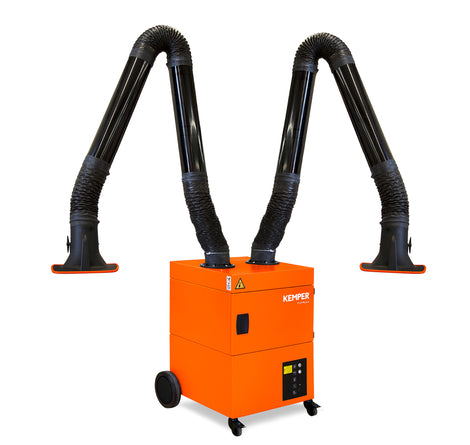

Welding smoke filter unit with two exhaust arms in robust quality with high capacity filter.
ProfiMaster is a robust smoke extraction filter unit for occasional to frequent use with low to medium amounts of dust. The high capacity disposable filter can easily be changed. The two-exhaust arm version with integral dampers allows simultaneous or alternating work in two places with adjustable extraction performance.
- Low to medium levels of smoke and dust
- Occasional to frequent use
- For two work places
- Safe operation by rotation field control
- Maintenance door allows easy filter change
- Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
- Increased safety due to filter monitoring
- Space-saving solution due to two extraction arms
- Possibility of working in two alternating places due to dampers in the extraction hood
- Exhaust arm up to 2-4m
- Automatic Start-Stop (optional)
- Rotating exhaust hood
- Other voltages
Technical Data
Filter
Filter stages - 2
Filter method - Storage Filter
Filter surface - 17 m²
Type of filter - Filter cassette
Filter material - Non-woven fibre
Filter efficiency - > 99.5 %
Filter class - E12
Additional filters - Pre-filter
Basic data
Extraction capacity - 2 x 700 m³/h
Max. fan performance - 2200 m³/h
Maximum vacuum - 2250 Pa
Dimensions (w x t x h) - 797 x 828 x 977 mm
Weight - 113.8 kg
Motor power - 1.1 kW
Power supply - 3 x 400 V / 50 Hz
Rated current - 2.3 A
Control voltage - 24 V, DC
Noise level - 72 dB(A)
Additional information
Fan type - Radial fan
Quantity of extraction arms - 2
Exhaust arm type -rigid metal tube arm
Diameter extraction arm - 150 mm
Length of exhaust arm - 2-4 m
