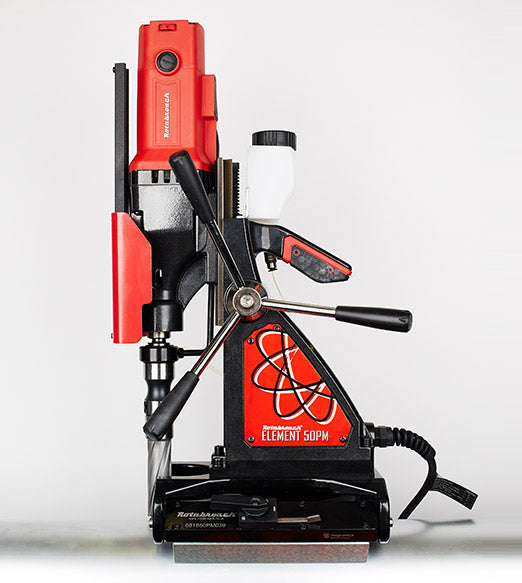

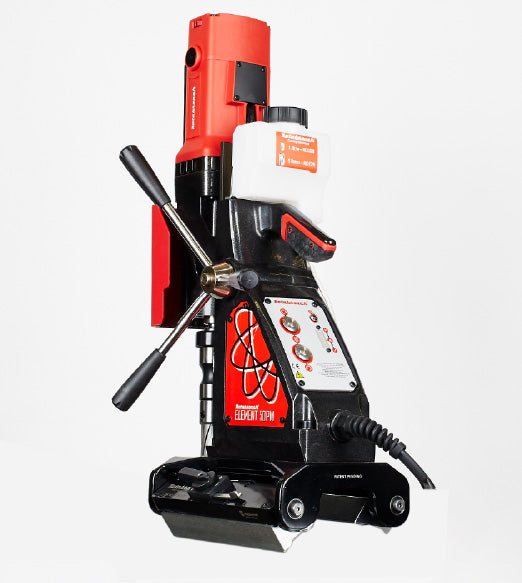

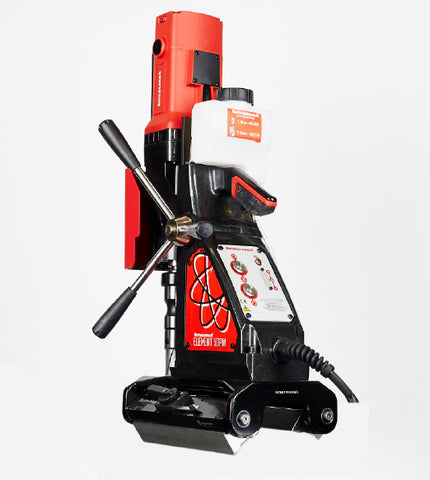

Rotabroach ELEMENT50/3PM Element 50 Pivot Magnet Magnetic Drill 230V
The latest addition to the Rotabroach range, the E50 Pivot Magnet is specifically designed for drilling on curved, uneven surfaces. With its permanent magnet, the E50PM retains magnetic adhesion, even on thinner surfaces.

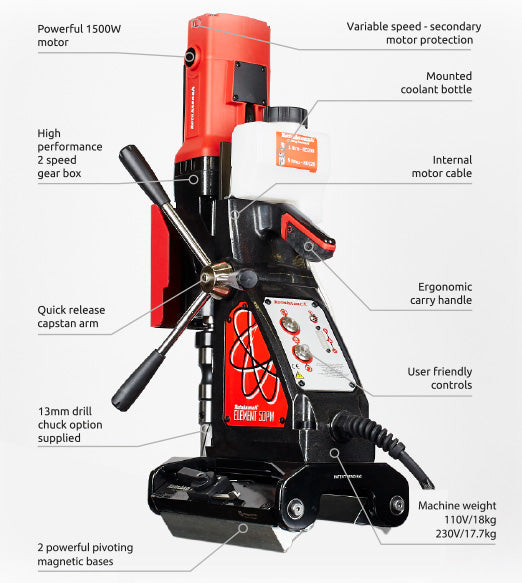

Features
- Powerful 1500w motor with a two-speed mechanical gearbox.
- Twist drill, threading and countersinking capabilities.
- Suitable for drilling up to 50mm diameter by 50mm depth.
- CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
- Double pivoting magnet base
- Internal cabling reduces the risk of damage and downtime for your magdrill.
- Mounted coolant bottle, steel sliding guard and switchable handle.
- 490mm to 640mm in height.
- Can be also used for standard flat surface drilling.
- Dual motor protection, minimising wear and downtime of this magdrill.
Specifications
| Model Number |
Element 50/1PM / Element 50/3PM |
|---|---|
| Motor Specification |
110V 1500W / 230V 1500W |
| No load RPM |
Low Gear: 100-265RPM / High Gear: 200-500RPM |
| Max Cutting Capacity |
⌀50 x 50mm Deep – 20mm with 2MT twist drill |
| Tapping |
M20 |
| Overall Dimension |
Height: min 490mm – max 640mm / Width: 190mm / Length: 317mm |
| Machine Weight |
110V/18kg / 230V/17.7kg |
| Magnetic Adhesion |
8,430N |
| Magnet Size |
277mm x 190m |
| Safety Features |
Cutsmart™ Technology / Magnetic Detection / Secondary Motor Protection |
