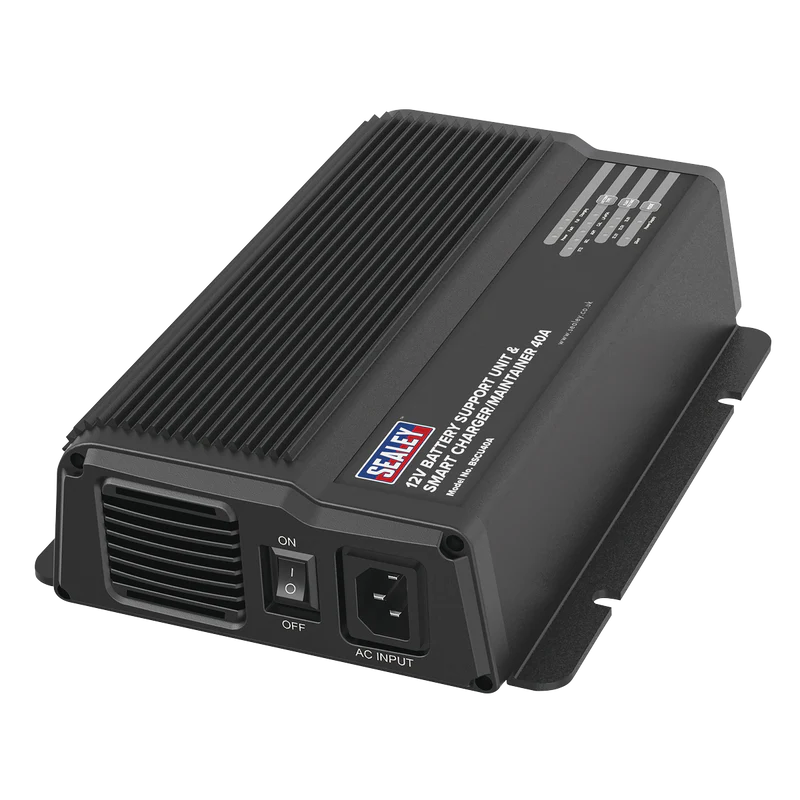

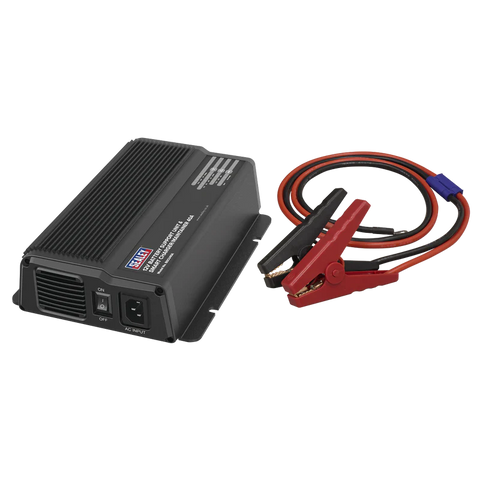

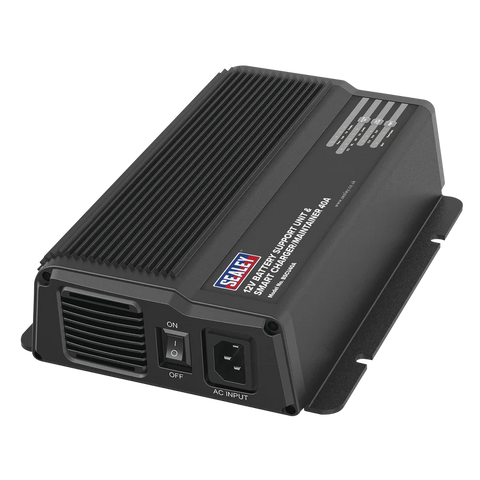

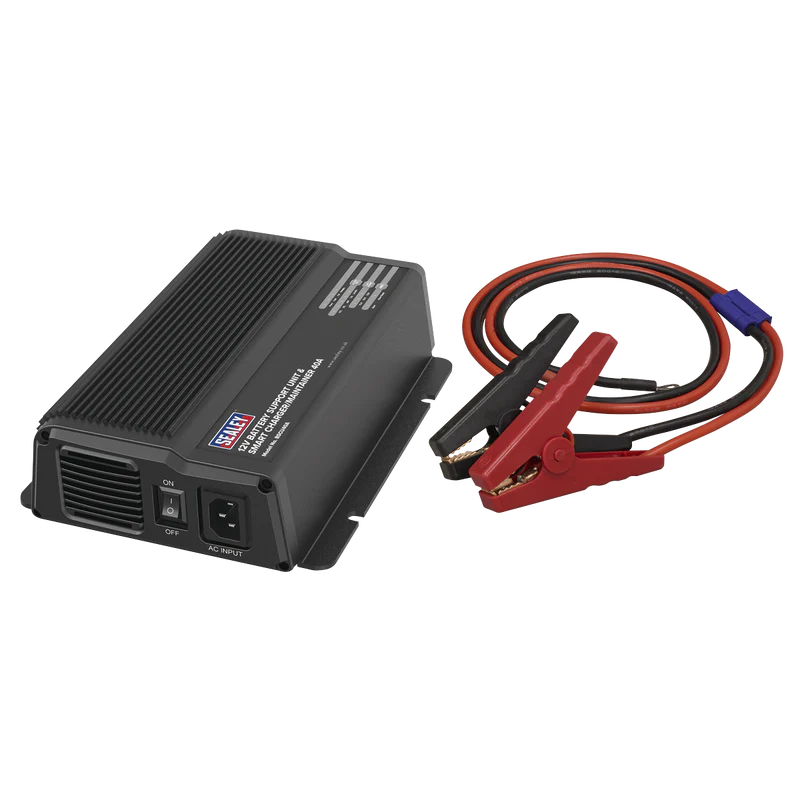

Sealey BSCU40A 12V Battery Support Unit & Smart Charger/Maintainer 40A

Sealey BSCU40A 12V Battery Support Unit & Smart Charger/Maintainer 40A

12V 40A Smart Battery Support Unit and charger designed to both charge 12V batteries and provide support for the battery during prolonged electronic diagnostic checks and reprogramming. Suitable for charging and maintaining a variety of VRLA, Gel, AGM/EFB, leisure and lithium batteries. Safety features include over-charge, over-heat, short circuit and reverse polarity protection. Temperature sensor allows accurate charging of battery even when cold. Compact design with mounting holes for permanent fitting. Once fully charged, battery may be left connected to be automatically conditioned and maintained. Optional Float mode from 13.2V, 13.5V and 13.8V so it can be matched to the manufacturer’s guidelines.

Features

• 12V Battery Support Unit & Smart Charger/Maintainer 40A
• BATTERY SUPPORT UNIT - 12V 40A Smart Battery Support Unit and charger designed to both charge 12V batteries and provide support for the battery during prolonged electronic diagnostic checks and reprogramming.
• COMPATIBLE BATTERY TYPES - Suitable for charging and maintaining a variety of VRLA, Gel, AGM/EFB, leisure and lithium batteries.
• SAFETY FEATURES - Safety features include over-charge, over-heat, short circuit and reverse polarity protection.
• TEMPERATURE SENSOR - Temperature sensor allows accurate charging of battery even when cold.
• WALL MOUNTABLE - Compact design with mounting holes for permanent fitting.
• AUTOMATIC MAINTAINIG FUNCTION - Once fully charged, battery may be left connected to be automatically conditioned and maintained.
• ADJUSTABLE FLOAT MODES - Optional Float mode from 13.2V, 13.5V and 13.8V so it can be matched to the manufacturer’s guidelines.
• 2 YEAR GUARANTEE*.


  Specification

  Output:	12V
  Zero Volt Charging:	Yes
  Battery Support/DC Supply Mode:	Yes
  Supply (Current):	4.3A
  Supply (Current):	230V
  Plug Type:	3-Pin
  Power Supply Cable Length:	1.65m
  Cable and Clamp Length:	1.10m
  Charger Type:Traditional (T) or Intelligent (HF):	HF
  Battery Range:	80-500Ah
  Max Size Battery (AH) Full charge in 12hrs from Discharged:	480Ah
  Output Charge Peak:	40A
  Output Start Peak:	N/A
  Weight:	2kg
  Type of Battery:
  VRLA (Lead Acid):	Yes
  GEL:	Yes
  AGM/EFB:	Yes
  Lithium:	Yes
  Leisure (Deep Discharged):	Yes

  Cable & Clamp Length:	1.1m
  Nett Weight:	2kg
  Barcode:	5054630527807
