  • Sale
  • £169.95
  • £194.95

Excludes VAT

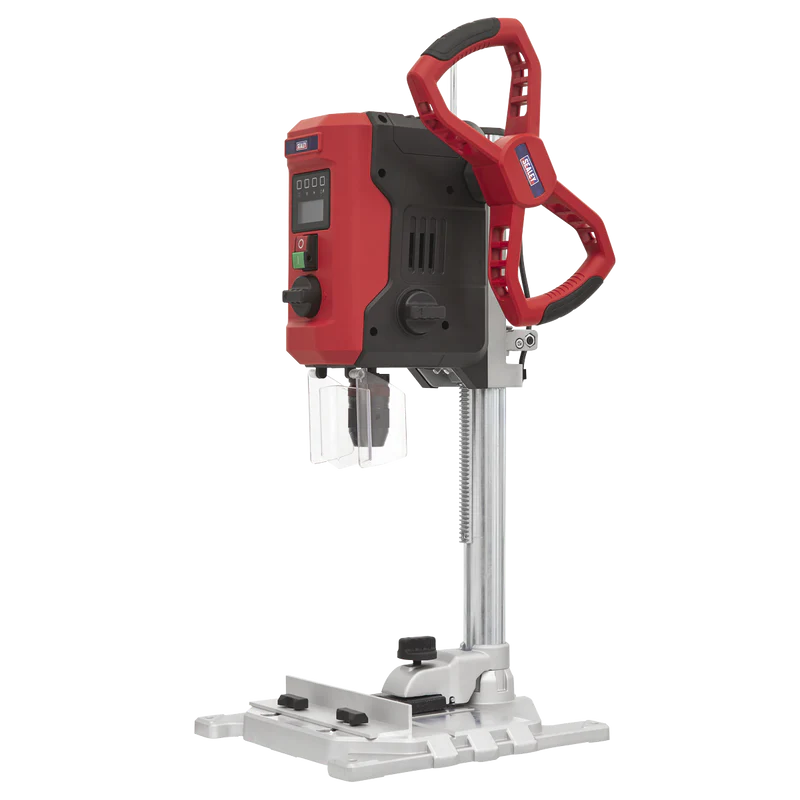

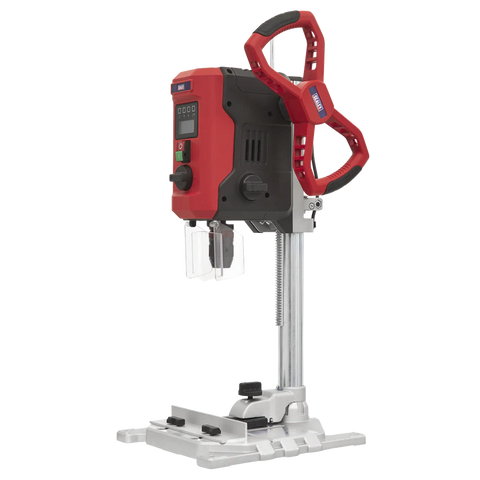

Sealey PDM10B Bench Pillar Drill with Digital Display & Laser Guide 720W

• PRECISION - Good workspace illumination and accuracy thanks to the integrated LED light and laser.
• CLARITY - Easy to read LCD display shows rpm as well as spindle travel for exact drilling depth (100mm stroke).
• CONTROL - Two gears with variable speed adjustment from 170 to 880rpm and 490 to 2600rpm.
• CONVENIENT - Quick release 1.5 to 13mm chuck.
• STURDY - Wide (300 x 330mm) aluminium base gives increased stability and is corrosion-free.
• EXACT - Parallel workpiece guide makes repeated drilling of large surfaces along edge more precise.

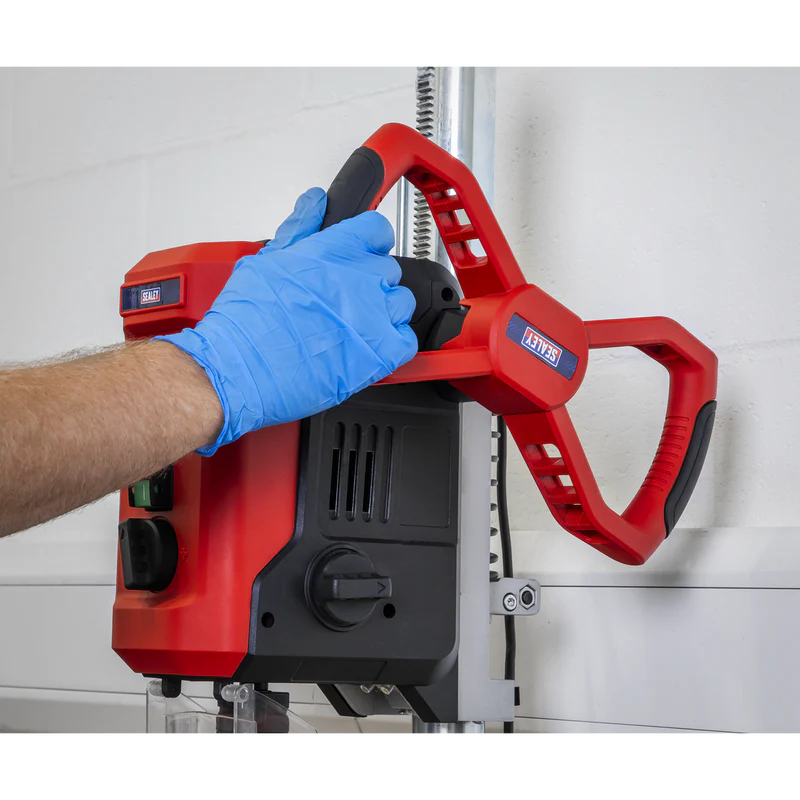

• POSITIVE - Rubber grip on stylish handle design gives great control during repeated use.
• INTERGRATED LASER - Ideal for easy and precise drilling.
• INTERGRATED LED - Creates perfect illumination.
• DIGITAL DISPLAY - For accurate drilling.

Specifications

Base Size:
330mm x 300mm
Collar Diameter:
Ø43mm
Column Diameter:
Ø46mm
Drilling Capacity (Chuck Size):
13mm
Integral Work Light:
Yes, Including Laser Guide.
Maximum Distance Spindle to Base:
280mm
Maximum Distance Spindle to Table:
N/A
Motor Power (Start):
720W(900W)
Number of Speeds:
2 Variable Speed Range : First : 170-880/min. Second : 490-2600/min
Optional Accessories:
N/A
Overall Height:
760mm
Speed Range:
170-880/min, 490-2600/min
Spindle Centre to Column:
125mm
Spindle Nose Taper:
N/A
Spindle Travel:
100mm
Supply:
230V
Swing:
250mm
Nett Weight:
10.2kg
Working Table Surface Size:
N/A
Barcode:
5054630276880
