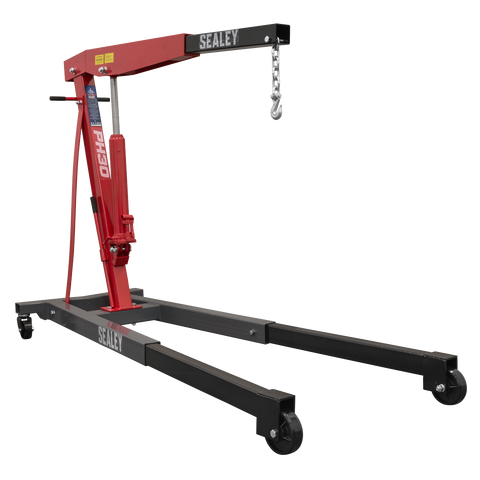

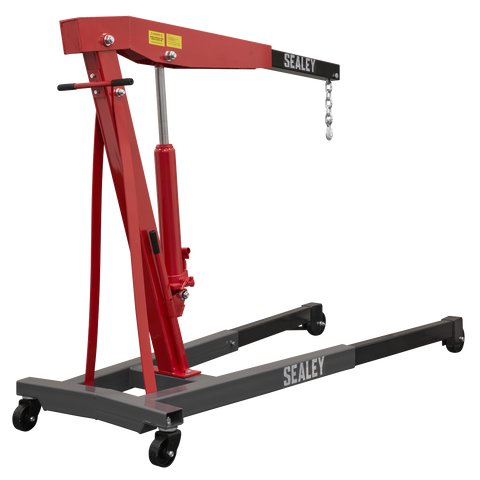

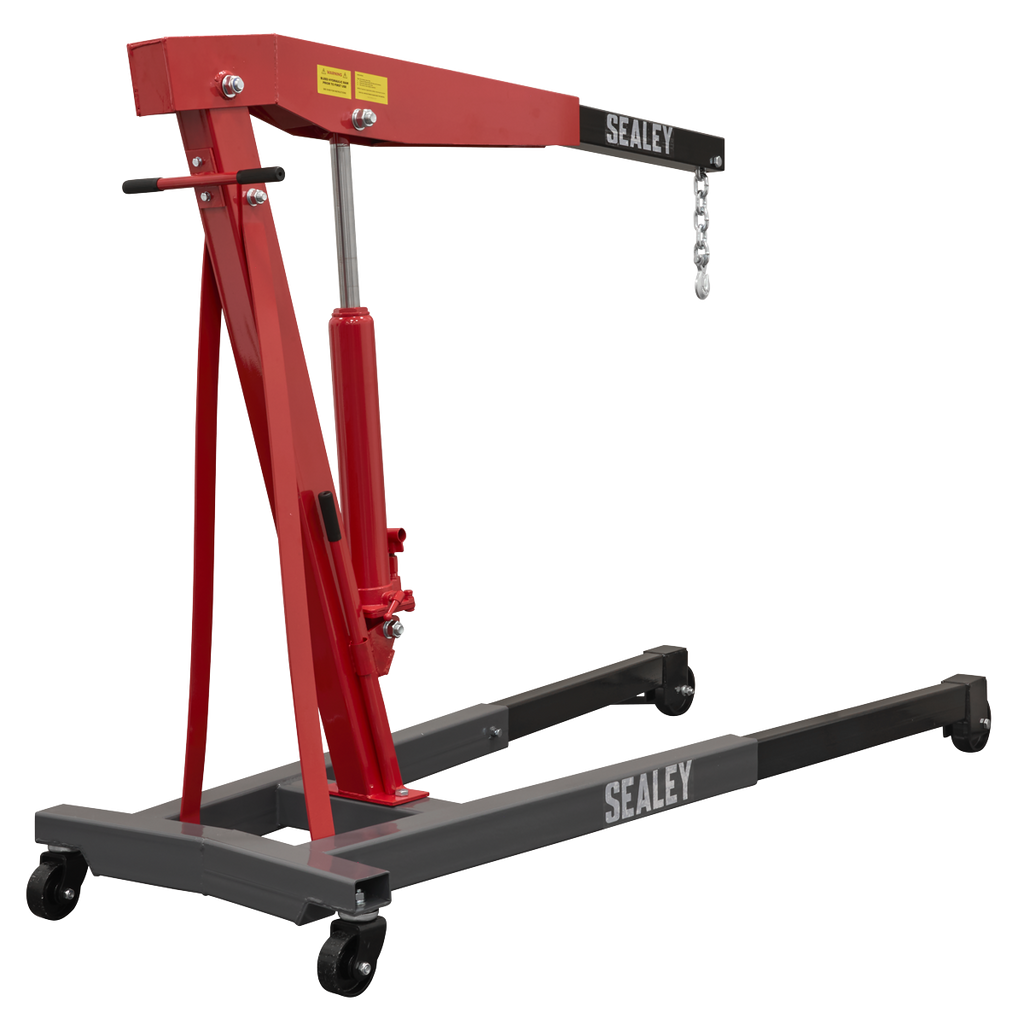

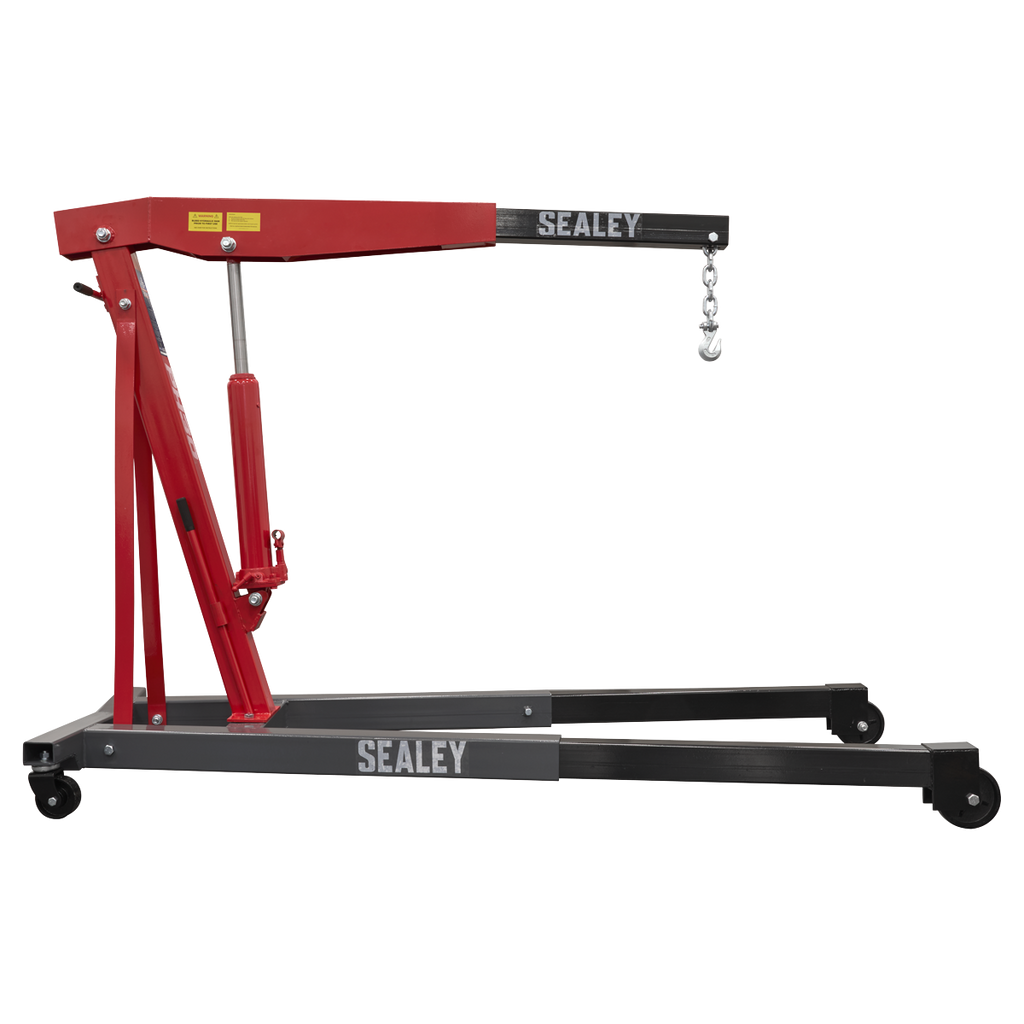

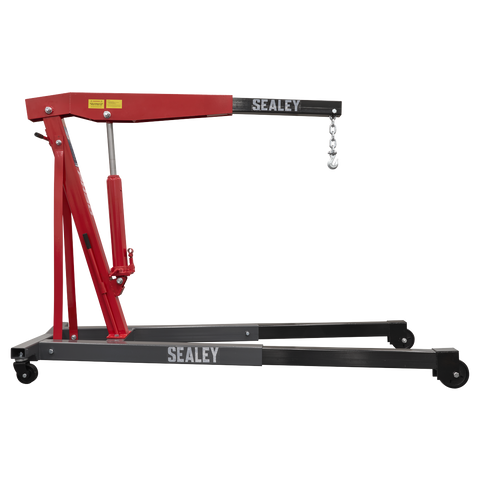

Sealey PH30 Fixed Frame Engine Crane with Extendable Legs 3 Tonne
Weighs 155kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions. Beam can be set in 4-positions with a capacity of 1000kg at its full extension of 1820mm. Heavy-duty castors and pump access from side, for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.

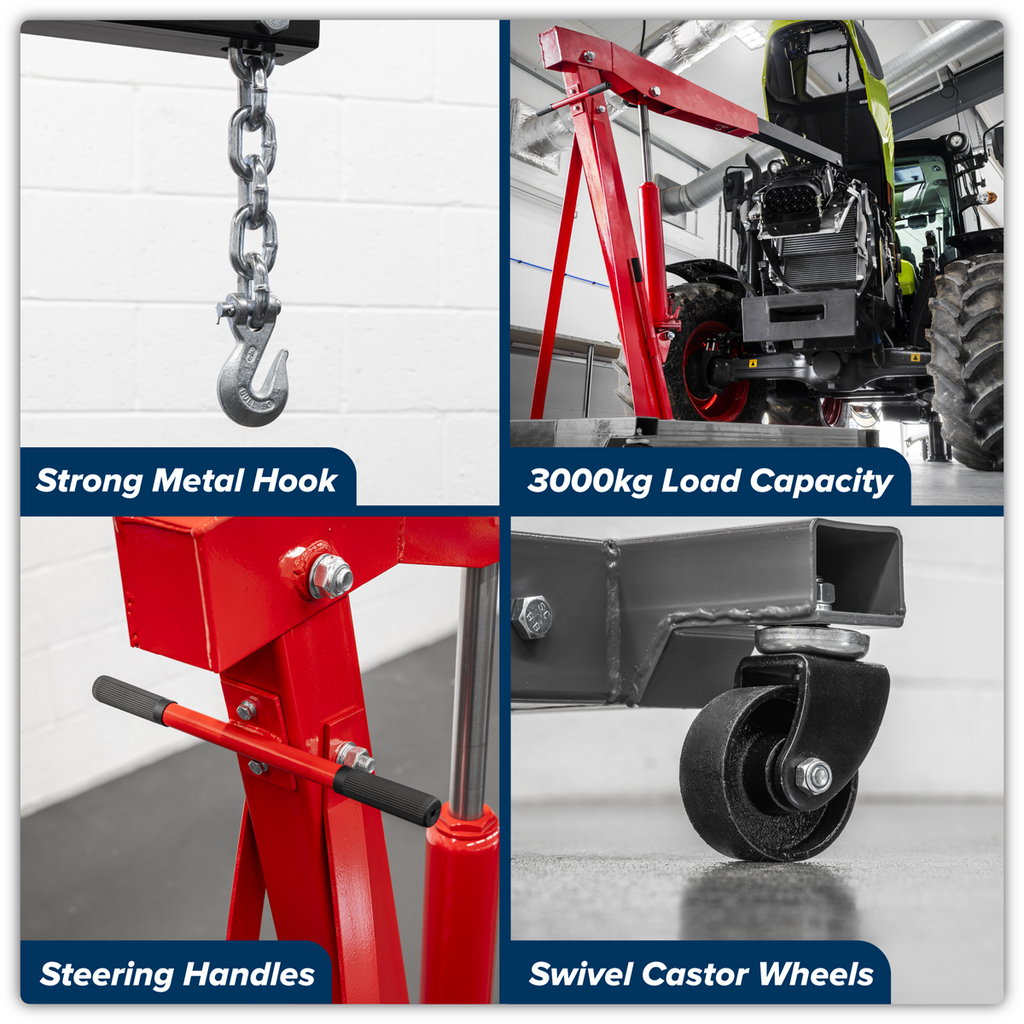

- Lifts 3000kg at 1200mm jib extension.
- Heavy-duty fixed front wheels and rear castors.
- Perfect for heavy commercial, industrial and workshop use.
- Extendable legs for improved stability, particularly when operating at maximum jib extensions.

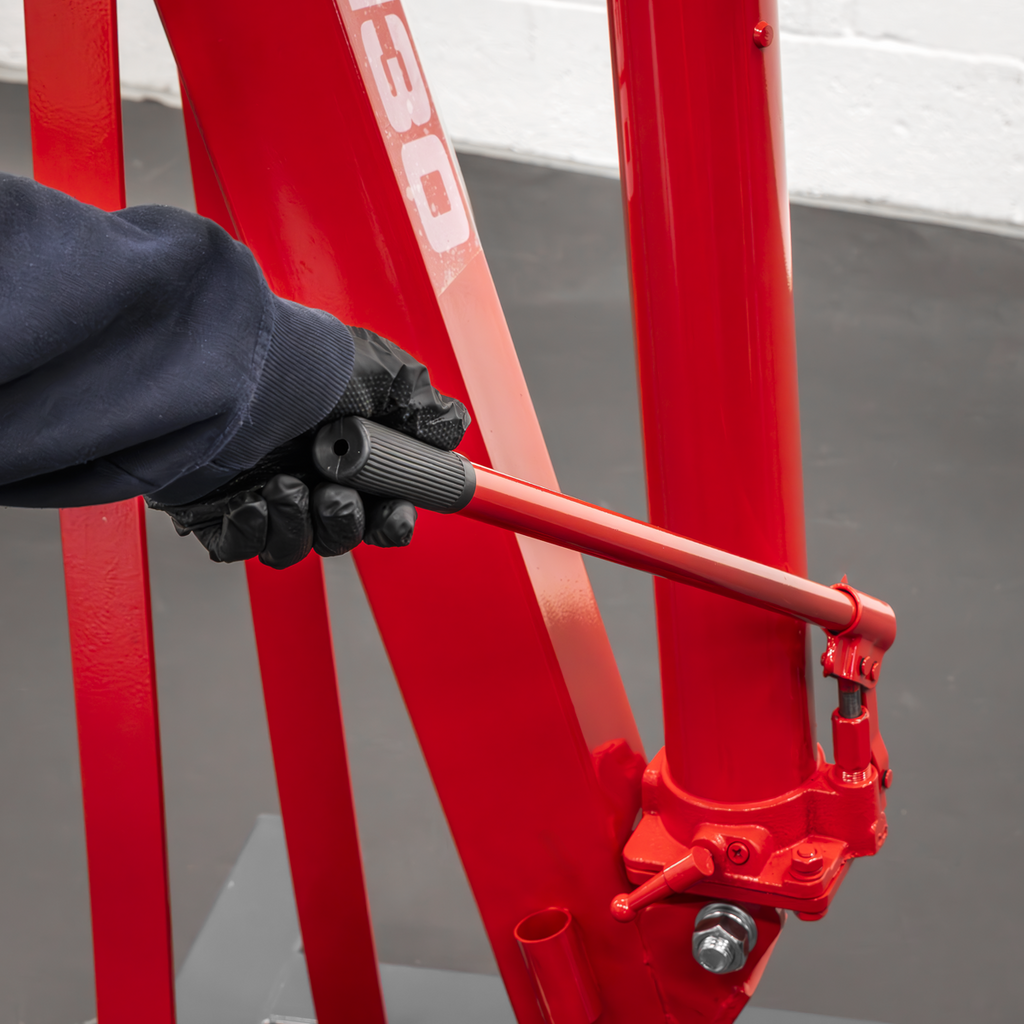

- Pump access from the side for safe handling of heavy loads.
- Delivered in knock-down form for reduced freight cost.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specifications
- Model No PH30
- Brand: Sealey
- Height Jib Down: 1610mm
- Height Legs Folded: N/A
- Height of Frame: 195mm
- Length Legs Extended: 950mm
- Length of Jib Position 1: 1200mm
- Length of Jib Position 2: 1400mm
- Length of Jib Position 3: 1610mm
- Length of Jib Position 4: 1820mm
- Length of Jib Position 5: n/a
- Lifting Capacity in Position 1: 3000kg
- Lifting Capacity in Position 2: 2000kg
- Lifting Capacity in Position 3: 1500kg
- Lifting Capacity in Position 4: 1000kg
- Lifting Capacity in Position 5: n/a
- Max. Lift Ht at Jib Position 1: 1880mm
- Max. Lift Ht at Jib Position 2: 1970mm
- Max. Lift Ht at Jib Position 3: 2010mm
- Max. Lift Ht at Jib Position 4: 2220mm
- Max. Lift Ht at Jib Position 5: n/a
- Nett Weight: 155kg
- Note: *Legs Extended
- Rear Width: 780mm
- Width Front Frame: 855mm*
- Width Inside Front Frame: 700mm*
- Weight: 165kg
- Warranty: 1 year
- Case Quantity: 0
- Barcode: 5054630451256
