Power Stations:-DL160,DL161, DL162, DL163, DL164
Ensure uninterrupted power with SEALEY robust power stations, designed for versatility and reliability. Ideal for both on-site and remote applications, these units offer efficient energy solutions, providing dependable backup and seamless power delivery when you need it most.
Features

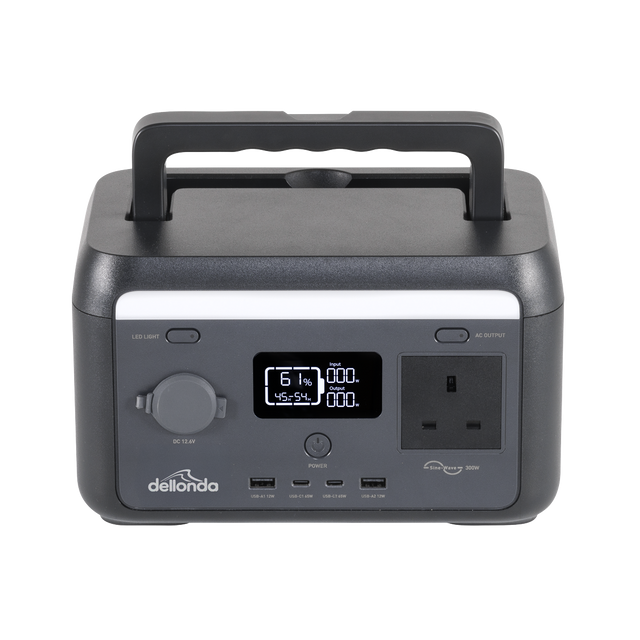

DL160:
• HIGH PERFORMANCE BATTERY - LiFePO4 battery can be charged and discharged over 2000 times before it starts to lose performance.
• 300W - Can charge an average phone battery 12 times or supply power to a car fridge for over 3hr (based on a 60W continuous draw).
• SIMULTANEOUS CHARGING - Six different outlets mean you can connect to six devices at once.
• WIFI CONTROL – Smart power station provides performance data, remote control features and customisation options via the app.
• PORTABLE - Features a folding handle to make transporting the power station easy.
• LOW BATTERY ALARM - Audible alarm will sound at 5% battery to help ensure you never run out of battery.
• EMERGENCY BYPASS - When powering from the mains and an outage occurs, the unit with automatically swap to battery power.
• SOLAR CHARGING - Power station features the required inputs to support charging via solar panels. Designed for use with Sealey ETFE Foldable Solar Panels - Model No's SPP110 and SPP220.
Battery Capacity/Type: | 25.6V ⎓ 8Ah (204.8Wh) Lithium Phosphate (LiFeP04) |
Discharge (Charge) Temp Range: | -20 - 45°C (0 - 45°C) |
AC Input Voltage: | 230V ~ 50Hz, 3A 550W |
Solar Panel Input: | 12 – 24V ⎓ 8A, 120W max |
Car Charging Input: | 12V ⎓ 8A, 96W max |
AC socket Inverter mode (Bypass mode): | 230V ~ 50Hz 1.5A 300W (500W Peak) (230V ~ 50Hz 1.5A 300W) |
USB – A1/A2: | 5V ⎓ 2.4A, 12W max |
USB – C1/C2: | 5/9/12/15V ⎓ 3A, 20V ⎓ 3.25A, 65W max |
USB – C1 + C2 | 5/9V ⎓ 3A, 12V ⎓ 2.5A, 15V ⎓ 2A, 20V ⎓ 1.5A, 60W max |
Utility Socket: | 12.6V ⎓ 8A, 100W max |
IP Rating: | IP20 |
Accessories:
|
12V Car Accessory Socket Charger
|
Capacity:
|
204Wh
|
Output:
|
1 x 3-Pin 230V, 2 x USB 5V/1.2A, 2 x USB-C (Max. 65W), 12V Car Accessory Socket
|
Nett Weight:
|
3.7kg
|
Input:
|
DC 12V (Max. 8A), Solar Panel Input (Max. 100W), Kettle Lead 230V~3A
|
Barcode:
|
5054630483691
|

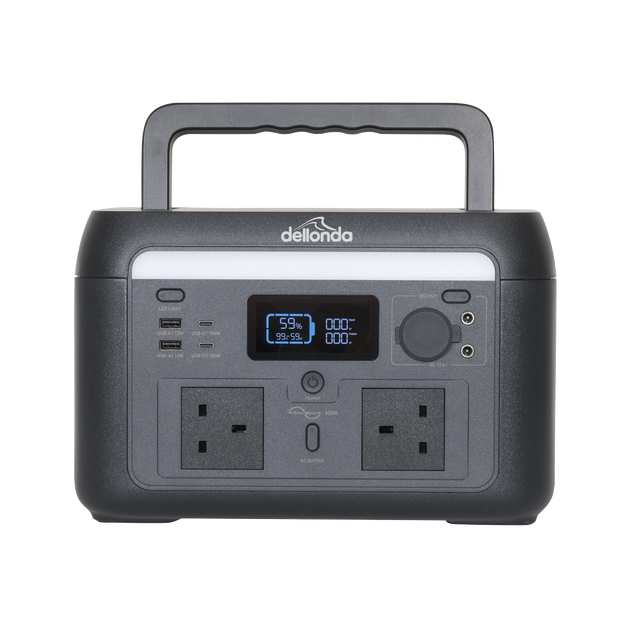

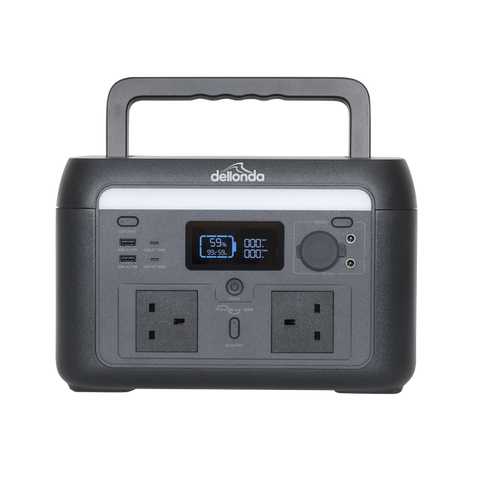

DL161:
• HIGH PERFORMANCE BATTERY - LiFePO4 battery can be charged and discharged over 2000 times before it starts to lose performance.
• 600W - Can charge an average phone battery over 30 times or supply power to a car fridge for 8.5hr (based on a 60W continuous draw).
• SIMULTANEOUS CHARGING - Nine different outlets mean you can connect to nine devices at once.
• WIFI CONTROL – Smart power station provides performance data, remote control features and customisation options via the app.
• PORTABLE - Features a folding handle to make transporting and carrying the power station easy.
• LOW BATTERY ALARM - Audible alarm will sound at 5% battery to help ensure you never run out of battery.
• EMERGENCY BYPASS - When powering from the mains and an outage occurs, the unit with automatically swap to battery power.
• SOLAR CHARGING - Features the required inputs to support charging via solar panels. Designed for use with Sealey ETFE Foldable Solar Panels - Model No's SPP110 and SPP220.
Battery Capacity / Type | 25.6 ⎓ 20Ah (512Wh) Lithium Phosphate (LiFeP04) |
Discharge (Charge) temp range | -20 - 45°C (0 - 45°C) |
AC Input Voltage | 230V ~ 50Hz, 6A, 1200W max. |
Solar /Car Input | 12 - 20V ⎓ 10A, 200W max. |
AC socket (x2) Inverter mode (Bypass mode) | 230V ~ 50Hz, 3A, 600W max.(230V ~ 50Hz, 3A, 600W max.) |
USB - A1/A2 | 5V ⎓ 2.4A, 12W max. |
USB - C1/C2 | 5/9/12/15V ⎓ 3A, 20V ⎓ 5A, 100W max. |
Car Charger Output | 12.6V ⎓ 10A max. 126W max. |
DC 5521 (x2) | 12.6V ⎓ 3A max. 126W max. |
IP Rating | IP20 |
Accessories:
|
12V Car Accessory Socket Charger
|
Capacity:
|
512Wh
|
Output:
|
2 x 3-Pin 230V, 2 x USB 5V/2.4A, 2 x Quick Charge USB-C (Max. 100W), 12V Car Accessory Socket , 2 x DC5521
|
Nett Weight:
|
7.4kg
|
Input:
|
DC 12V (Max. 8A), Solar Panel Input (Max. 1100W), Kettle Lead
|
Barcode:
|
5054630483684
|
DL162:
• HIGH PERFORMANCE BATTERY - LiFePO4 battery can be charged and discharged over 2000 times before it starts to lose performance.
• 1800W - Can charge an average phone battery over 72 times or supply power to a car fridge for over 20hr (based on a 60W continuous draw).
• SIMULTANEOUS CHARGING - 12 Different outlets mean you can connect to 12 devices at once.
• WIFI CONTROL – Smart power station provides performance data, remote control features and customisation options via the app.
• PORTABLE - Features carry handles that make lifting and transporting the power station easy.
• LOW BATTERY ALARM - Audible alarm will sound at 5% battery to help ensure you never run out of battery.
• EMERGENCY BYPASS - When powering from the mains and an outage occurs, the unit with automatically swap to battery power.
• SOLAR CHARGING - Features the required inputs to support charging via solar panels. Designed to work with Sealey ETFE Foldable Solar Panels - Model No's SPP110 and SPP220.
Battery Capacity / Type | 51.2V ⎓ 24Ah (1226Wh) Lithium Phosphate (LiFeP04) |
Discharge (Charge) Temp Range | -20 - 45°C (0 - 45°C) |
AC Input Voltage | 230V ~ 50Hz, 10A, 1800W max. |
Solar /Car Input | 13 - 45V ⎓ 12A, 400W max. |
AC socket (x3) Inverter mode (Bypass mode) | 230V ~ 50Hz, 13A, 1800W max.(230V ~ 50Hz, 10A, 1800W max.) |
USB - A1/A2 | 5V ⎓ 3A, 9V ⎓ 2A, 12V ⎓ 1.5A, 18W max. |
USB - A3/A4 | 5V ⎓ 2.4A, 12W max. |
USB - C1/C2 | 5/9/12/15V ⎓ 3A, 20V ⎓ 5A, 100W max. |
Car Charger Output | 12.6V ⎓ 10A, 126W max. |
DC 5521 (x2) | 12.6V ⎓ 3A, 126Wmax. |
IP Rating | IP20 |
Accessories:
|
12V Car Accessory Socket Charger
|
Capacity:
|
1226Wh
|
Output:
|
3 x 3-Pin 230V, 2 x USB 5V/2.4A, 2 x Quick Charge USB (Max. 18W), 2 x Quick Charge USB-C (Max. 100W), 12V Car Accessory Socket, 2 x DC5521
|
Nett Weight:
|
19.18kg
|
Input:
|
DC 12/24V (Max. 8A), Solar Panel Input (Max. 1200W), Kettle Lead
|
Barcode:
|
5054630483110
|

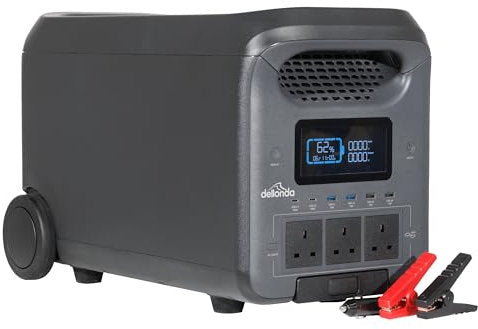

DL163:
• HIGH PERFORMANCE BATTERY - LiFePO4 battery can be charged and discharged 3600 times before it starts to lose performance.
• 3000W - Can charge an average phone battery over 150 times or supply power to a car fridge for over 42hr (based on a 60W continuous draw).
• SIMULTANEOUS CHARGING - 13 Different outlets mean you can connect to 13 devices at once.
• WIFI CONTROL – Smart power station provides performance data, remote control features and customisation options through the app.
• PORTABLE - Built-in pull handle and wheels can be used to wheel the power station for easy transportation.
• EXPANDABLE BATTERY - Supports the use of a Power Station Expansion Battery (Model No. DL164) to increase the combined capacity to 5120Wh.
• VEHICLE BATTERY CHARGER - Supplied with jump cables capable of charging a vehicle battery in an emergency.
• EMERGENCY BYPASS - When powering from the mains and an outage occurs, the unit with automatically swap to battery power.
Battery Capacity / Type | 51.2V ⎓ 50Ah (2560Wh) Lithium Phosphate (LiFeP04) |
Discharge (Charge) temp range | 0 - 45°C (0 - 45°C) |
AC Input Voltage | 230V ~ 50Hz, 10A, 2300W max. |
Solar /Car Input (x2) | 13 - 45V ⎓ 12A, 800W max. |
AC socket (x3) Inverter mode (Bypass mode) | 230V ~ 50Hz, 13A, 3000W max.(230V ~ 50Hz, 10A, 2300W max.) |
USB - A1/A2 | 5V ⎓ 3A, 9V ⎓ 2A, 12V ⎓ 1.5A, 18W max. |
USB - C1/C2 | 5/9/12/15V ⎓ 3A, 20V ⎓ 5A, 100W max. |
USB - A3/A4 | 5V ⎓ 2.4A, 12W max. |
Car Charger Output | 12.6V ⎓ 10A, 126W max. |
DC 5521 (x2) | 12.6V ⎓ 3A, 126W max. |
Anderson Terminal Output | 12.6V ⎓ 30A max. 378W max. |
IP Rating | IP20 |
Accessories:
|
12V Car Accessory Socket Charger & Jump Lead Set
|
Capacity:
|
2560Wh
|
Output:
|
3 x 3-Pin 230V, 2 x USB 5V/2.4A, 2 x Quick Charge USB (Max. 18W), 2 x Quick Charge USB-C (Max. 100W), 12V Car Accessory Socket, 2 x DC5521, Anderson Connector
|
Nett Weight:
|
34.11kg
|
Input:
|
DC 12/24V (Max. 8A), 2 x Solar Panel Input (Max. 1600W), Kettle Lead
|
Barcode:
|
5054630482731
|

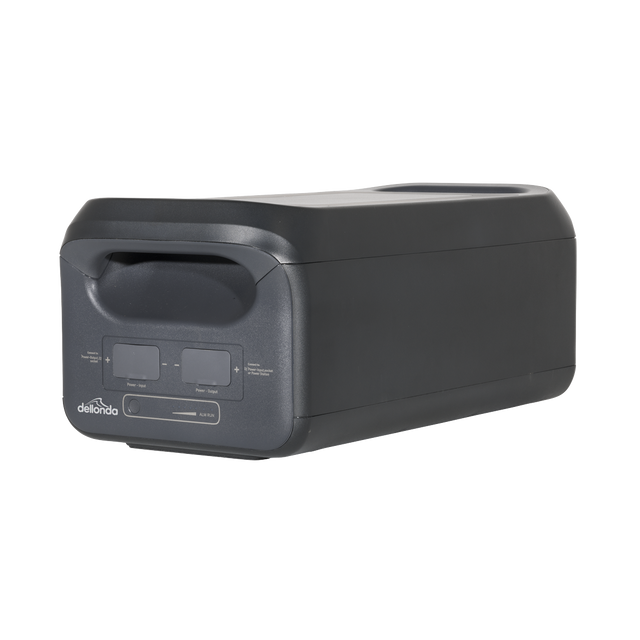

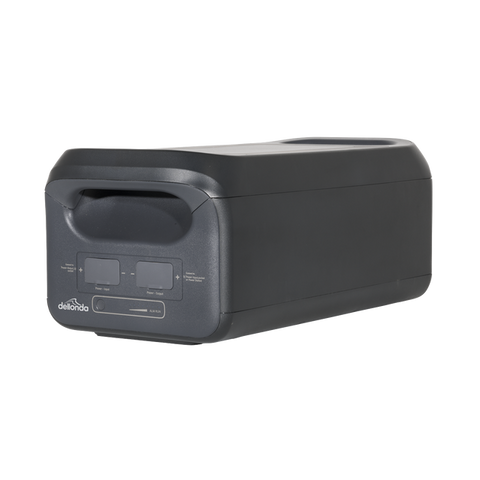

DL164:
• HIGH PERFORMANCE BATTERY - LiFePO4 battery can be charged and discharged 3600 times before it starts to lose performance.
• HUGE CAPACITY - Features a capacity of 2560Wh, which can double the capacity of your power station to 5120Wh.
• EXPANSION BATTERY - Designed to be used with Dellonda 3000W Portable Power Station - Model No. DL163.
• PORTABLE - Features built in carry handles that make lifting and transporting the power station easy.
• LOW BATTERY ALARM - Audible alarm will sound at 5% battery to help ensure you never run out of battery.
Battery Capacity / Type: | 51.2V ⎓ 50Ah (2560Wh) Lithium Phosphate (LiFeP04) |
Discharge (Charge) Temp Range: | -20 - 45°C (0 - 45°C) |
Power Input / Output: | 40 - 57.6V ⎓ 50A / 70A max. |
Short Current / Time: | 1720A / 9ms |
IP Rating: | IP20 |
Accessories:
|
Battery Expansion Cable
|
Capacity:
|
2560Wh
|
Output:
|
1 x Battery Expansion Cable Output (Max. 70A)
|
Nett Weight:
|
25.9kg
|
Input:
|
1 x Battery Expansion Cable Input (Max. 50A)
|
Barcode:
|
5054630482724
|
