ETFE Foldable Solar Panels SPP110 - 110W & SPP220- 220W

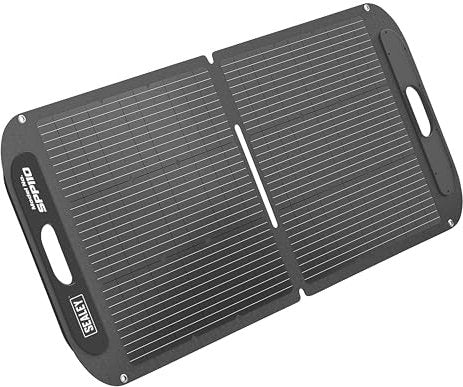

SPP110:
• EFFICIENT SOLAR CELLS - Monocrystalline silicon solar cells are highly efficient, with a conversion rate of up to 23.5%, which will provide a better performance than traditional solar panels.
• EASY TO CONNECT - Supplied with four outputs: MC-4, Anderson, XT60 and DC5521 8-piece Set of Connectors. These can be used to connect to a multitude of devices and power stations, including the Sealey SPB2200W Portable Power Station.
• WATER RESISTANT - ETFE laminated and IP65 rated, suitable for use outdoors.
• PORTABLE - Features handles for easy transportation and eyelets for hanging or suspending off the ground while in use.
• KICKSTANDS - Built-in kickstands to optimise the angle and absorb as much sunlight as possible.
• SPACE SAVING - Size Folded (W x D x H): 650 x 600 x 35mm.
Peak Power | 110W |
Working Voltage | 19V (dc) |
Working Current | 5.79A |
Open Voltage | 22.8V |
Short Circuit Current | 6.07A |
Folded (W x D x H):
|
650 x 600 x 35mm
|
IP Rating:
|
IP65
|
Output:
|
MC4, Anderson, XT60, DC5521 Adaptor Set including Sizes: DC6014, DC5525, DC5521, DC5517, DC5010, DC4817, DC7406 ,DC7909.
|
Supply:
|
DC - Direct Current
|
Unfolded (W x D x H):
|
1310 x 600 x 20mm
|
Nett Weight:
|
5.56kg
|
Barcode:
|
5054630403057
|

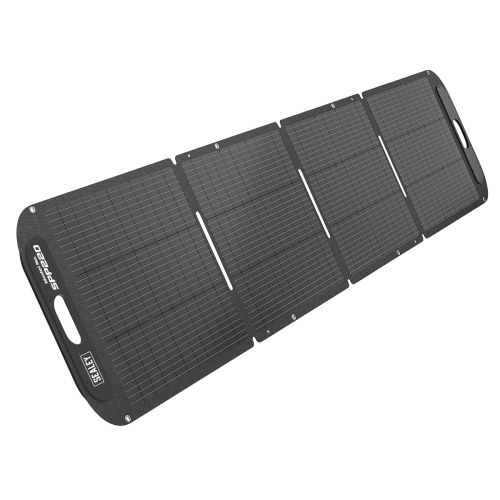

SPP220:
• EFFICIENT SOLAR CELLS - Monocrystalline silicon solar cells are highly efficient, with a conversion rate of up to 23.5%, which will provide a better performance than traditional solar panels.
• EASY TO CONNECT - Supplied with four outputs: MC-4, Anderson, XT60 and DC5521 8-piece Set of Connectors. These can be used to connect to a multitude of devices and power stations, including the Sealey SPB2200W Portable Power Station.
• WATER RESISTANT - ETFE laminated and IP65 rated, suitable for use outdoors.
• PORTABLE - Features handles for easy transportation and eyelets for hanging or suspending off the ground while in use.
• KICKSTANDS - Built-in kickstands to optimise the angle and absorb as much sunlight as possible.
• SPACE SAVING - Size Folded (W x D x H): 655 x 600 x 50mm.
Peak Power | 220W |
Working Voltage | 19V DC |
Working Current | 11.57A |
Open Voltage | 22.8V |
Short Circuit Current | 12.15A |
Folded (W x D x H):
|
655 x 600 x 50mm
|
IP Rating:
|
IP65
|
Output:
|
MC4, Anderson, XT60, DC5521 Adaptor Set including Sizes: DC6014, DC5525, DC5521, DC5517, DC5010, DC4817, DC7406, DC7909.
|
Supply:
|
DC- Direct Current
|
Unfolded (W x D x H):
|
2430 x 600 x 20mm
|
Nett Weight:
|
8.72kg
|
Barcode:
|
5054630403064
|
