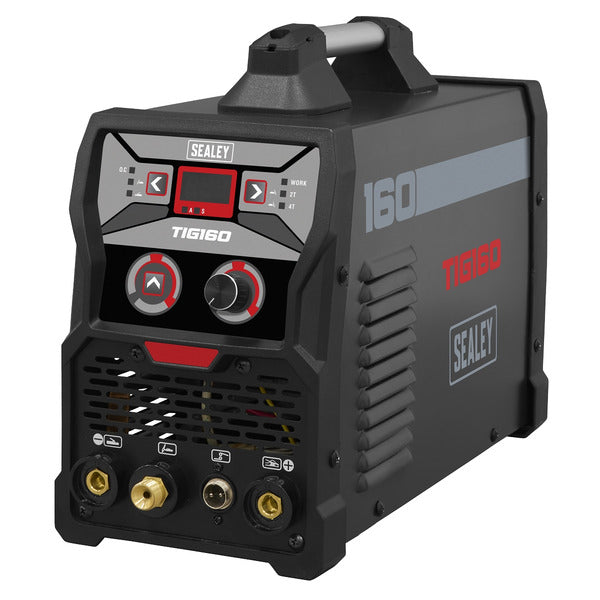

Sealey TIG160 TIG & MMA/ARC Inverter Welder 160A/230V
- IGBT INVERTER TECHNOLOGY - IGBT Inverter fan-cooled DC power supply for TIG and MMA/ARC welding applications up to 160A.
- POWDER COATED - Outer case manufactured from pressed steel with a powder coated finish for extra corrosion resistance.

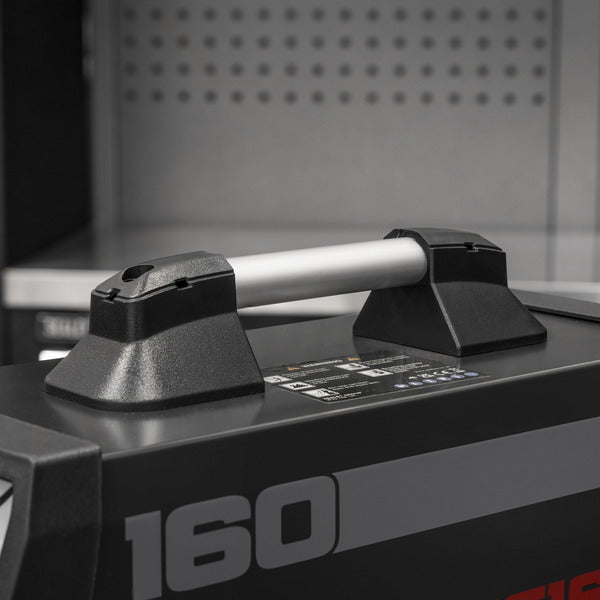

- HIGHLY PORTABLE Portable with a weight of only 6.1kg, allowing the welder to be taken to the job at hand making it ideal for the mobile technician.

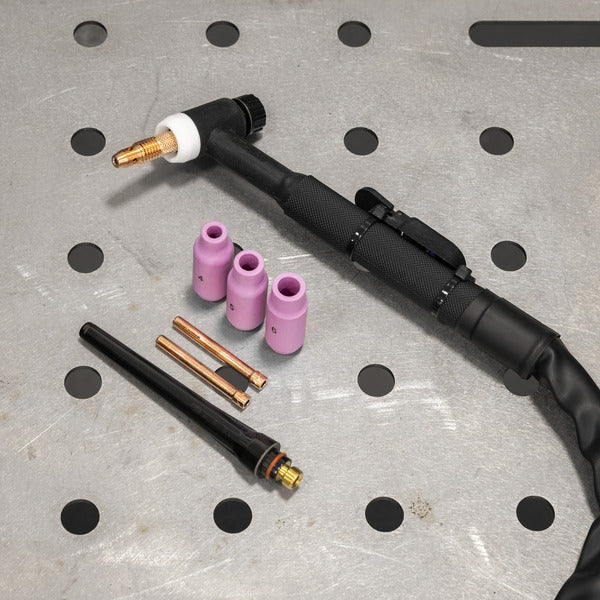

- FEATURING Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption.
- LIFT START - Suitable for MMA/ARC welding using the lift start method for better weld quality.

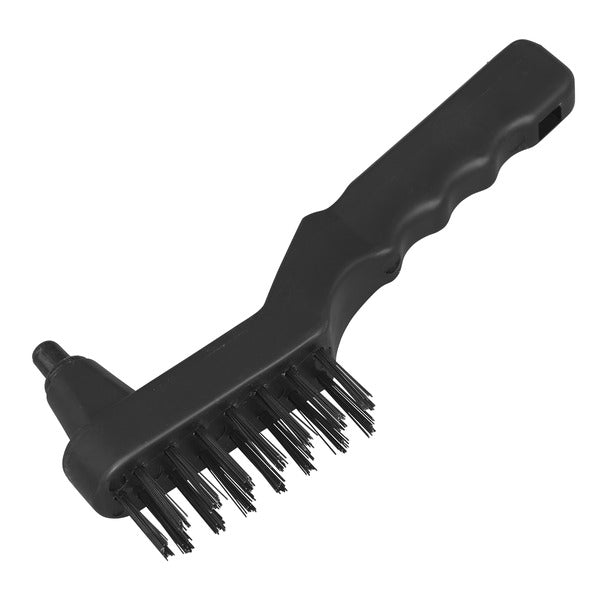

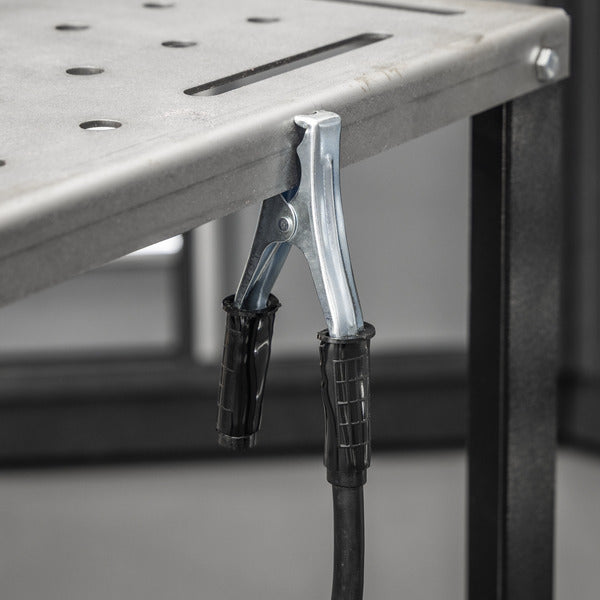

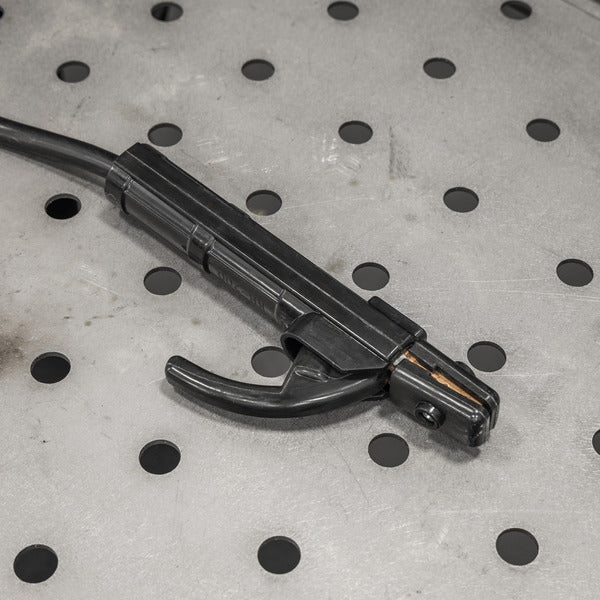

- SUPPLIED WITH - Supplied with TIG and MMA/ARC Accessories.
- DUTY CYCLE - TIG 60% @ 160A, MMA/ARC 60% @ 160A.
Specification
| Power Output: | 10-160A |
| Duty Cycle: | TIG: 60% @ 160A 100% @ 124A MMA: 60% @ 160A 100% @120A |
| Electrode Capacity: | 1.6-3.2mm |
| Absorbed Power: | 3.8kW |
| Supply:* | 230V |
| Protection: | IP21S |
| Weight: | 6.1kg |
| Note: | * To achieve maximum power 16A supply may be required. |
|
Nett Weight:
|
6.1kg
|
|
Barcode:
|
5054630451676
|
