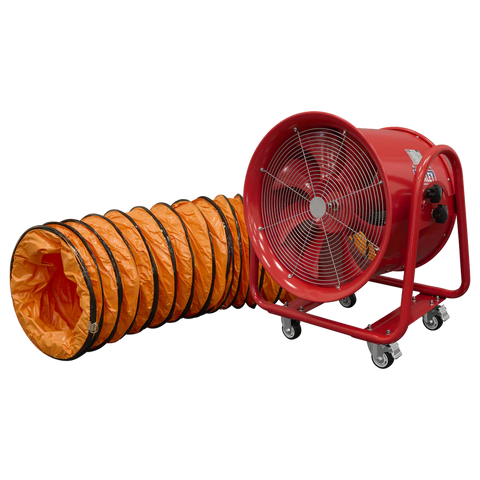

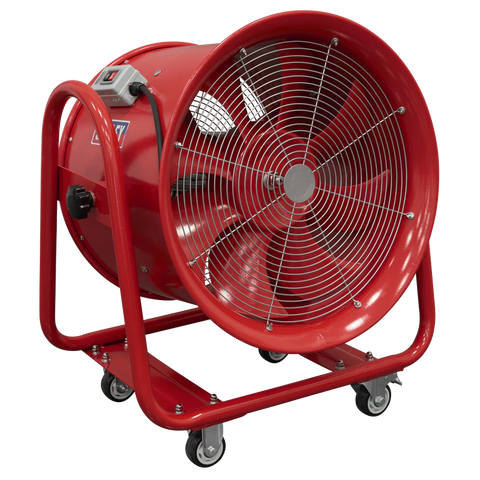

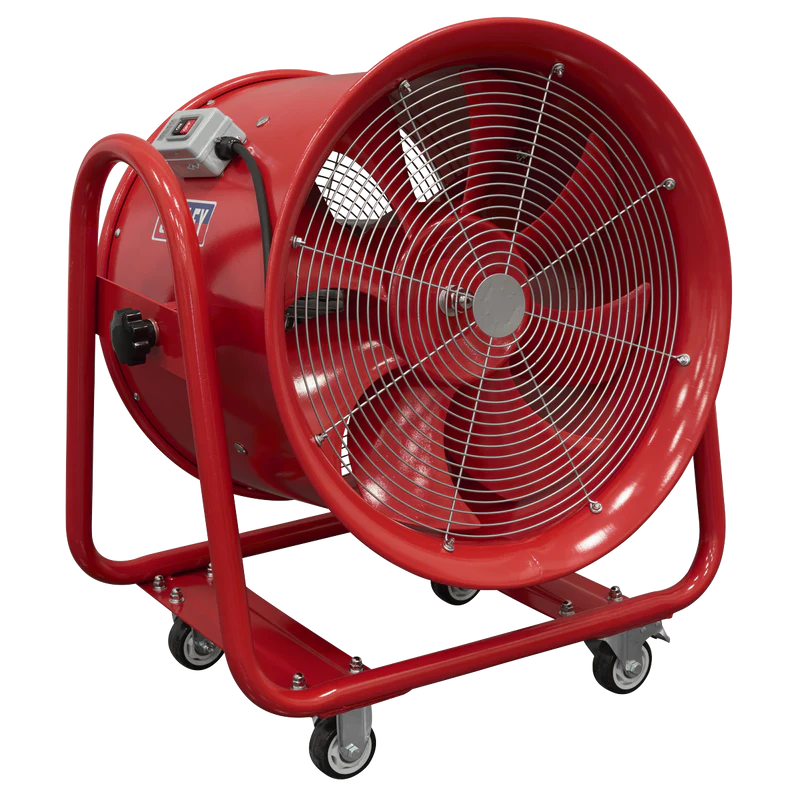

Sealey VEN500 Portable Ventilator 500mm with 5m Ducting
Ideal for use where high-volume air delivery is required. Especially suitable for ventilating confined, hot or fume-laden work sites, typically found in boats, cable/pipe ducts and roof spaces; creating a cleaner more pleasant working environment. Lightweight and robust construction gives the portability and durability necessary in the workplace. Mounted on a steel frame with four castor wheels. Supplied with 5m ducting, optional 10m length available.
Features
- VOLUME VENTILATION - Ideal for use where high volume clean air delivery is required. Airflow: 9900m³/hr(5814cfm).
- DIVERSE USAGE - Can be used across multiple industries including but not exclusive to: Marine, roof spaces and building sites, cable/pipe ducts and workshops.

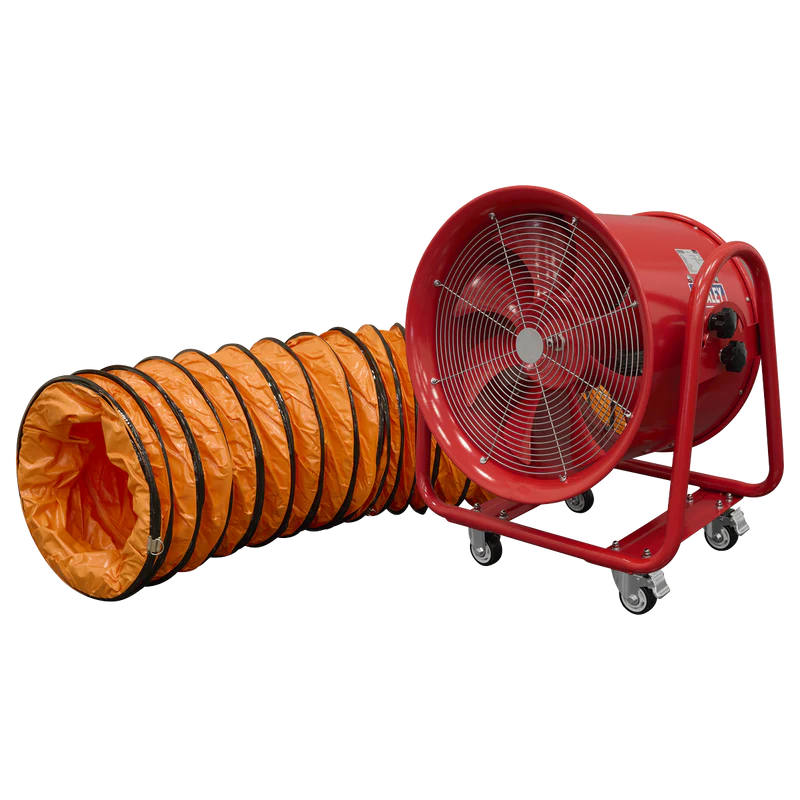

- DUCTING SUPPLIED - 5m Ducting is supplied with this product. 10m Ducting is available but not included (VEN500AK2).

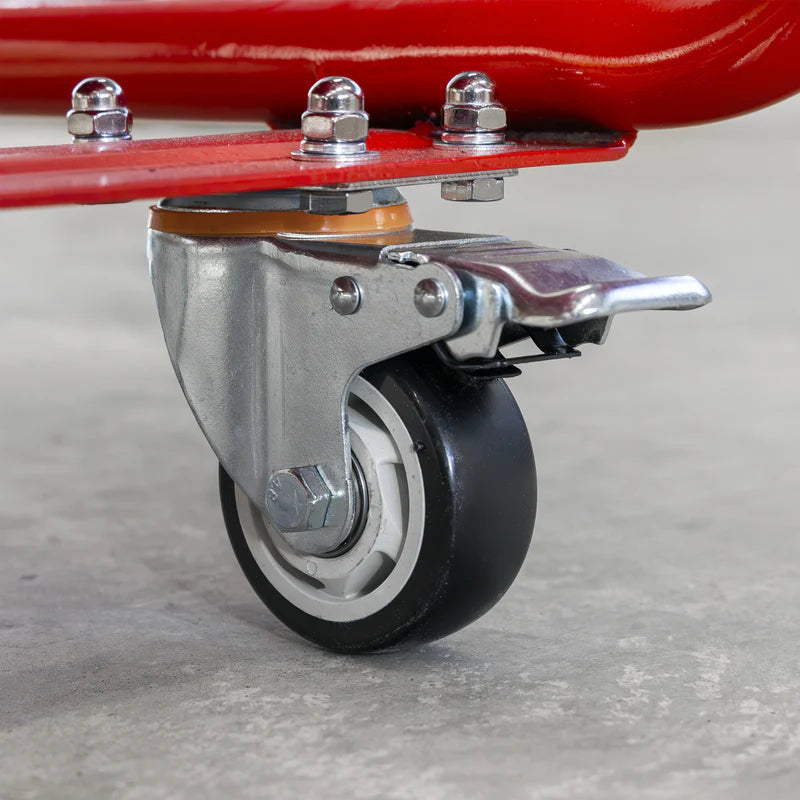

- WHEEL MOUNTED - Lightweight with four castor wheels making it easily portable.
Specification
| Overall Efficiency (n): | 35.94% |
| Measurement Category: | C |
| Efficiency Category: | Static |
| Efficiency Grade: | 40 |
|
Airflow:
|
9900m³/hr(5814cfm) - 165m³/min
|
|
Fan Diameter:
|
Ø500mm
|
|
Fan Speed:
|
1400rpm
|
|
Maximum Airflow:
|
9900m³/hr(5,814cfm), 165m³/min
|
|
Noise Level:
|
74dB(A)
|
|
Note:
|
RPM - 1420 r/min
|
|
Power:
|
1100W
|
|
Replacement Parts:
|
VEN500AK1/VEN500AK2
|
|
Static Pressure:
|
4.5mbar
|
|
Supply:
|
230V
|
|
Nett Weight:
|
52kg
|
|
Maximum Air Velocity:
|
14m/s
|
|
Barcode:
|
5054630457029
|
