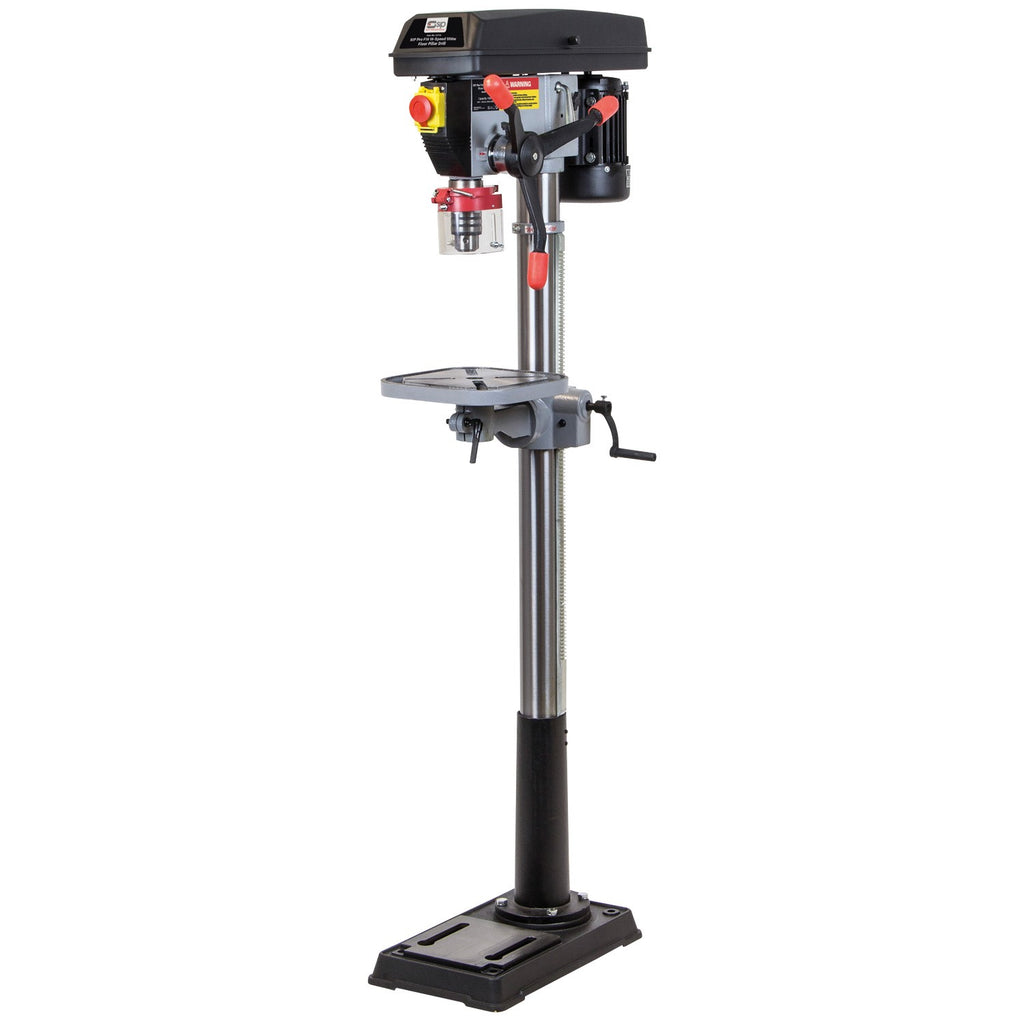

The SIP Pro F20 16-Speed 750w Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned for accurate drilling.
KEY FEATURES
- 16 spindle speeds powered by a 750w motor from a 230v (13A) supply
- Supports a variety of drilling applications
- High-power brushless induction motor
- Fitted with drilling depth stop
- Adjustable drill table for greater accuracy
- Safety interlock switch for safe motor belt adjustment
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP Pro F20 16-Speed 750w Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned to enable accurate drilling.

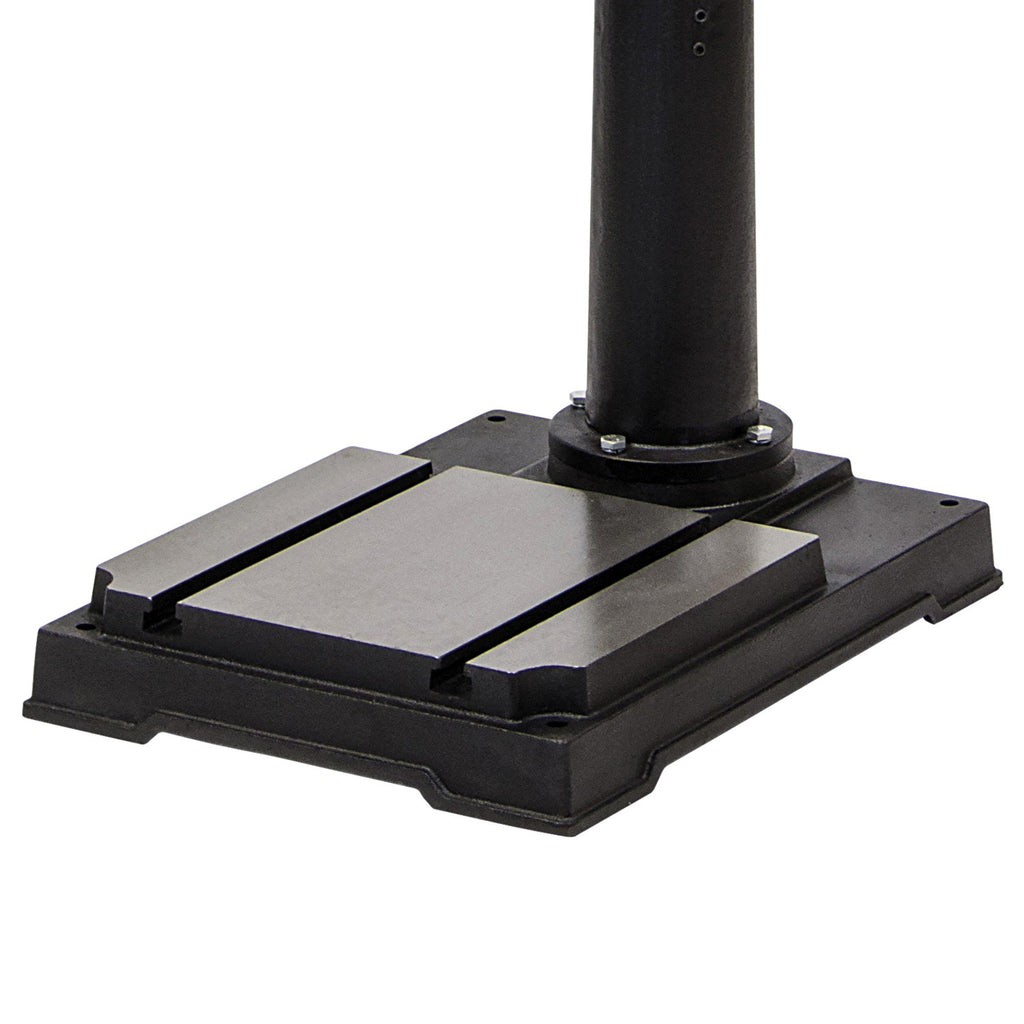

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings.
Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind, batch and general drilling applications, manufacturing gates, rails and trailers, plus metalwork and woodwork environments
SUPPORTS A VARIETY OF DRILLING APPLICATIONS
- Compatible with materials including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics.
MULTI-SPEED FUNCTIONALITY
- Allows precise control of hole sizes across the drilling spectrum.
HIGH-POWER BRUSHLESS INDUCTION MOTOR
- Delivers powerful performance for consistent high-quality drilling.
INTUITIVE FEATURES FOR EASE-OF-USE
- Adjustable drilling table and 3-lever handle ensures smooth drilling force.
FITTED WITH DRILLING DEPTH STOP
- Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.
SAFETY INTERLOCK SWITCH
- Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.
Technical Information
ITEM NO. 01715 Input Voltage: 230v (13A) Motor Power: 750w No. of Speeds: 16 speeds Speed Range: 200rpm - 2800rpm Drill Bit Size: 5mm - 20mm Max. Drilling Capacity: 20mm Spindle Taper: MT2 Table Size: 285mm x 285mm Base Size: 460mm x 270mm Column Diameter: Ø 72mm Swing: 360mm Height: 1575mm Spindle Travel: 80mm Collar Diameter: Ø 72mm Max. Distance: 588mm (chuck to table)
1075mm (chuck to base)Net Weight: 52.30kg Gross Weight: 56.00kg Product Dimensions: 1580(H) x 290(W) x 460mm(D) Packaged Dimensions: 275(H) x 1140(W) x 490mm(D)
