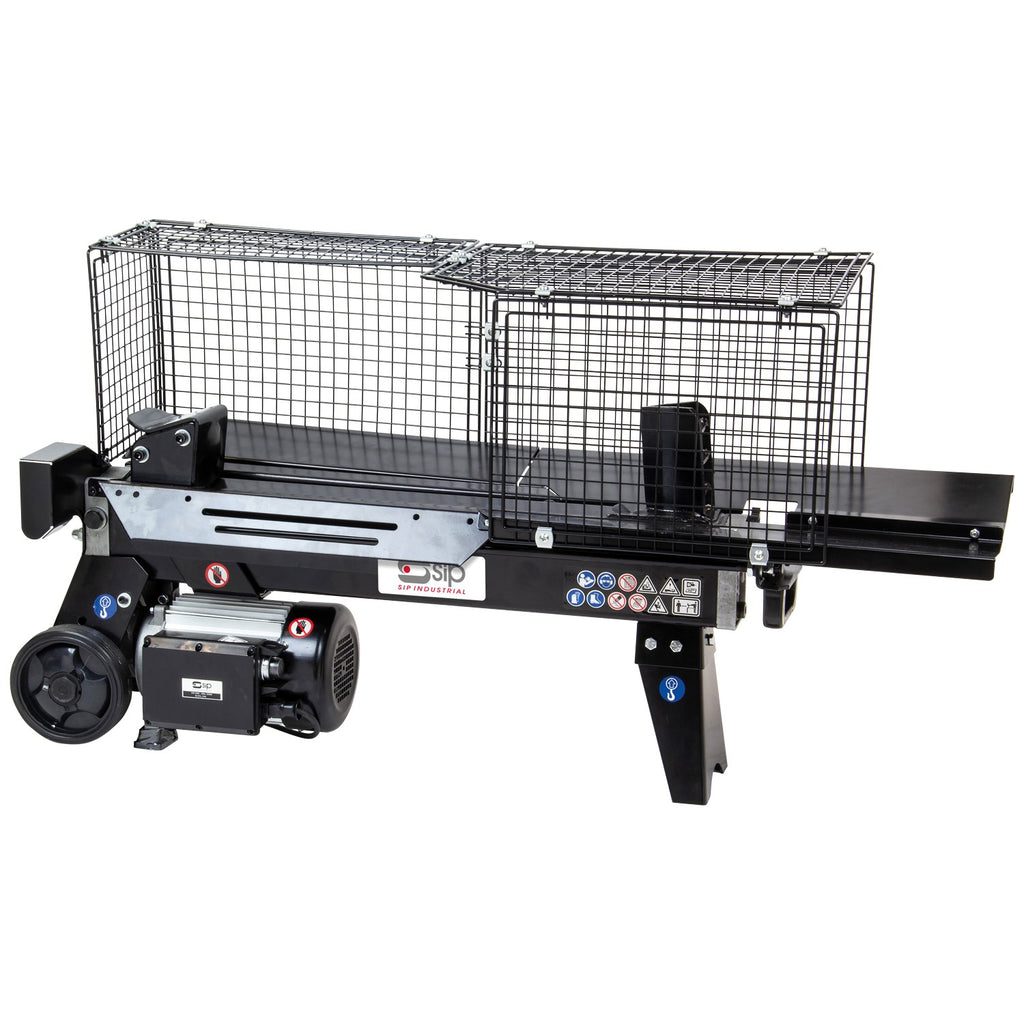

The SIP 5 TON Electric Log Splitter is a heavy-duty log splitter which features a hydraulic piston ram with 5 TON of continuous force to split logs safely and efficiently. Designed for home use and landscaping applications, this large capacity splitter is ideal for dried softwoods and hardwoods.
This log splitter has a horizontal design enclosed within a high-quality safety cage mounted on solid wheels for easy mobility. A 230v (13A) input supply ensures this splitter can be used in a variety of environments.
Sold separately, the SIP 5 TON Log Splitter Stand (01972) raises the splitter to a workable height when a bench is not available.
KEY FEATURES
- Hydraulic piston ram delivers 5 TON of continuous splitting force
- Horizontal splitter enclosed in safety cage for added peace-of-mind
- Large log capacity of ⌀ 50 - 250mm x 200mm - 520mm log length
- Wedge automatically returns to the starting position after each use
- Integrated handle and wheel-mounted design for added mobility
- Fitted NVR switch for added user safety
SIP 2-Year Standard Silver Warranty
Full Specification
The SIP 5 TON Electric Log Splitter is a heavy-duty log splitter which features a hydraulic piston ram with 5 TON of continuous force to split logs safely and efficiently. Designed for home use and landscaping applications, this large capacity splitter is ideal for dried softwoods and hardwoods.
This log splitter has a horizontal design enclosed within a high-quality safety cage mounted on solid wheels for easy mobility. A 230v (13A) input supply ensures this splitter can be used in a variety of environments.
Sold separately, the SIP 5 TON Log Splitter Stand (01972) raises the splitter to a workable height when a bench is not available.
Applications & uses: Ideal for splitting softwood and hardwoods. Suitable for home use and landscaping applications.
SIP 2-Year Standard Silver Warranty
ELECTRIC SPLITTER WITH HYDRAULIC PISTON RAM WITH 5 TON OF CONTINUOUS FORCE FOR RELIABLE & EFFICIENT LOG SPLITTING
- Delivers continuous splitting force of 5 TON under a hydraulic pressure of 20.6MPa.
- Large log capacity of ⌀ 50mm - 250mm x 200mm - 520mm log length.
HORIZONTAL CONFIGURATION WITH SAFETY CAGE HELPS TO MAXIMISE USER SAFETY

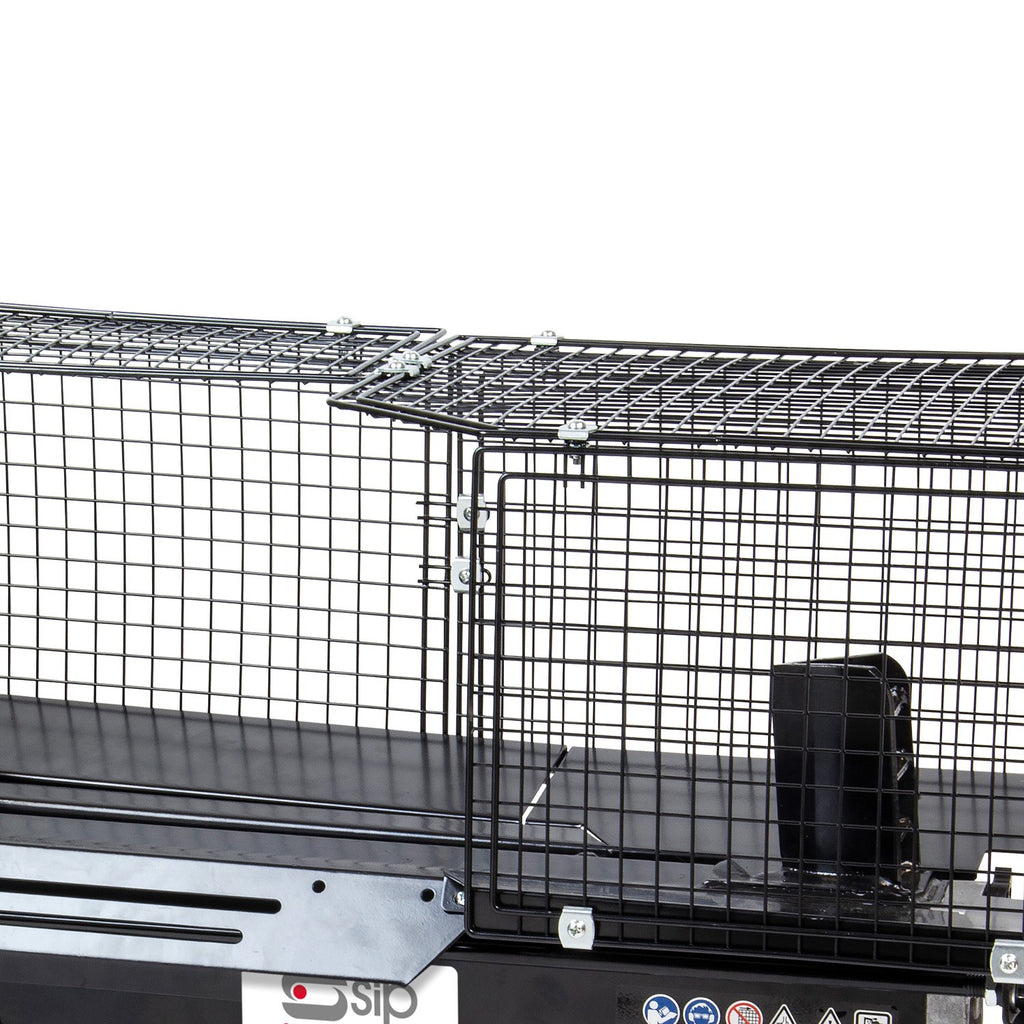

- Integrated safety cage increases user safety by restricting access to the splitting system when in use.

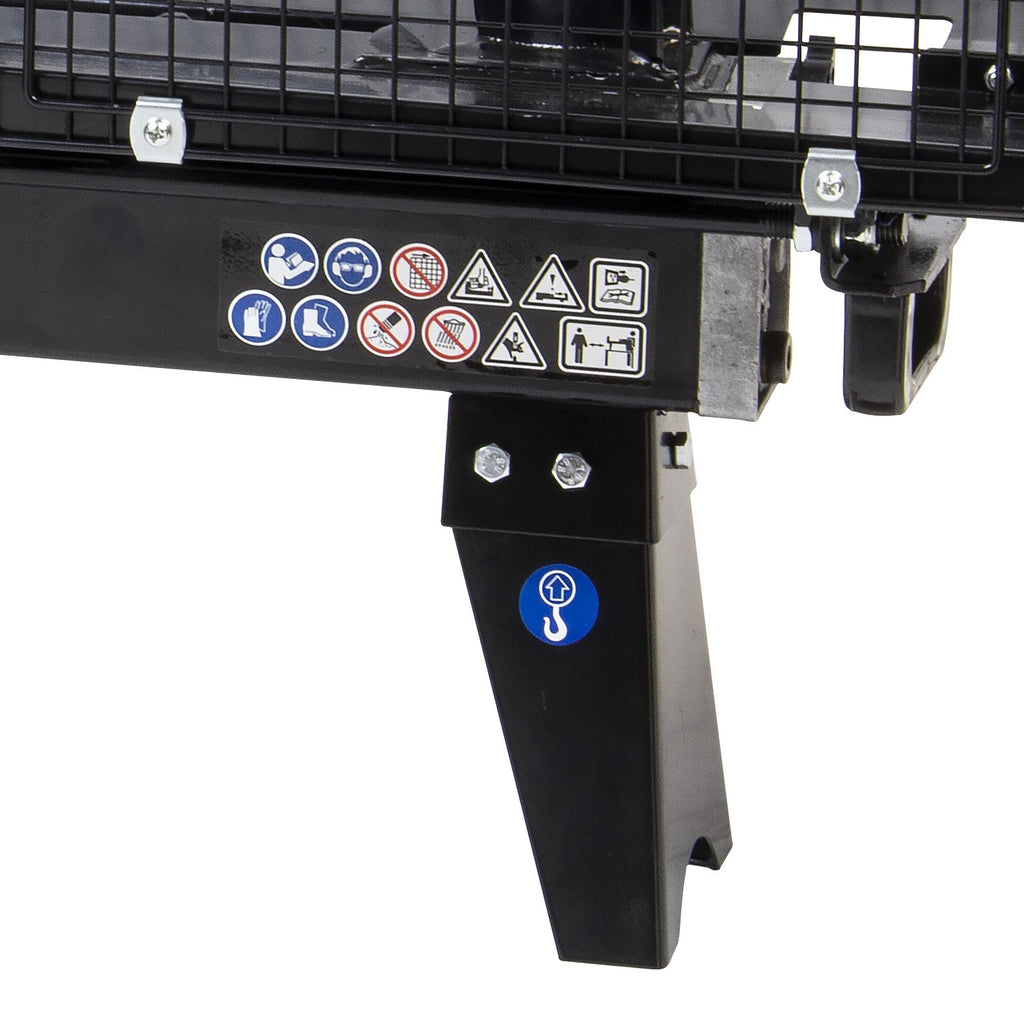

- The horizontal configuration is mounted on 2 solid wheels and foot for added mobility and versatility.
- An integrated handle makes the splitter easier to position.
- Further enhanced safety via a fitted NVR switch.
AUTOMATIC RETURN OF SPLITTING WEDGE FOR MORE EFFICIENT LOG SPLITTING
- The log splitting wedge automatically returns to the starting splitting position after each use.
- This increases efficiency by ensuring logs can be split quicker as there is no requirement for a manual reset.
COMPATIBLE WITH SIP 5 TON ELECTRIC LOG SPLITTER STAND

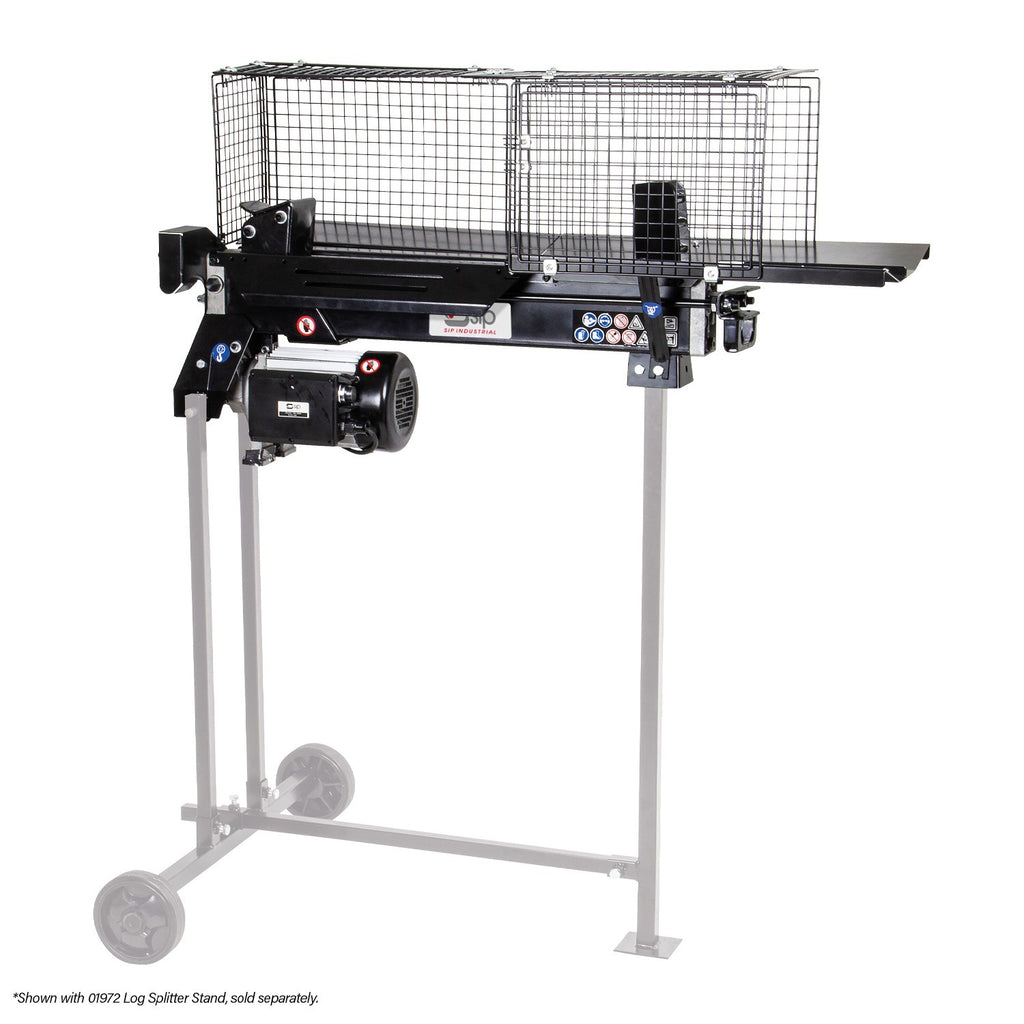

- Sold separately, the SIP 5 TON Electric Log Splitter Stand (01972) raises the splitter to a workable height when a bench is not available.
Technical Information
| ITEM NO. | 01976 |
| Input Supply: | 230v (13A) |

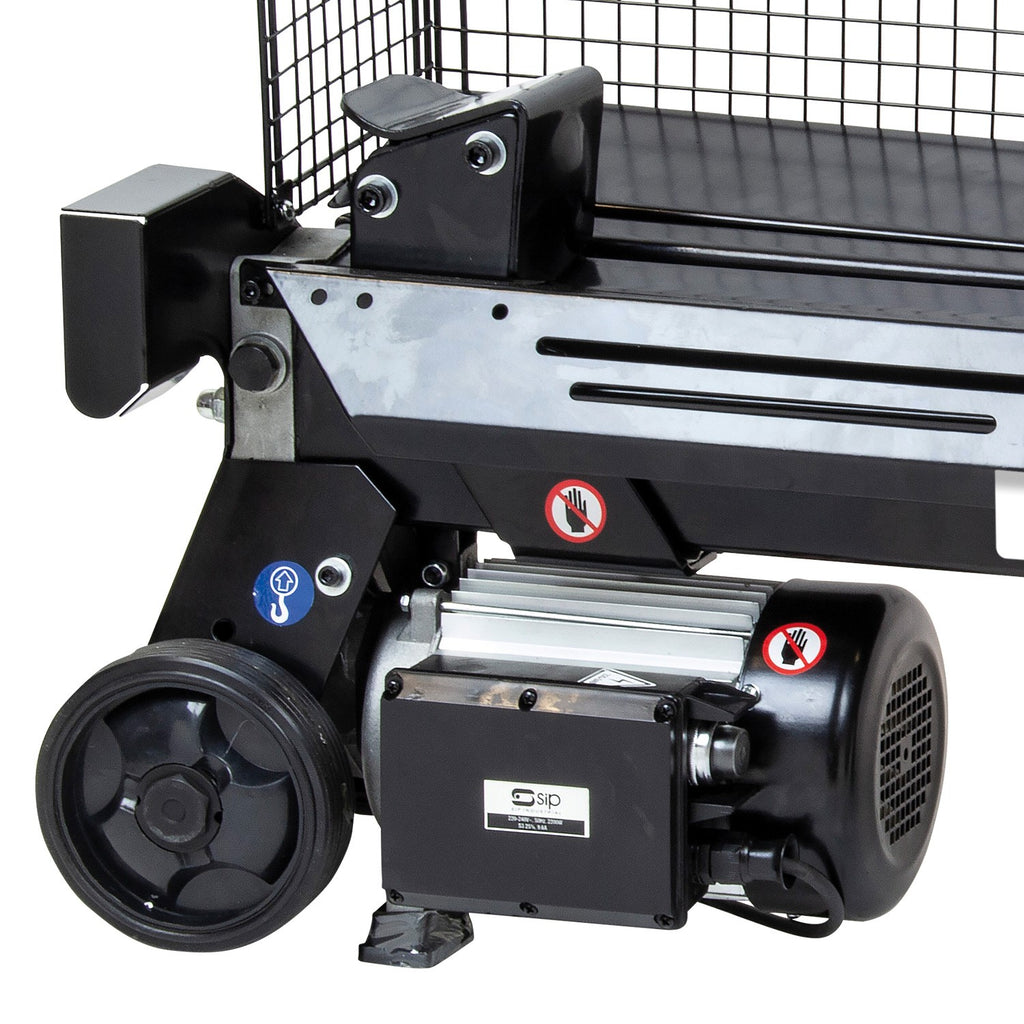

| Motor Power: | 2.2kW (3hp) |
| Splitting Force: | 5 TON |
| Hydraulic Pressure: | 20.6MPa |
| Hydraulic Oil Capacity: | 3.5ltr HV22 hydraulic oil |
| Log Capacity: | ⌀ 50mm - 250mm x 200mm - 520mm |
| Noise Level (LpA): | 89.9dB(A) full load / 78.8dB(A) no-load |
| Net Weight: | 50kg |
| Gross Weight: | 54kg |
| Product Dimensions: | |
| Packaged Dimensions: | 510(H) x 940(W) x 330mm(D) |
