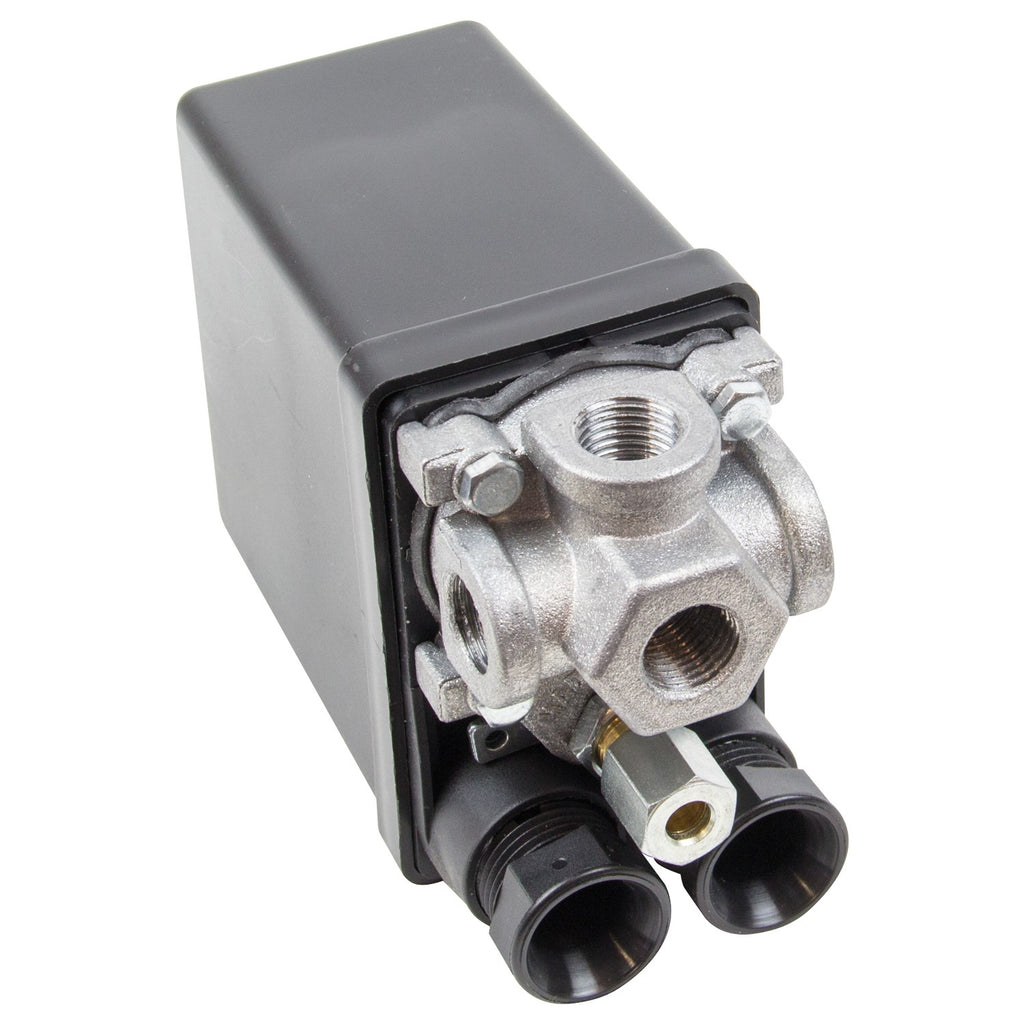

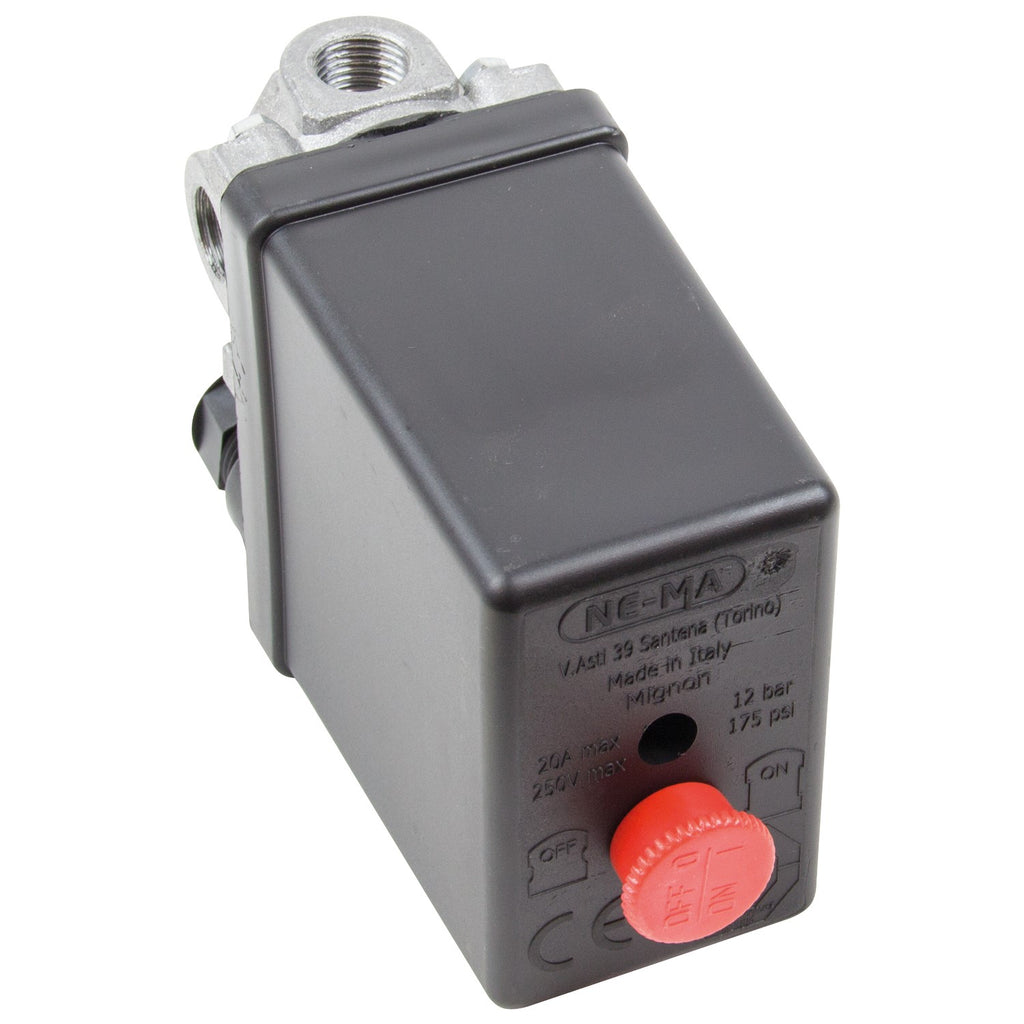

The SIP 1/4" 4-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.
This easy-to-install switch offers 3x 1/4" BSP ports and adjustable cut-off pressure.
KEY FEATURES
- 1/4" 4-way pressure switch with 3x 1/4" BSP ports
- Easily adjustable cut-off pressure via built-in switch
- Designed to start and stop electric compressor motors
- Manufactured for long-lasting and reliable use
-
Integrated bleed facility with 6mm pipe entry
Full Specification
The SIP 1/4" 4-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.
This easy-to-install switch offers 3x 1/4" BSP ports and adjustable cut-off pressure.
- 1/4" 4-way pressure switch with 3x 1/4" BSP ports
- Easily adjustable cut-off pressure via built-in switch
- Designed to start and stop electric compressor motors
- Manufactured for long-lasting and reliable use
- Integrated bleed facility with 6mm pipe entry
Technical Information
ITEM NO. 02313 Switch Type: Mignon 4-Way Voltage / Current: 230v / 16A Overload: N/A Inlet Connection Size: 1/4" BSP Inlet Connection Type Bottom Entry Side Port Size: 3x 1/4" BSP Switch Type: Pull Phase Type: 1-phase No. of Poles: 2 poles Net Weight: 0.95kg Gross Weight: 1.00kg Product Dimensions: Packaged Dimensions: 125(H) x 80(W) x 50mm(D)
