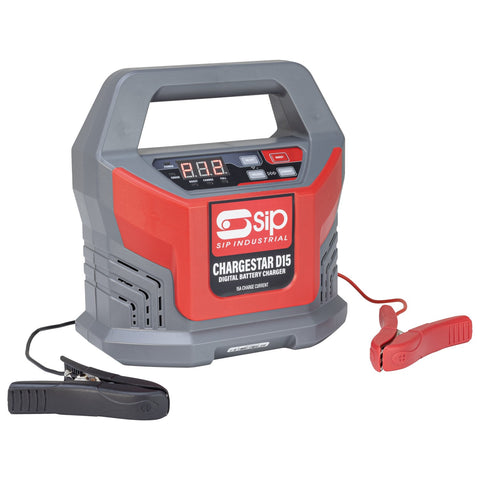

The SIP CHARGESTAR D15 Digital Battery Charger is a compact and portable digital battery charger designed for charging all types of 12v lead acid batteries.
Featuring an intelligent microprocessor with 6-step automatic charging cycle, the CHARGESTAR D15 makes battery charging easier, faster and safer.
KEY FEATURES
- 12v voltage charging output
- Charging capacity of up to 220Ah max. rated
- Microprocessor-controlled automatic 6-step charging cycle
- Battery low voltage detector >3v
- LED display screen and intuitive soft touch control panel
- Compact and lightweight design with carry handle
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP CHARGESTAR D15 Digital Battery Charger is a compact and portable digital battery charger designed for charging all types of 12v lead acid batteries.
Featuring an intelligent microprocessor with 6-step automatic charging cycle, the CHARGESTAR D15 makes battery charging easier, faster and safer.
Applications & uses: Ideal for battery charging applications in automotive and workshop environments.
SIP 2-Year Standard Silver Warranty*
VERSATILE BATTERY CHARGER SUITABLE FOR A VARIETY OF 12V LEAD ACID BATTERIES
- This includes WET, MF, EFB, AGM and CaCa battery types.
- Charging capacity of up to 220Ah and maintenance capacity of 300Ah.
MICROPROCESSOR-CONTROLLED CHARGER MAINTAINS HEALTHY LONG-LIFE BATTERY PERFORMANCE
- An intelligent 6-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle.
- Once battery capacity is full, the unit stops charging and a control panel light is displayed.
- If the voltage is less than 3v, the unit prevents charging as battery recovery will not be possible.
- 'Boost - Fast Charge' mode delivers 5mins of continuous 15A charge.
- A convenient 12v DC socket is purposed as an external 7A power supply.

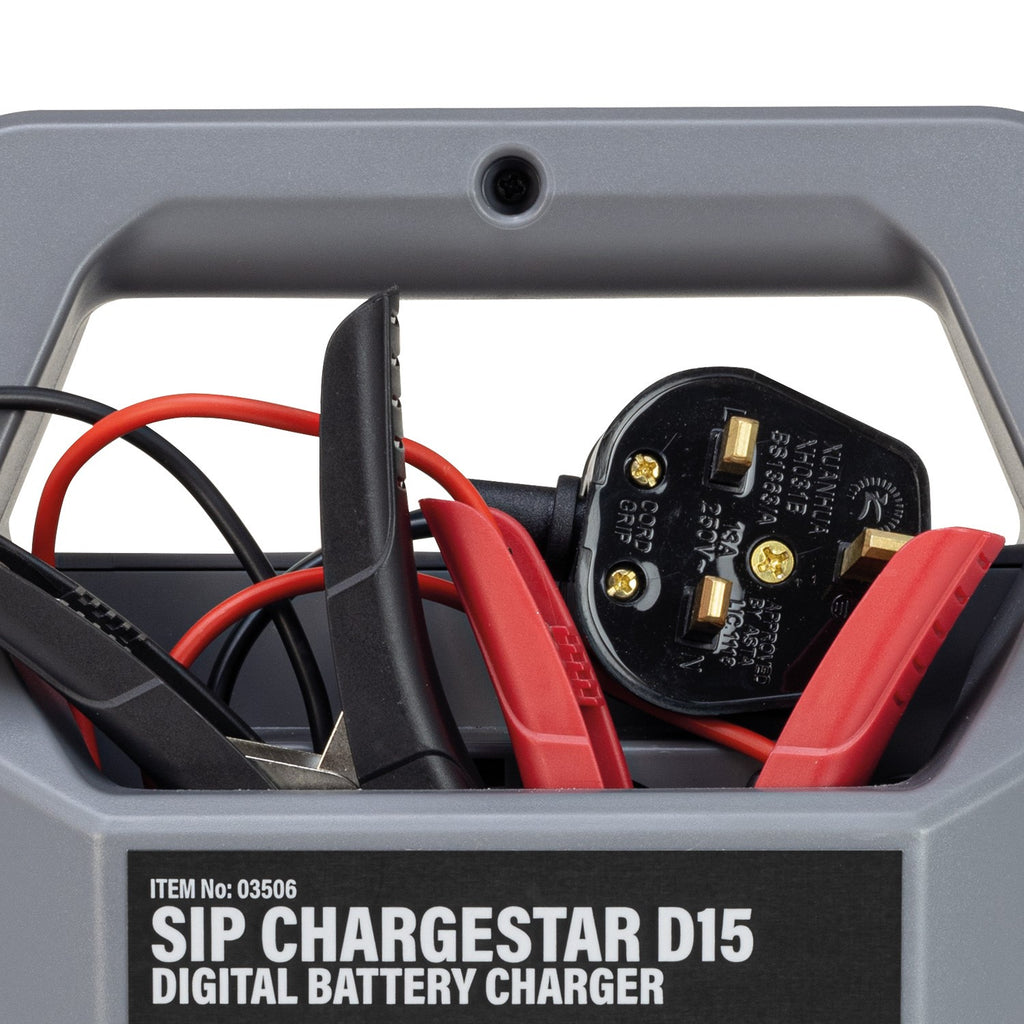

- Supplied with 2x 1.2mtr leads and clip clamps.

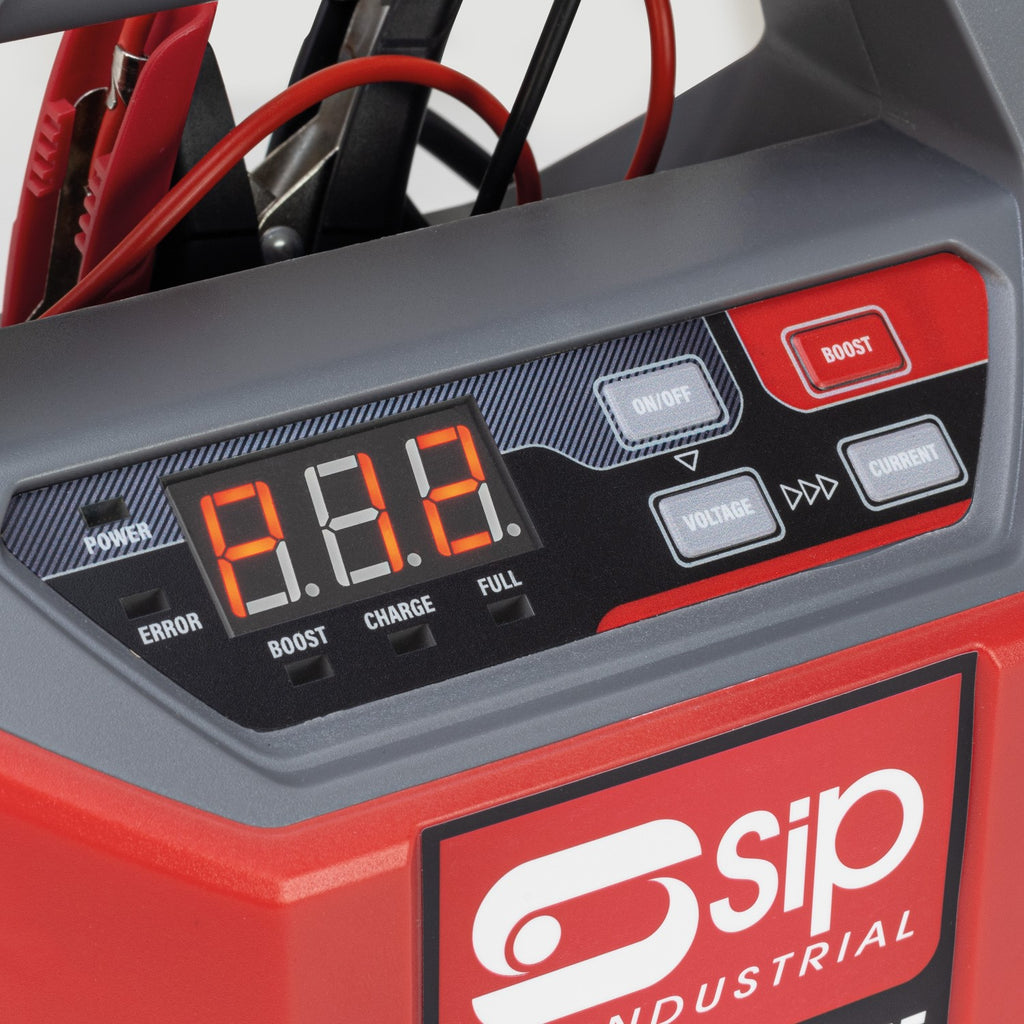

- LED display and intuitive soft touch control panel.

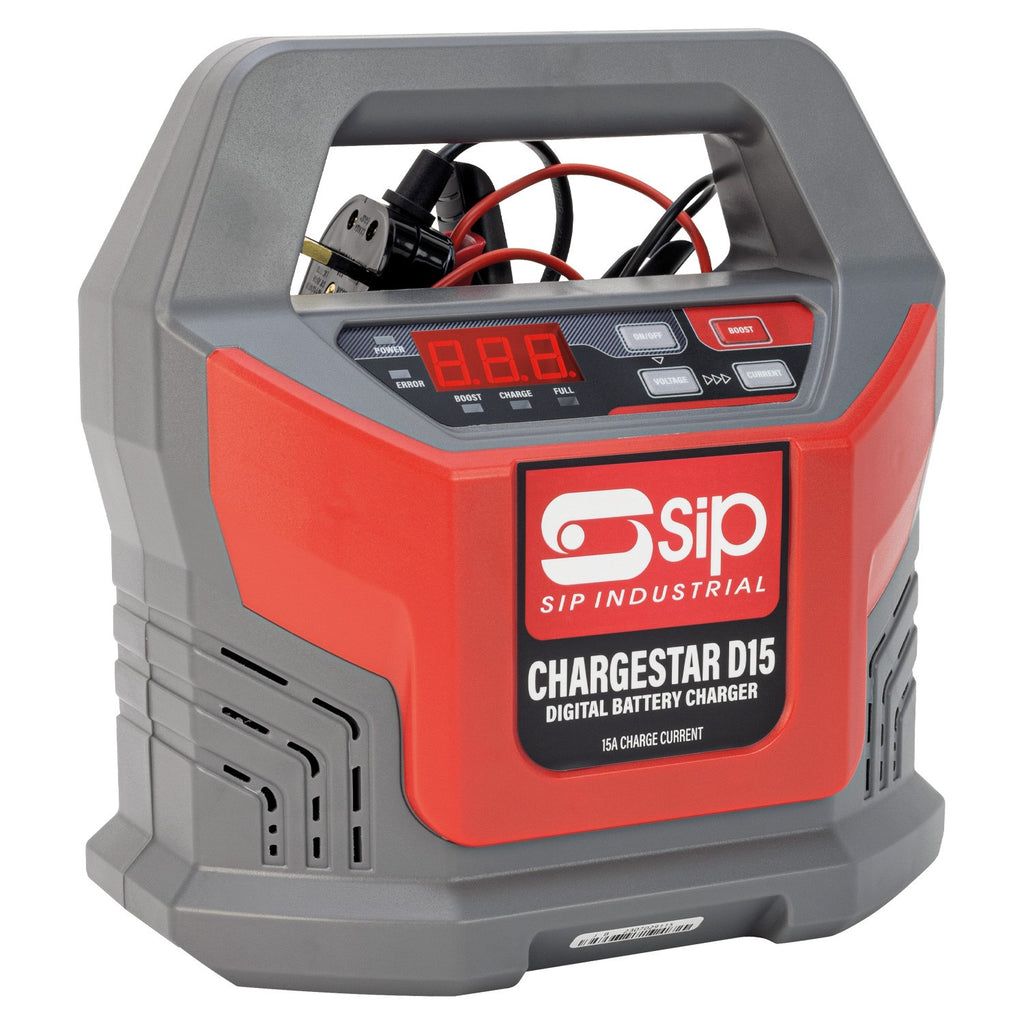

- Compact and lightweight design with carry handle for easy movement between use.
BUILT-IN SAFTY & PROTECTION FEATURES MAXIMISE USER SAFETY
- Anti-spark system prevents sparks when connecting the clips to the battery terminals.
- Reverse polarity and overcharge protection ensure the unit operates only when correctly connected.
- Fitted with an overheat alarm to prevent charger damage. This automatically restarts once cooled.
Technical Information
ITEM NO. 03506 Input Supply: 220v - 240v 50-60Hz, 220w max. Input Fuse: 10A Charging Voltage: 12v DC Charging Current: 2A / 6A / 10A / 15A Battery Low Voltage Detector: >3v Charging Steps: 6; Fully Automatic Charging Cycle Battery Types: All 12v Lead Acid (WET, MF, EFB, GEL, AGM) Battery Capacity: 2Ah - 220Ah (Charging) / 220Ah - 300Ah (Maintenance) Temperature Range: 0°C - 40°C Protection Level: IP20 Net Weight: 1.50kg Gross Weight: 1.75kg Product Dimensions: 220(H) x 220(W) x 115mm(D) Packaged Dimensions: 230(H) x 230(W) x 145mm(D)
