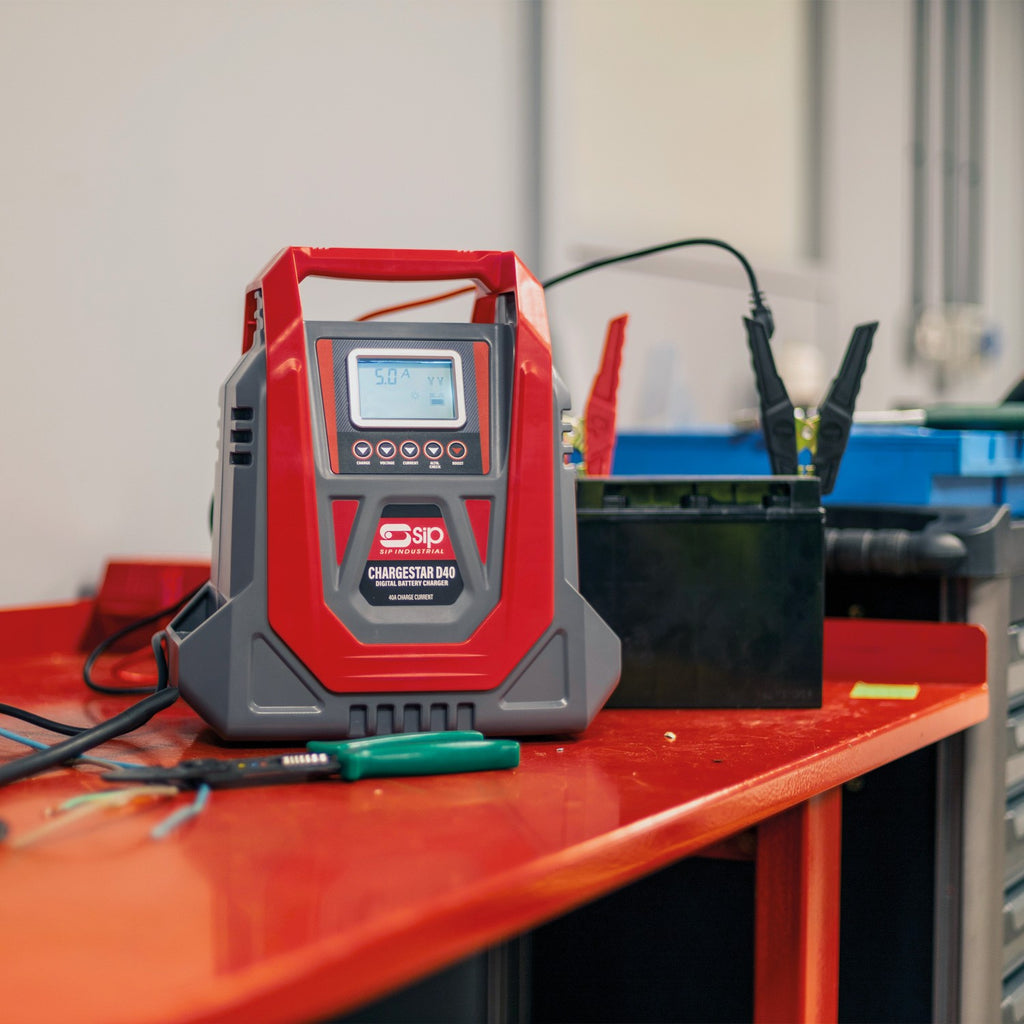

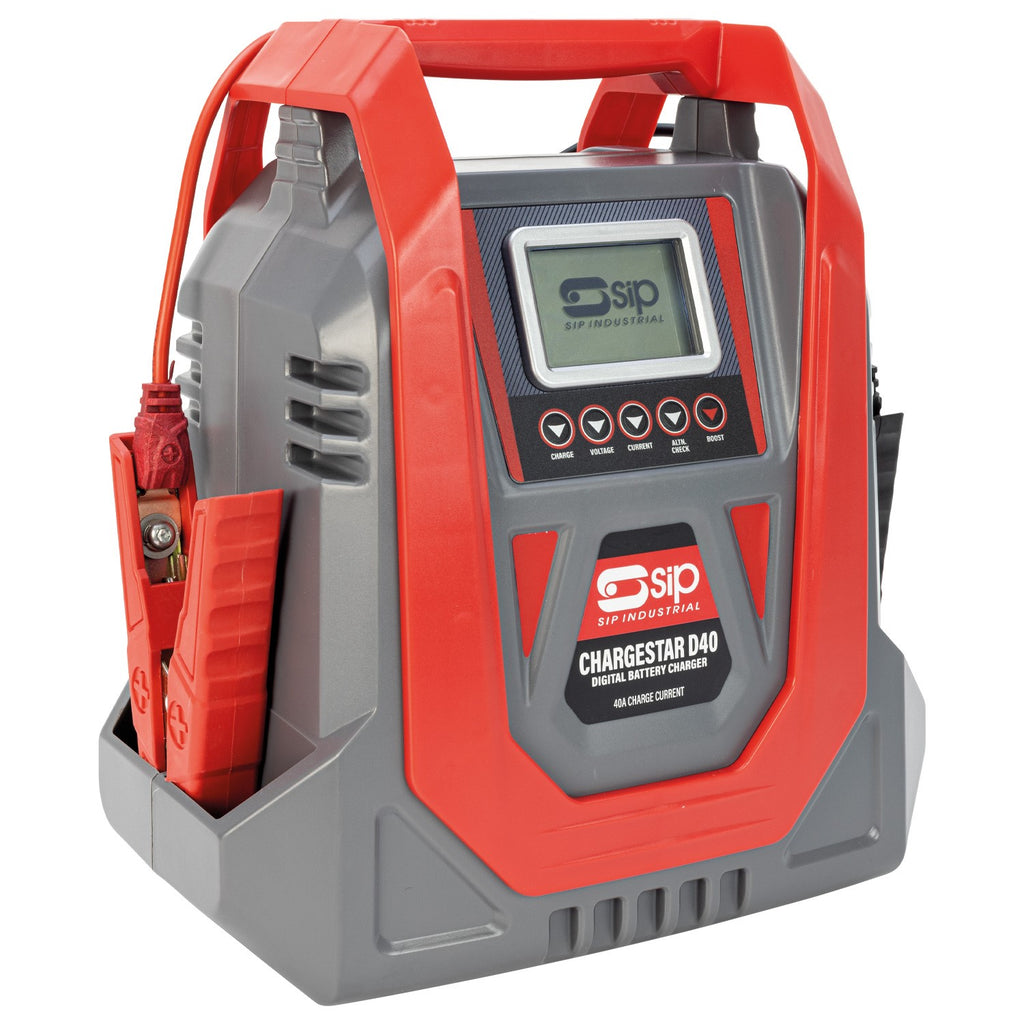

The SIP CHARGESTAR D40 Digital Battery Charger is a powerful and portable digital battery charger designed for charging all types of 12v and 24v lead acid batteries.
Featuring an intelligent microprocessor with 8-step automatic charging cycle, the CHARGESTAR D40 makes battery charging easier, faster and safer.
KEY FEATURES
- 12v/24v dual voltage charging output
- Charging capacity of up to 550Ah max. rated
- Microprocessor-controlled automatic 8-step charging cycle
- Battery low voltage detector >3v
- LED display screen and intuitive soft touch control panel
- Compact and lightweight design with carry handle
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP CHARGESTAR D40 Digital Battery Charger is a powerful and portable digital battery charger designed for charging all types of 12v and 24v lead acid batteries.
Featuring an intelligent microprocessor with 8-step automatic charging cycle, the CHARGESTAR D40 makes battery charging easier, faster and safer.
Applications & uses: Ideal for battery charging applications in automotive and workshop environments. Suitable for charging commercial vehicle batteries.
SIP 2-Year Standard Silver Warranty*
VERSATILE BATTERY CHARGER SUITABLE FOR A VARIETY OF 12V & 24V LEAD ACID BATTERIES
- This includes WET, MF, EFB, AGM and CaCa battery types.
- Charging capacity of up to 550Ah for 12v and 300Ah for 24v.
MICROPROCESSOR-CONTROLLED CHARGER MAINTAINS HEALTHY LONG-LIFE BATTERY PERFORMANCE
- An intelligent 8-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle.
- Once battery capacity is full, the unit stops charging and a control panel light is displayed.
- If the voltage is less than 3v, the unit prevents charging as battery recovery will not be possible.
- 'Altn Check' mode indicates alternator health and performance (12v vehicles only).
- 'Boost - Fast Charge' mode delivers 5mins of continuous 40A charge.
- The unit stops charging once the battery capacity is full.

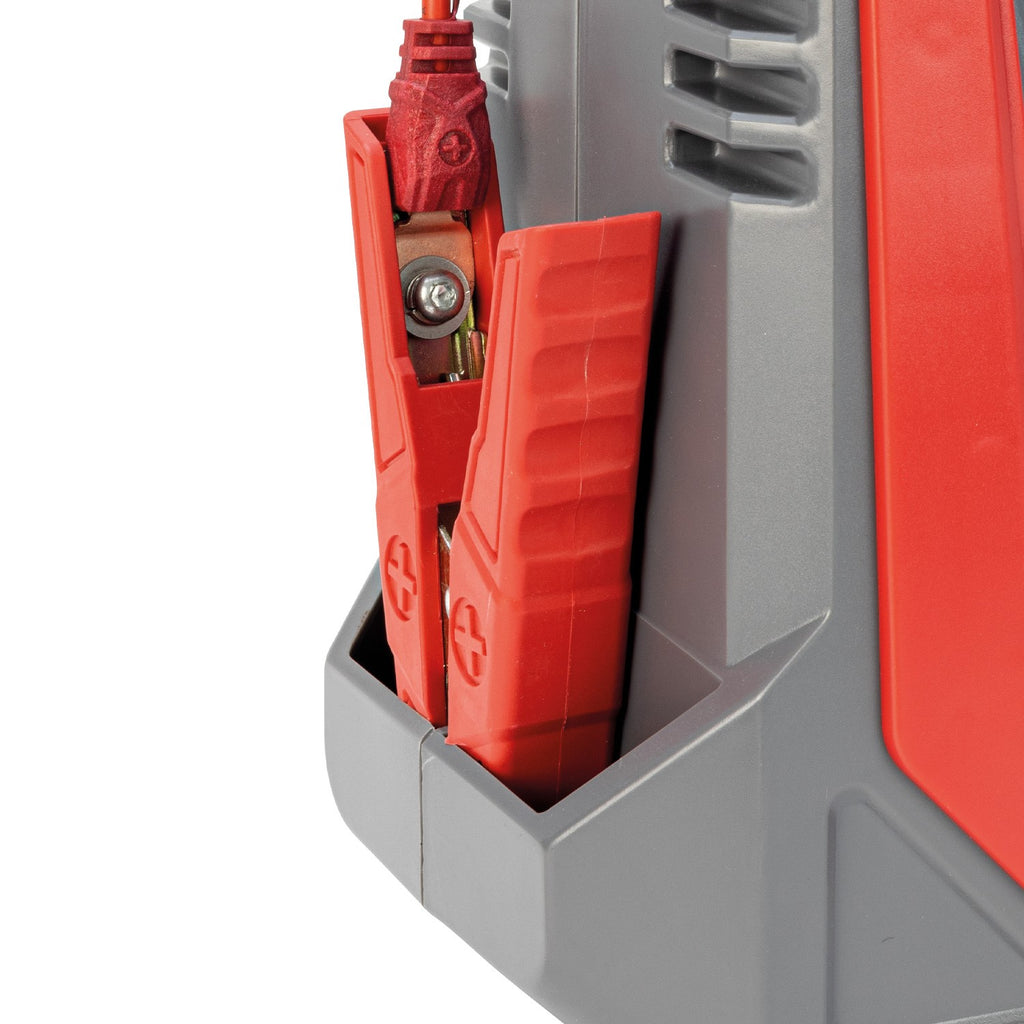

- Supplied with 2x 2mtr leads and clip clamps.

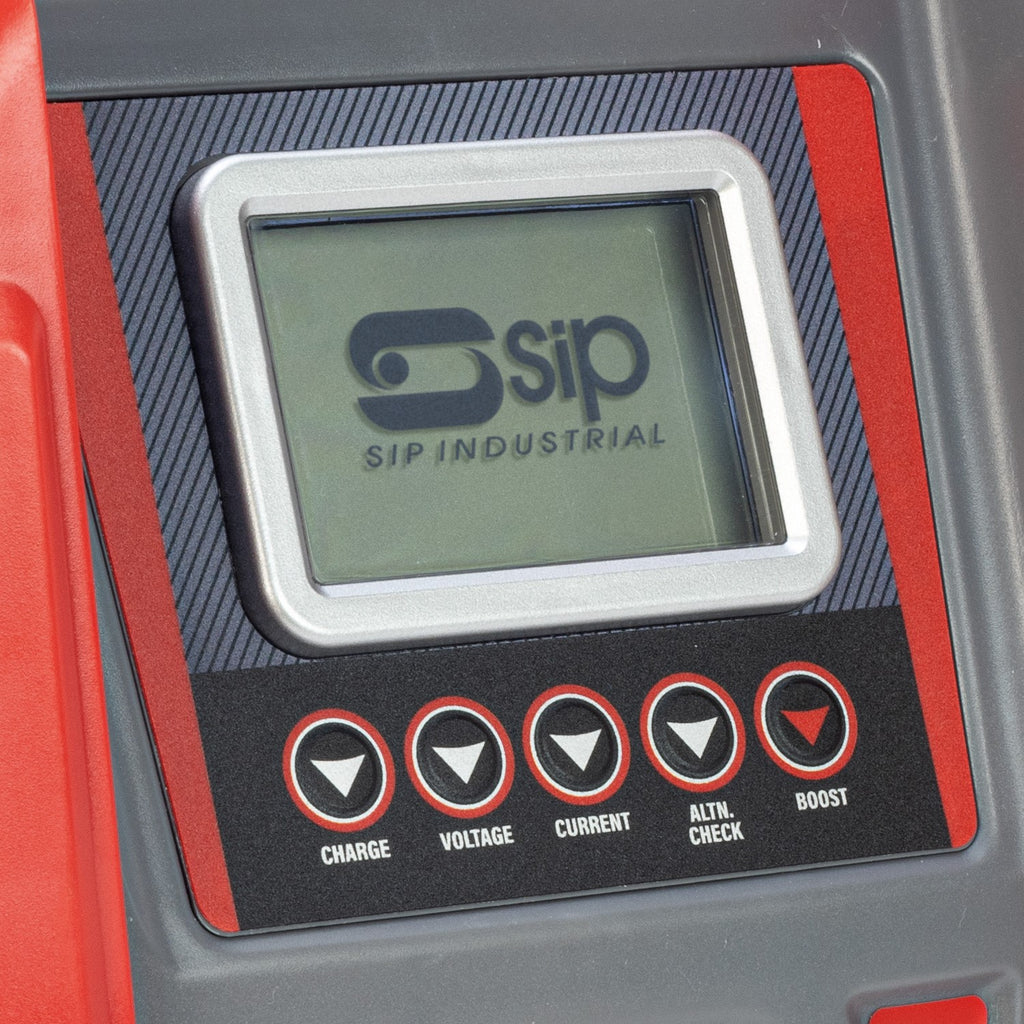

- LCD screen and intuitive soft touch control panel.
- Lightweight design with carry handle for easy easy movement between use.
BUILT-IN SAFETY & PROTECTION FEATURES MAXIMISE USER SAFETY
- Anti-spark system prevents sparks when connecting the clips to the battery terminals.
- Reverse polarity and overcharge protection ensure the unit operates only when correctly connected.
- Fitted with an overheat alarm to prevent charger damage. This automatically restarts once cooled.
Technical Information
ITEM NO. 03556 Input Supply: 220v - 240v 50-60Hz, 750w max. Input Fuse: 10A Charging Voltage: 12v DC / 24v DC Charging Current: 2A / 10A / 20A / 40A @ 12v
5A / 10A / 20A @ 24vBattery Low Voltage Detector: >3v Charging Steps: 8; Fully Automatic Charging Cycle Battery Types: All 12v/24v Lead Acid (WET, MF, EFB, GEL, AGM) Battery Capacity: 550Ah (12v) / 300Ah (24v) Temperature Range: 0°C - 40°C Protection Level: IP20 Net Weight: 3.70kg Gross Weight: 4.10kg Product Dimensions: 320(H) x 290(W) x 170mm(D) Packaged Dimensions: 329(H) x 292(W) x 190mm(D)
