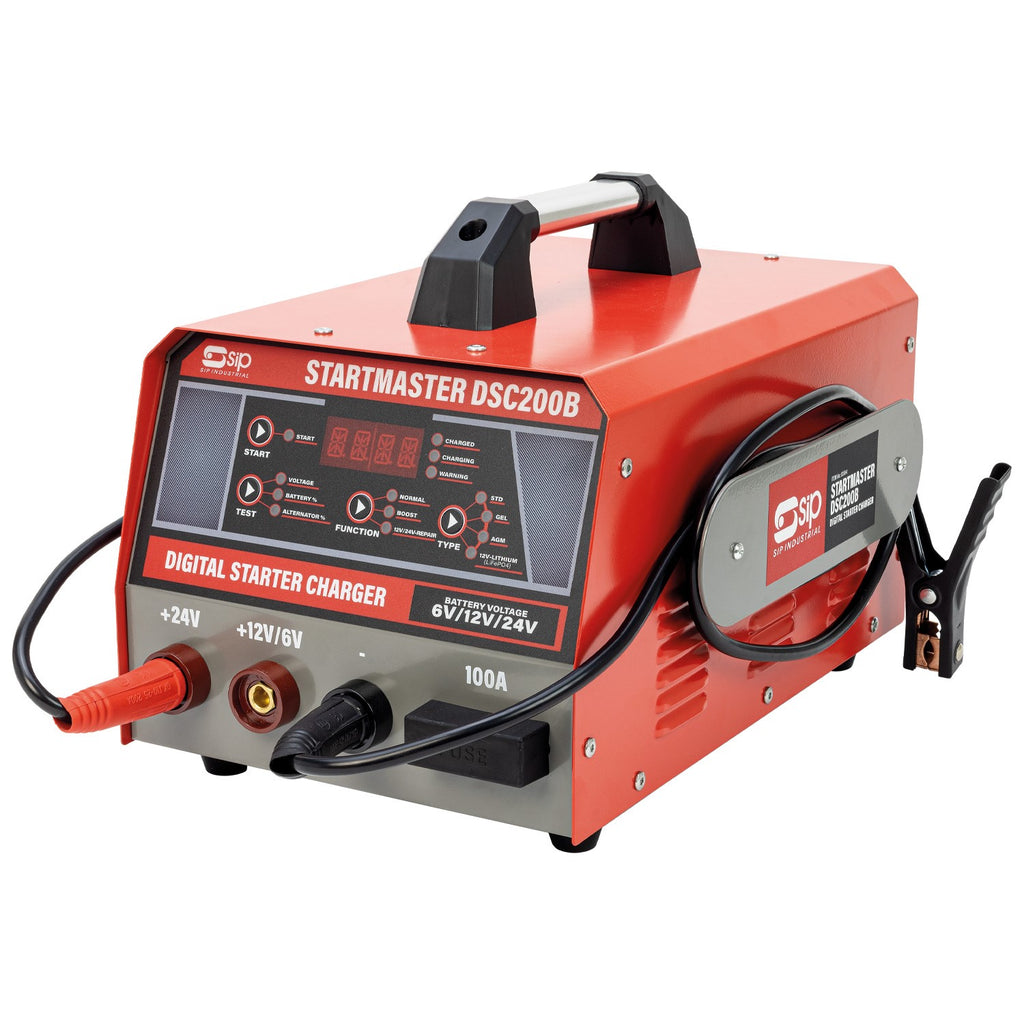

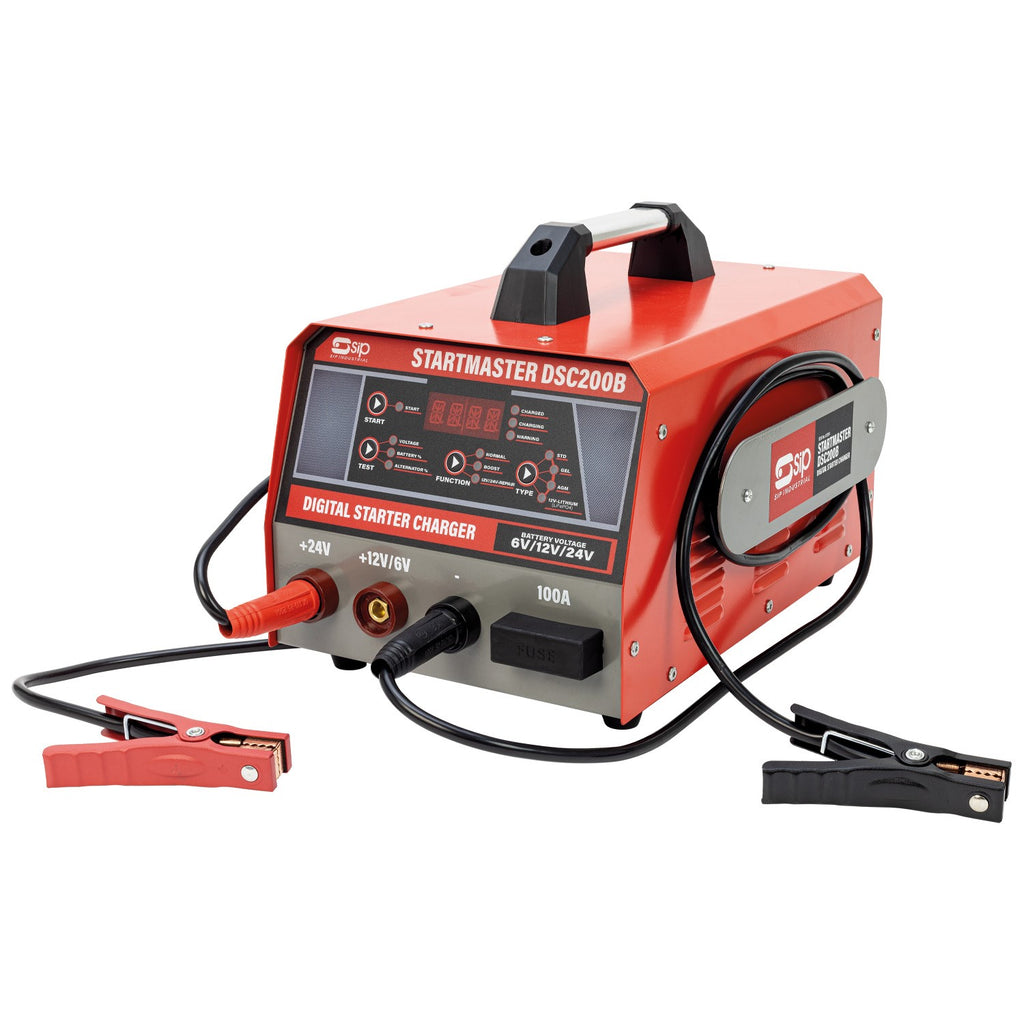

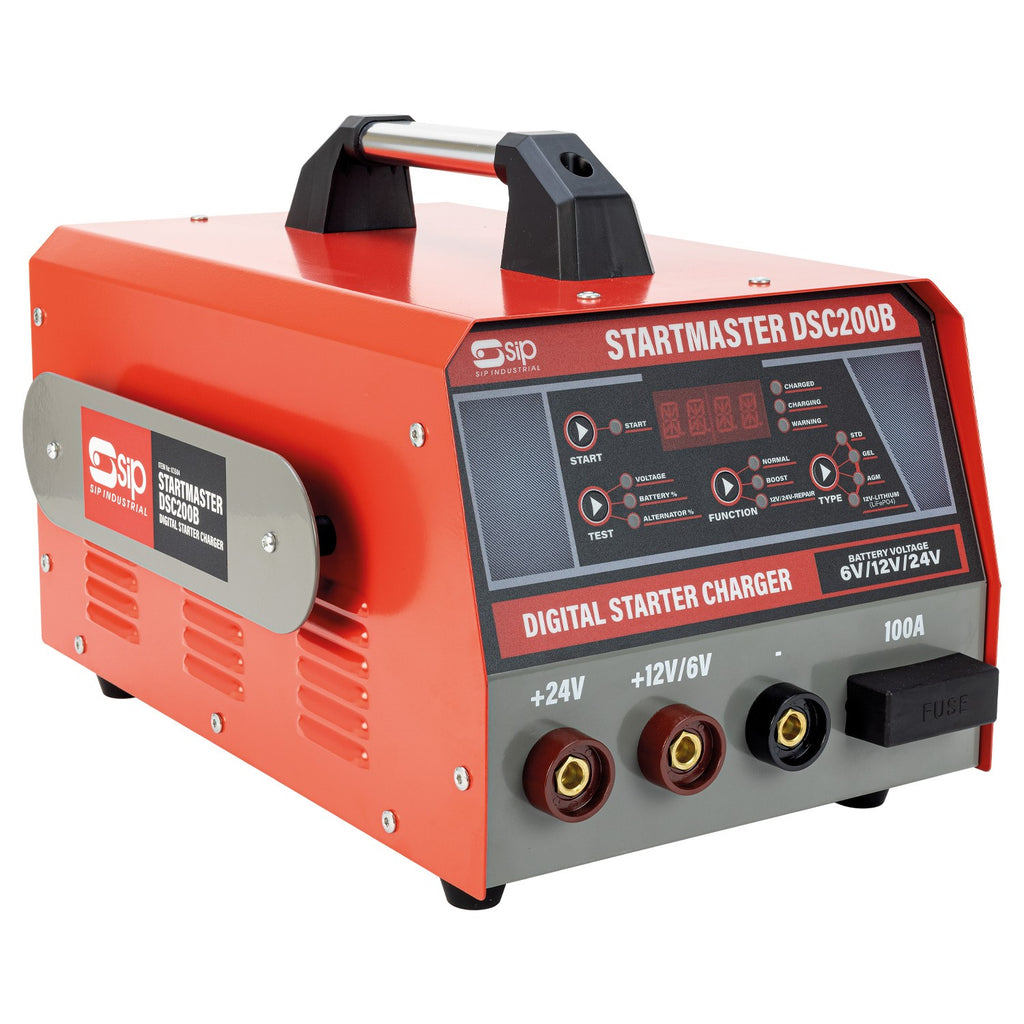

The SIP STARTMASTER DSC200B Digital Starter Charger is a powerful bench-top digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types.
Featuring an intelligent microprocessor with 10-step automatic charging cycle, the STARTMASTER DSC200B makes battery charging and boosting easier, faster and safer.
KEY FEATURES
- 6v/12v/24v charging voltage and 200A max. engine boost-start
- Charges 12v Lithium-Ion (LiFePO4) batteries
- Charging capacity of up to 350Ah max. rated
- Microprocessor-controlled automatic 10-step charging cycle
- Battery low voltage detector >1v
- One-person operation allows for single user engine boost-start
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP STARTMASTER DSC200B Digital Starter Charger is a powerful bench-top digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types.
Featuring an intelligent microprocessor with 10-step automatic charging cycle, the STARTMASTER DSC200B makes battery charging and boosting easier, faster and safer.
Applications & uses: Ideal for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments. Suitable for charging commercial vehicle batteries.
SIP 2-Year Standard Silver Warranty*
VERSATILE CHARGER BOOSTER SUITABLE FOR A VARIETY OF LEAD ACID & LITHIUM-ION BATTERIES
- This includes WET, MF, EFB, GEL, AGM, CA and 12v LiFePO4 battery types.
- Suitable for charging 6v, 12v and 24v batteries.
- Boost-start capacity for 12v and 24v batteries.
MICROPROCESSOR-CONTROLLED CHARGER BOOSTER SUPPORTS RELIABLE PERFORMANCE & FUNCTIONALITY
- An intelligent 10-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle.
- Battery auto-detect intelligently recognises 6v, 12v or 24v type before beginning a charging or boosting cycle.
- Low 1v detection improves chances of recovering batteries unwilling to power. Voltage will display when starter charger is switched on.
- 'Alternator Test' mode indicates alternator health and performance.
- 'One-person operation' allows for single user engine boost-start.

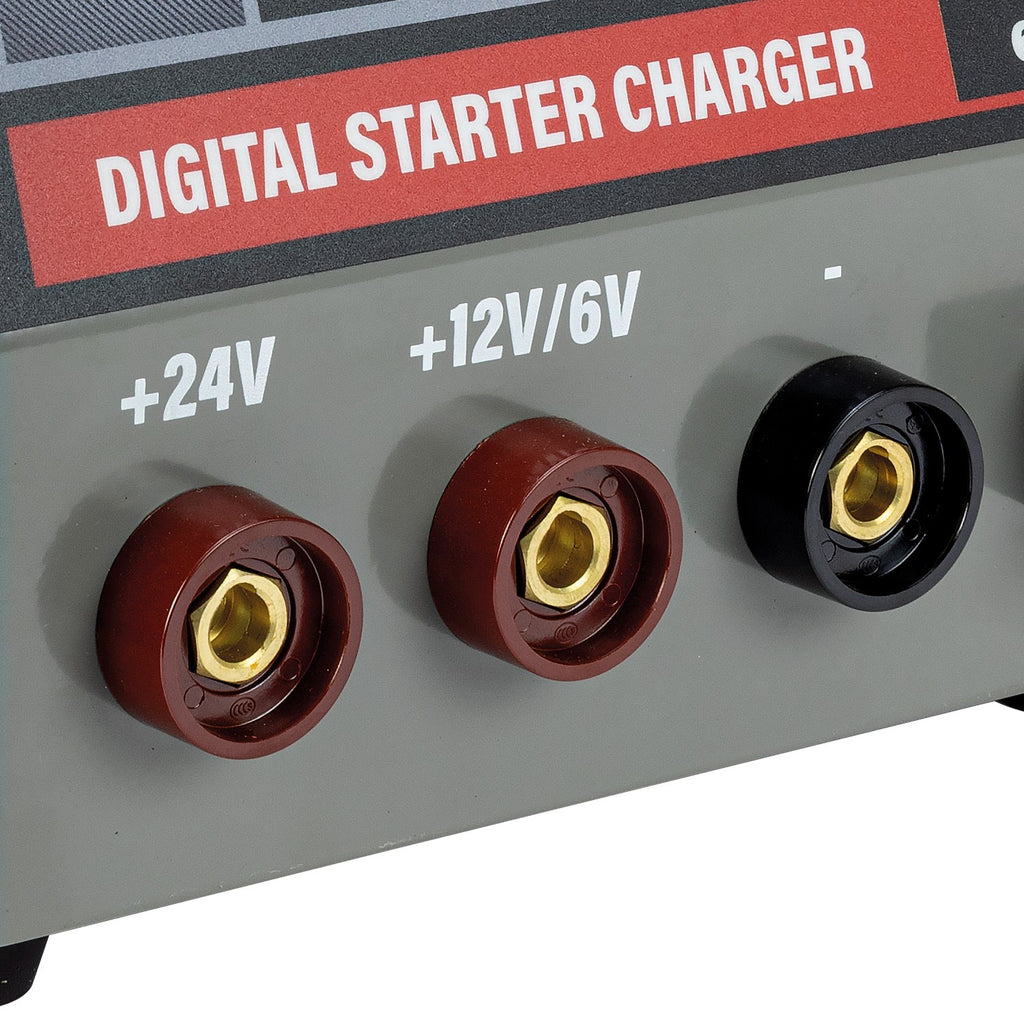

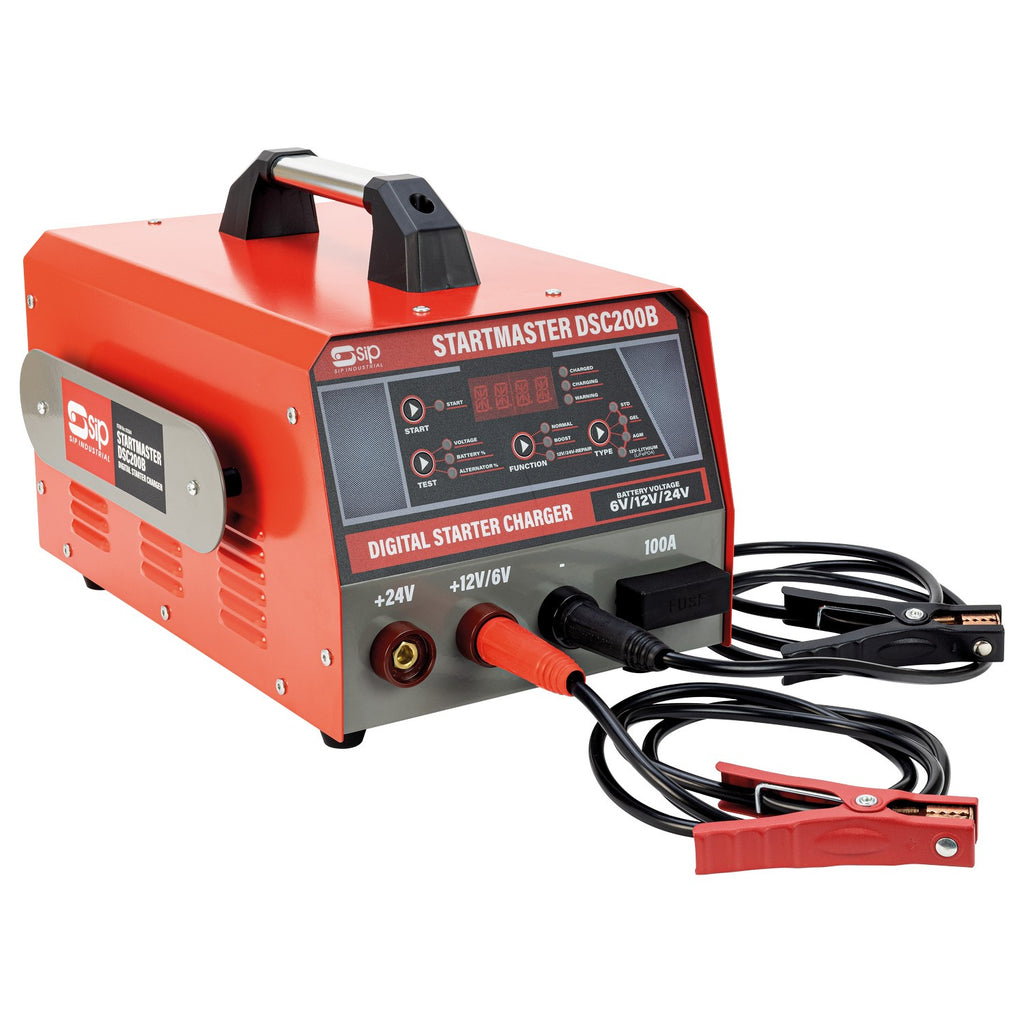

- Supplied with 2x 2mtr leads and clip clamps.
- LED screen and intuitive soft touch control panel to select charge and boost settings.
- Fitted with cable tidy brackets and carry handle for easy movement between use.
BUILT-IN SAFETY & PROTECTION FEATURES MAXIMISE USER SAFETY
- Anti-spark system prevents sparks when connecting the clips to the battery terminals.
- Reverse polarity and overcharge protection ensure the unit operates only when correctly connected.
- Fitted with an overheat alarm to prevent charger damage. This automatically restarts once cooled.
Technical Information
ITEM NO. 03584 Input Supply: 230v 50Hz Battery Voltage: 6v / 12v / 24v Functions: 10-Stage Charging, Boost & Support CHARGING Battery Types: All 6v/12v/24v Lead Acid
12v 4-cell Lithium-Ion LiFePO4Charging Input: Continuous; 1000w / 4A Recommended Plug (not supplied): 230v (13A) Charging Current: 5A (6v) / 10A (12v) / 10A (24v) Boost Charging Current (5min max.): 25A (6v) / 25A (12v) / 20A (24v) Battery Capacity: 350Ah JUMP START Start Voltage: >1v Start Input (5sec): 4.5kW / 20A Recommended Plug (not supplied): 230v (32A) Fuse: 100A Max. Start Current: 200A (fully discharged battery)
150A (medium charged battery)Protection / Ambient Temperature: IP20 / 0°C - 20°C Net Weight: 11.50kg Gross Weight: 12.30kg Product Dimensions: 204(H) x 265(W) x 409mm(D) Packaged Dimensions: 293(H) x 315(W) x 458mm(D)
