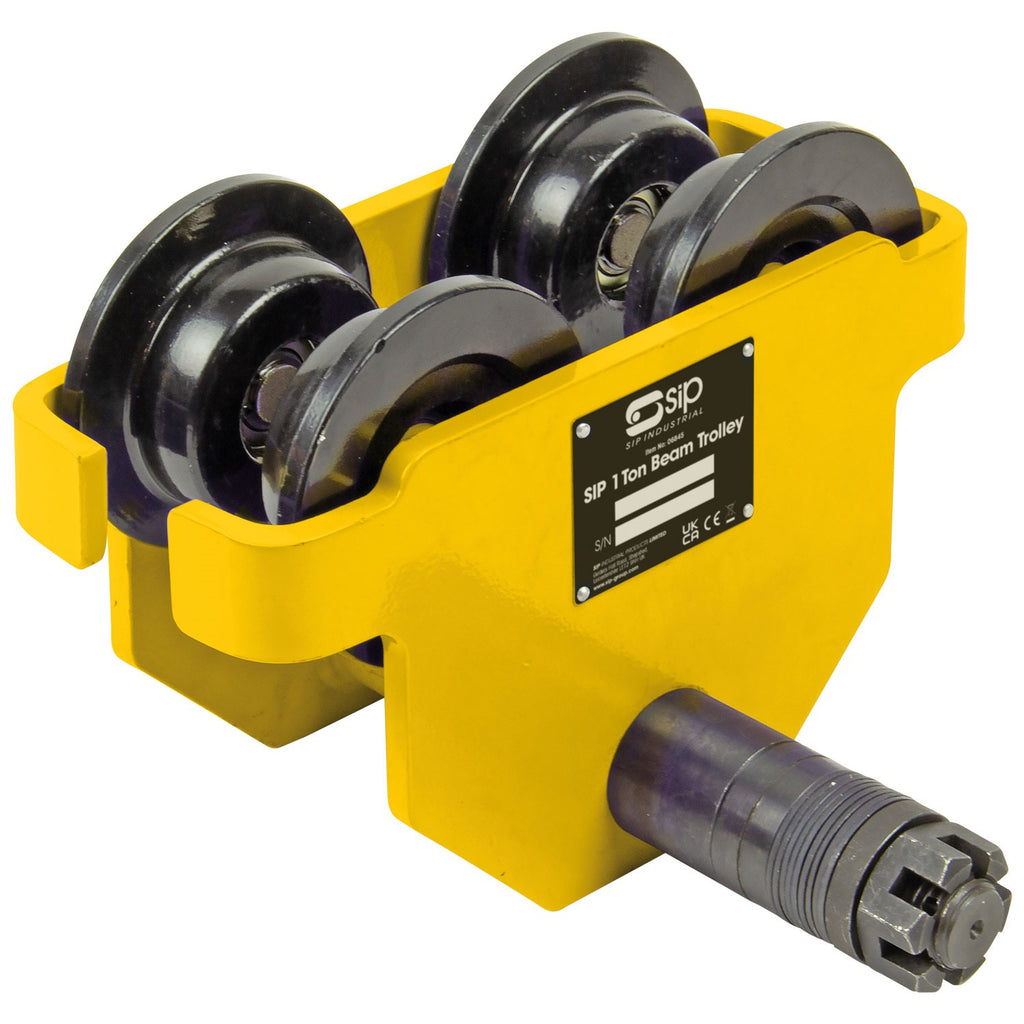

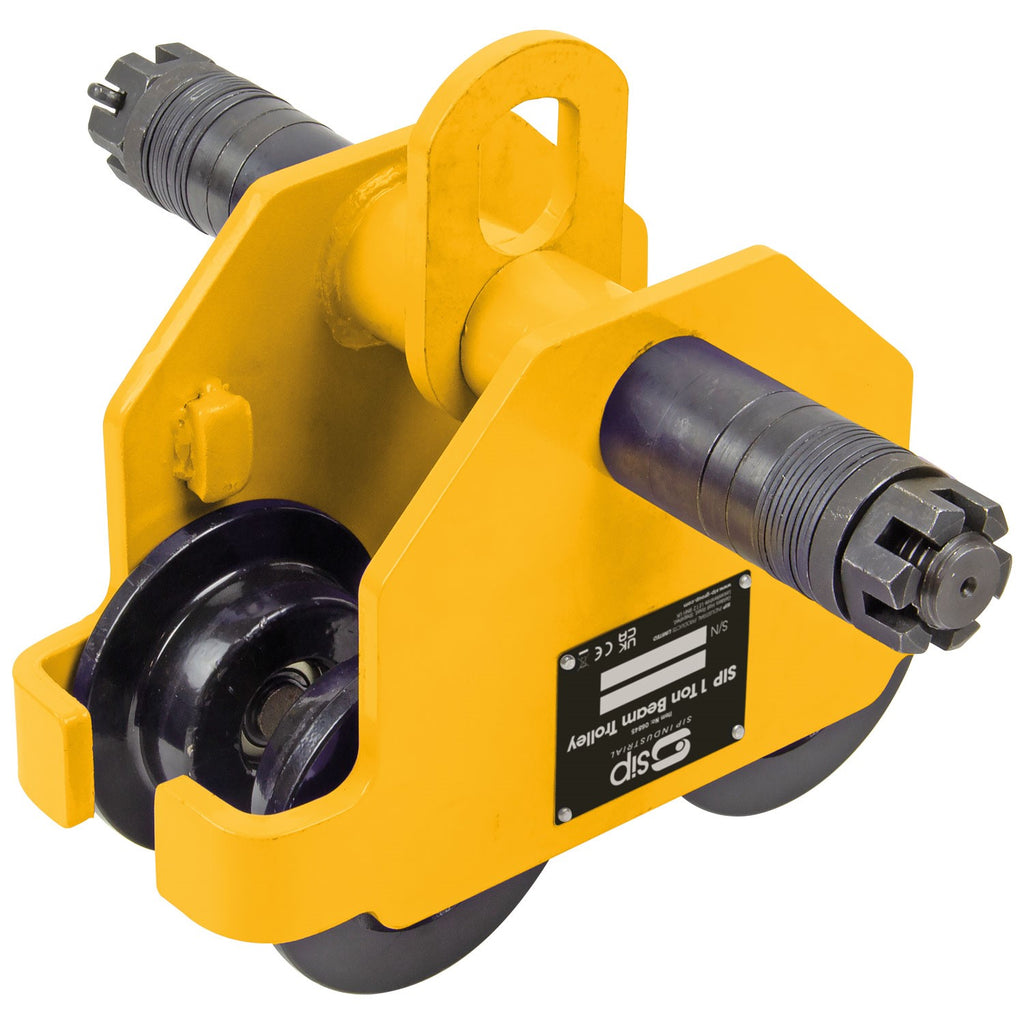

The SIP 1 TONNE Gantry Crane Beam Trolley is a heavy-duty push-pull trolley designed for a variety of professional garage and workshop demands with 'I' section and RSJ beam types. With 4 bearing-mounted wheels and integrated wheel guards, this trolley is perfect for when two or more trolleys are in use on the same gantry crane frame.
Suitable for the SIP 1 TONNE Mobile Gantry Crane Frame and the SIP Chain Block for use in automotive maintenance and repair, servicing, material handling and manufacturing.
KEY FEATURES
- 1 TONNE safe workload for versatile performance
- Heavy-duty push-pull gantry crane beam trolley
- Suitable for all 'I' section and RSJ beam types
- 4 heavy-duty bearing-mounted trolley wheels
- Fitted with wheel guards for protection
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP 1 TONNE Gantry Crane Beam Trolley is a heavy-duty push-pull trolley designed work alongside the SIP 1 TONNE Mobile Gantry Crane Frame and SIP Chain Block to provide a complete lifting and support solution in garages and workshops.
This trolley is designed for a variety of professional-grade manual lifting demands with 'I' section and RSJ beam types. With 4 bearing-mounted wheels and integrated wheel guards, it is perfect for when two or more trolleys are in use on the same gantry frame.
It is perfect for use in a wide variety of garage and workshop applications including automotive maintenance and repair, servicing, material handling and manufacturing.
- 1 TONNE safe workload for versatile performance
- Heavy-duty push-pull gantry crane beam trolley
- Suitable for all 'I' section and RSJ beam types
- 4 heavy-duty bearing-mounted trolley wheels
- Fitted with wheel guards for protection
-
SIP 2-Year Standard Silver Warranty
Technical Information
ITEM NO. 03851 Suitable For: 03849 Safe Working Load: 1 TONNE Min. 'I' Beam Width: 64mm Max. 'I' Beam Width: 140mm Min. Standard Beam: 125mm x 75mm x 5.5mm Max. Standard Beam: 250mm x 125mm x 7.5mm Designed For: 'I' sections / RSJ beams Net Weight: 9.60kg Gross Weight: 10.00kg Product Dimensions: 225(H) x 250(W) x 310mm(D) Packaged Dimensions: 190(H) x 145(W) x 325mm(D)
