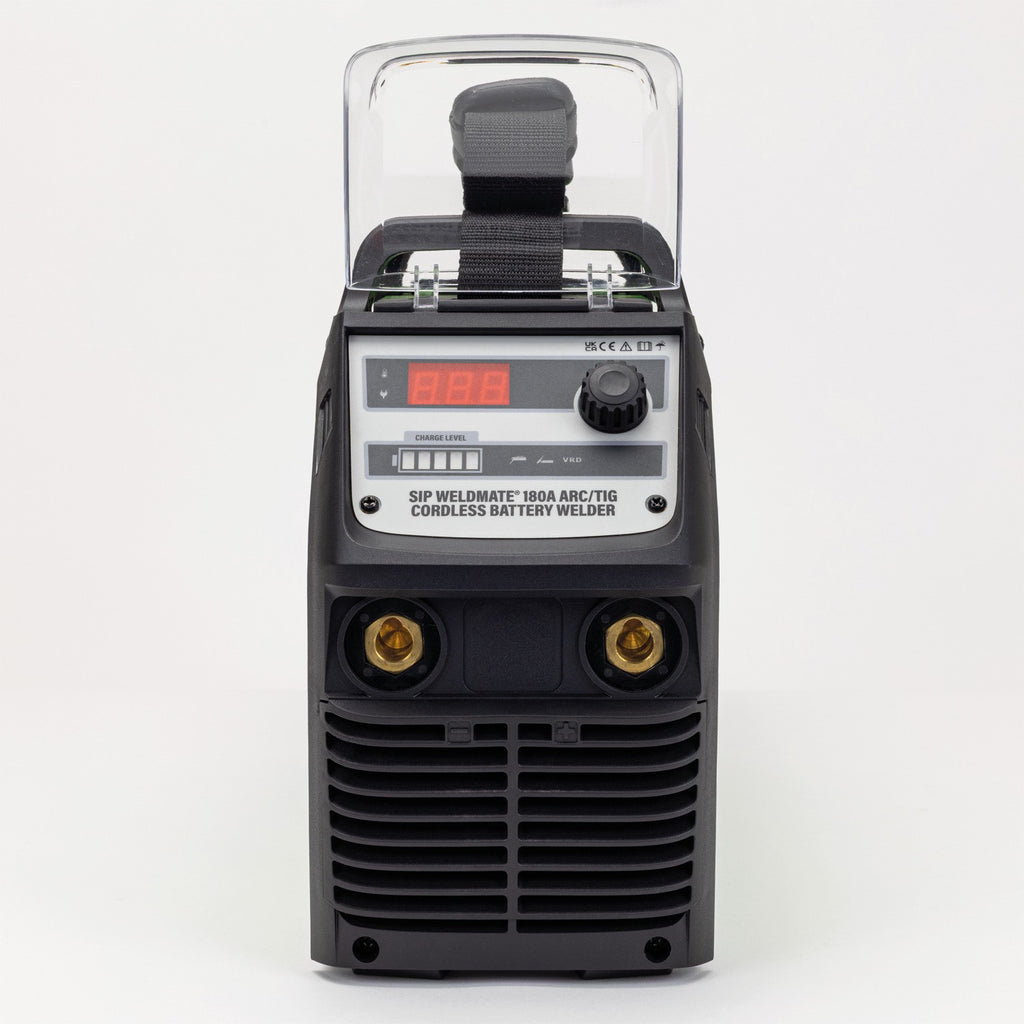

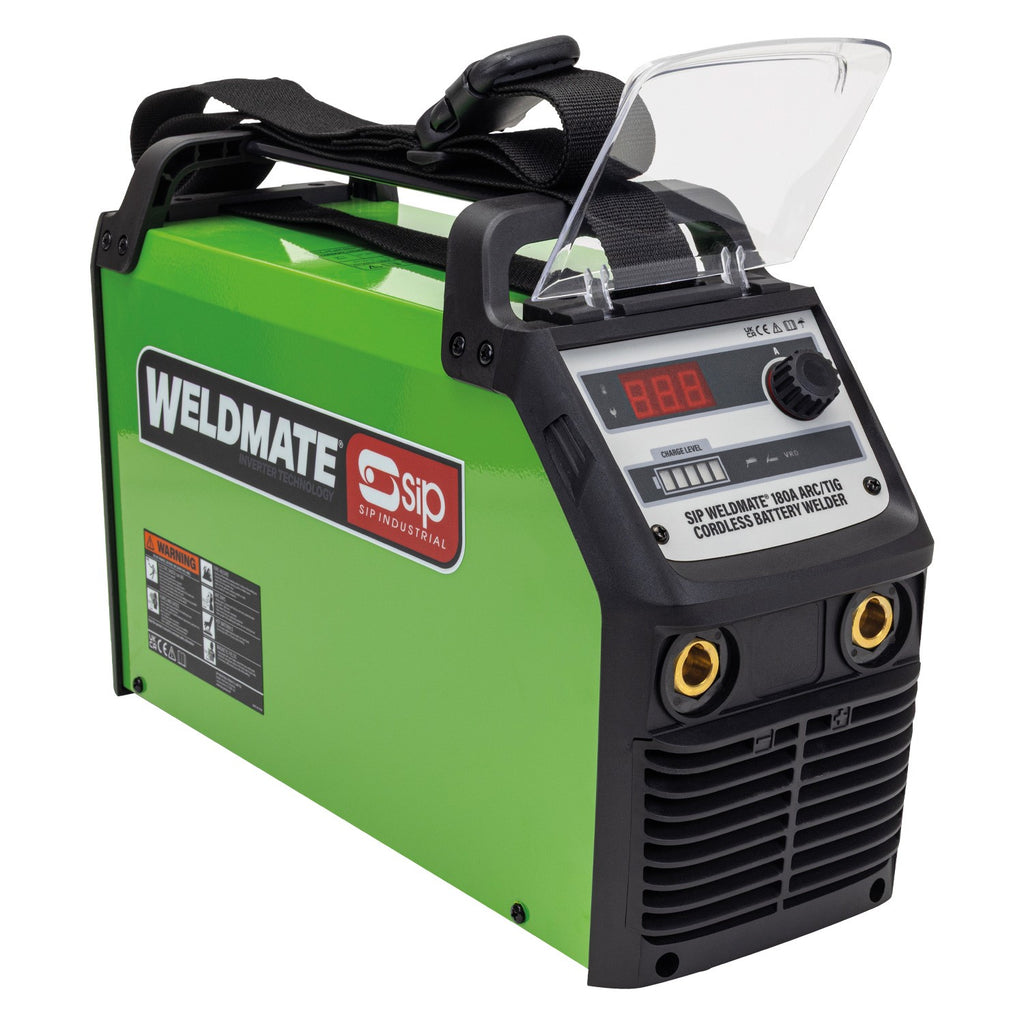

The SIP HG1800CBW Cordless Battery Inverter Welder provides portable and accurate welding wherever and whenever you need it, bringing both portability and performance through a lightweight and compact battery-powered design. Suitable for MMA (ARC) and TIG welding applications.
Perfect for welding in environments including on-site, construction and agricultural use where mains supplies are not available.
KEY FEATURES
- 3 modes for MMA (ARC), MMA (ARC) with VRD and Lift TIG welding
- Easy-to-read digital display with power monitor and indicator
- Latest inverter technology with integrated Lithium-Ion battery
- Produces high-quality ARC and TIG welding for a single charge

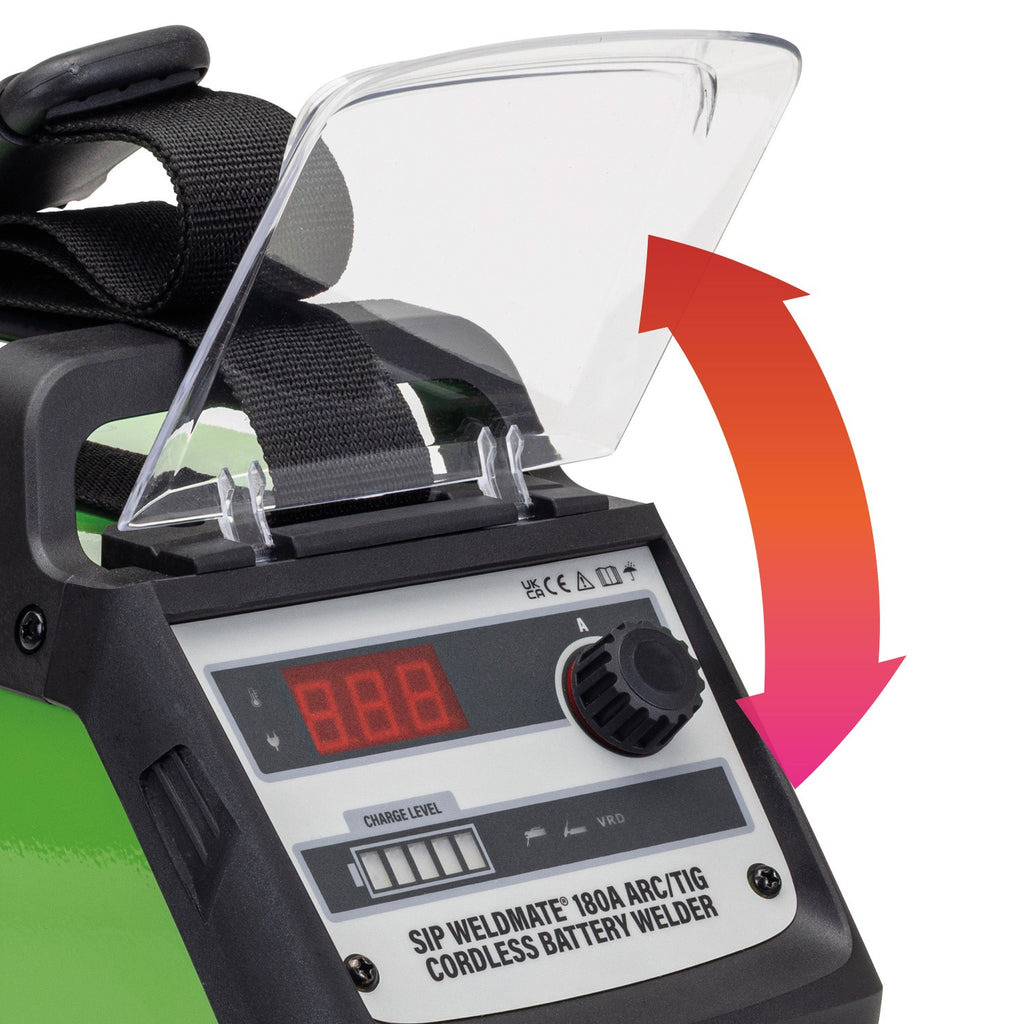

- Heavy-duty casing and display visor for high durability
- Ideal for environments with no mains electrical supply
SIP 2-Year Standard Silver Warranty
Full Specification
The SIP HG1800CBW Cordless Battery Inverter Welder provides portable and accurate welding wherever and whenever you need it, bringing both portability and performance through a lightweight and compact battery-powered design. Suitable for MMA (ARC) and TIG welding applications.
Perfect for welding in environments including on-site, construction and agricultural use where mains supplies are not available.

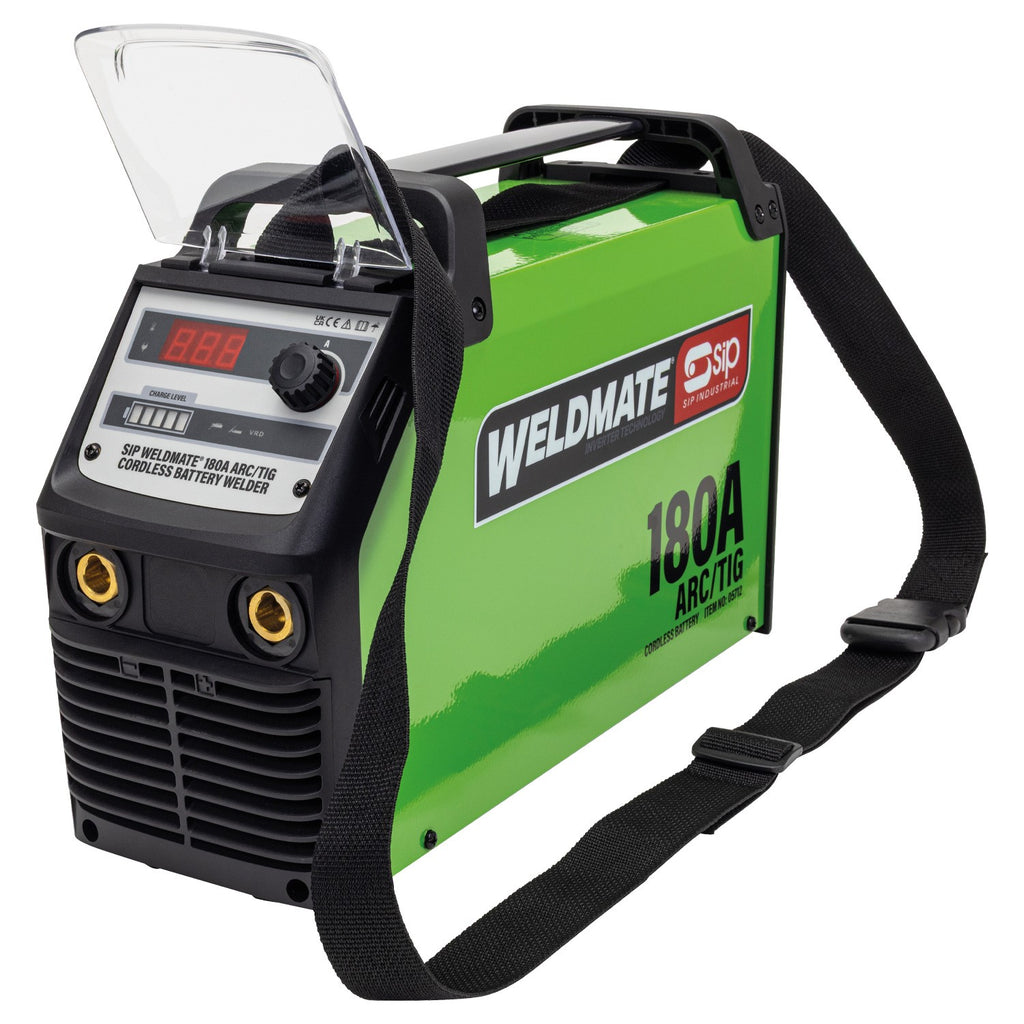

Supplied with 3mtr 25mm² electrode lead, Earth lead, and over-shoulder carry strap.
Applications & uses: Ideal for environments including on-site, construction and agriculture where mains supplies are not available.
SIP 2-Year Standard Silver Warranty
3 WELDING MODES
- MMA (ARC), MMA (ARC) with VRD, and Lift TIG welding modes.

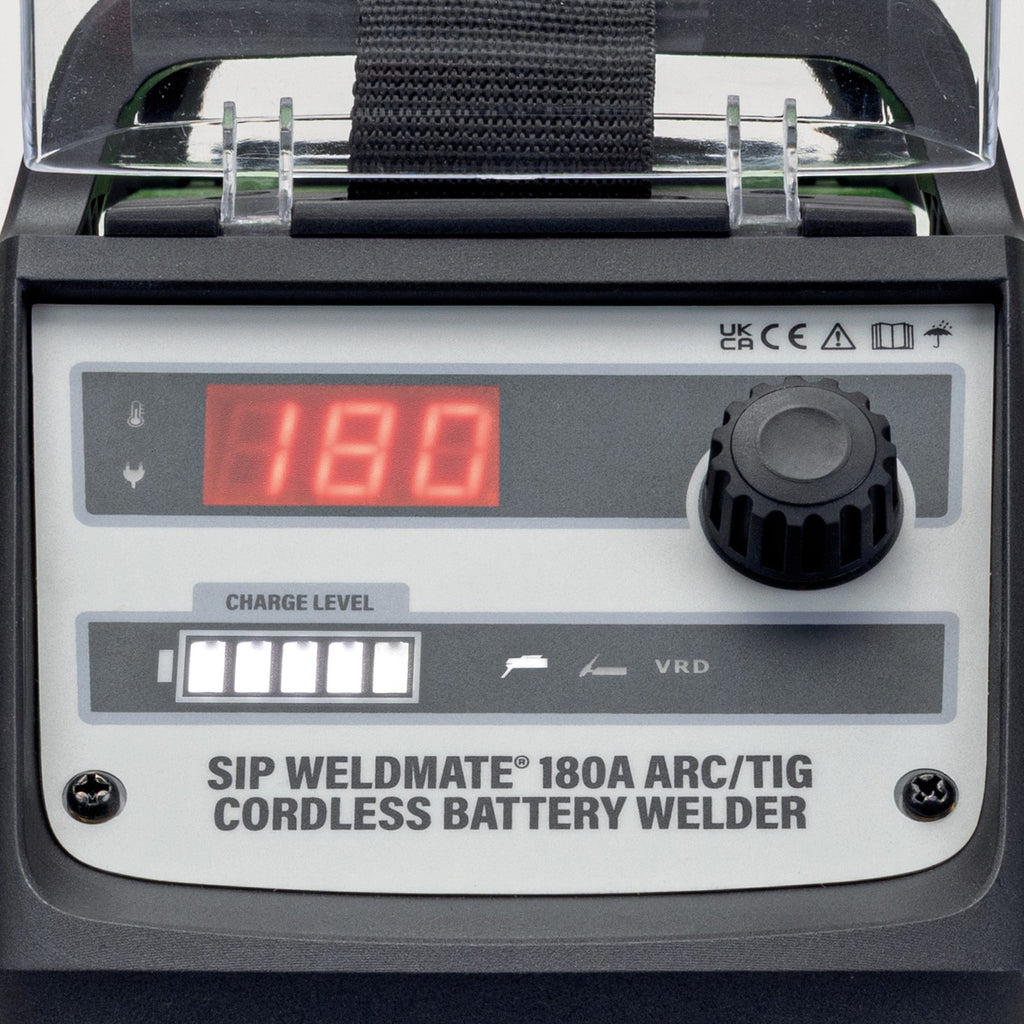

DIGITAL DISPLAY
- Easy-to-read digital display with battery power monitor and indicator.
INVERTER TECHNOLOGY
- Built with the latest inverter technology and Lithium-Ion battery pack.
QUALITY WELDING
- High-quality ARC and TIG welds from a single charge.
HIGH DURABILITY
- Manufactured with heavy-duty casing and visor.
COMPACT DESIGN
- Lightweight for simple portability in demanding environments.
AUTONOMOUS WELDING
- Welds 20x 2.5mm, 14x 3.2mm and 6x 4mm rods.
FAST CHARGING
- Fully recharged in as a little as 1.5hrs.
Technical Information
| ITEM NO. | 05712 |
| Battery Type: | Lithium-Ion*
|
| Battery Capacity: | 740Wh |

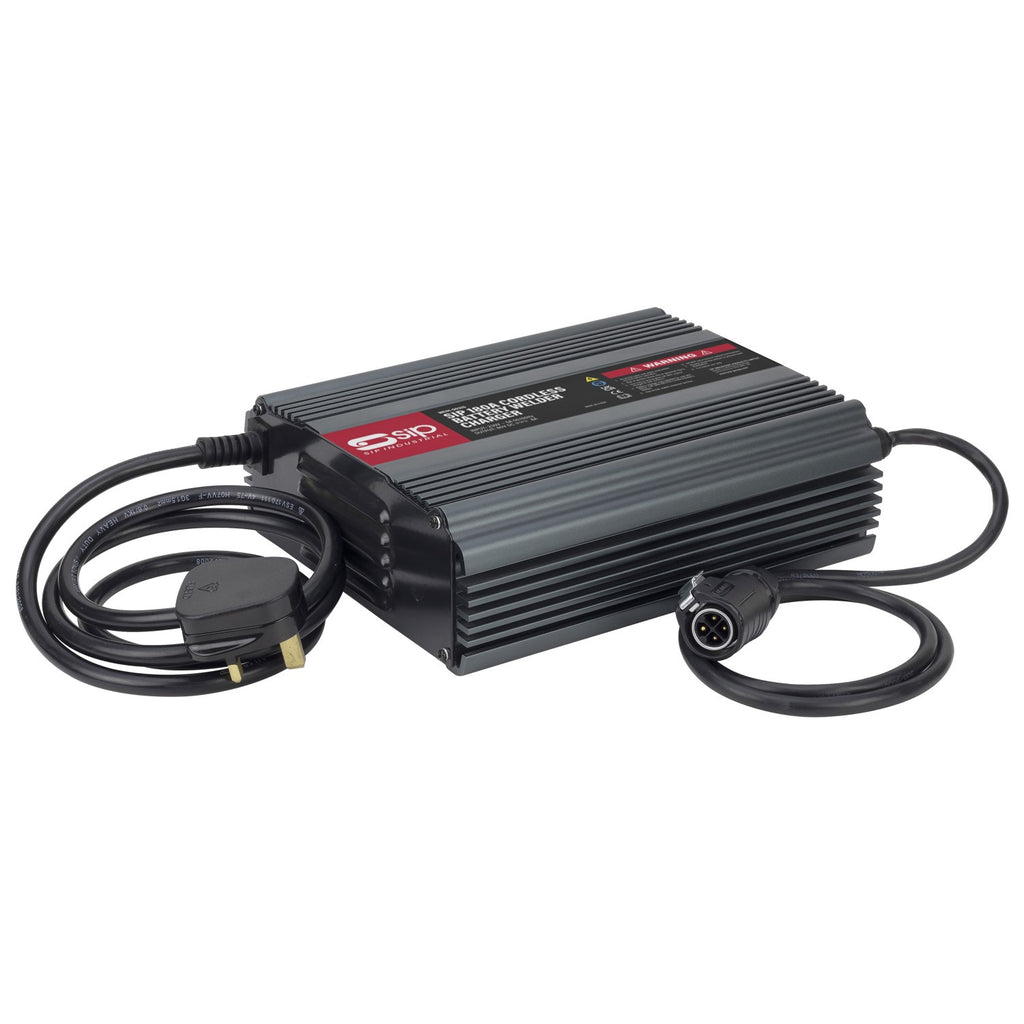

| Charger Voltage: | 230v AC +/- 10% |
| Charging Time: | 1.5hrs |
| Battery Output Voltage: | 74v |
| Charging Current: | 8A |
| Welding Current Range: | 10A - 180A (MMA) / 10A - 150A (TIG) |
| Duty Cycle: | 180A @ 10% / 130A @ 20% / 60A @ 100% |
| Net Weight: | 11.6kg |
| Gross Weight: | 13kg |
| Product Dimensions: | 280(H) x 150(W) x 440mm(D) |
| Packaged Dimensions | 450(H) x 280(W) x 550mm(D) |
| Welding Rod Size (Ø Electrode / Length): | 2.5mm x 300mm | 3.2mm x 350mm | 4mm x 450mm |
| Welding Capability (on full charge): | 20 rods @ 85A | 14 rods @ 115A | 6 rods @ 160A |
