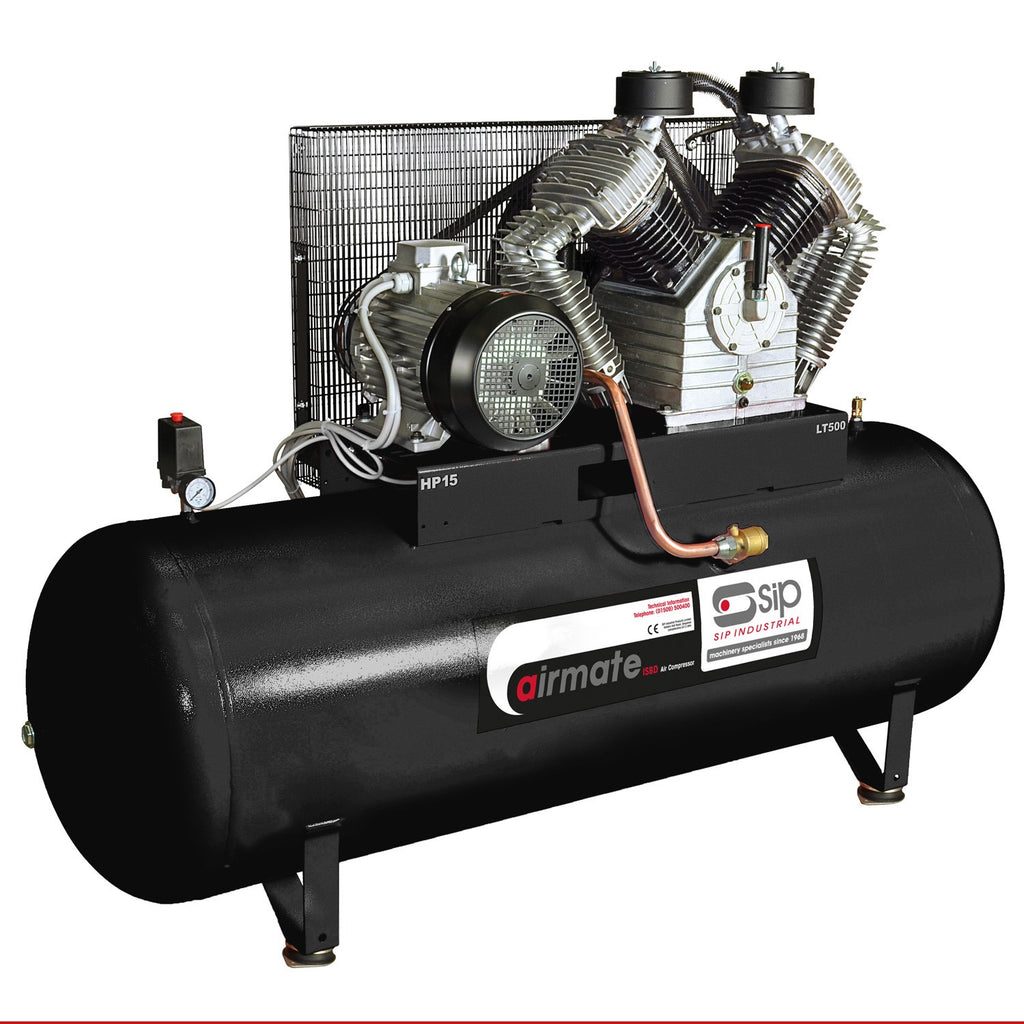

The SIP ISBD15/500 500ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built to last and designed for consistently high performance plus superior compressed air production. Fitted with large interstage coolers, this compressor provides cooler air ideal for a variety of demanding environments.
A must-have premium compressor for heavy-duty industrial applications.
KEY FEATURES
- Oil-lubricated industrial-grade belt-driven compressor
- Smooth V-Twin pump for optimum efficiency and performance
- Large interstage coolers for cooler air and reduced moisture
- Long-stroke cast iron cylinders for slower running and longer life
- SIP 10-Year Anti-Corrosion Receiver Warranty
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP ISBD15/500 500ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built for hard-wearing durability and designed for consistently high performance, plus superior compressed air production perfect for a large range of demanding industrial applications.
Large interstage coolers provide high-quality, cooler air with reduced moisture and better pump temperature control. Meanwhile, an industrial-grade 3-phase motor ensures heavy-duty operation at all times, as do the long-stroke cast iron cylinders.
Each ISBD15/500 Industrial Electric Compressor comes with an SIP 10-Year Anti-Corrosion Receiver Warranty as standard for added peace-of-mind.
- Oil-lubricated belt-driven compressor with 400v 3-PHASE motor
- Heavy-duty smooth V-Twin pump for optimum efficiency and performance
- Large interstage coolers for high-quality, cooler air, reduced moisture and pump temperature control
- Long-stroke cast iron cylinders for slower running and increased pump life
- Robust valve plate with individual valves for efficient performance
- Supplied with heavy-duty anti-vibration mounts
- Star Delta starter reduces current during motor starting
- SIP 10-Year Anti-Corrosion Receiver Warranty
- SIP 2-Year Standard Silver Warranty
- Manufactured in Italy
Technical Information
ITEM NO. 06297 Input Supply: 400v (32A) 3-PHASE Motor Power: 15hp (11.2kW) Receiver Size: 500ltr Piston Displacement: 61.50CFM (1744ltr/min) Free Air Delivery (FAD): 40.70CFM (1153ltr/min) Max. Air Pressure: 160psi (11bar) Working Speed: 1200rpm No. of Cylinders: 4 cylinders No. of Stages: 2 stages Net Weight: 313.00kg Gross Weight: 350.00kg Product Dimensions: Packaged Dimensions: 1680(H) x 2270(W) x 860mm(D)
