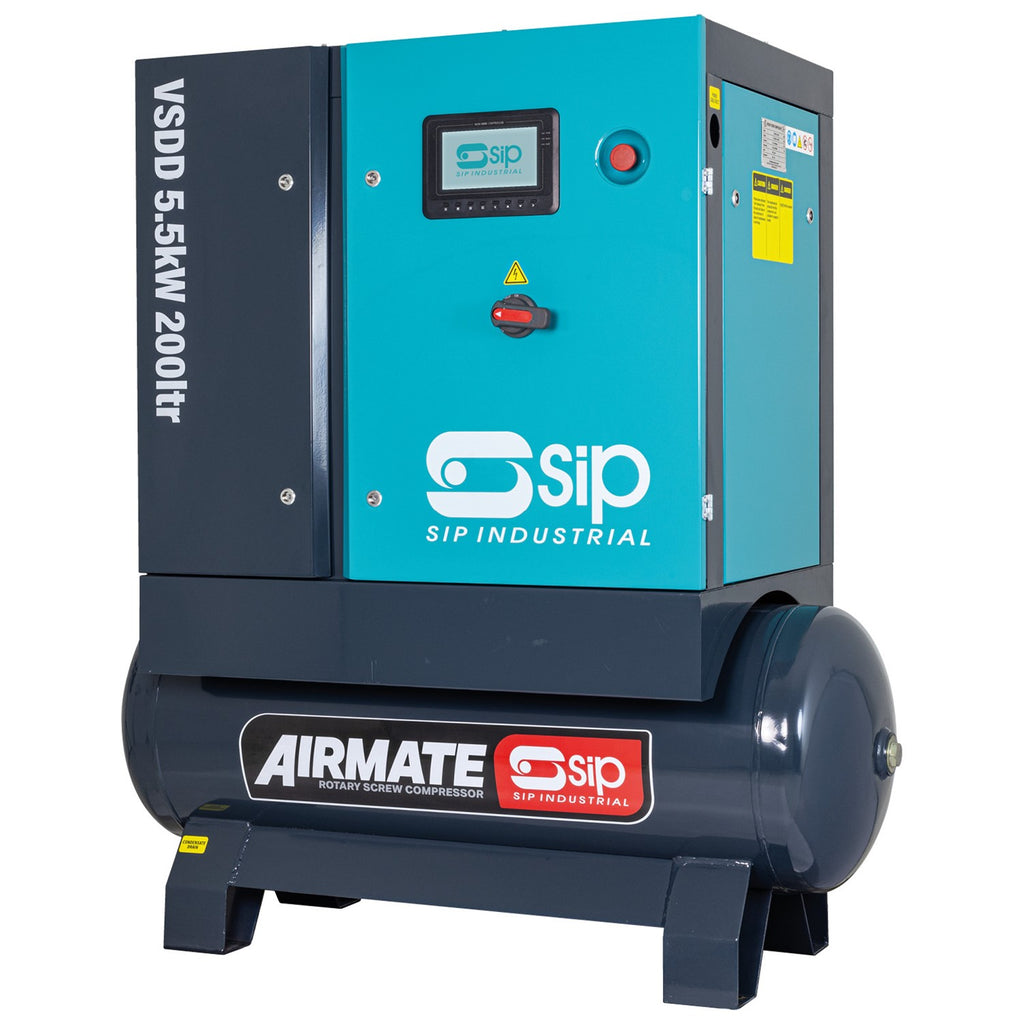

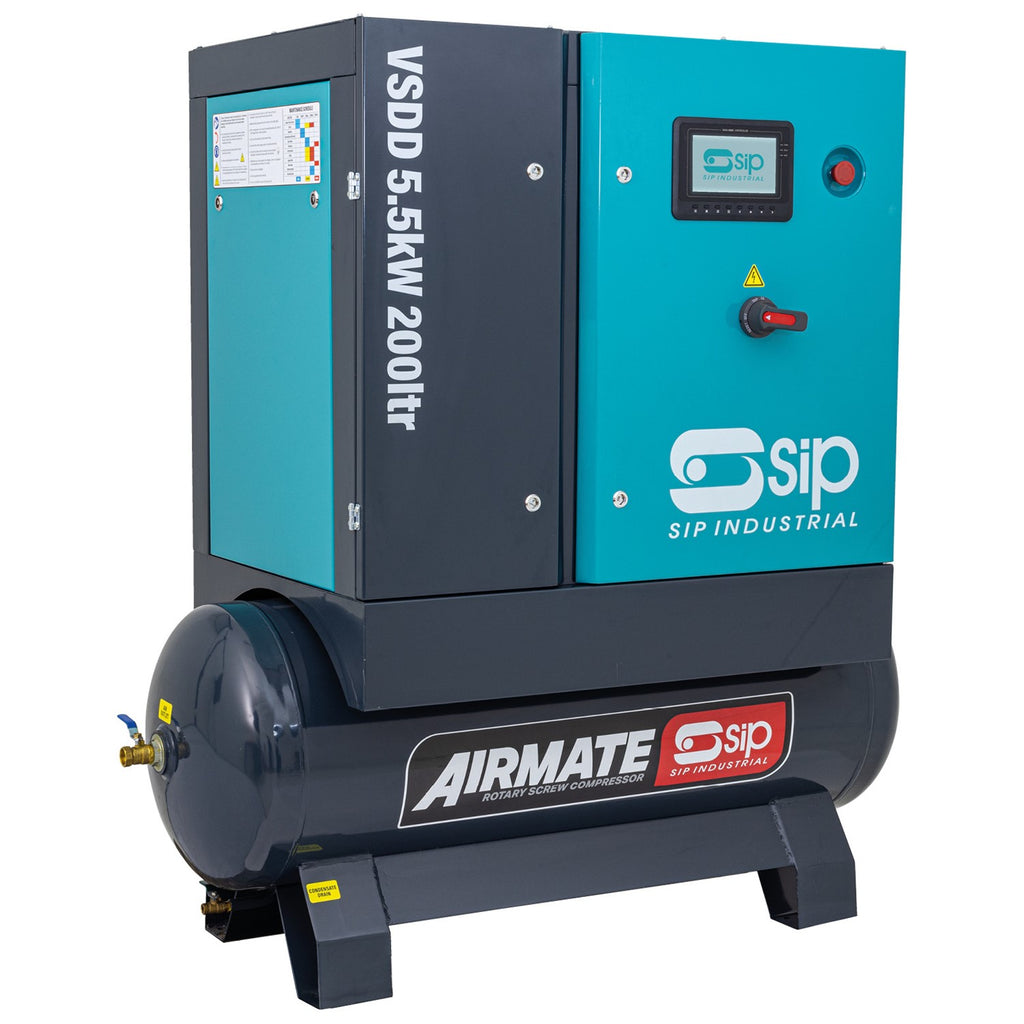

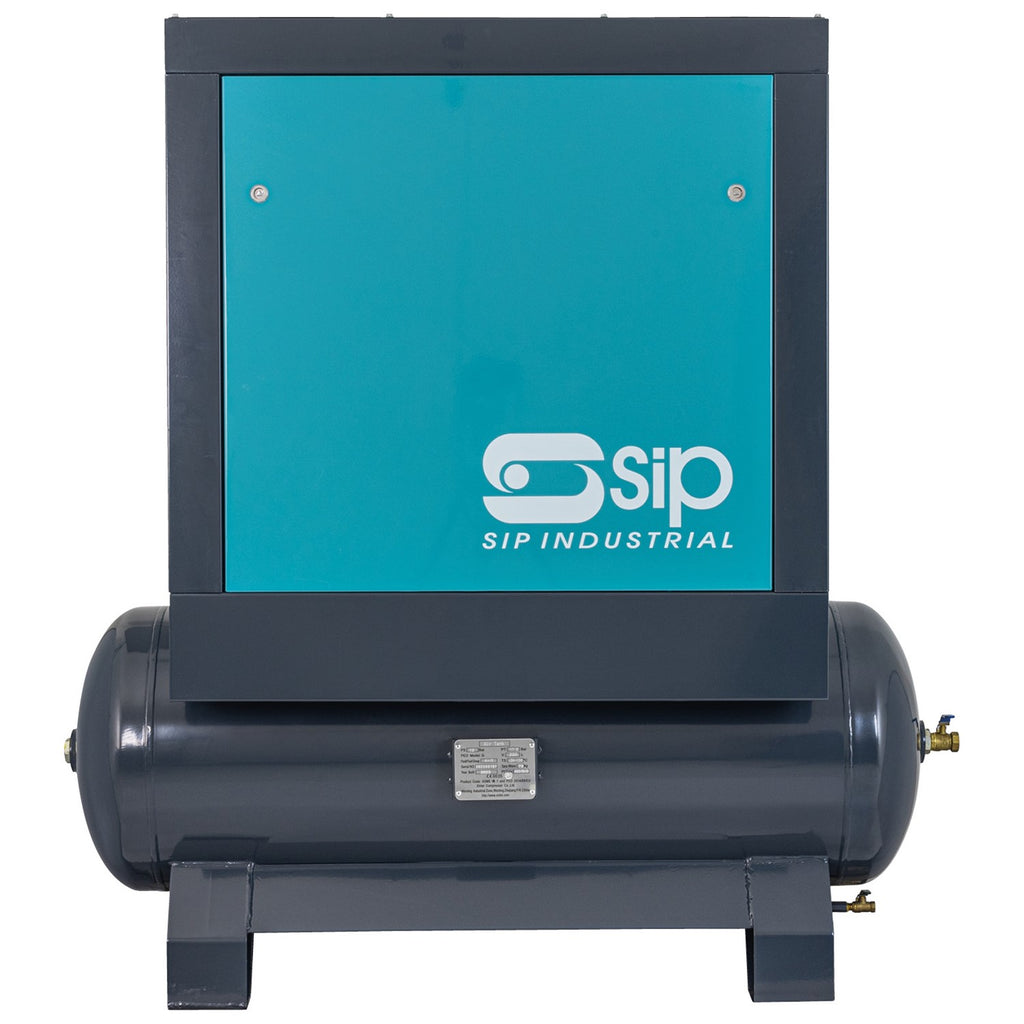

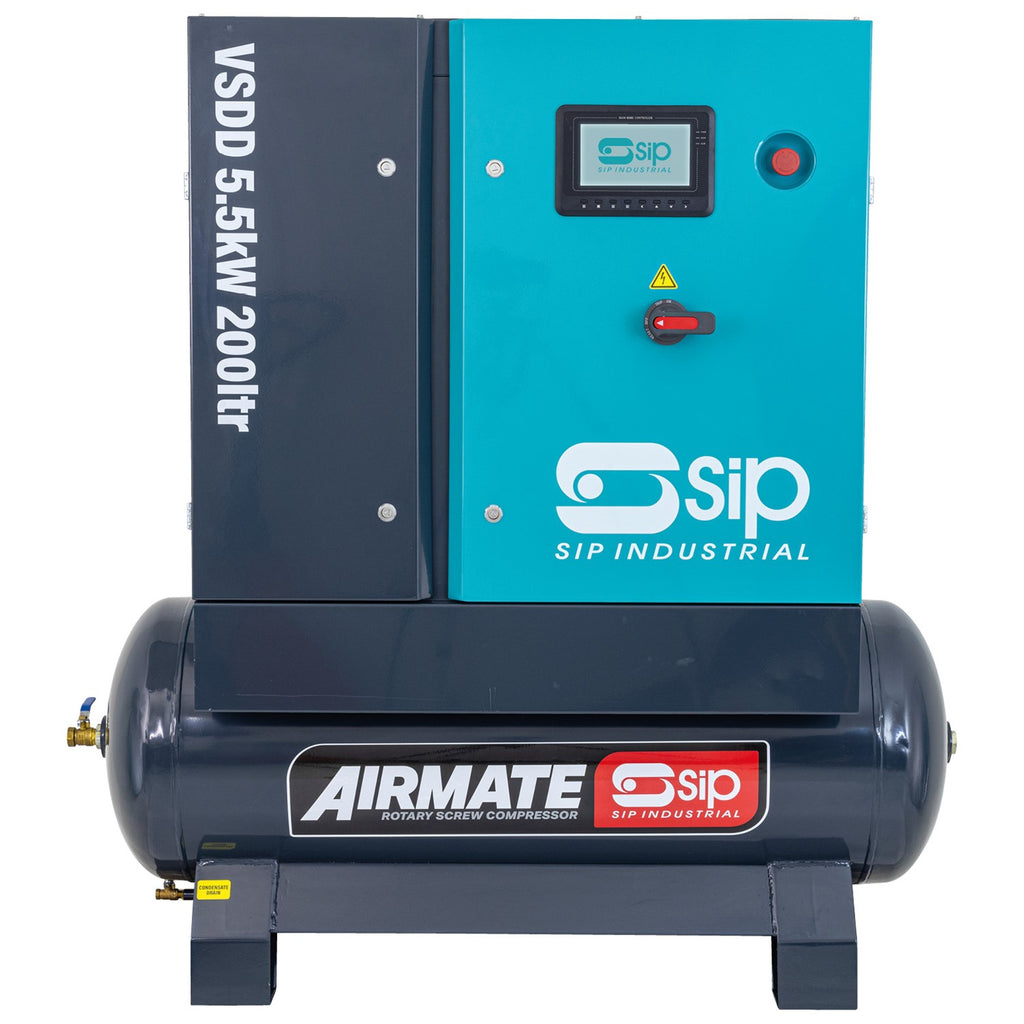

The SIP VSDD 5.5kW 10bar 200ltr 400v Rotary Screw Compressor is a variable speed, direct drive rotary screw compressor. This 4th generation compressor is designed for continuous use or where multiple operators require compressed air at one time.
With a motor output of 5.5kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 200ltr receiver tank.
KEY FEATURES
- Direct drive transmission for improved power transfer
- Variable speed 5.5kW motor delivers even power distribution
- Heavy-duty silenced cabinet ensures reduced noise operation
- Colour touchscreen for real-time diagnostic information
- Easy access cabinet panel for maintenance and service
- All-in-one design minimises lost work area space
SIP 2-Year Standard Silver Warranty*
Full Specification
This unit requires a Site Survey Self Assessment form to be filled in prior to order acceptance. Please download and return to sales@sip-group.com.
The SIP VSDD 5.5kW 10bar 200ltr 400v Rotary Screw Compressor is a variable speed, direct drive rotary screw compressor. This 4th generation compressor is designed for continuous use or where multiple operators require compressed air at one time.
With a motor output of 5.5kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 200ltr receiver tank.
Applications & uses: Ideal for medium to large workshops. Suitable for spray shops and automotive settings, plus industrial, engineering and agricultural environments
DIRECT DRIVE TRANSMISSION FOR IMPROVED POWER TRANSFER
- Precision-engineered twin parallel rotary screws deliver an efficient positive drive transmission.
- This negates slippage for greater power transfer and machine reliability compared to belt-driven compressors.
- It also reduces machine maintenance, component stress and lowers power consumption and energy costs.
VARIABLE SPEED 5.5KW MOTOR DELIVERS EVEN POWER DISTRIBUTION
- The inverter motor control enables automated soft-start and slope-down functionality.
- This ensures even torque distribution when powering up and controlled load descent once the receiver has reached the required air volume.
- The on-demand air production created adjusts to vary the amount of air delivered for greater versatility.
- These automated functions help to reduce machine wear and support long life use.
- Fitted with an IE4 motor for greater efficiency and lower energy costs.
SILENCED CABINET ENSURES REDUCED NOISE OPERATION
- Heavy-duty silenced cabinet minimises vibration and operates at reduced noise levels.
200LTR AIR RECEIVER SUPPORTS HIGH AIR CONSUMPTION
- Designed to safely store high volume compressed air, helping to ensure a stable flow and meet pressure peaks when in operation.

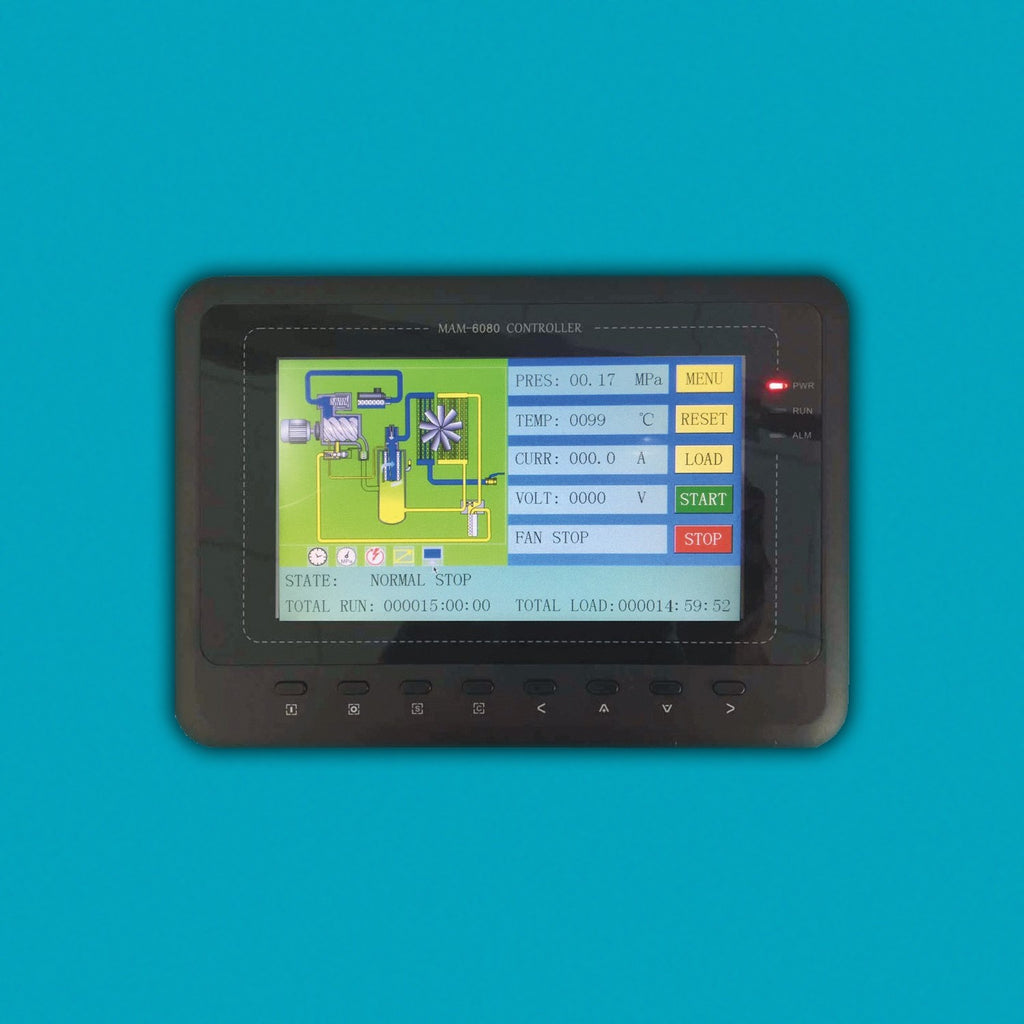

REAL-TIME DIAGNOSTIC COLOUR DISPLAY
- An intuitive colour touchscreen display provides real-time diagnostic information on the status of the compressor.
- Includes operation and load status, receiver pressure, motor voltage and internal temperature.

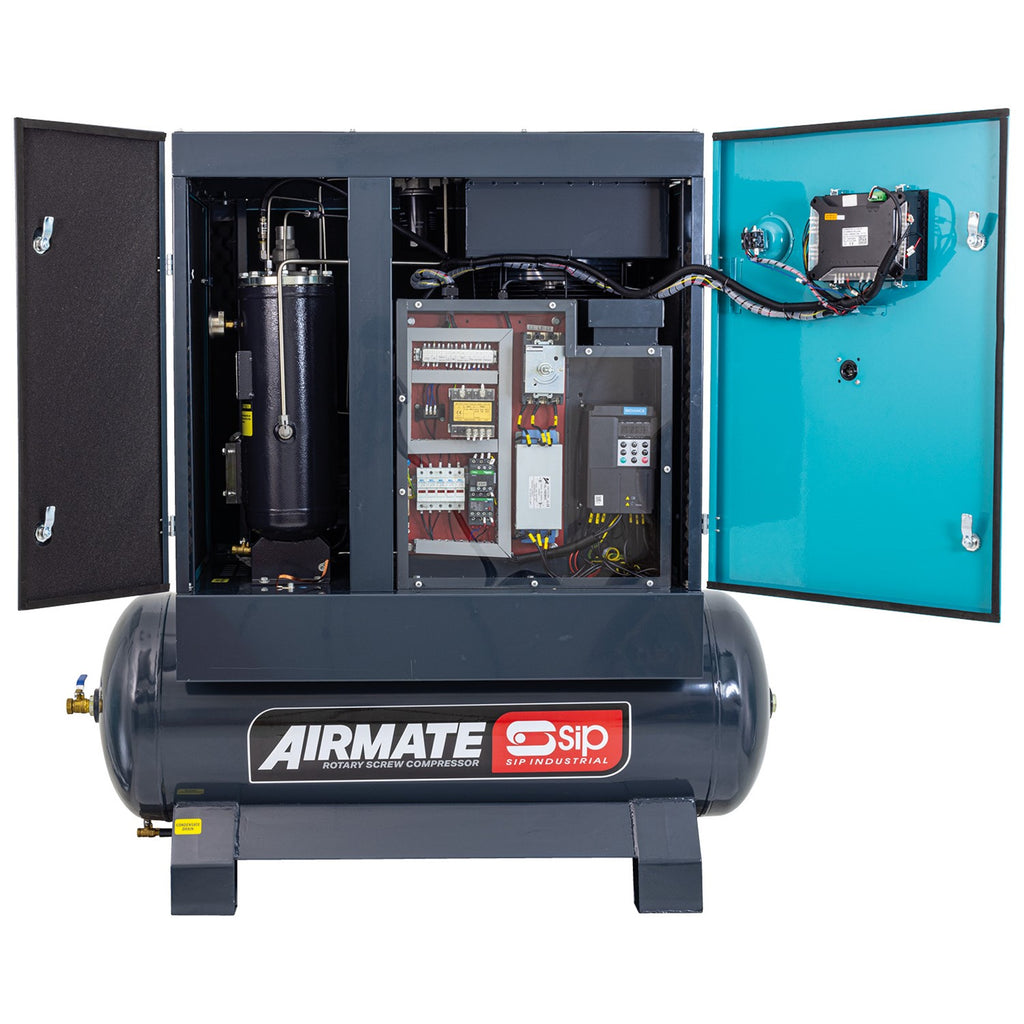

EASY ACCESS CABINET FOR MAINTENANCE & SERVICE
- All critical machine components are fully accessible through a single access cabinet panel, helping to reduce air production downtime.
- A service should be performed annually or after every 2000 loading hours.
- The compressor should perform a minimum of 1000 loading hours annually.
ALL-IN-ONE MACHINE DESIGN MINIMISES LOST WORK AREA SPACE
- The compact all-in-one design ensures a smaller overall footprint which helps to minimise lost work area space once the compressor is installed.
Technical Information
ITEM NO. 08260 Input Supply 400v (32A) Rated Input: 7kW Motor Power: 5.5kW (7hp) IE4 Motor: Yes Max. Pressure: 145psi (10bar) Free Air Delivery (FAD): 22CFM (630ltr/min) Receiver Size: 200ltr Cooling Type: Fan Cooled Transmission Type: Direct Drive Start-Up Mode: Inverter Soft Start Refrigerated Dryer: N/A Outlet Connector: 3/4" BSPP Noise Level: 62dB(A) Net Weight: 254.00kg Gross Weight: Product Dimensions: 1470(H) x 670(W) x 1440mm(D) Packaged Dimensions:
