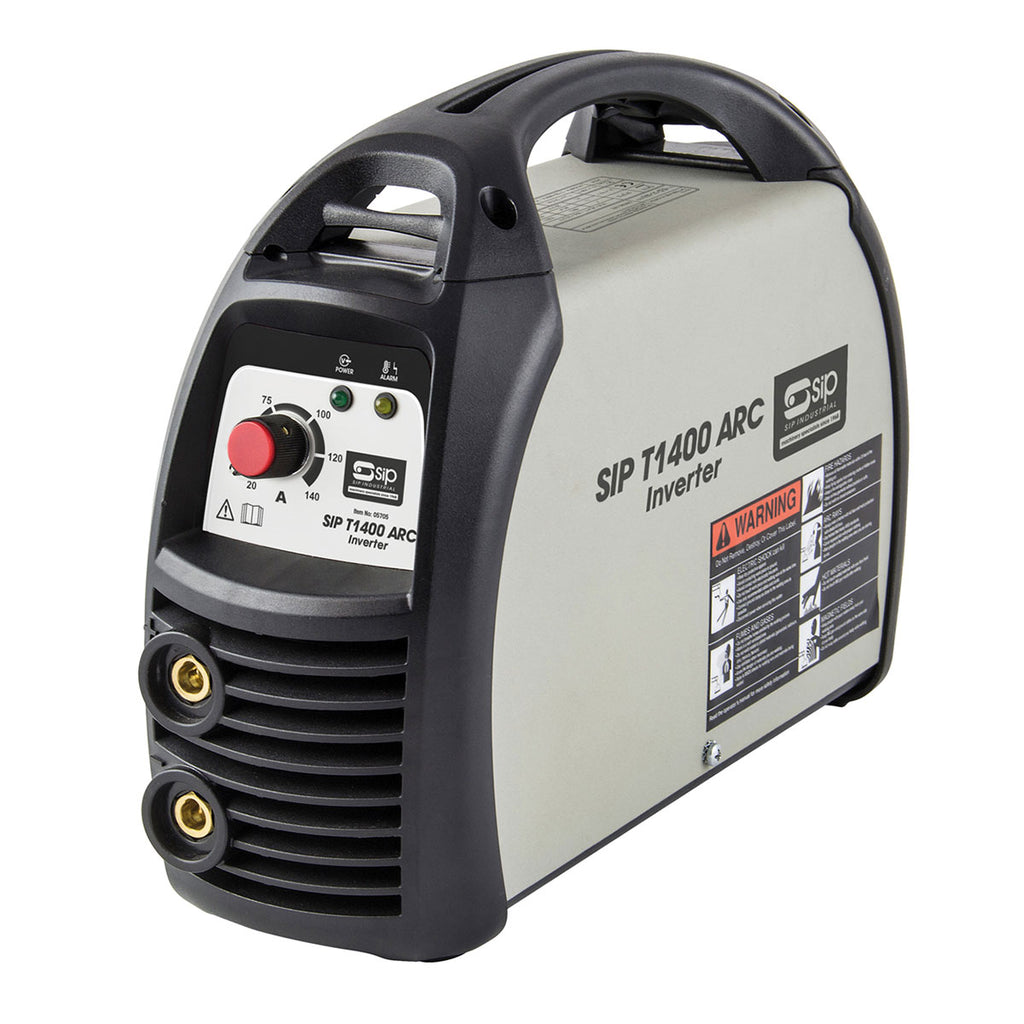

SIP 05705 Arc/Tig Inverter Welder T1400 230V 140A
The SIP T1400 ARC/TIG Inverter Welder is a powerful multi-functional inverter with a lightweight, compact design for portability, and is generator-friendly meaning it is ideal for a variety of applications and environments without mains electricity supplies.
Supplied with electrode holder and cable, plus Earth cable and clamp accessories.
Browse for more high-quality welding machines and accessories.
Ø 1.6mm to Ø 3.2mm electrode diameter 20A to 140A output current; 140A @ 20% duty cycle Lightweight and compact design for simple portability Scratch-TIG start function and anti-stick circuitry On-demand cooling for longer runtimes and performance Generator-friendly for suitability in all environments Thermal overload protection for added safety Equipped with high-quality dinse sockets
– 230v (13A) input supply
– 20A – 140A output current; 140A @ 20% duty cycle
– 1.5mm to 7mm approximate welding thickness
– 1.6mm to 3.2mm Diameter electrode diameter size
– Lightweight and compact design for high portability
– Scratch-TIG start function and anti-stick circuitry
– Generator-friendly; perfect in all applications
– On-demand cooling for added performance
– Supplied with electrode holder and cable, plus Earth cable and clamp accessories
– Integrated thermal overload protections
– Equipped with dinse sockets
• Scratch-TIG start function and anti-stick circuitry
• On-demand cooling for longer runtimes and performance
• Generator-friendly for suitability in all environments
• Thermal overload protection for added safety
Specification
| ITEM NO. | 05705 |
| Input Supply: | 230v (13A) |
| Output Current: | 20A - 140A |
| Output Voltage: | 20.8v - 25.6v |
| Duty Cycle: | 140A @ 20% 81A @ 60% 63A @ 100% |
| Electrode Diameter: | Ø 1.6mm - 3.2mm |
| Welding Thickness: | 1.5mm - 7mm |
| Open Circuit Voltage: | 68v |
| Power Factor: | 0.65 |
| Efficiency Level: | 85% |
| Protection Level: | IP21S |
| Insulation Class: | Class H |
| Net Weight: | 3.61kg |
| Gross Weight: | 3.80kg |
| Product Dimensions: | |
| Packaged Dimensions: | 310(H) x 410(W) x 210mm(D) |
