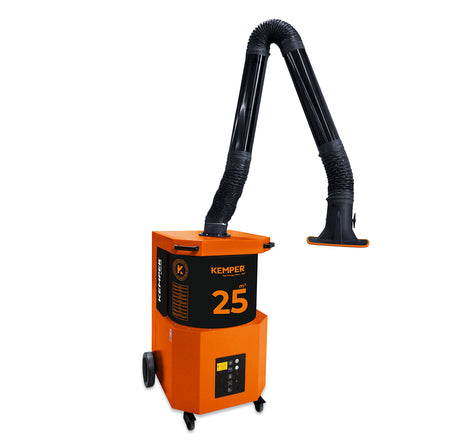

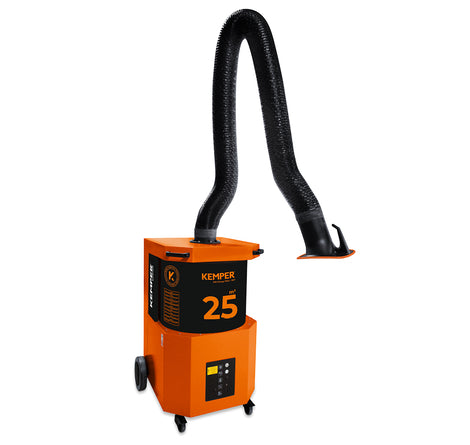

Compact welding fume extraction unit for regular use during welding
SmartFil is a mobile welding fume filtering unit for regular use in welding with medium amounts of fumes and dust. The disposable filter of the extraction unit has a particularly high filter surface of 25 m² and is changed completely contamination-free when saturated. SmartFil effectively protects the user from welding fumes and is particularly economical thanks to its long service life.
Applications - Suitable for all materials, including high-alloy steel Medium levels of smoke and dust Frequent use Alternating work places
Benefits - Exhaust arm requires less adjustment due to flow optimised exhaust hood design Increased safety due to filter monitoring Increased safety with safe filter change Very economic due to long lasting high capacity filters
Properties - 360 degrees rotating exhaust hood with damper 25m² filter surface Compact and solid design W3/IFA certified Exhaust arm 2-4 m
Accessories - Automatic start-stop Workplace lighting incl. on/off switch at the hood
Technical Data
Filter stages - 2
Filter method - Storage Filter
Filter surface - 25 m²
Type of filter - Safe Change Filter
Filter material - Cellulose with polyester nanofibre fleece
Filter efficiency - > 99.5 %
Filter class - E12
Additional filters - Pre-filter (aluminium)
Basic data
Extraction capacity - 1100 m³/h
Max. fan performance - 3000 m³/h
Weight - 131 kg
Motor power - 1.5 kW
Power supply - 3 x 400 V / 50 Hz
Rated current - 3.1 A
Control voltage - 24 V, DC
Noise level - 70 dB(A)
Additional information
IFA-Certification - W3-Approved
Fan type - Radial fan
Exhaust arm type - flexible exhaust arm
Length of exhaust arm - 2-4 m
