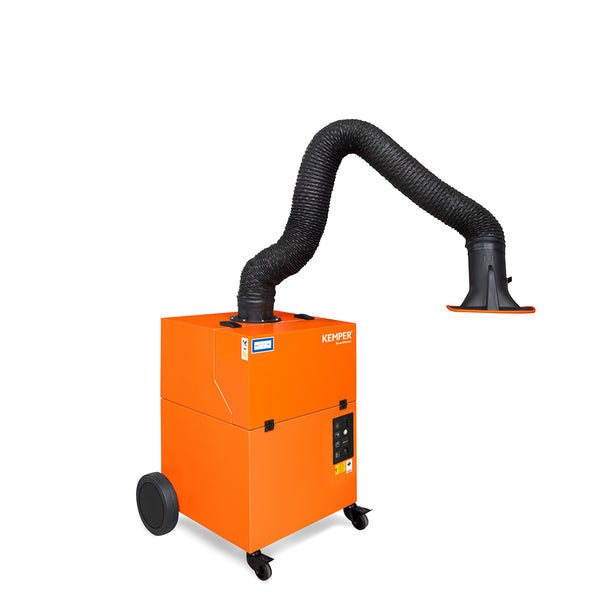

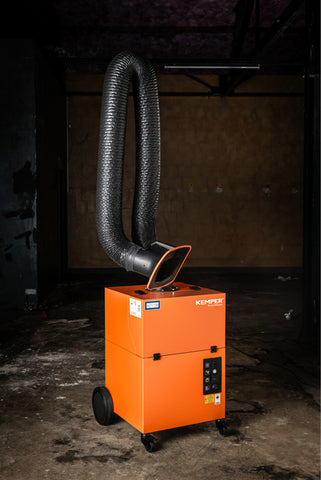

kemper SmartMaster Flexible Extraction Filter Unit, 2/3m Arm

Compact basic extraction filter unit for occasional use during welding

The basic mobile welding smoke extraction unit is designed for occasional use with low amounts of dust. The rotating and swivelling exhaust hood enables use in a 360-degree radius and ensures only few adjustments during welding. The basic device is suitable for welding high alloy steel due to its W3 approval.

• Suitable for all materials, including high-alloy steel
• Low amounts of Technical Data Filter Filter stages 3 Filter method Storage Filter Filter surface 13 m² Type of filter Filter cassette Filter material Non-woven fibre Filter efficiency > 99.5 % Filter class E12 Additional filters Two pre-filters Basic data Extraction capacity 950 m³/h Max. fan performance 2200 m³/h Maximum vacuum 1500 Pa Dimensions (w x t x h) 722 x 753 x 909 mm Weight 71 kg Motor power 1.1 kW Power supply 1 x 230 V / 50 Hz Rated current 6.7 A Control voltage 230 V, AC Noise level 72 dB(A) Additional information IFA-Certification W3-Approved Fan type Radial fan Quantity of extraction arms 1 Exhaust arm type flexible exhaust arm Diameter extraction arm 150 mm Length of exhaust arm 2 smoke/dust
• Occasional use
• Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
• Increased safety due to filter monitoring

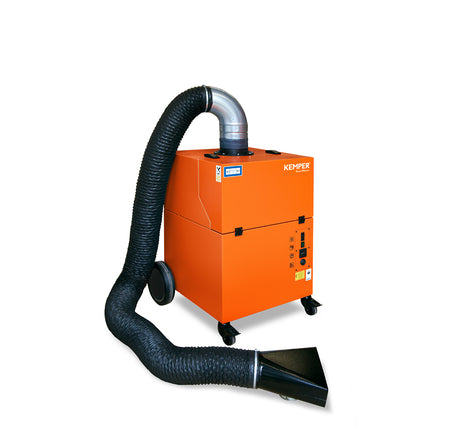

• Flexible use due to hose connection
• W3/IFA certified
• Exhaust arm 2, 3m
• Handle with cable holder
• Rotating exhaust hood
