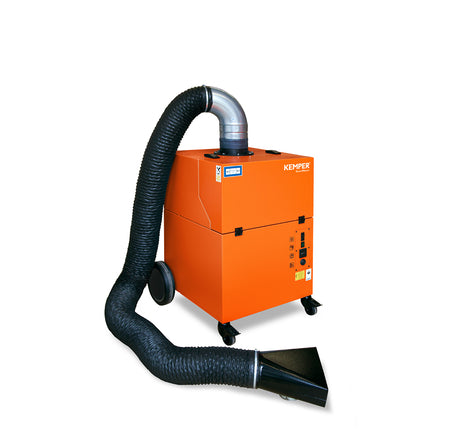

SmartMaster Welding Smoke Extraction Filter Unit 2 Meter Arm W3 Approved
The Kemper SmartMaster is a compact basic extraction filter unit for occasional use during welding
The basic mobile welding smoke extraction unit is designed for occasional use with low amounts of dust. The rotating and swivelling exhaust hood enables use in a 360-degree radius and ensures only few adjustments during welding. The basic device is suitable for welding high alloy steel due to its W3 approval.
Applications:
• Suitable for all materials, including high-alloy steel
• Low amounts of smoke/dust
• Occasional use
Benefits:
• Exhaust arm requires less adjustment due to flow optimised exhaust hood design
• Increased safety due to filter monitoring
• Flexible use due to hose connection
Properties:
• W3/IFA certified
• Exhaust arm 2 m
• Handle with cable holder
• Rotating exhaust hood
Technical Data:
Filter:
• Filter stages: 3
• Filter method: Storage Filter
• Filter surface: 13 m²
• Type of filter: Filter cassette
• Filter material: Non-woven fibre
• Filter efficiency: > 99.5 %
• Filter class: E12
• Additional filters: Two pre-filters
Basic data:
• Extraction capacity: 950 m³/h
• Maximum vacuum: 1500 Pa
• Weight: 71 kg
• Motor power: 1.1 kW
• Power supply: 1 x 230 V / 50 Hz
• Rated current: 6.7 A
• Control voltage: 230 V, AC
• Noise level: 72 dB(A)
Additional information:
• IFA-Certification: W3-Approved
• Fan type: Radial fan
• Quantity of extraction arms: 1
• Exhaust arm type: flexible exhaust arm
• Diameter extraction arm: 150 mm
• Length of exhaust arm: 2 m
Variants: Other Voltages
