Stealth Cobra Cut 60-1 CNC/Hand Plasma Cutting Machine 230v – (25mm Clean Cut).
The Cobra by Stealth Cut 60-1 CNC Plasma Cutting Machine delivers exceptional performance with an optimal production cutting thickness of up to ≤25mm for carbon steel, and stainless steel, up to ≤20mm for aluminium, and ≤14mm for Cuprum making it a versatile tool for various materials.
Efficiently cut through any material with the Cobra by Stealth Cut 60-1 CNC Plasma Cutting Machine. Featuring 3 cutting modes and a 2.8 inch LCD display, this machine offers precise and customizable cuts. With real time air pressure monitoring and a 3-proof design for moisture, salt spray, and corrosion, achieve top-notch results with an impressive 88.7% efficiency rating.
*5 YEAR WARRANTY*
- Lightweight
- Auto over voltage, over temperature, and over current protection

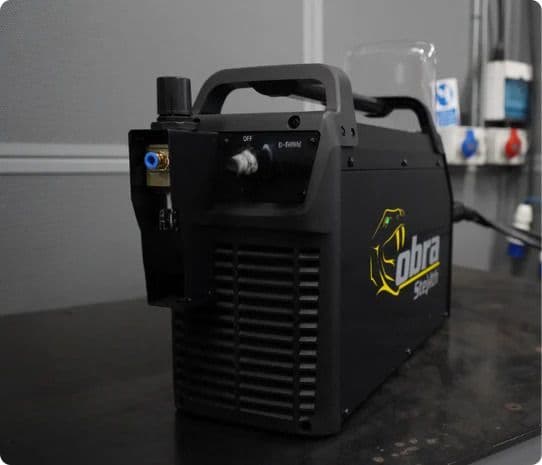

- Includes air pressure regulator
- Contact arc striking

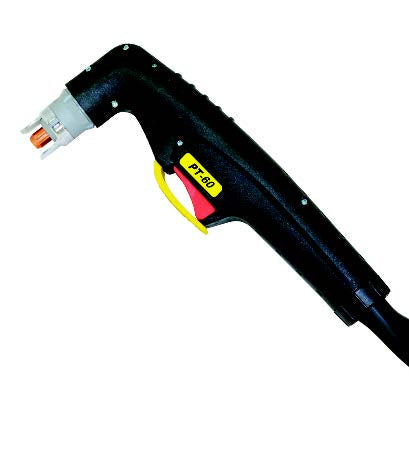

- PC7100H Plasma torch included
- Generator friendly
- 5 Year Warranty
Features

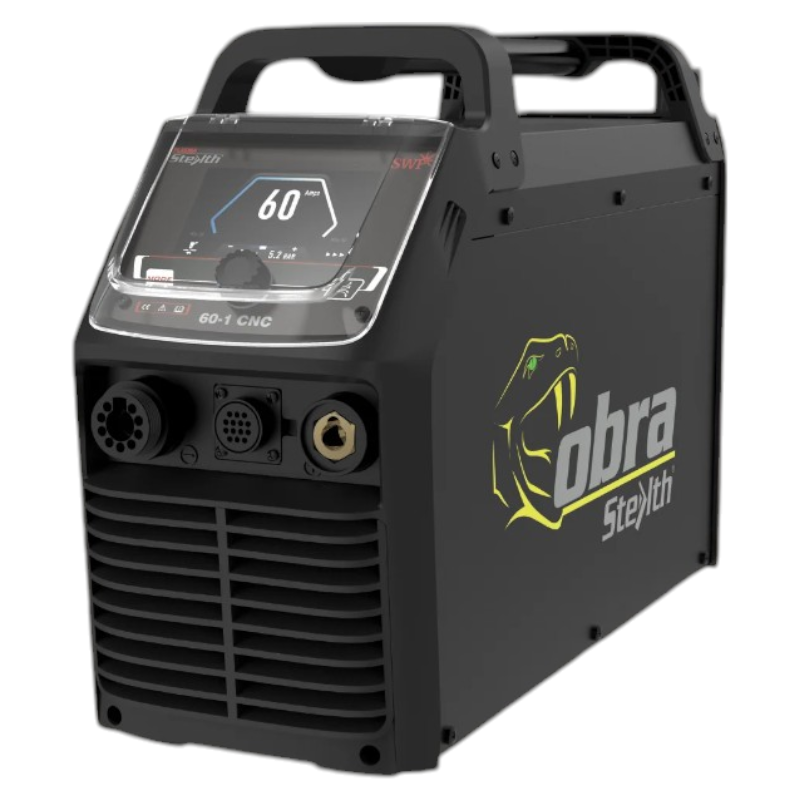

- Precision 2.8 inch LCD screen
- Seamless CNC integration
- Non high frequency start for interference free operation
- Back striking tip and electrode for enhanced performance
- EMI filter
- Pilot arc controller
Technical
| Input power voltage (V) | 230 +- 10% |
| Frequency (Hz) | 50/60 |
| Effective input current (A) | 48 |
| Current adjustment range (A) | 20-60 |
| Maximum no-load voltage (V) | 348 |
| Duty cycle (A) (40°C 10min) | 100% @ 60 |
| Severance cut for carbon steel (mm) | 35 |
| Production cut for carbon steel (mm) | 25 |
| Stainless steel (mm) | 25 |
| Aluminium (mm) | 20 |
| Copper (mm) | 14 |
| Air operating pressure (psi) | 50-90 (3.5-6bar) |
| Air operating low | 160 |
| Protection class (l/min) | IP21S |
| Insulation class | F |
| Cooling | air |
| Overall dimensions (mm) | 550x 190x 360 |
| Weight (kg) | 14 |
| Accessories included | 3m earth lead,3m gas hose, PC7100H torch |
