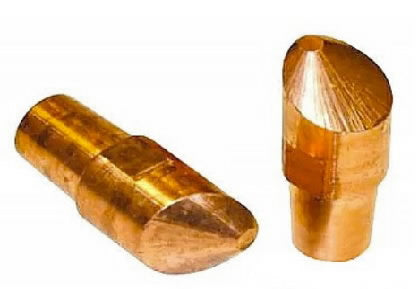

Tecna 3622 Electrodes Angled c/w Offset Tip 14.8mm (pair)
Electrodes 3622 - with a displaced contact surface with water cooling for resistance welding.
Electrode landing cone Ø14.8 mm, length 43 mm.
The 3622 electrode is designed for use in TECNA stationary resistance welding machines.
Electrodes for resistance welding not only close the electrical circuit, but also serve to remove heat from the welded joint, transmit mechanical load. As a result of use, TECNA 3622 electrodes guarantee the preservation of design parameters for a long time and provide high power of equipment operation.
The electrode is made of chromium-zirconium bronze (CuCrZr) in compliance with all the necessary quality standards, technical and geometric parameters of products of this type. This significantly increases its reliability and durability.
